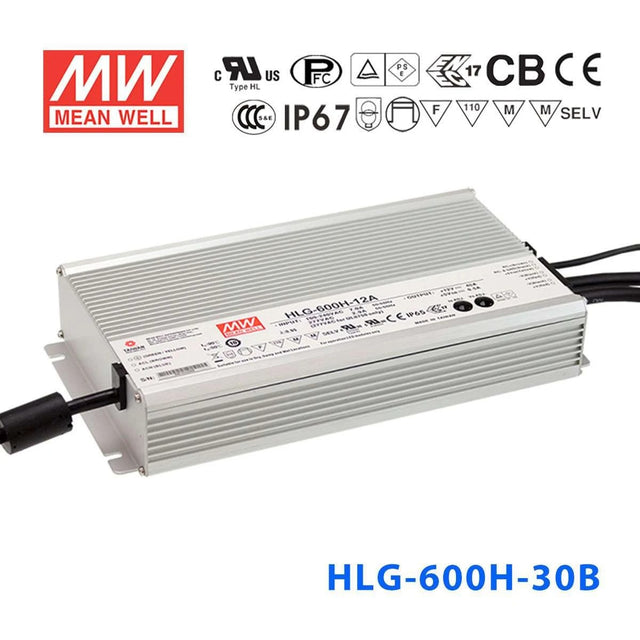

Mean Well HLG-600H-30B Power Supply 600W 30V- Dimmable
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage30 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-30B to power 30V LED strip lighting in an outdoor sign cabinet?
Yes. The HLG-600H-30B provides 600W at 30V with up to 20A and carries an IP67 waterproof rating, making it ideal for outdoor sign cabinets where the driver may be exposed to rain, humidity, or condensation. Its aluminium casing and -40°C to +90°C operating range handle harsh weather conditions.
Is the HLG-600H-30B suitable for dimming large 30V LED installations?
Yes. The B suffix means the driver accepts an external dimming signal (1-10V, PWM, or resistance) while providing a full 600W at 30V. This makes it a strong choice for landscape lighting, building facades, or parking lot luminaires where brightness needs to be adjusted remotely or on a schedule.
Can I use the HLG-600H-30B to drive 30V LED flood lights for outdoor sports or area lighting?
Yes. At 600W and 30V, the HLG-600H-30B can power high-wattage 30V LED flood light arrays. Its IP67 rating means it can withstand direct rain and temporary water immersion, so it can be mounted outdoors near the fixtures without a separate weatherproof enclosure.
How many meters of 30V LED strip can the HLG-600H-30B handle?
Divide 600W by your strip's rated power per meter. For a strip consuming 20W/m, you could run up to 30 meters (600W / 20W per meter = 30m). Always verify your strip's rated power per meter and keep the total load at or below 600W for reliable operation.
Can the HLG-600H-30B withstand direct rain and hose-down conditions?
Yes. Its IP67 waterproof rating means the enclosure is protected against temporary immersion in water up to 1 meter and can handle direct rain, splashing, and hose-down cleaning. The operating temperature range of -40°C to +90°C adds further durability in extreme climates.
