Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

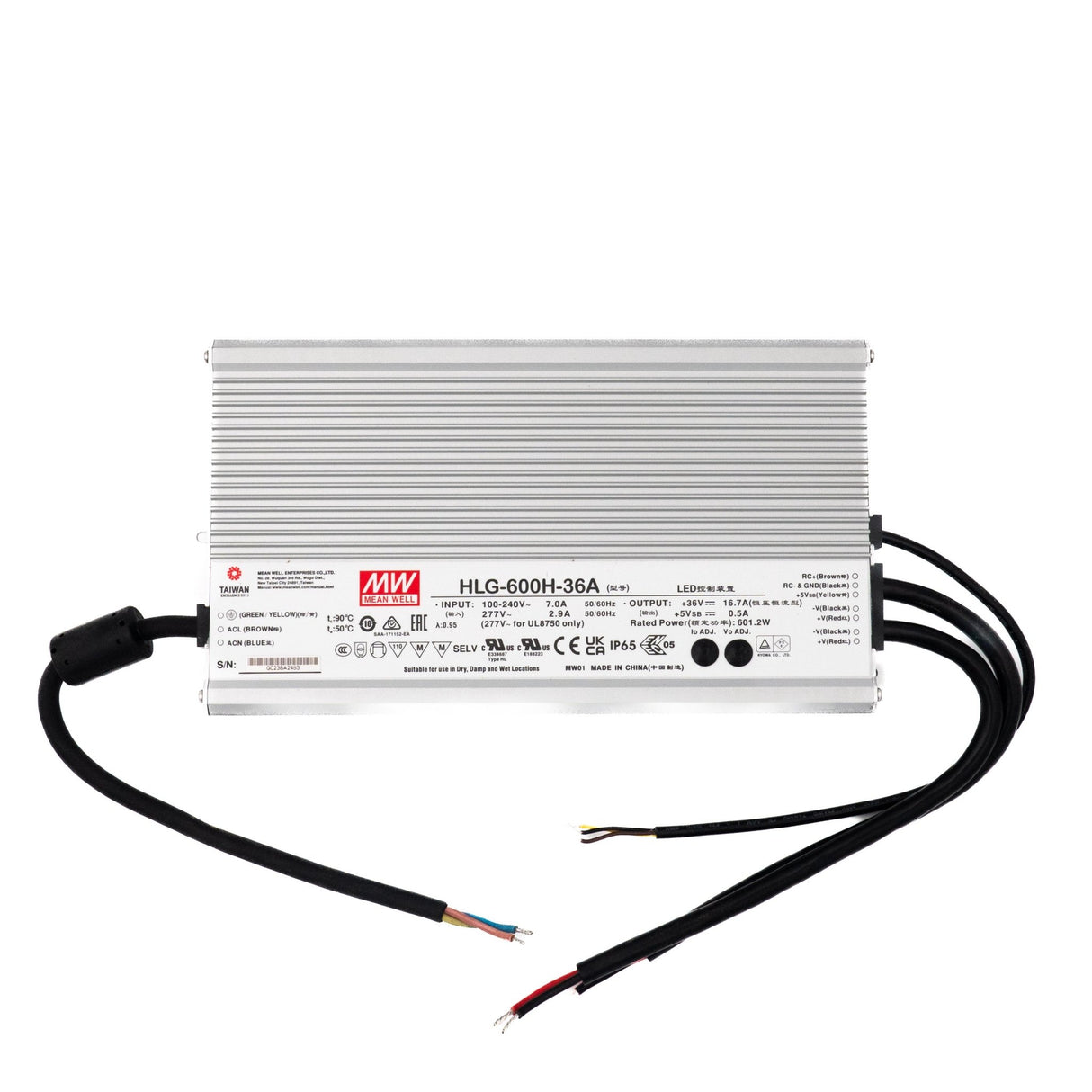

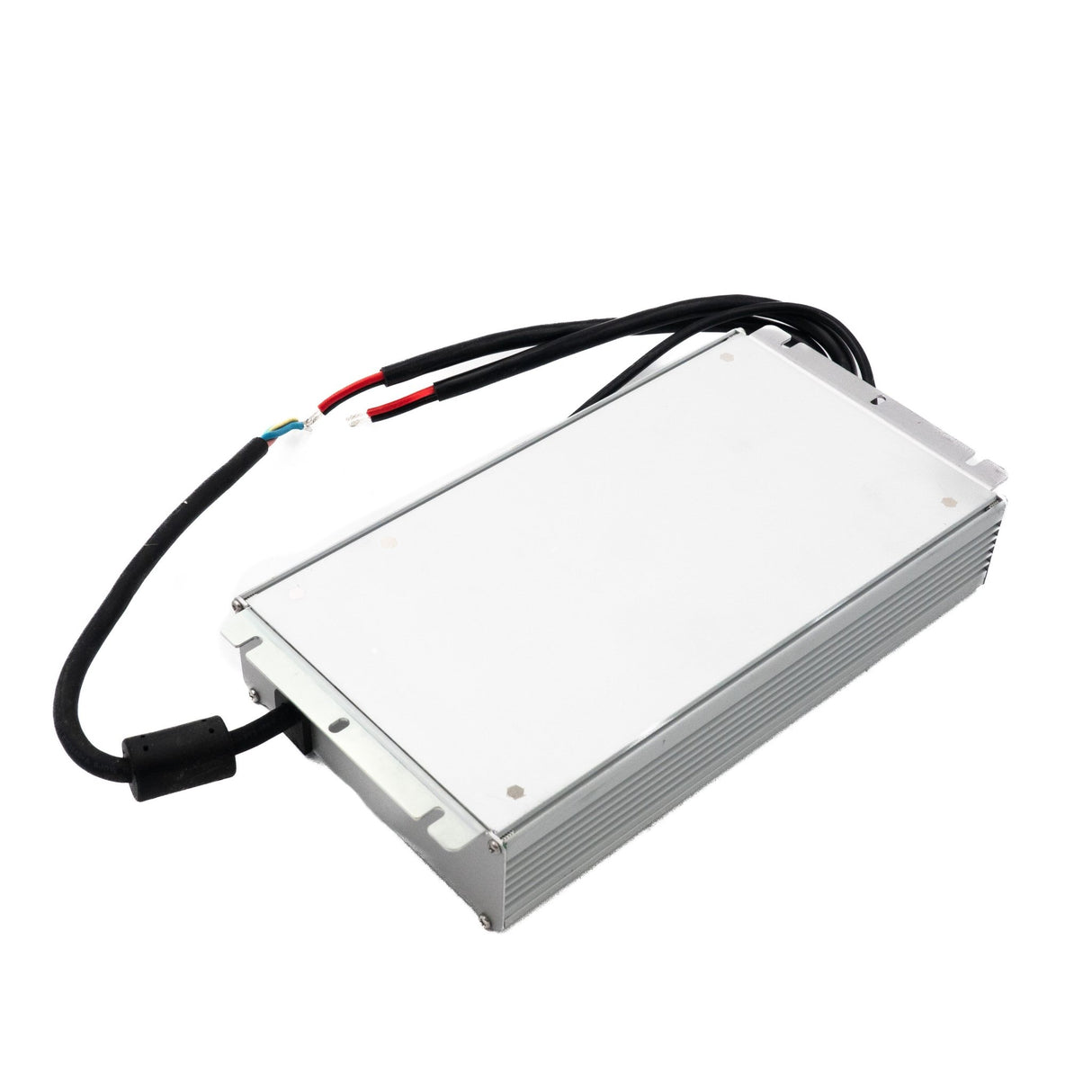

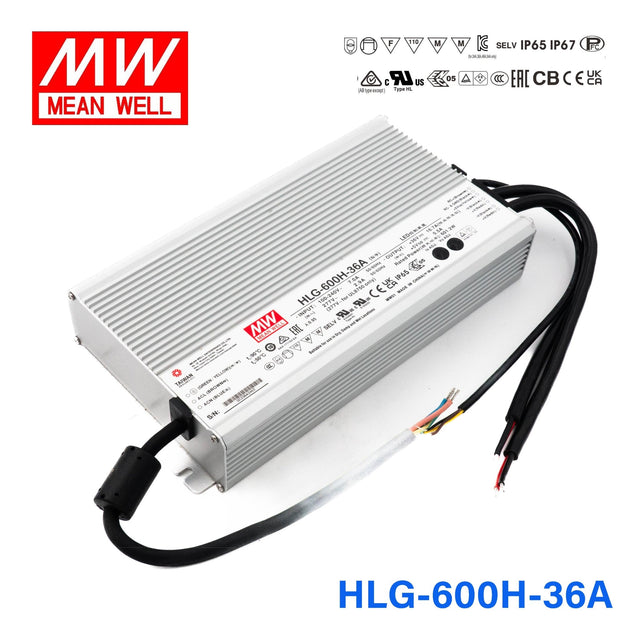

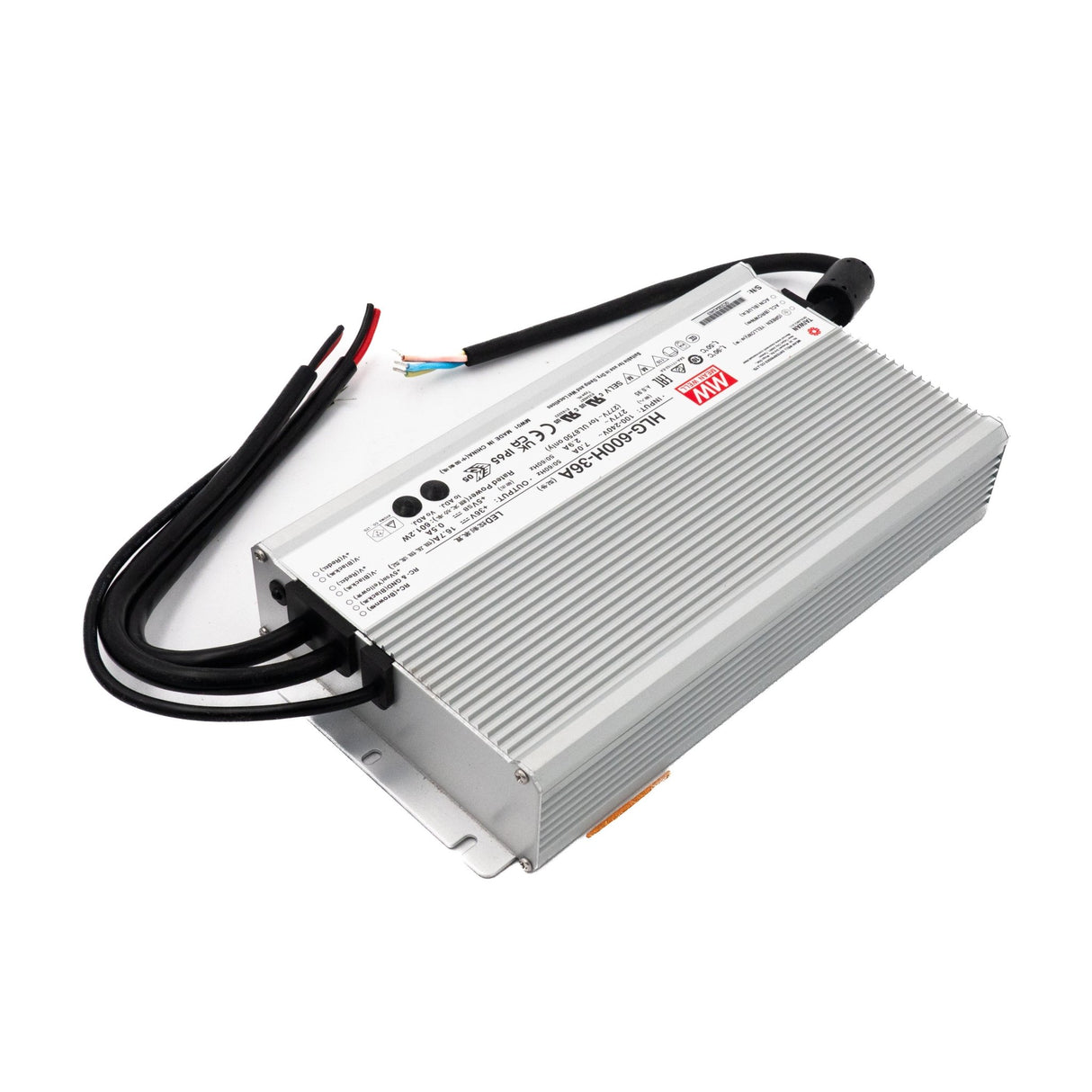

Mean Well HLG-600H-36A Power Supply 600W 36V - Adjustable
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage36 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-36A to fine-tune the output for 36V LED panel arrays?
Yes. The A suffix means the HLG-600H-36A includes a built-in potentiometer for adjusting output voltage and current. This lets you match the driver precisely to your 36V LED panels' actual operating point, which is helpful when multiple panel types or string configurations need slightly different drive levels.
Is the HLG-600H-36A a good choice for powering 36V commercial signage?
Yes. With 600W at 36V and adjustable output, it can power large 36V LED sign modules, channel letters, or light boxes. The potentiometer lets you trim voltage to match the exact string voltage of your sign modules for optimal brightness and longevity.
Can the HLG-600H-36A drive 36V LED strips for retail display lighting?
Yes. At 600W and 36V with up to 16.7A, it can handle substantial LED strip loads for retail showcases, shelf lighting, or accent illumination. The adjustable output is useful for setting the exact brightness level during commissioning without needing a separate dimmer.
How many meters of 36V LED strip can the HLG-600H-36A support?
Divide 600W by your strip's power draw per meter. A strip rated at 24W/m would allow up to 25 meters (600W / 24W per meter = 25m). Always verify your strip's rated power per meter and keep total consumption at or below 600W.
Is the HLG-600H-36A suitable for damp or semi-exposed environments?
Yes. Its IP65 water-resistant rating protects against low-pressure water jets and dust ingress, making it appropriate for covered outdoor areas, parking garages, wash-down environments, and damp indoor locations. For direct rain exposure or submersion risk, the IP67-rated HLG-600H-36 or HLG-600H-36B would be more suitable.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-600H Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable | 600W | 24V | 25A | IP67 | $197.89 | View |
| Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable | 600W | 48V | 12.5A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable | 480W | 12V | 40A | IP65 | $194.30 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | $191.85 | View |
| Mean Well HLG-600H-24 Power Supply 600W 24V | 600W | 24V | 25A | IP67 | $199.50 | View |
| Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable | 600W | 54V | 11.2A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24AB Power Supply 600W 24V - Adjustable and Dimmable | 600W | 24V | 25A | IP65 | $208.15 | View |
| Mean Well HLG-600H-12 Power Supply 480W 12V | 480W | 12V | 40A | IP67 | $199.50 | View |
| Mean Well HLG-600H-36 Power Supply 600W 36V | 600W | 36V | 16.7A | IP67 | $208.99 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable | 480W | 12V | 40A | IP67 | $197.89 | View |
