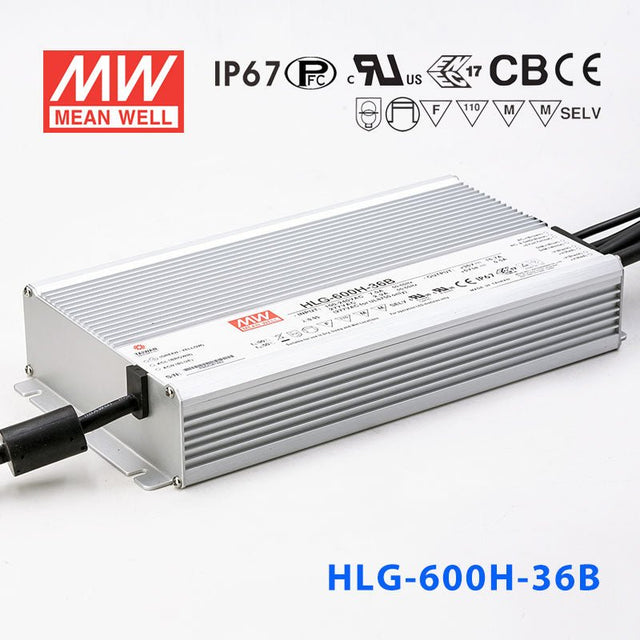

Mean Well HLG-600H-36AB Power Supply 600W 36V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-36AB Power Supply 600W 36V - Adjustable and Dimm...
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage36 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-36AB for dimmable 36V LED architectural lighting?
Yes. The AB suffix means the driver provides both output adjustment via potentiometer and external dimming via 1-10V, PWM, or resistance signals. At 600W and 36V, it is well suited for large-scale architectural cove, facade, or canopy lighting where smooth, controllable brightness is required.
Is the HLG-600H-36AB suitable for 36V LED grow light setups that need dimming?
Yes. The HLG-600H-36AB delivers 600W at 36V with a CC voltage range of 18-36V, compatible with many 36V horticulture LED panels. The dimming input lets you adjust light intensity for different growth stages, and the potentiometer allows baseline output tuning during initial setup.
Can I integrate the HLG-600H-36AB into a building management system for 36V LED lighting?
Yes. The 1-10V and PWM dimming inputs can connect directly to most building management system (BMS) analog or digital outputs. This allows centralized brightness scheduling and zone control for 36V LED lighting across a commercial building, campus, or facility.
How many meters of 36V LED strip can the HLG-600H-36AB drive?
Divide 600W by the strip's wattage per meter. For instance, a 36V strip at 18W/m would allow about 33 meters (600W / 18W per meter = 33.3m). Always check your strip's rated power per meter and ensure the total load stays at or below 600W.
Can the HLG-600H-36AB be used in a covered but humid outdoor environment?
Yes. The IP65 water-resistant rating handles dust and low-pressure water jets, so covered outdoor areas with high humidity such as pool enclosures, canopies, or coastal covered walkways are within its capability. For installations exposed to direct rain, consider the IP67-rated HLG-600H-36B.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-600H Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable | 600W | 24V | 25A | IP67 | $197.89 | View |
| Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable | 600W | 48V | 12.5A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable | 480W | 12V | 40A | IP65 | $194.30 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | $191.85 | View |
| Mean Well HLG-600H-24 Power Supply 600W 24V | 600W | 24V | 25A | IP67 | $199.50 | View |
| Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable | 600W | 54V | 11.2A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24AB Power Supply 600W 24V - Adjustable and Dimmable | 600W | 24V | 25A | IP65 | $208.15 | View |
| Mean Well HLG-600H-12 Power Supply 480W 12V | 480W | 12V | 40A | IP67 | $199.50 | View |
| Mean Well HLG-600H-36 Power Supply 600W 36V | 600W | 36V | 16.7A | IP67 | $208.99 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable | 480W | 12V | 40A | IP67 | $197.89 | View |
