Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

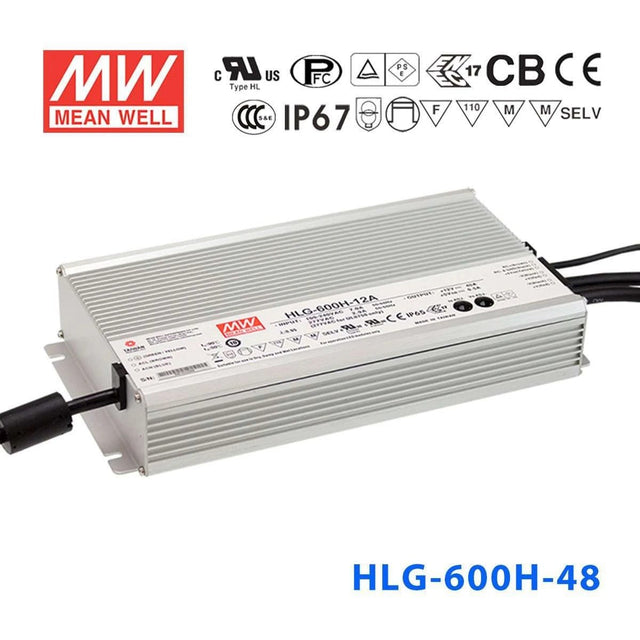

Mean Well HLG-600H-48 Power Supply 600W 48V
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current12.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-48 to power large 48V LED strip installations?
Yes. The HLG-600H-48 outputs 600W at 48V and 12.5A, making it capable of driving long runs of 48V LED strip. For a strip rated at 15W/m, you could power up to 40 meters (600W / 15W per meter = 40m). Always check your strip's rated power per meter and keep total load at or below 600W.
Is the HLG-600H-48 a good fit for 48V LED high-bay warehouse lighting?
Yes. With 600W of capacity at 48V, it can power multiple 48V LED high-bay fixtures. The 48V output keeps cable currents lower than 24V alternatives, which reduces voltage drop over long cable runs in large warehouse spaces. Its IP67 rating also suits industrial environments with dust and moisture.
Can the HLG-600H-48 drive 48V LED modules for outdoor commercial signage?
Yes. At 600W and 48V it has enough capacity for large LED sign arrays. The IP67 waterproof rating and wide 90-305VAC input make it well suited for outdoor signs exposed to weather and varying mains voltages across different regions.
Is the HLG-600H-48 suitable for powering 48V LED landscape or pathway lighting?
Yes. Its 600W output can supply a substantial number of 48V landscape fixtures, and the IP67 waterproof rating handles direct ground-level rain and moisture exposure. The -40°C to +90°C operating range covers most climates year-round.
How many meters of 48V LED strip can the HLG-600H-48 handle?
Divide 600W by your strip's power consumption per meter. For example, a 48V strip rated at 10W/m allows up to 60 meters (600W / 10W per meter = 60m). A strip rated at 24W/m would allow 25 meters. Check your strip's rated power per meter and keep total load at or below 600W.
Can I install the HLG-600H-48 in a location fully exposed to rain and weather?
Yes. The IP67 waterproof rating means it can withstand temporary submersion up to 1 meter and is fully protected against dust ingress. Combined with its -40°C to +90°C operating range and aluminium casing, it is designed for direct outdoor exposure without additional enclosures.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-600H Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable | 600W | 24V | 25A | IP67 | $197.89 | View |
| Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable | 600W | 48V | 12.5A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable | 480W | 12V | 40A | IP65 | $194.30 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | $191.85 | View |
| Mean Well HLG-600H-24 Power Supply 600W 24V | 600W | 24V | 25A | IP67 | $199.50 | View |
| Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable | 600W | 54V | 11.2A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24AB Power Supply 600W 24V - Adjustable and Dimmable | 600W | 24V | 25A | IP65 | $208.15 | View |
| Mean Well HLG-600H-12 Power Supply 480W 12V | 480W | 12V | 40A | IP67 | $199.50 | View |
| Mean Well HLG-600H-36 Power Supply 600W 36V | 600W | 36V | 16.7A | IP67 | $208.99 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable | 480W | 12V | 40A | IP67 | $197.89 | View |
