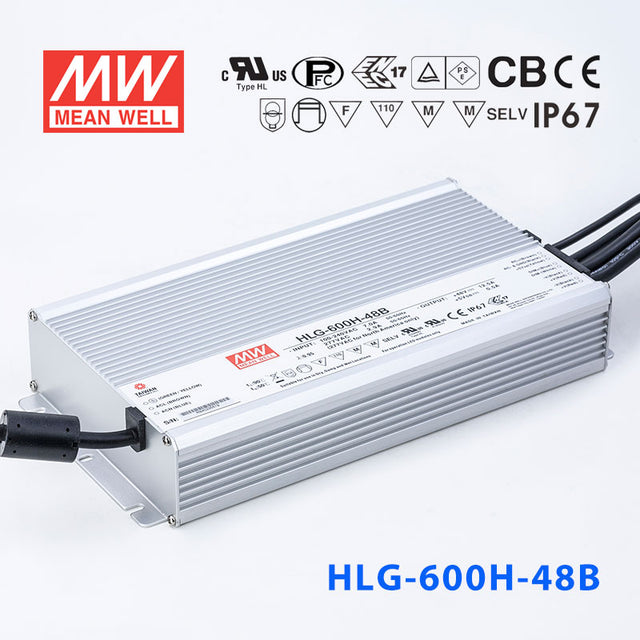

Mean Well HLG-600H-48AB Power Supply 600W 48V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-48AB Power Supply 600W 48V - Adjustable and Dimm...
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current12.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-48AB for a 48V LED lighting system with smart dimming control?
Yes. The AB suffix means it has both a potentiometer for voltage/current adjustment and a dimming interface accepting 1-10V, PWM, or resistance signals. This makes it ideal for 48V LED systems connected to smart home controllers, building management systems, or timer-based dimmers.
Is the HLG-600H-48AB suitable for powering 48V architectural LED lighting indoors?
Yes. At 600W and 48V, it can drive large-scale indoor architectural lighting such as cove lighting, wall washers, or linear LED fixtures. The adjustable output and dimming input give full control over brightness and color temperature if using tunable-white 48V fixtures.
Can the HLG-600H-48AB power 48V LED strip for a commercial retail environment?
Yes. With 600W of output at 48V and 12.5A, it handles substantial LED strip loads for retail displays, shelving accents, or ceiling perimeter lighting. The dimming input allows scheduled brightness changes for store hours versus after-hours operation, and the potentiometer lets you set the baseline output precisely.
Will the HLG-600H-48AB work with a 0-10V dimming system?
Yes. The dimming input on the AB model accepts 1-10V analog signals, which is compatible with most 0-10V dimmers when the signal is within the 1-10V active range. It also accepts PWM and resistance dimming signals, giving flexibility across different control systems.
How many meters of 48V LED strip can the HLG-600H-48AB drive?
Divide 600W by your strip's wattage per meter. For a 48V strip rated at 14.4W/m, you could run about 41 meters (600W / 14.4W per meter ≈ 41.7m). For a strip at 24W/m, that drops to 25 meters. Always check your strip's rated power per meter and keep total load at or below 600W.
Is the HLG-600H-48AB weather-resistant enough for a covered patio installation?
Yes. Its IP65 rating protects against dust and low-pressure water jets, which is sufficient for covered patios, pergolas, and similar sheltered outdoor spaces. For locations with direct heavy rain exposure or risk of standing water, the IP67-rated HLG-600H-48 or 48B would be a better choice.
What are the differences between the HLG-600H-48, 48A, 48AB, and 48B?
All four share the same 600W / 48V / 12.5A core specs. The base HLG-600H-48 has fixed output and IP67 waterproof rating. The -48A adds output voltage/current adjustment via potentiometer (IP65). The -48AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -48B provides dimming input only and retains IP67 waterproof rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-600H Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable | 600W | 24V | 25A | IP67 | $197.89 | View |
| Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable | 600W | 48V | 12.5A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable | 480W | 12V | 40A | IP65 | $194.30 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | $191.85 | View |
| Mean Well HLG-600H-24 Power Supply 600W 24V | 600W | 24V | 25A | IP67 | $199.50 | View |
| Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable | 600W | 54V | 11.2A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24AB Power Supply 600W 24V - Adjustable and Dimmable | 600W | 24V | 25A | IP65 | $208.15 | View |
| Mean Well HLG-600H-12 Power Supply 480W 12V | 480W | 12V | 40A | IP67 | $199.50 | View |
| Mean Well HLG-600H-36 Power Supply 600W 36V | 600W | 36V | 16.7A | IP67 | $208.99 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable | 480W | 12V | 40A | IP67 | $197.89 | View |
