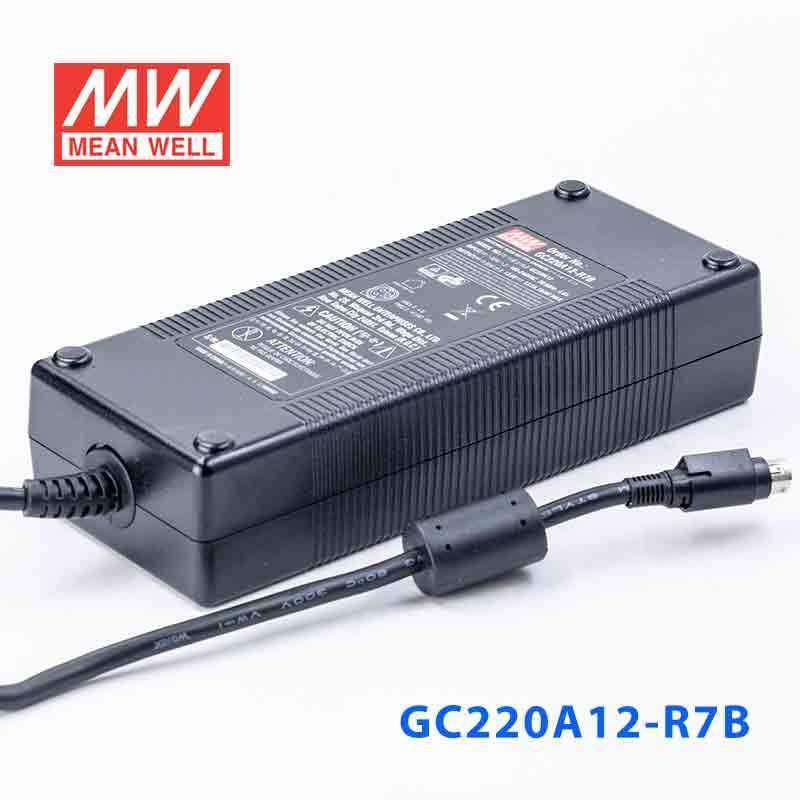

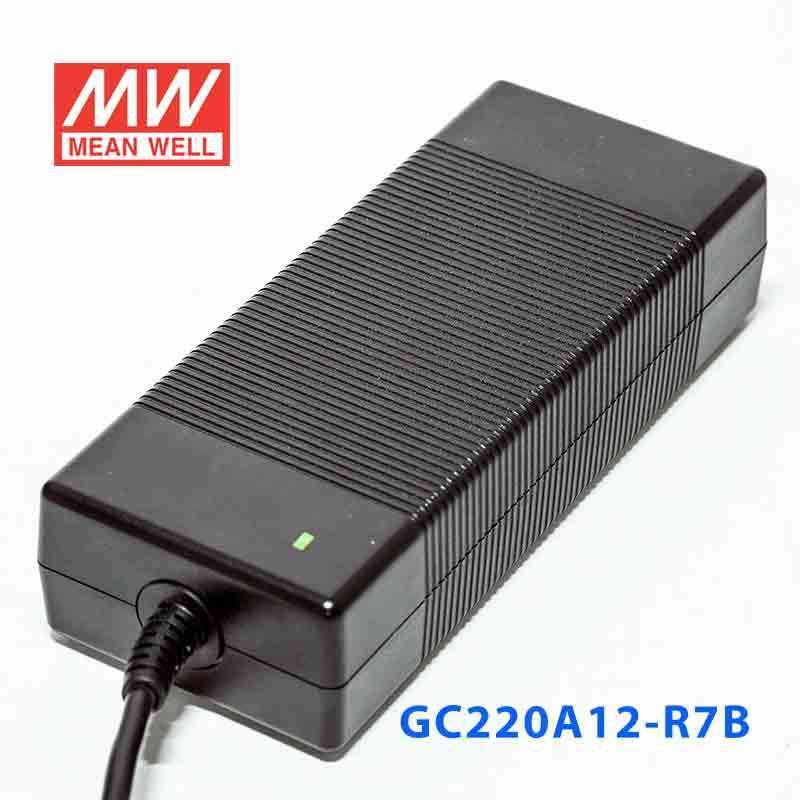

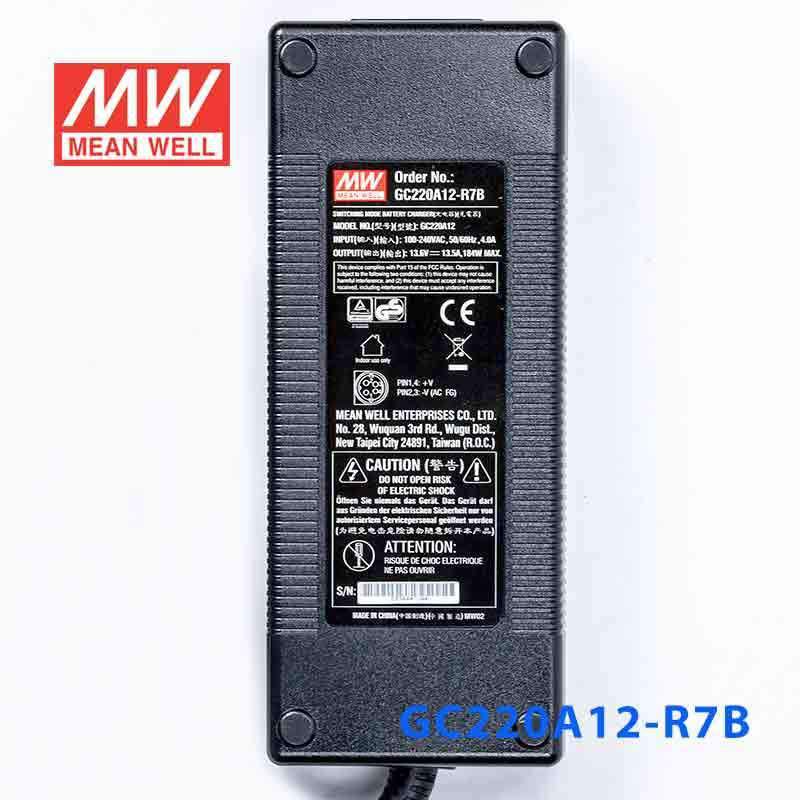

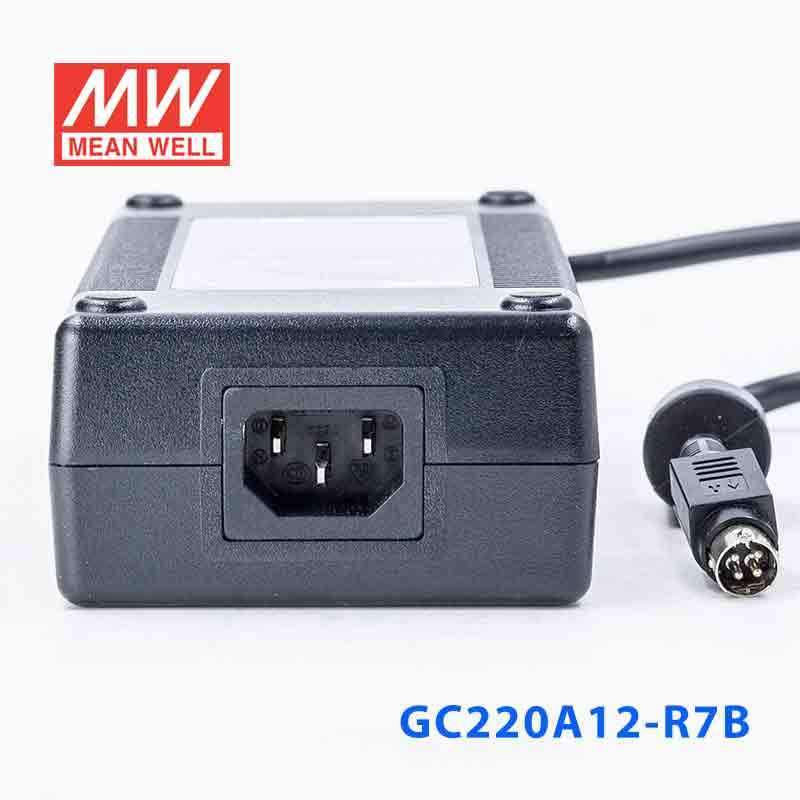

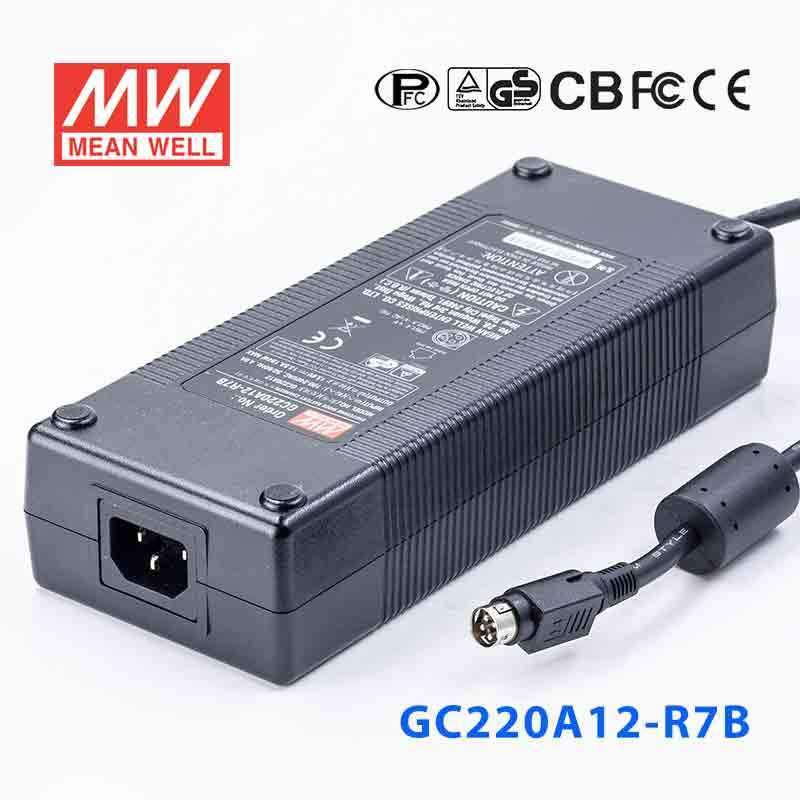

Mean Well GC220A12-R7B Portable Chargers 183.6W 13.6V 13.5A - Green...
The GC220A12 is a 220W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating183.6 Watt
-
Output Voltage13.6 Volt
-
Rated Current13.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well GC220A12-R7B?
This model is rated for 183.6W output. It provides 13.6V DC at up to 13.5A, making it suitable for applications that require a high-current 13.6V portable charger or power supply.
What type of applications is the GC220A12-R7B designed for?
The GC220A12-R7B is designed for portable charging and AC-DC power supply use in professional and industrial environments. Its 13.6V output, 2-stage charging characteristic, and locking Power DIN 4P output plug make it relevant for equipment that needs a dedicated portable charger in this voltage class.
Can the GC220A12-R7B operate in demanding temperature conditions?
Yes. This model has a working temperature range of -30°C to +60°C, subject to the derating curve. That makes it a practical option for environments with both low and elevated ambient temperatures.
What input range and efficiency does this charger support?
The GC220A12-R7B accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. It offers efficiency up to 93.5% and has no-load power consumption below 1W.
What protections are included in the Mean Well GC220A12-R7B?
This model includes protection for short circuit, overload, over voltage, and over temperature. Overload protection operates at 90 to 110% constant current with auto-recovery, while over-voltage protection shuts down the output and recovers after re-powering.
How can buyers identify compatibility for the GC220A12-R7B output side?
This version uses a standard Power DIN 4P locking DC plug identified as R7B. Buyers should confirm that their equipment is designed for a 13.6V DC charger or power supply and matches the R7B locking plug format.
