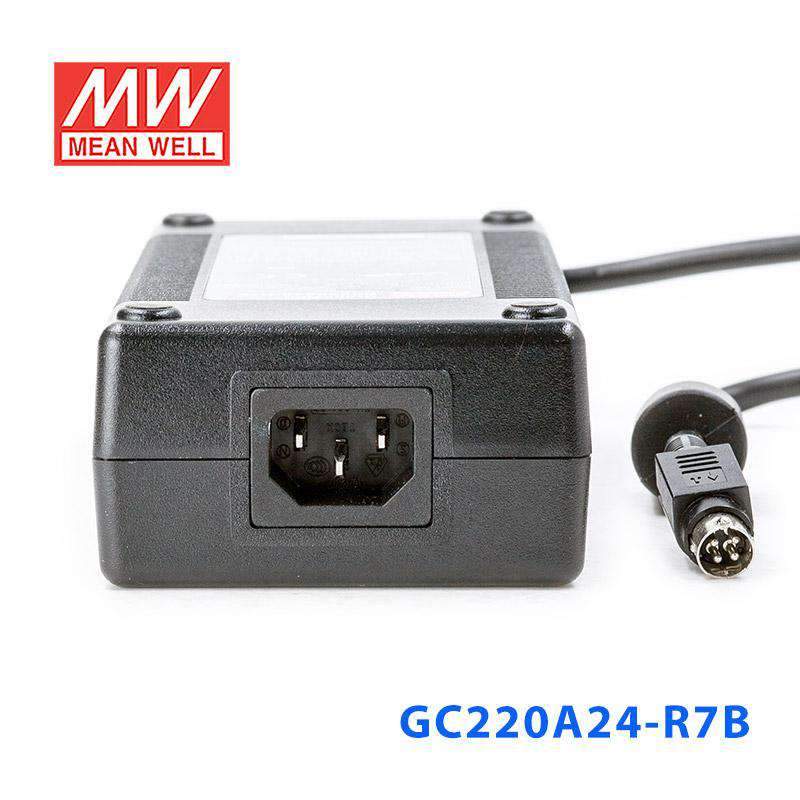

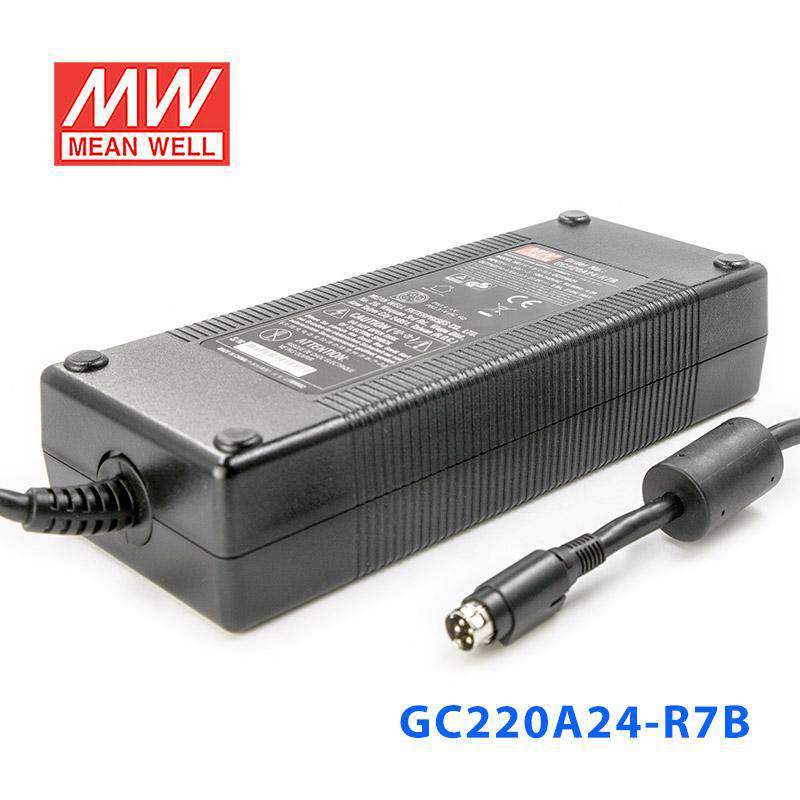

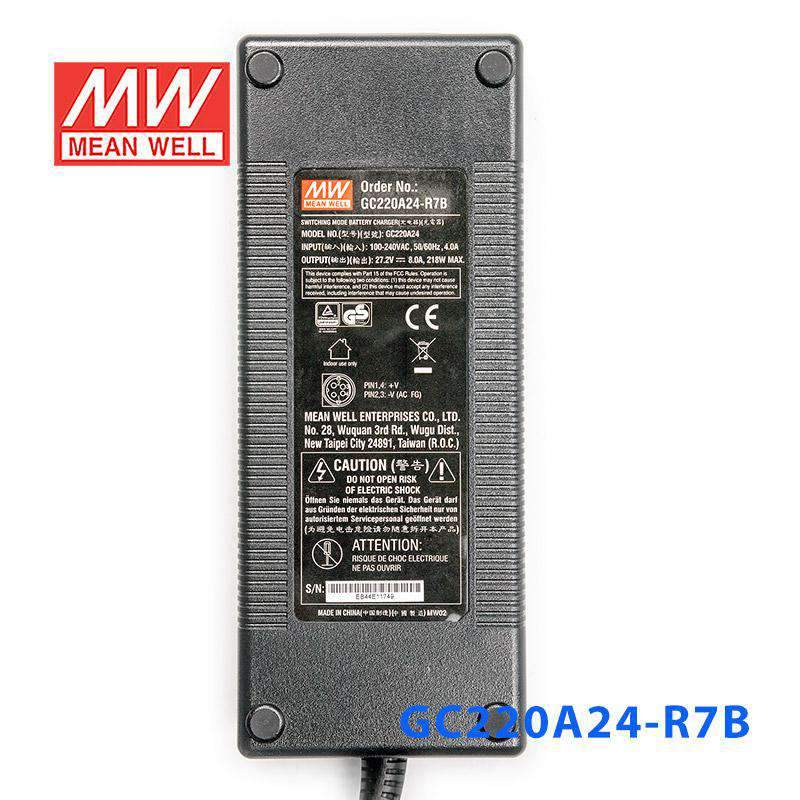

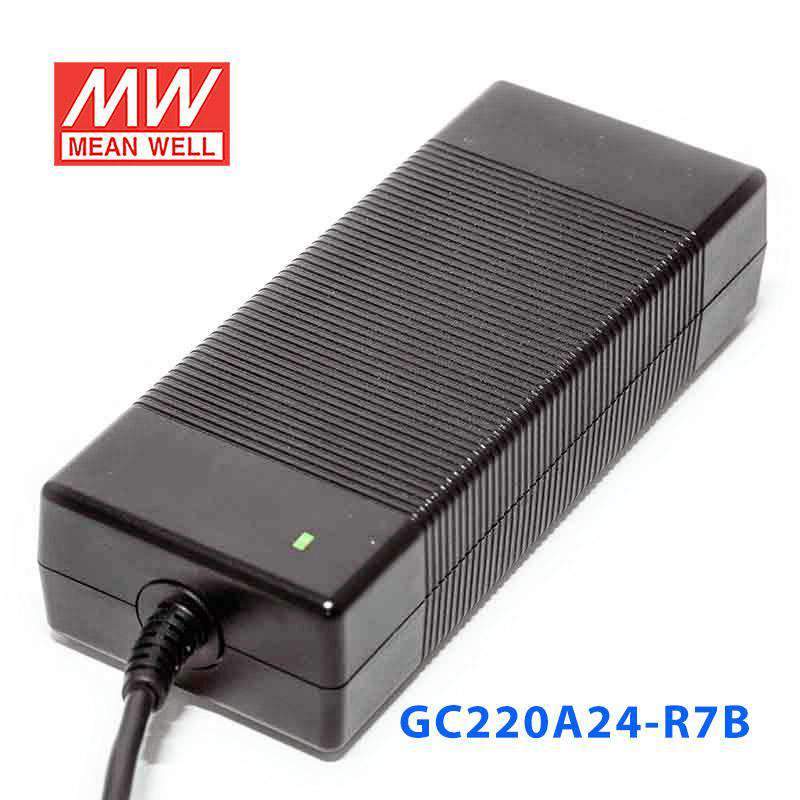

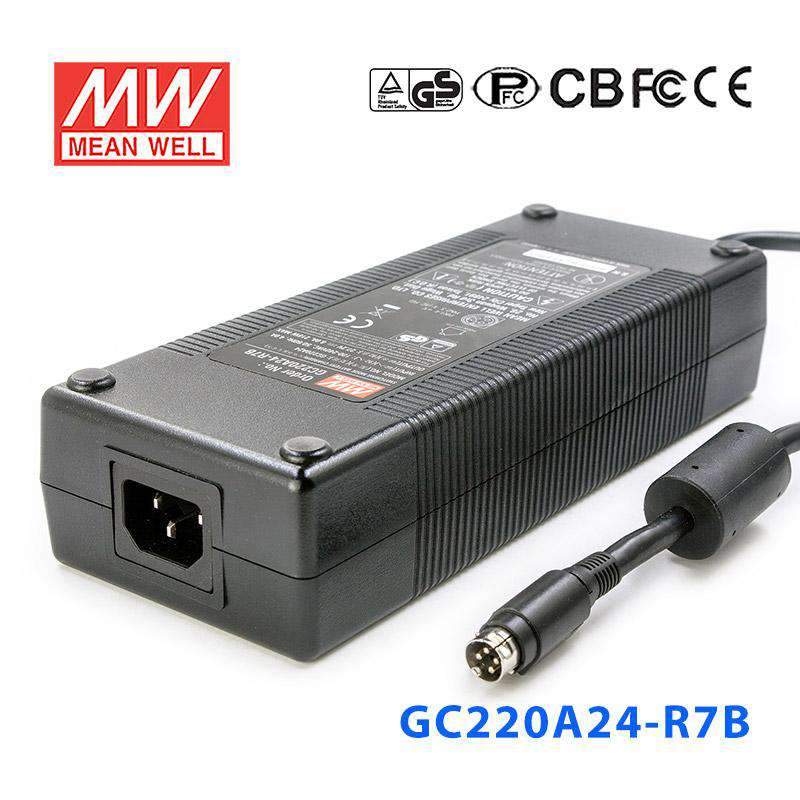

Mean Well GC220A24-R7B Portable Chargers 217.6W 27.2V 8A - Green Ad...
The GC220A24 is a 220W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating217.6 Watt
-
Output Voltage27.2 Volt
-
Rated Current8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well GC220A24-R7B?
The GC220A24-R7B is rated for 217.6W output. It provides 27.2V DC at 8A, which makes it suitable for applications that need a higher-power portable charger in this voltage range. This model is part of Mean Well's GC220A series.
What type of applications is the GC220A24-R7B designed for?
This model is intended for portable charging and AC-DC power supply use where a 27.2V, 8A output is required. Its 2-stage charging characteristic and portable enclosed adapter style make it relevant for battery charging applications. Buyers typically choose it when they need a compact external charger rather than an open-frame power supply.
What input voltage range does the GC220A24-R7B support?
The GC220A24-R7B accepts a universal AC input range of 90 to 264VAC. It also supports 127 to 370VDC input. This wide input range helps it fit different mains power environments without requiring a separate input version.
Can the GC220A24-R7B be used in demanding temperature conditions?
This charger is specified for operation from -30°C to +60°C, subject to the product's derating curve. That gives it a relatively broad working temperature range for industrial and commercial environments. Buyers should still confirm the operating conditions stay within the stated specification.
What protection features are included in the GC220A24-R7B?
The GC220A24-R7B includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection is specified at 90 to 110% constant current with auto-recovery. Over-voltage protection shuts down the output and requires re-powering to recover.
How efficient is the Mean Well GC220A24-R7B?
This model offers efficiency up to 93.5%. It also has no-load power consumption below 1W. Those figures can help reduce wasted energy compared with less efficient charger designs.
How does the GC220A24-R7B indicate charging status?
The unit uses a 2-color LED indicator to show charging status. This gives a quick visual reference during operation without adding extra display hardware. It is a standard built-in feature of this model.
What physical format and warranty does the GC220A24-R7B offer?
The GC220A24-R7B comes in a fully enclosed plastic case and measures 210 x 85 x 46 mm. It weighs 1.1 kg and is designed as a portable adapter-style charger. Mean Well specifies this model with a 2-year warranty.
