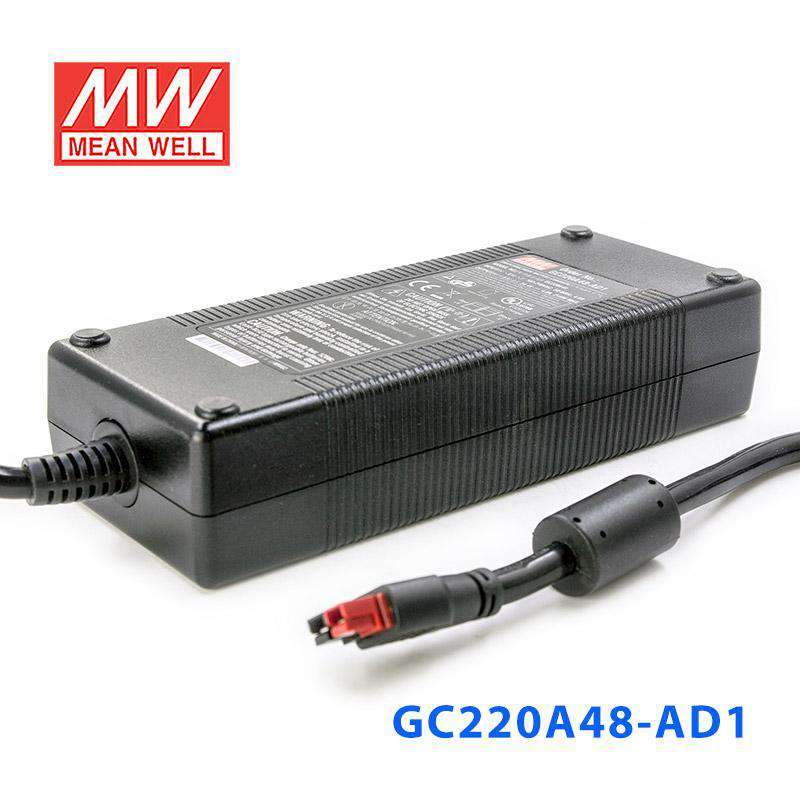

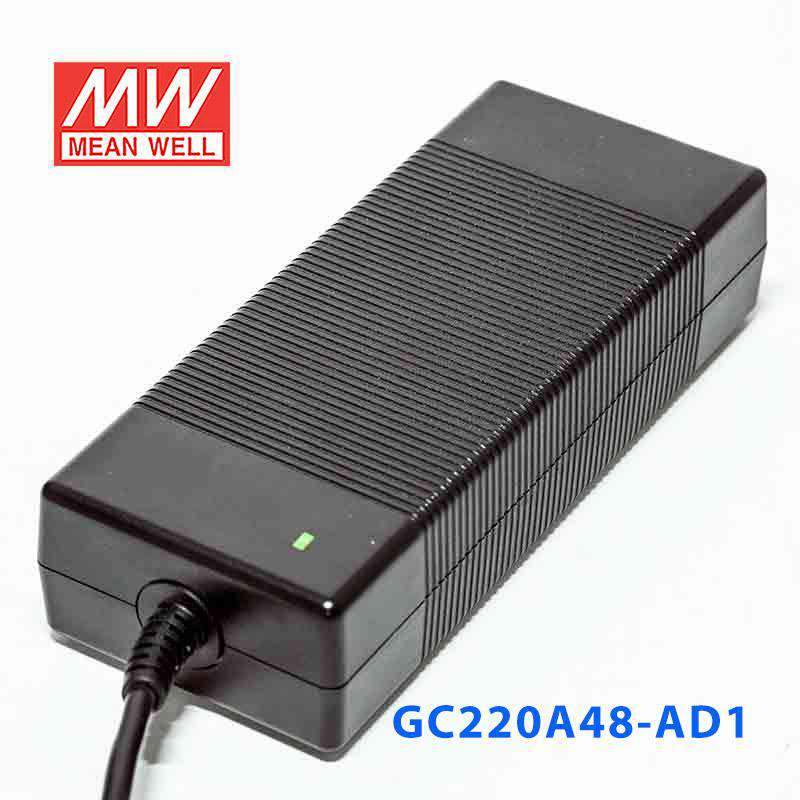

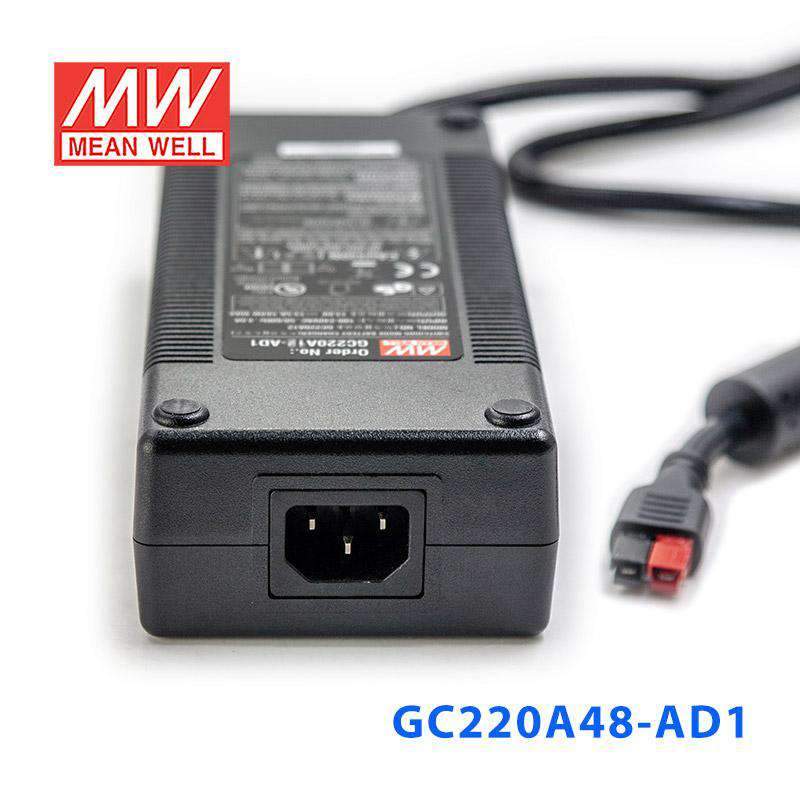

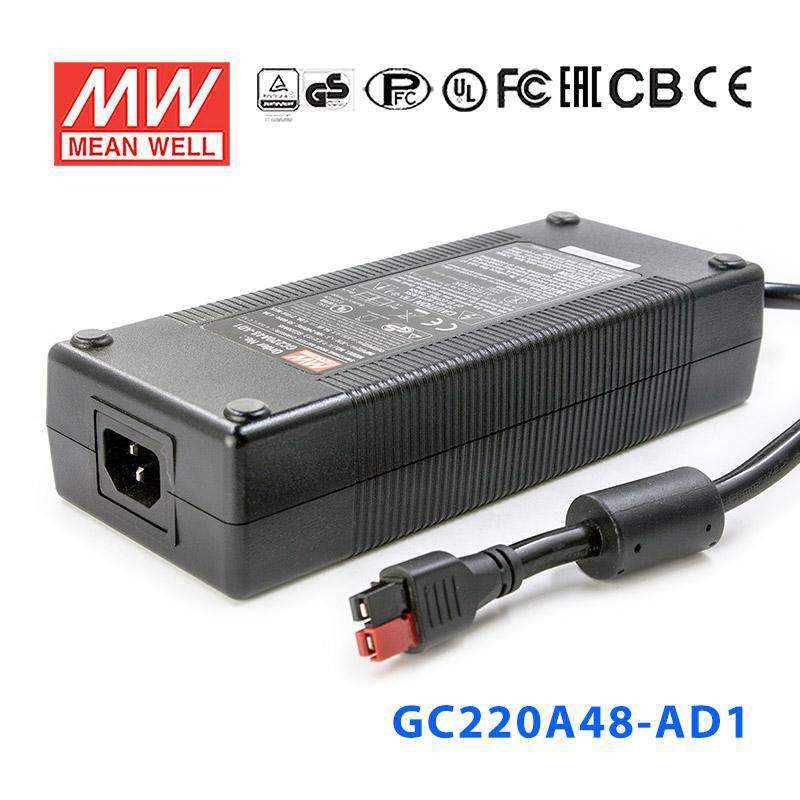

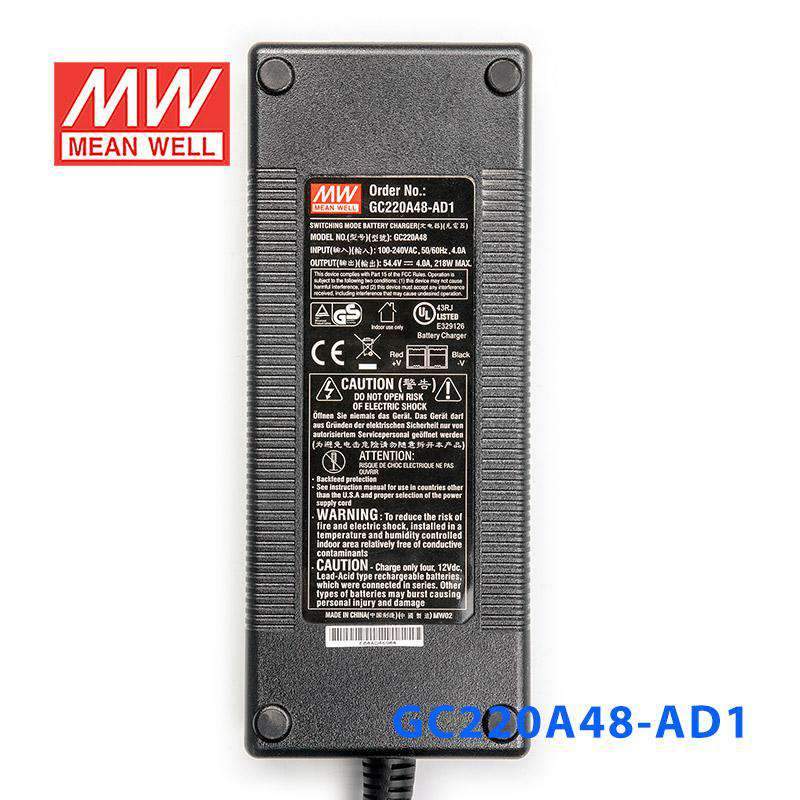

Mean Well GC220A48-AD1 Portable Chargers 217.6W 54.4V 4A - Green Ad...
The GC220A48 is a 220W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating217.6 Watt
-
Output Voltage54.4 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well GC220A48-AD1?
The GC220A48-AD1 is rated for 217.6W output. It provides 54.4V DC at 4A, which makes it suitable for battery charging and power supply applications that match those electrical requirements. This model is part of Mean Well's portable charger range.
What kind of applications is the GC220A48-AD1 designed for?
This model is intended for portable charging and AC-DC power supply use in commercial and industrial settings. Its 54.4V, 4A output fits equipment and battery-charging applications that require that specific charging profile. Buyers typically consider it when they need a compact enclosed charger from a recognized industrial power brand.
What input range does the Mean Well GC220A48-AD1 support?
The GC220A48-AD1 accepts a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That wide range helps simplify purchasing for organizations operating across different mains standards. It also includes built-in active PFC.
Can this charger be used in demanding temperature conditions?
The specified operating temperature range is -30°C to +60°C, subject to the manufacturer's derating curve. That makes it a practical option for buyers evaluating chargers for harsher indoor or light industrial environments. As with any power product, performance expectations should stay within the published operating limits.
What protection and safety features does the GC220A48-AD1 include?
This model includes protection for short circuit, overload, over voltage, and over temperature. The overload protection is specified at 90 to 110% constant current with auto-recovery, while over-voltage protection shuts down output and recovers after re-powering. It is also approved to TUV EN60950-1 and UL1012 for the GC220Axx-AD1 series.
How efficient is the Mean Well GC220A48-AD1 compared with lower-efficiency chargers?
The GC220A48-AD1 is rated for efficiency up to 93.5%, which is a strong figure for a portable enclosed charger in this class. Higher efficiency generally helps reduce wasted energy and heat compared with less efficient alternatives. It also has no-load power consumption below 1W.
