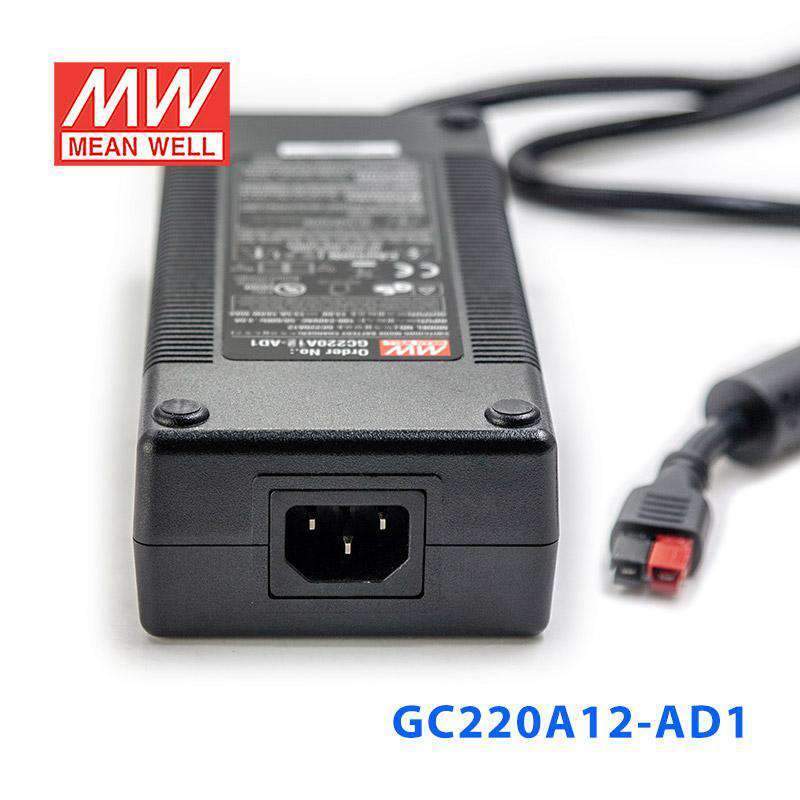

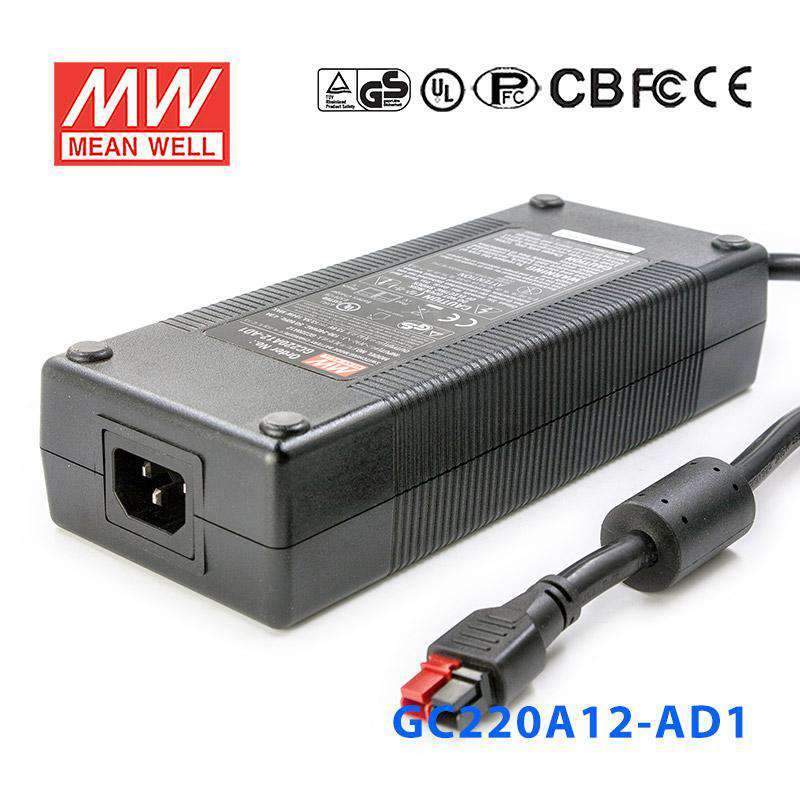

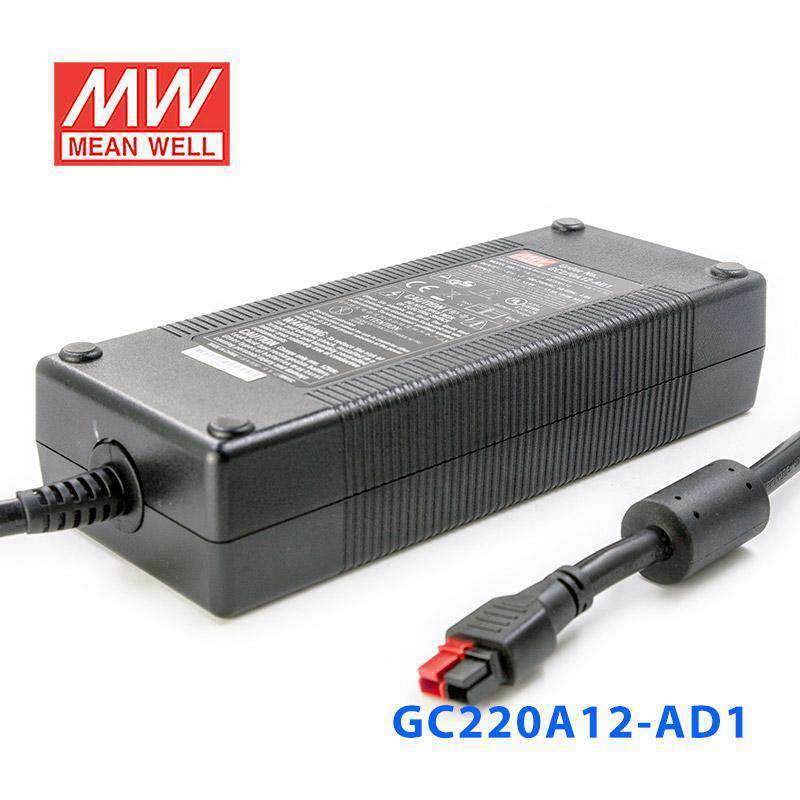

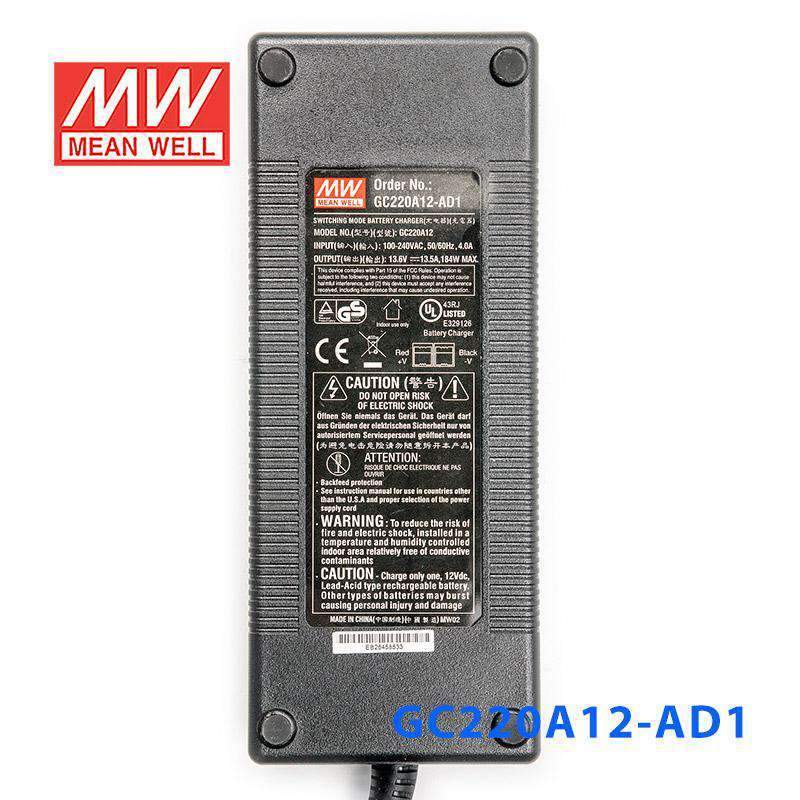

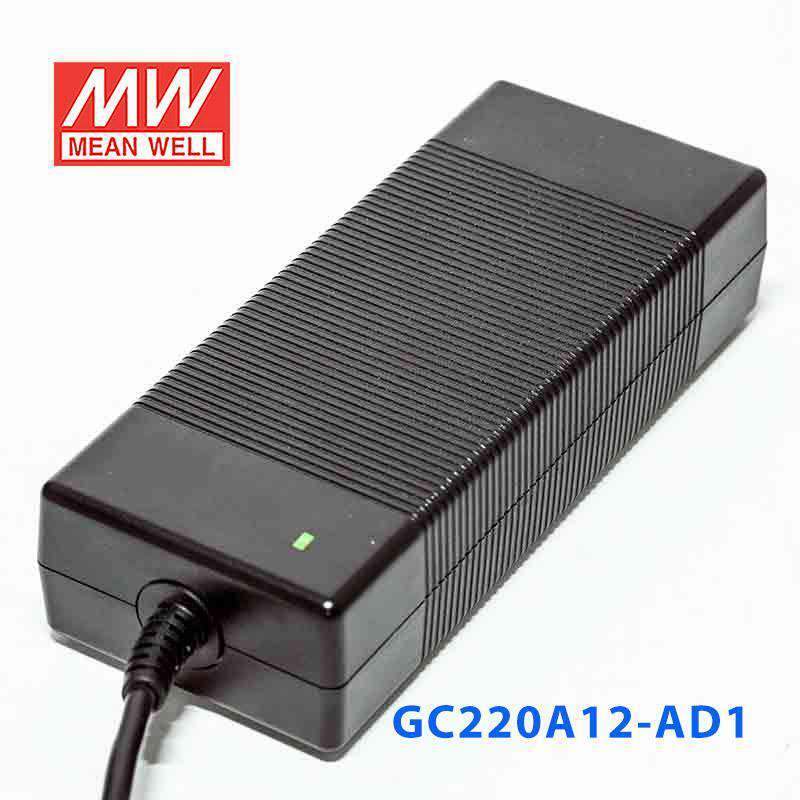

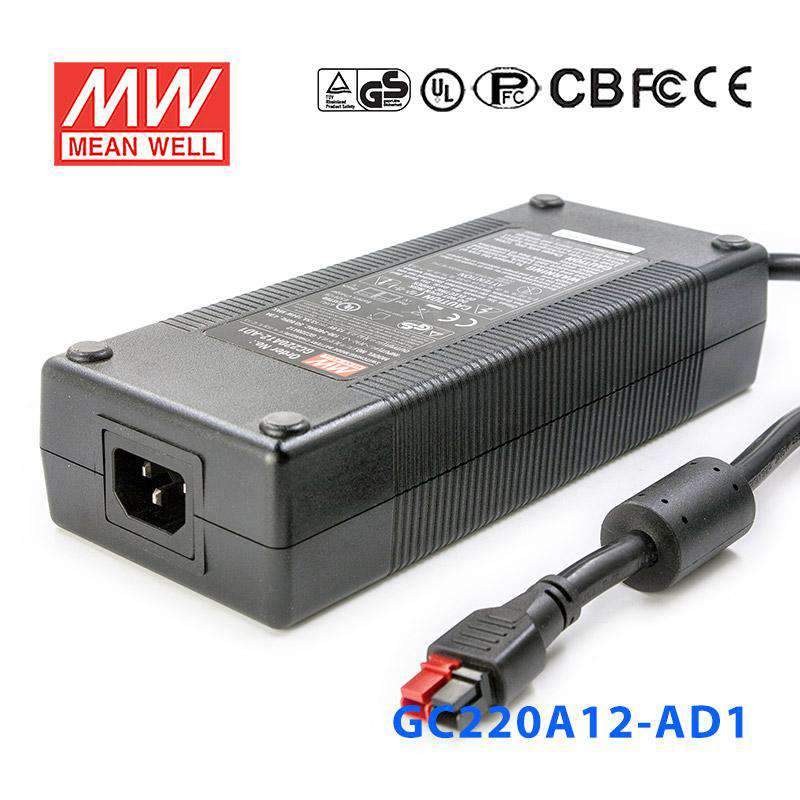

Mean Well GC220A12-AD1 Portable Chargers 183.6W 13.6V 13.5A - Green...
The GC220A12 is a 220W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating183.6 Watt
-
Output Voltage13.6 Volt
-
Rated Current13.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well GC220A12-AD1?
The GC220A12-AD1 is rated for 183.6W with a 13.6V DC output and 13.5A rated current. That makes it suitable for higher-current 13.6V charging or DC power applications where a portable enclosed adaptor format is preferred.
Is the GC220A12-AD1 designed as a portable charger or a fixed industrial power supply?
This model is built in a fully enclosed plastic adaptor-style case and is positioned as a portable charger. It also supports AC-DC power supply use where a compact external unit with free-air cooling is needed.
What input range does the GC220A12-AD1 support?
The unit has a universal input range of 90 to 264VAC, and it also supports 127 to 370VDC input. This wide range makes it easier to use across different mains power environments without needing a separate input variant.
What charging features does the GC220A12-AD1 include?
The GC220A12-AD1 uses a 2-stage charging characteristic and has a 2-color LED indicator for charging status. It also includes built-in active PFC and low no-load power consumption of less than 1W.
What protection features are built into this charger?
This model includes protection for short circuit, overload, over voltage, and over temperature. Overload protection operates at 90 to 110% constant current with auto-recovery, while over-voltage protection shuts the output down and requires re-powering to recover.
Can the GC220A12-AD1 be used in demanding temperature conditions?
The specified operating temperature range is -30°C to +60°C, subject to the derating curve. That gives it a broad environmental range for industrial or workshop use where ambient conditions may vary.
What output-side hardware comes standard with the GC220A12-AD1?
This model includes a 100cm output cable using UL2464 16AWG 4C cable and a standard Power DIN 4P locking DC plug identified as R7B. Buyers should confirm that the mating interface matches their equipment before purchase.
