Description
Description
Features
Universal AC input / Full range |
Built-in active PFC function |
Protections: Short circuit / Overload / Over voltage / Over Temp. |
No load power consumption < 1W |
High efficiency up to 93.5% |
2 stage charging characteristic |
Cooling by free air convection |

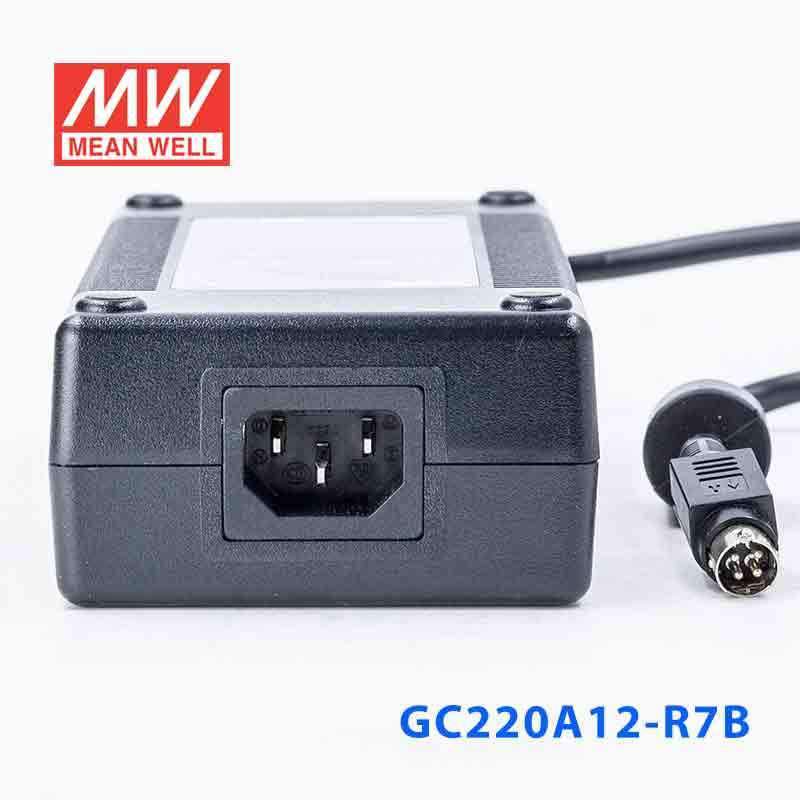

3 pole AC inlet IEC320-C14 |
Class I power (with earth pin) |
Fully enclosed plastic case |

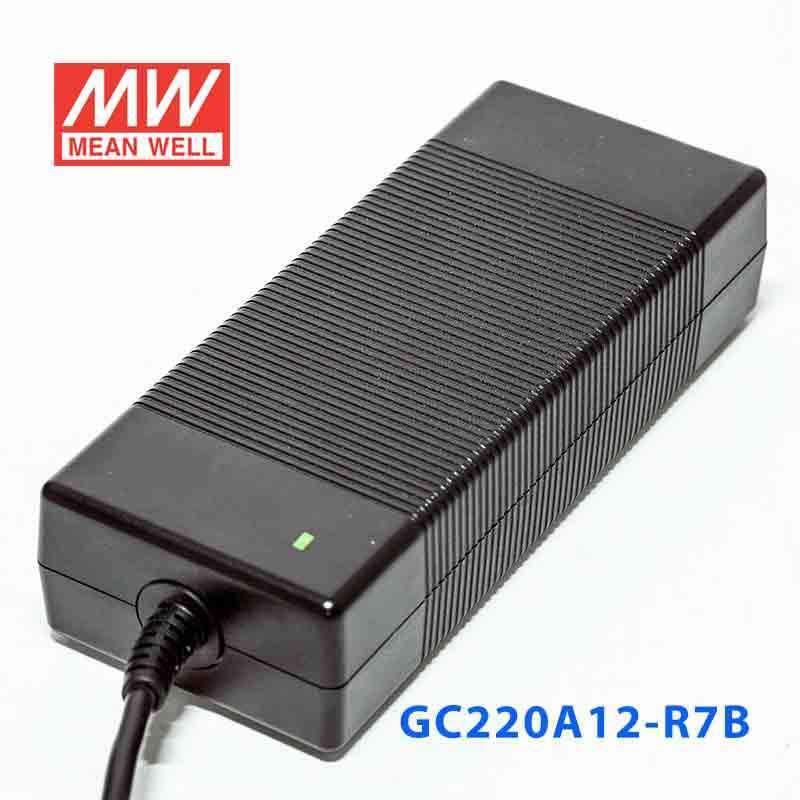

2 color LED indicator for charging status |
2 years warranty |
General Specification
AC input voltage range | 90~264VAC; 127~370VDC |
Overload protection | 90~110% constant current, auto-recovery |
Over voltage protection | 105%~135% shut down O/P voltage, re-power on to recover |
Withstand voltage | I/P-O/P: 3kVAC |
Working temperature | -30~+60°C (refer to derating curve) |
Safety standards | TUV EN60950-1, UL1012 (GC220Axx-AD1 only) approved |
EMC standards | EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
Dimension (LxWxH) | 210x85x46 |
Length of output cable | 100cm of UL2464, 16AWGx 4C |
Standard DC plug | Power DIN 4P with lock type (R7B) |
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating183.6 Watt
-
Output Voltage13.6 Volt
-
Rated Current13.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
