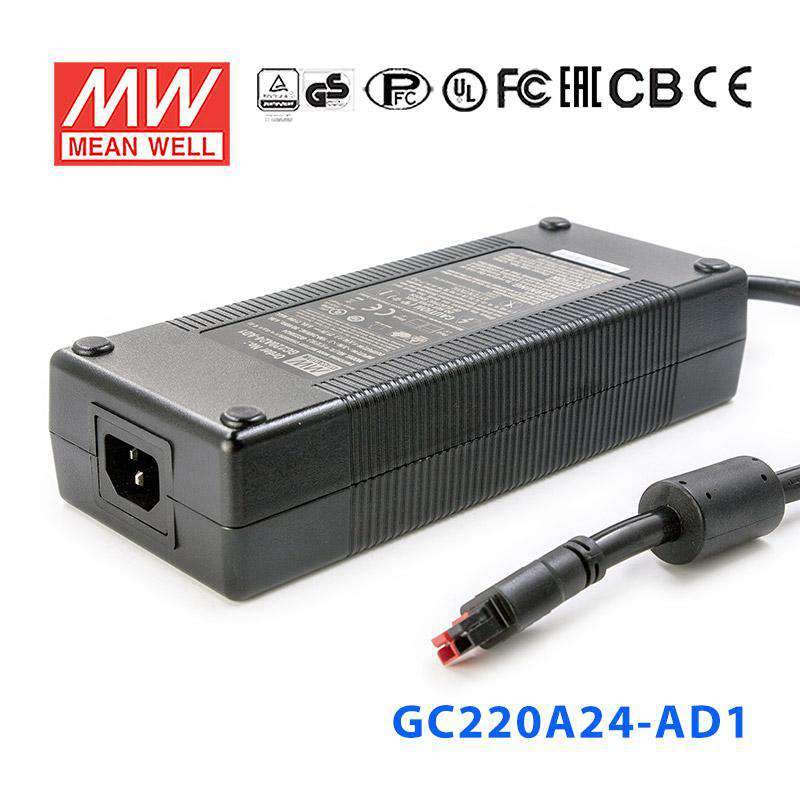

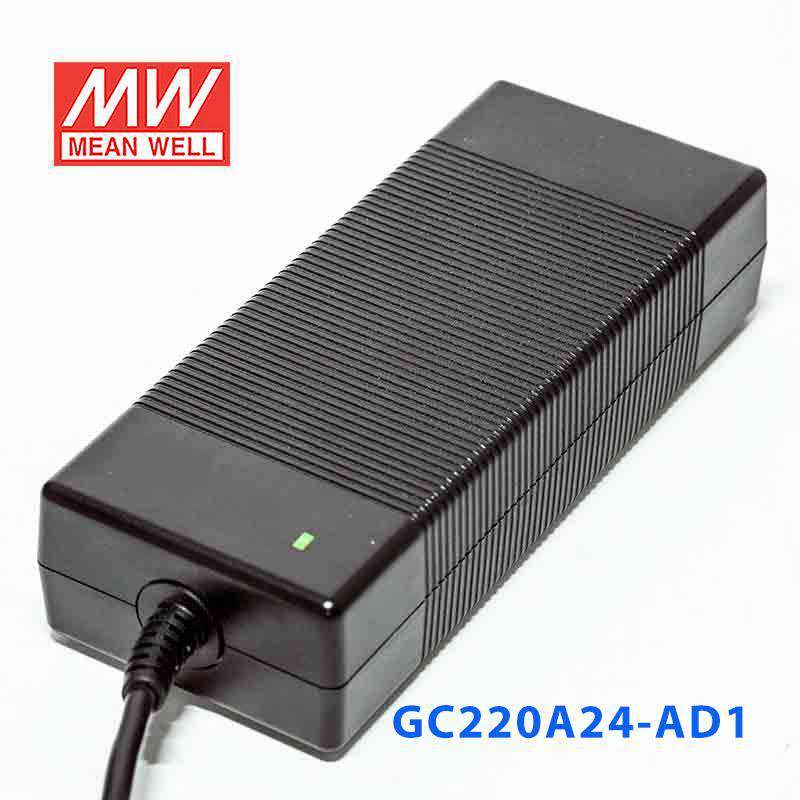

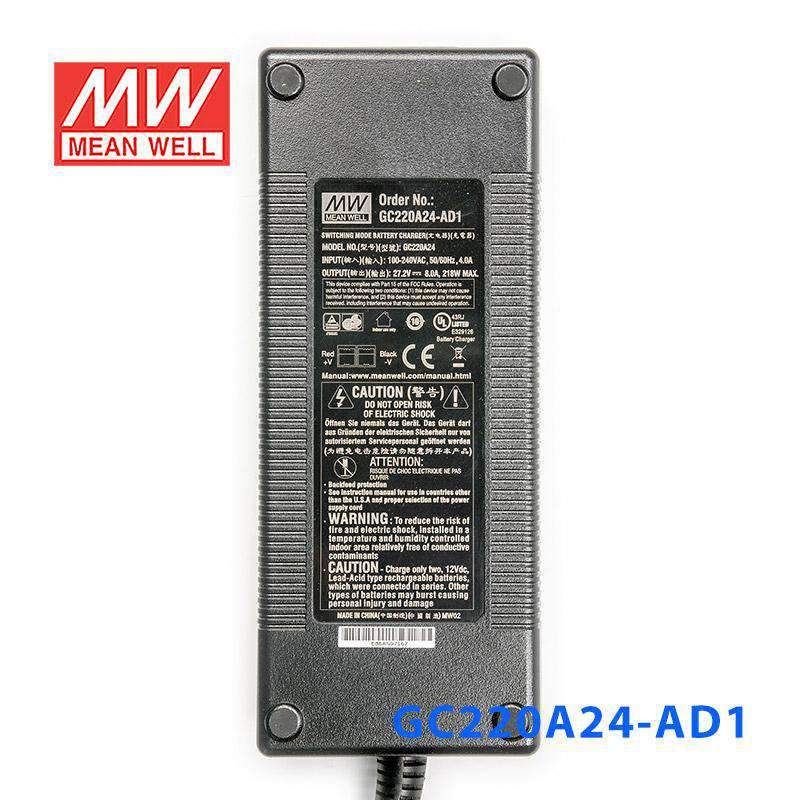

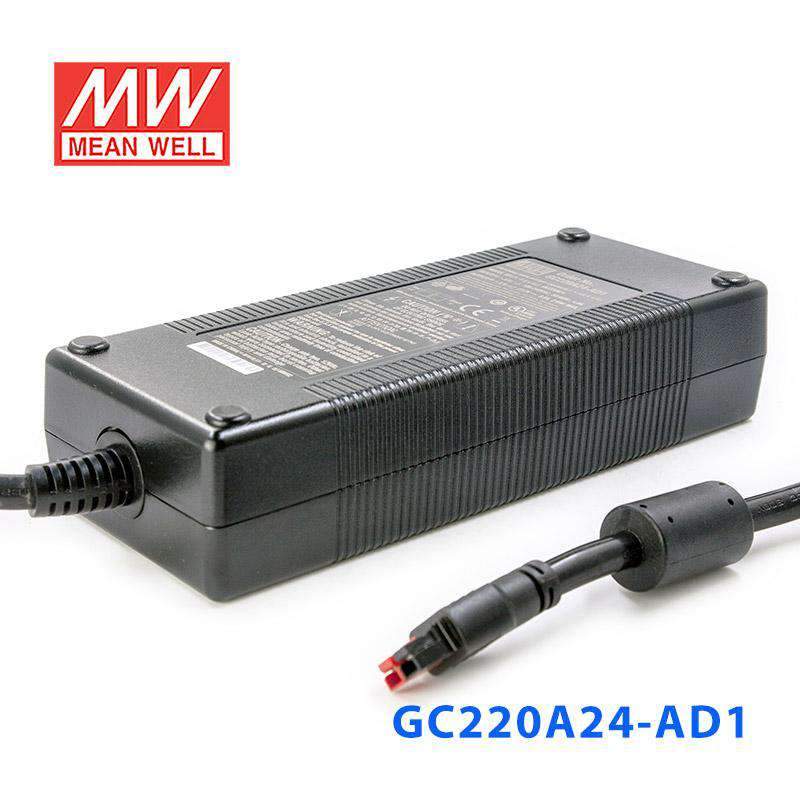

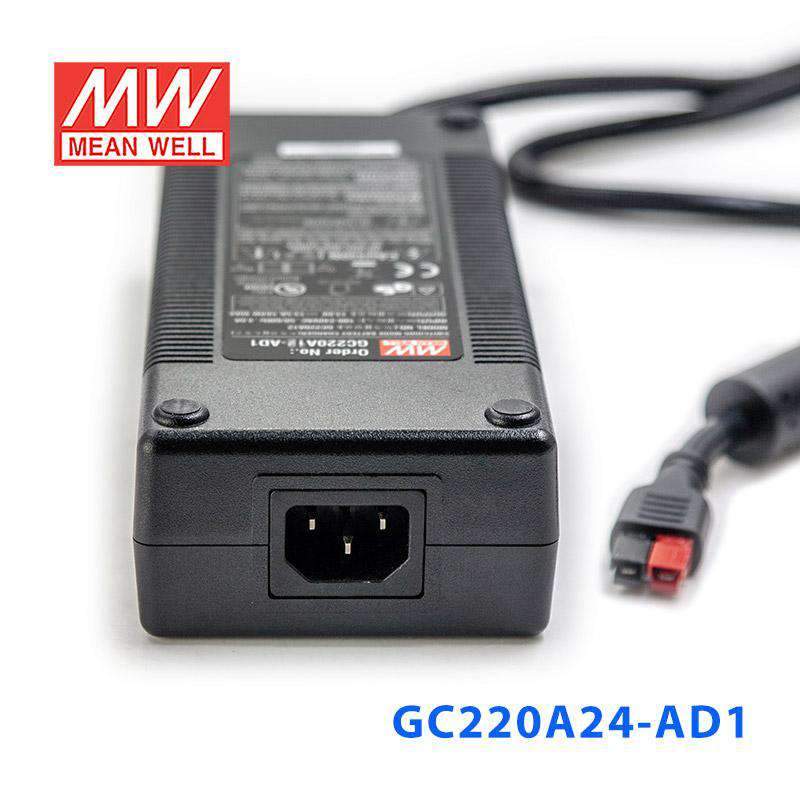

Mean Well GC220A24-AD1 Portable Chargers 217.6W 27.2V 8A - Green Ad...
The GC220A24 is a 220W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating217.6 Watt
-
Output Voltage27.2 Volt
-
Rated Current8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
What are the main output ratings of the Mean Well GC220A24-AD1?
The GC220A24-AD1 is rated for 217.6W total output power. It provides a 27.2V output at up to 8A, which makes it a higher-power portable charger in Mean Well's GC220 series.
Is the GC220A24-AD1 a battery charger or a power supply?
This model is positioned as a portable charger and includes a 2-stage charging characteristic. It is also listed in power supply categories, but its charging-focused features and charging status LED make it especially relevant for buyer evaluations as a charger.
What input range does the GC220A24-AD1 support?
The unit accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. That full-range input makes it suitable for buyers sourcing one charger model for different regions or power environments.
Can the GC220A24-AD1 be used in demanding industrial or commercial environments?
It is built with multiple protections including short circuit, overload, over voltage, and over temperature protection. The operating temperature range is -30°C to +60°C, and the enclosed plastic case uses free air convection cooling, which supports use in a wide range of commercial environments.
How efficient is the Mean Well GC220A24-AD1?
This model is rated for efficiency up to 93.5%. It also has no-load power consumption below 1W, which can help reduce standby energy use in applications where the charger is not always actively charging.
What safety and compliance standards are listed for the GC220A24-AD1?
The GC220A24-AD1 is listed with TUV EN60950-1 and UL1012 approval for GC220Axx-AD1 models. Its EMC standards include EN55022 Class B, FCC Part 15 Class B, and multiple EN61000 immunity and harmonic standards.
What physical size and cable details should buyers know for the GC220A24-AD1?
The charger measures 210 x 85 x 46 mm and weighs 1.1 kg. It includes a 100 cm output cable and uses a standard Power DIN 4P lock-type DC plug, which can matter when matching it to an existing equipment requirement.
