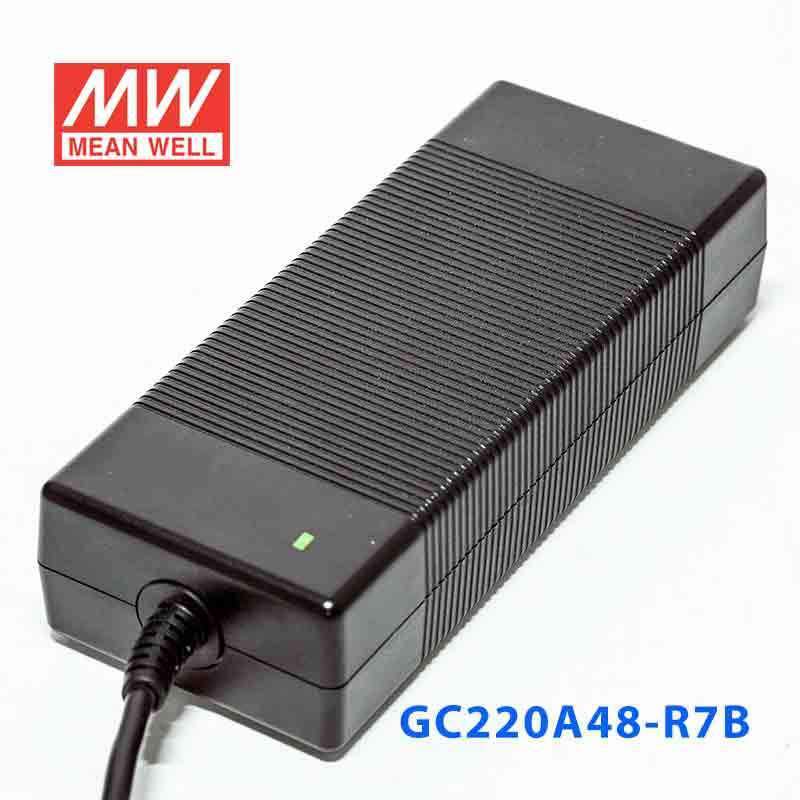

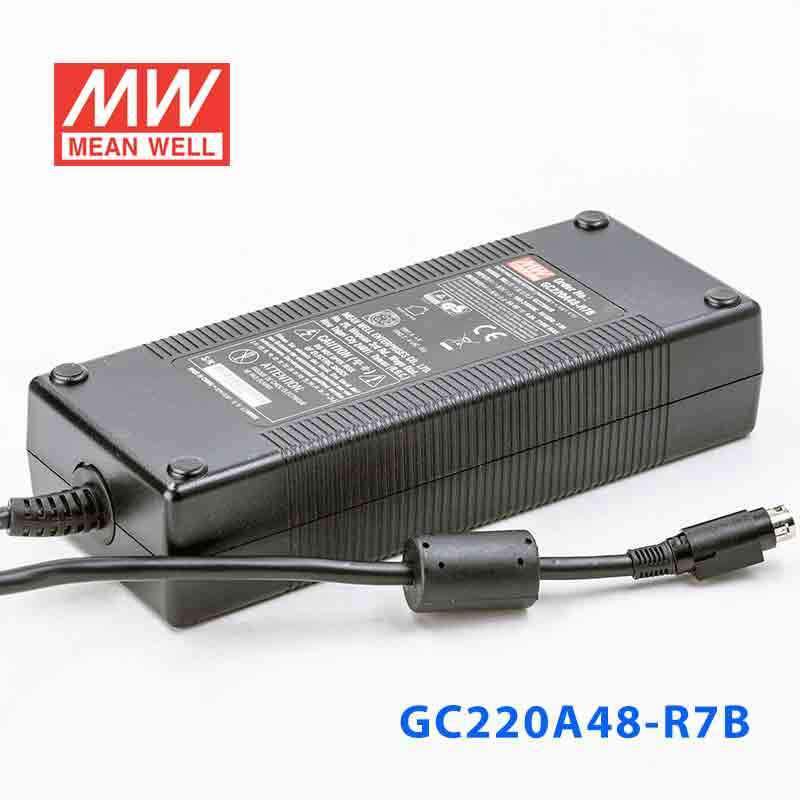

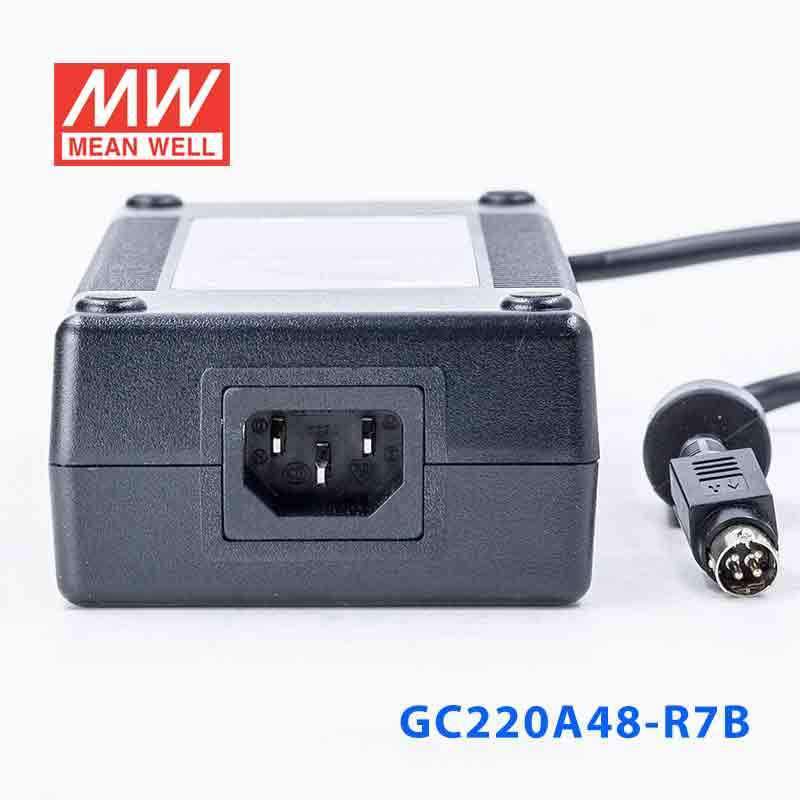

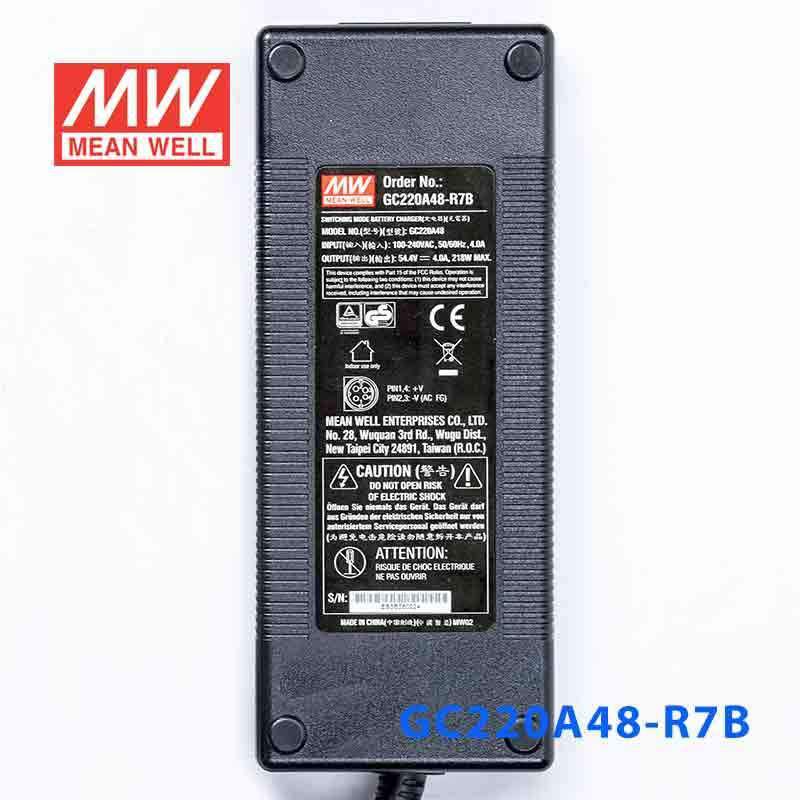

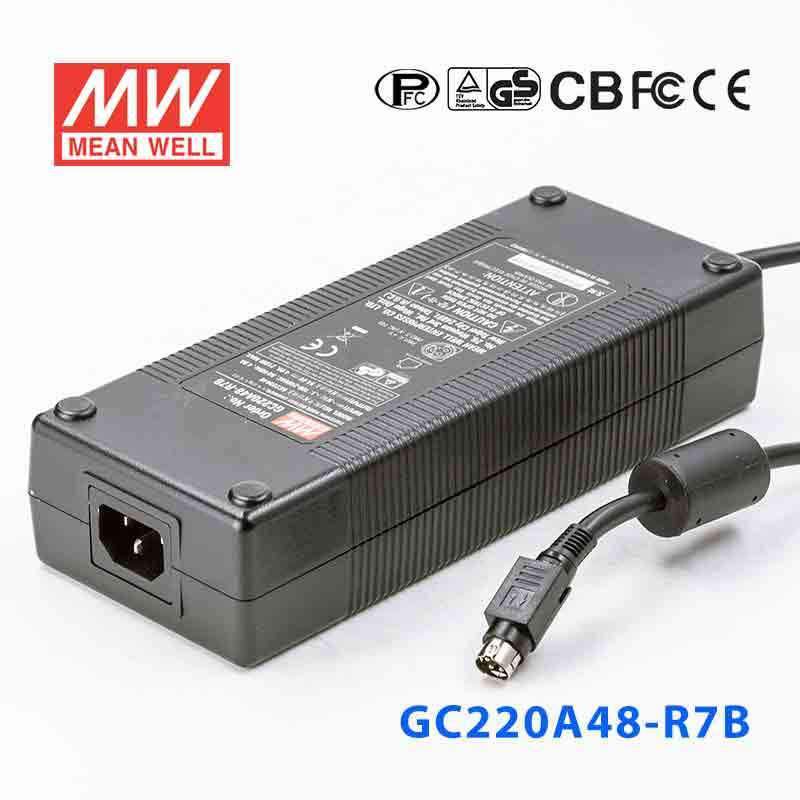

Mean Well GC220A48-R7B Portable Chargers 217.6W 54.4V 4A - Green Ad...
The GC220A48 is a 220W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating217.6 Watt
-
Output Voltage54.4 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well GC220A48-R7B?
The GC220A48-R7B is rated for 217.6W output with a 54.4V DC output and 4A rated current. This makes it a higher-power portable charger in Mean Well's GC220A series. The model is designed for applications that need a 54.4V charging output rather than lower-voltage charger variants.
What kind of input power does the GC220A48-R7B accept?
This model accepts a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That wide input range makes it suitable for use across different standard mains environments. It also includes built-in active PFC as listed in the product specifications.
Is the GC220A48-R7B suitable for portable charging use?
Yes. This model is part of Mean Well's portable charger range and uses a fully enclosed plastic case with free air convection cooling. It also includes a 100cm output cable and a Power DIN 4P lock-type DC plug, which supports portable charger use where a compact enclosed unit is preferred.
What protection features are built into the GC220A48-R7B?
The GC220A48-R7B includes short circuit, overload, over voltage, and over temperature protection. Overload protection operates at 90 to 110% constant current with auto-recovery. Over-voltage protection shuts down the output and requires re-powering to recover.
Can the GC220A48-R7B be used in demanding temperature conditions?
This charger has a specified working temperature range of -30°C to +60°C, subject to the derating curve. That gives it a broader operating range than many indoor-only chargers. Buyers should still confirm that their actual ambient conditions stay within the stated specification.
How efficient is the Mean Well GC220A48-R7B?
The GC220A48-R7B is specified with efficiency up to 93.5% and no-load power consumption below 1W. Higher efficiency can help reduce wasted energy and heat during operation. For a portable charger in this power class, those figures are a meaningful part of the model's differentiation.
What approvals and warranty come with the GC220A48-R7B?
The product listing states a 2-year warranty for the GC220A48-R7B. It also lists safety approvals including TUV EN60950-1 and UL1012 approval for GC220Axx-AD1 only, along with EMC compliance to EN55022 Class B, FCC Part 15 Class B, and related EN61000 standards. Buyers should match the exact approval requirement to the specific variant being purchased.
