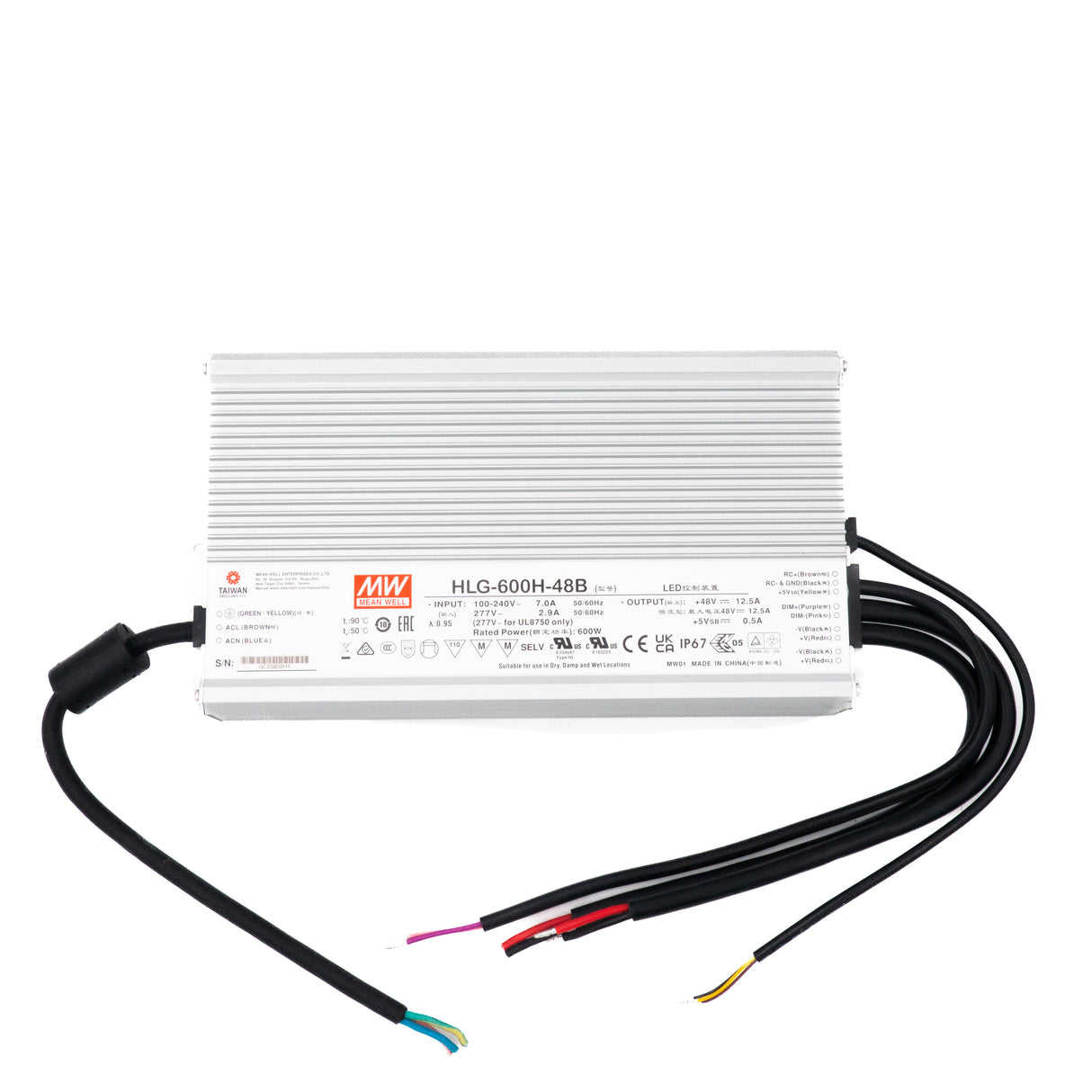

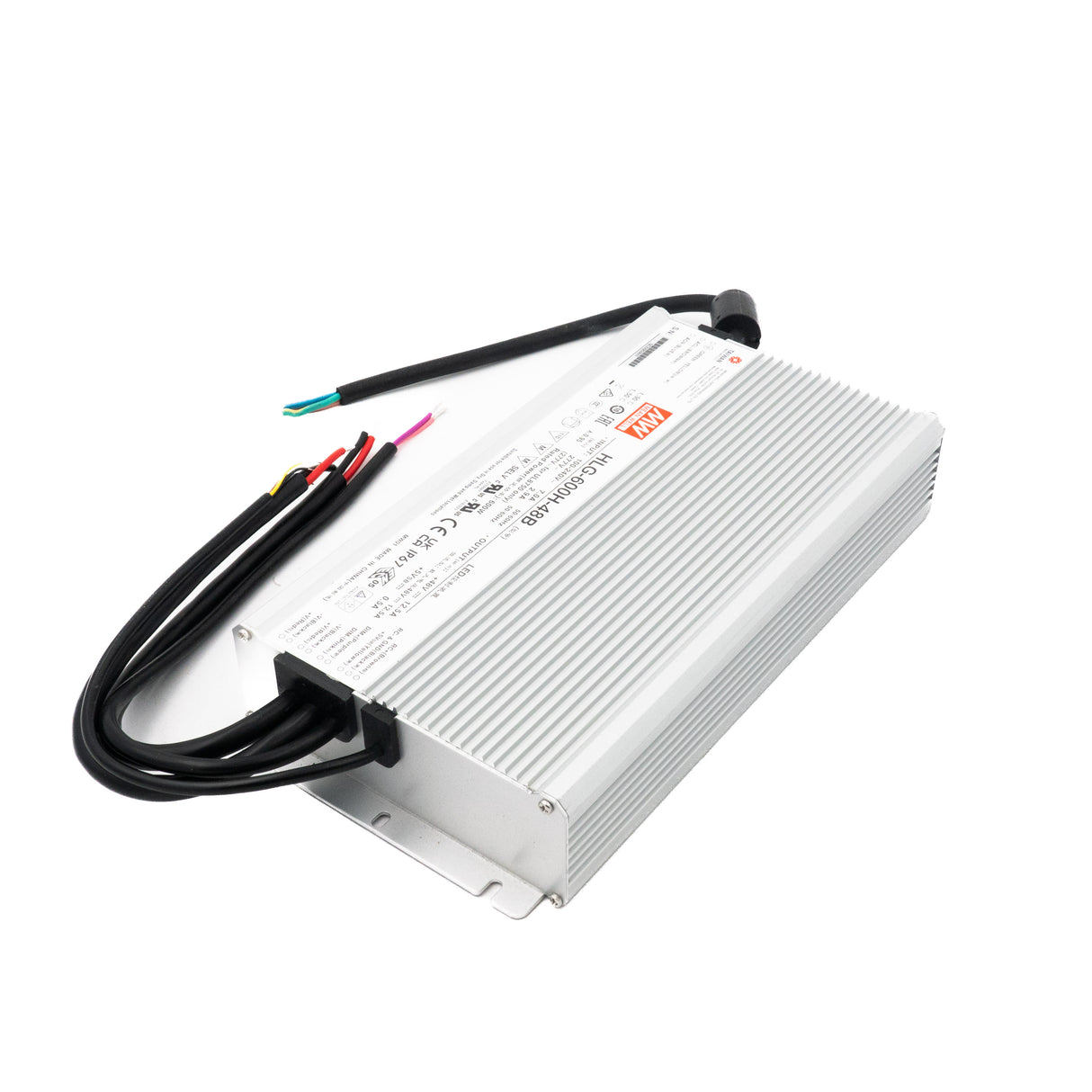

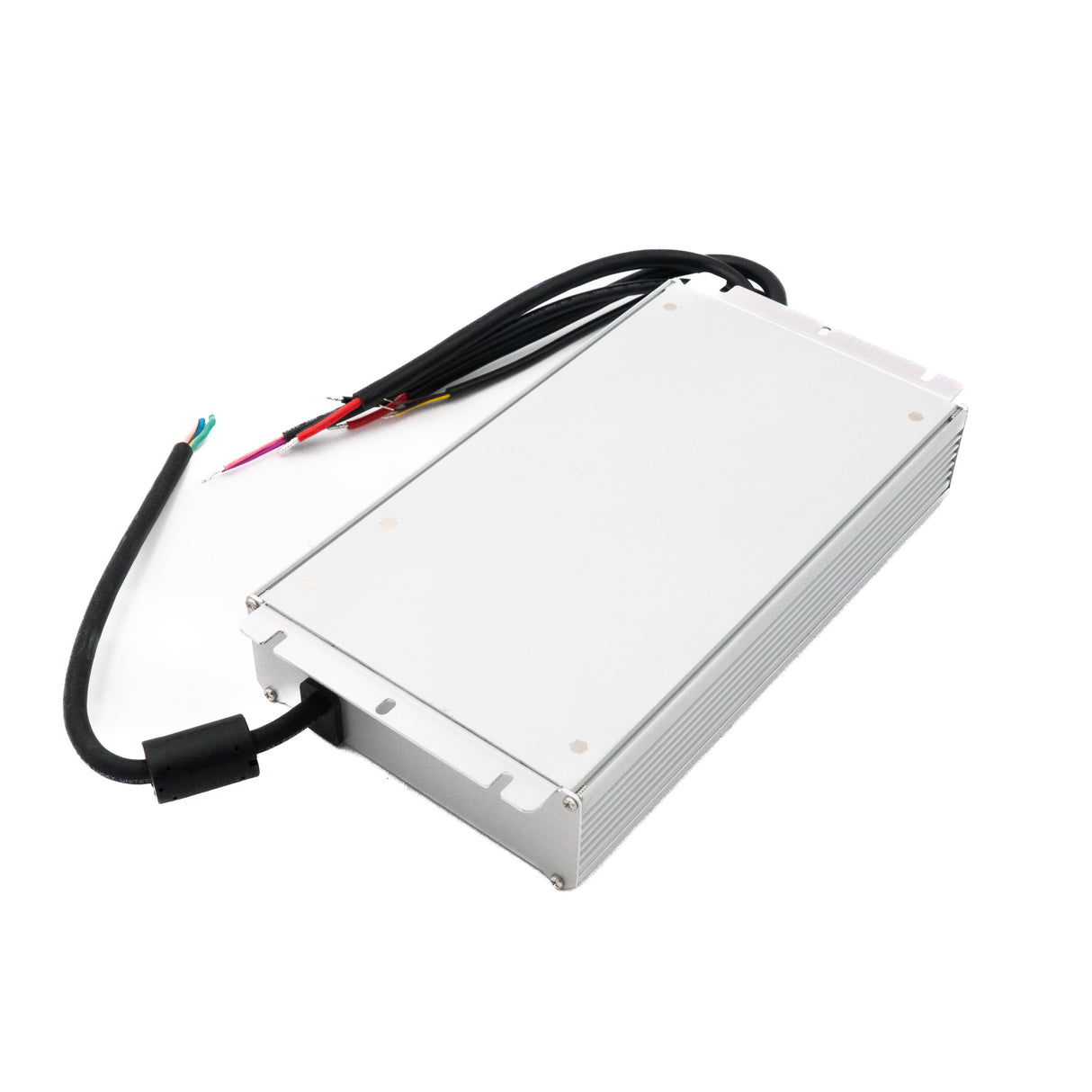

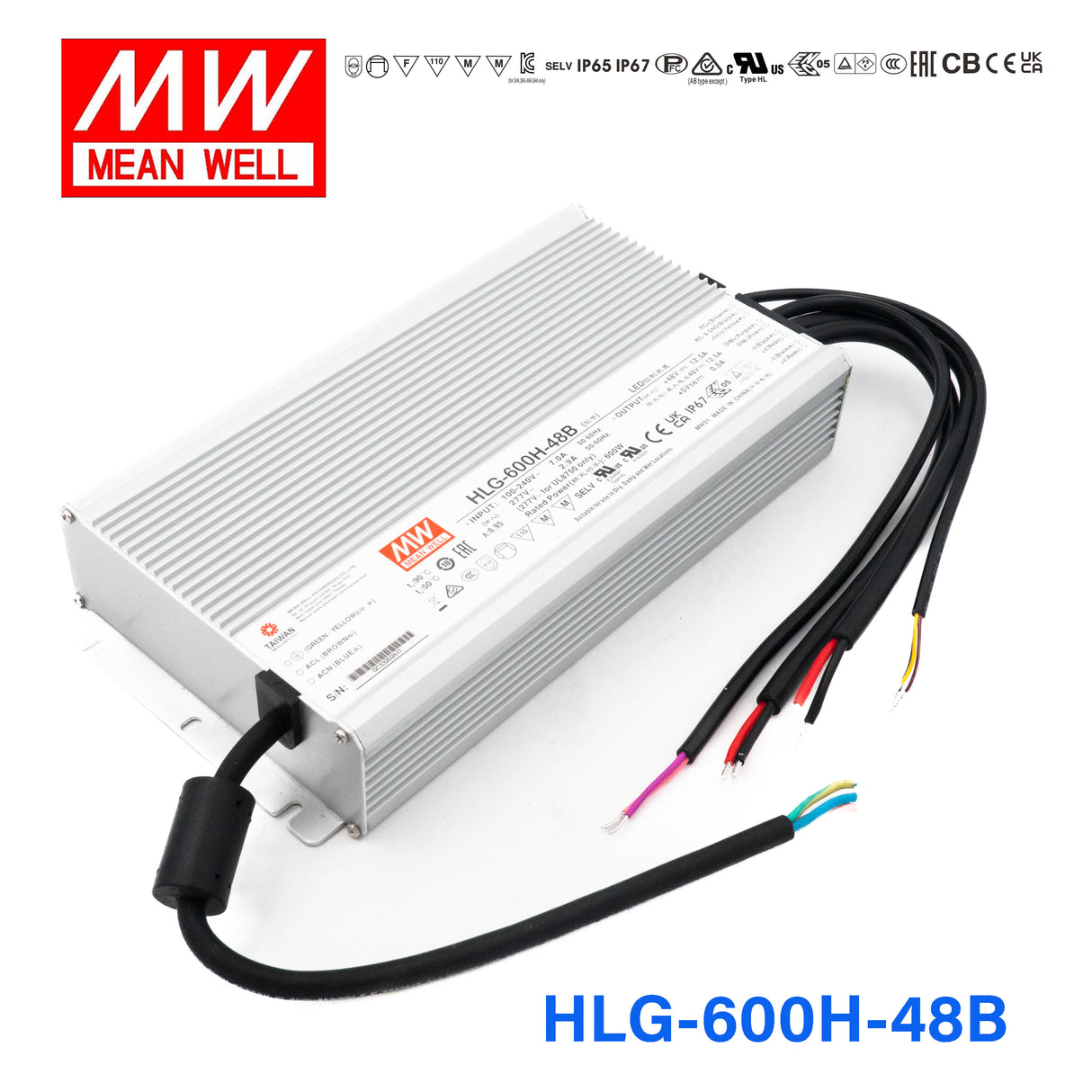

Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current12.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-48B to power 48V LED strip outdoors with dimming capability?
Yes. The HLG-600H-48B delivers 600W at 48V with an IP67 waterproof rating and includes a dimming interface for 1-10V, PWM, or resistance signals. This combination makes it well suited for outdoor 48V LED strip installations that need brightness control via an external dimmer or automation system.
Is the HLG-600H-48B a good choice for dimmable 48V LED floodlights?
Yes. With 600W output at 48V and built-in dimming capability, it can drive high-power 48V LED floodlight arrays while allowing brightness reduction for curfew hours or energy savings. Its IP67 waterproof rating suits fully exposed outdoor mounting near the floodlights.
Can the HLG-600H-48B power 48V LED modules for illuminated outdoor signage?
Yes. At 600W and 48V it handles large LED sign arrays, and the dimming input lets you reduce brightness at night to comply with local light-pollution ordinances. The IP67 rating and -40°C to +90°C operating range suit year-round outdoor sign installations.
Is the HLG-600H-48B suitable for 48V LED landscape lighting with a timer-based dimmer?
Yes. The B-model dimming input accepts 1-10V and PWM signals, which are standard outputs from landscape lighting timers and controllers. Its 600W capacity can supply a large number of 48V pathway or garden fixtures, and the IP67 rating handles ground-level moisture and rain.
How many meters of 48V LED strip can the HLG-600H-48B support?
That depends on the strip's rated power per meter. At 600W and 48V, a strip consuming 12W/m allows up to 50 meters (600W / 12W per meter = 50m). A strip at 20W/m allows 30 meters. Always verify your strip's wattage per meter and keep total load at or below 600W.
Can the HLG-600H-48B withstand full outdoor exposure including rain and temperature extremes?
Yes. Its IP67 waterproof rating protects against temporary submersion up to 1 meter, and the operating range of -40°C to +90°C covers harsh winters and hot summers. The aluminium casing further resists corrosion, making it suitable for permanent outdoor installations without additional enclosures.
