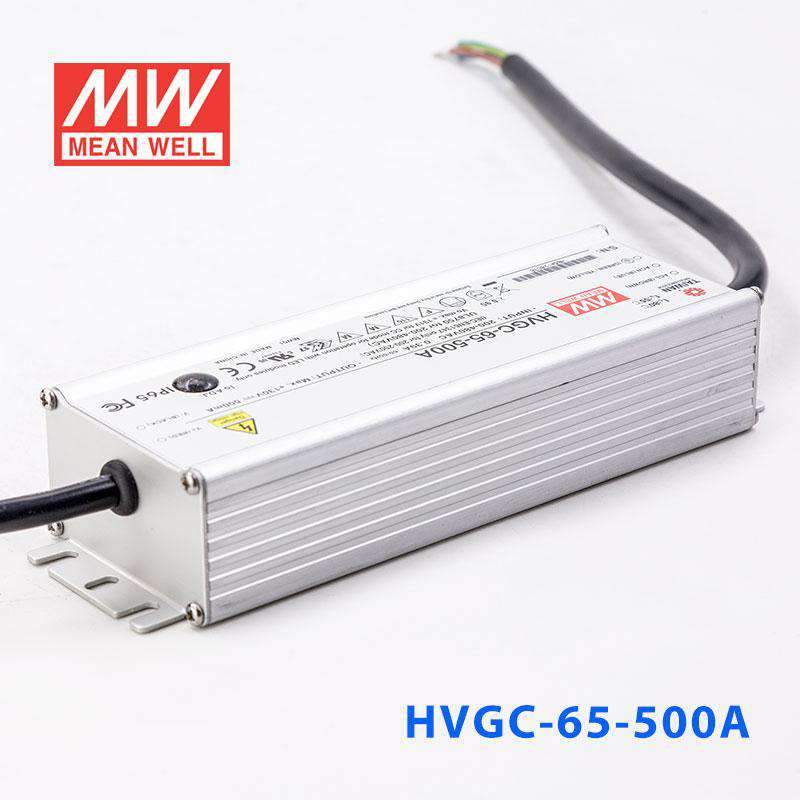

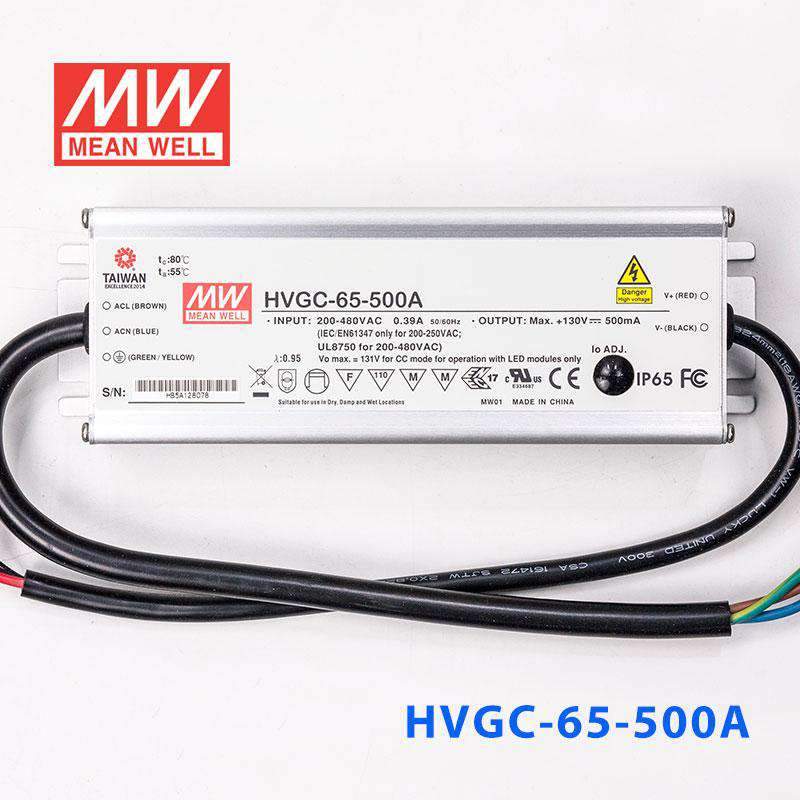

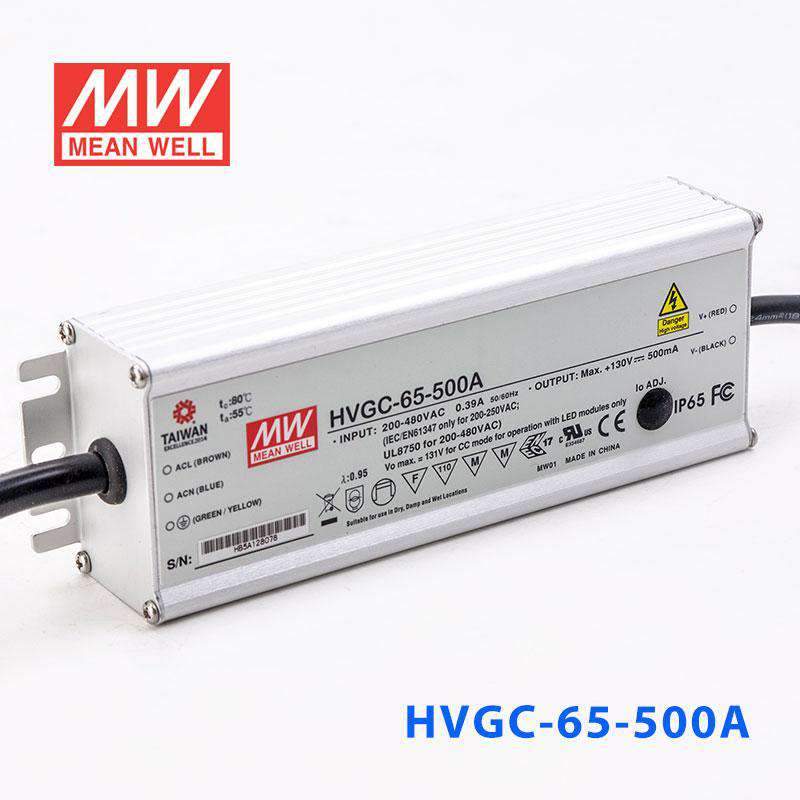

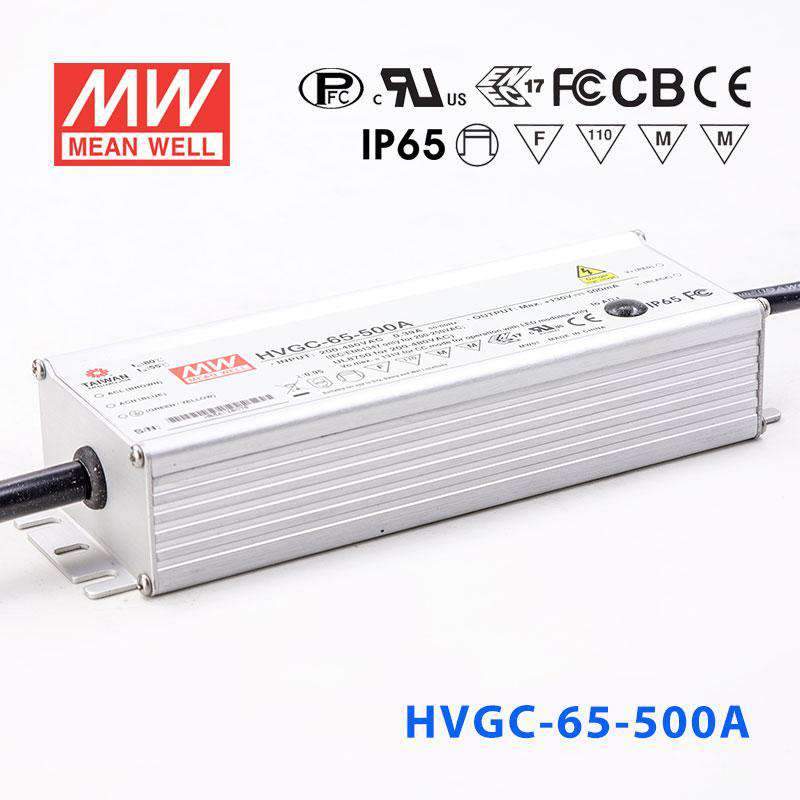

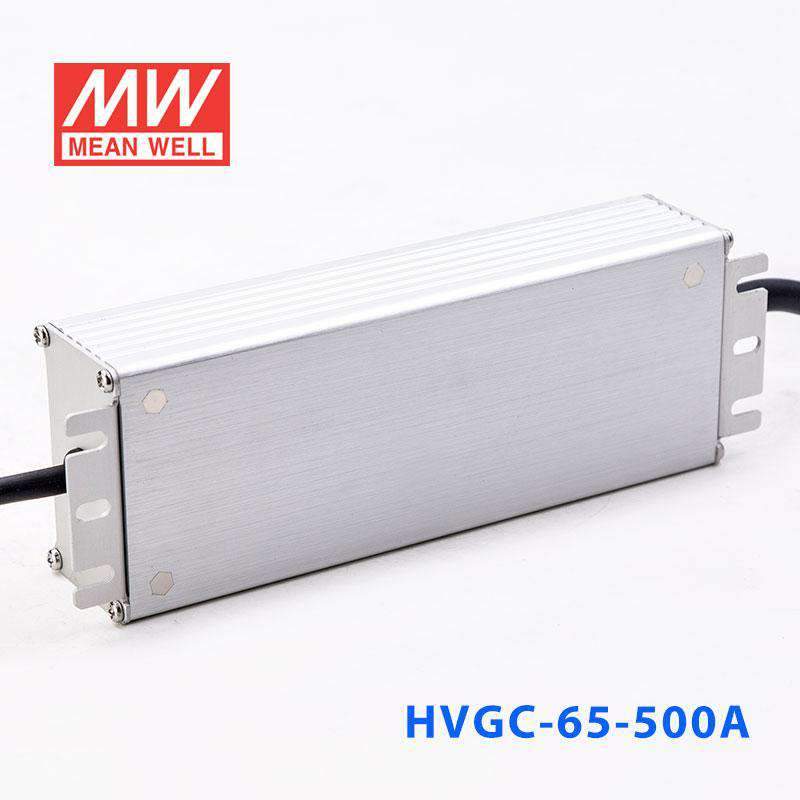

Mean Well HVGC-65-500A Power Supply 65W 500mA - Adjustable
The HVGC-65 is a 65W Mean Well AC-DC constant current LED driver (input: 180~528VAC, output: 130V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 180~528VAC
- ✓ Output voltage (max): 130V
- ✓ Rated output current: 500mA
- ✓ Ingress protection: IP65
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CE, EAC, ENEC, FCC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating65 Watt
-
Output Voltage130 Volt
-
Rated Current0.5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.44 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-65-500A for LED downlights that need 500mA constant current?
Yes, this driver is built for constant current LED loads at 500mA, which is a common requirement for LED downlights. The connected load's total forward voltage needs to stay within the 13-130V constant current range and within the 65W rating. It is not intended for constant voltage LED products.
Is the HVGC-65-500A suitable for signage LED modules or small LED arrays?
It can be a fit for signage modules or small LED arrays when the LEDs are designed for constant current operation at 500mA. The full LED load must fall inside the 13-130V CC range, and the exact number of LEDs depends on the forward voltage of each LED. Constant voltage modules should use a constant voltage power supply instead.
Can this driver run a longer series string of high-forward-voltage LEDs?
This model is intended for constant current loads and supports up to 130V output with a 13-130V constant current range. That makes it more suitable for higher total forward-voltage LED strings than low-voltage constant current drivers. The actual number of LEDs depends on the forward voltage of each LED.
How do I know if my LED load is compatible with the HVGC-65-500A?
Match the LED requirement to 500mA constant current first, then check that the total forward voltage of the load stays within 13-130V. The number of LEDs cannot be fixed from the driver alone because it depends on each LED's forward voltage. This is a constant current driver, not a constant voltage supply.
Is the HVGC-65-500A okay for damp or outdoor locations?
It has an IP65 water-resistant rating, so it is suited to environments where dust protection and resistance to water jets are needed. Its operating temperature range is -40°C to +80°C, which supports demanding ambient conditions. For applications needing full waterproof submersion-level protection, verify whether IP65 is sufficient for the site.
How does the HVGC-65-500A compare with other 65W HVGC current options?
Within the 65W HVGC group, the 350mA versions are rated at 65.1W with an 18-186V CC range, the 500mA versions are 65W or 65.1W with a 13-130V CC range, the 700mA versions are 65.1W with a 9-93V CC range, and the 1050mA versions are 65.1W with a 6-62V CC range. As current increases across those siblings, the constant current voltage range becomes lower. This HVGC-65-500A sits in the middle at 500mA and 13-130V.
