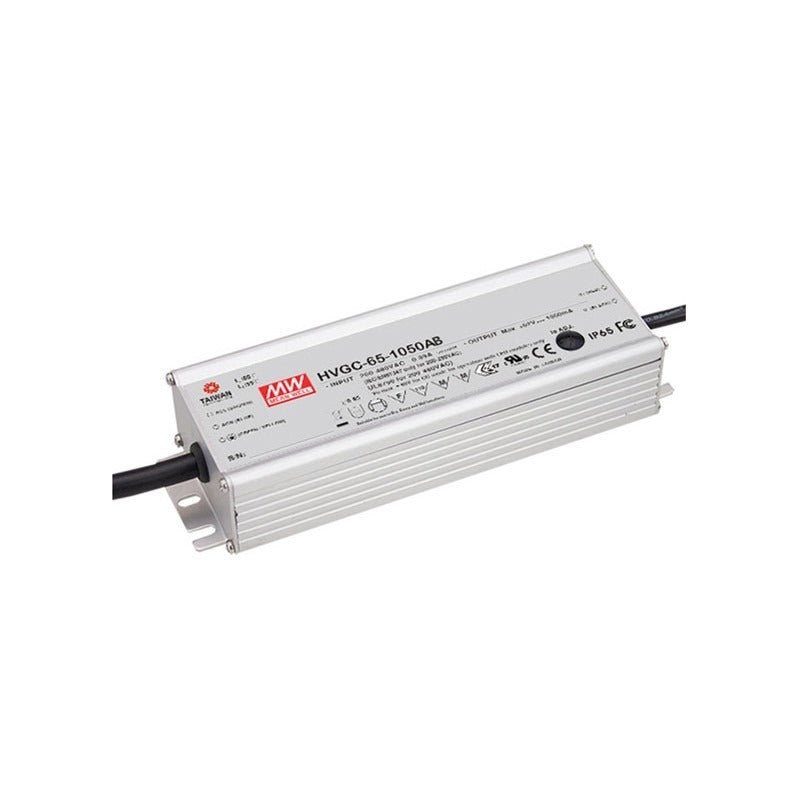

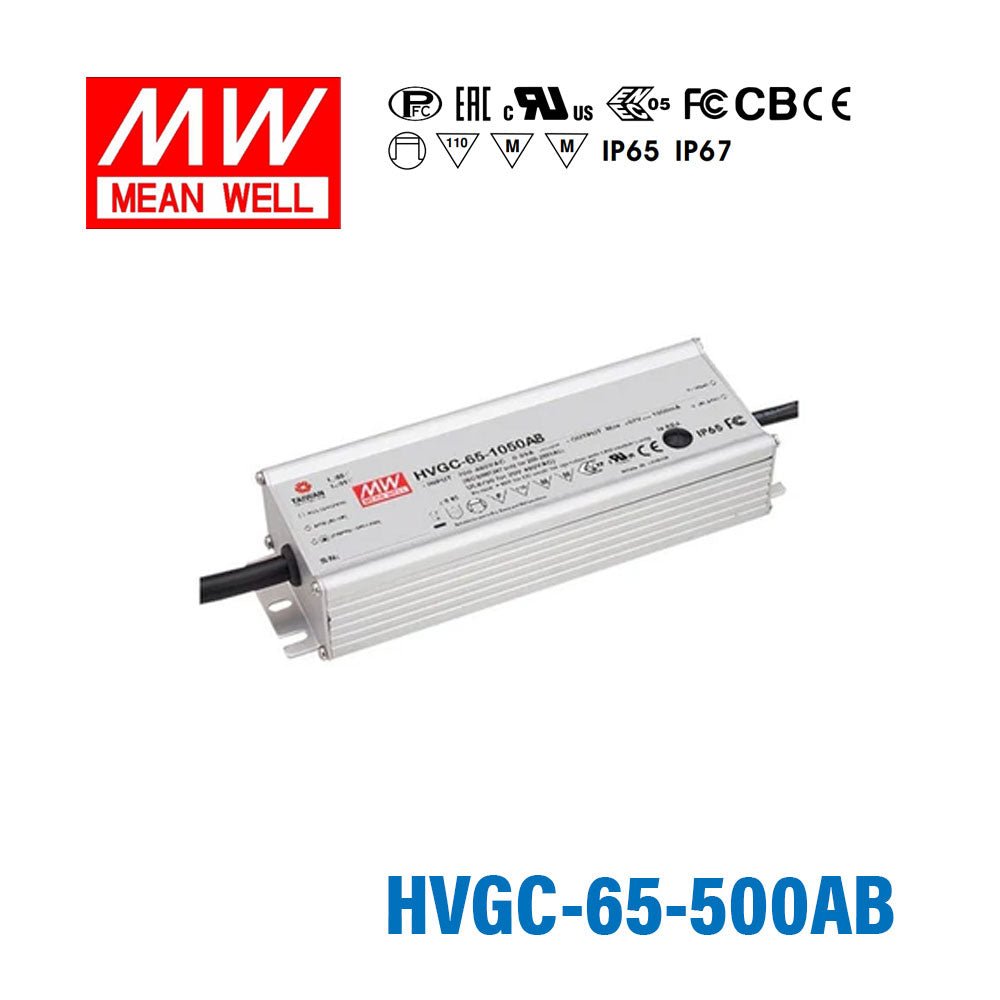

Mean Well HVGC-65-500AB Power Supply 65W 500mA - Adjustable and Dim...
Overview
HVGC-65-500AB is the model of this series: rated current 500mA, rated power 65W, typical efficiency 90.5%.
HVGC-65 series is a 65W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-65 operates from 180~528VAC and offers models with different rated current ranging between 350mA and 1050mA. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations

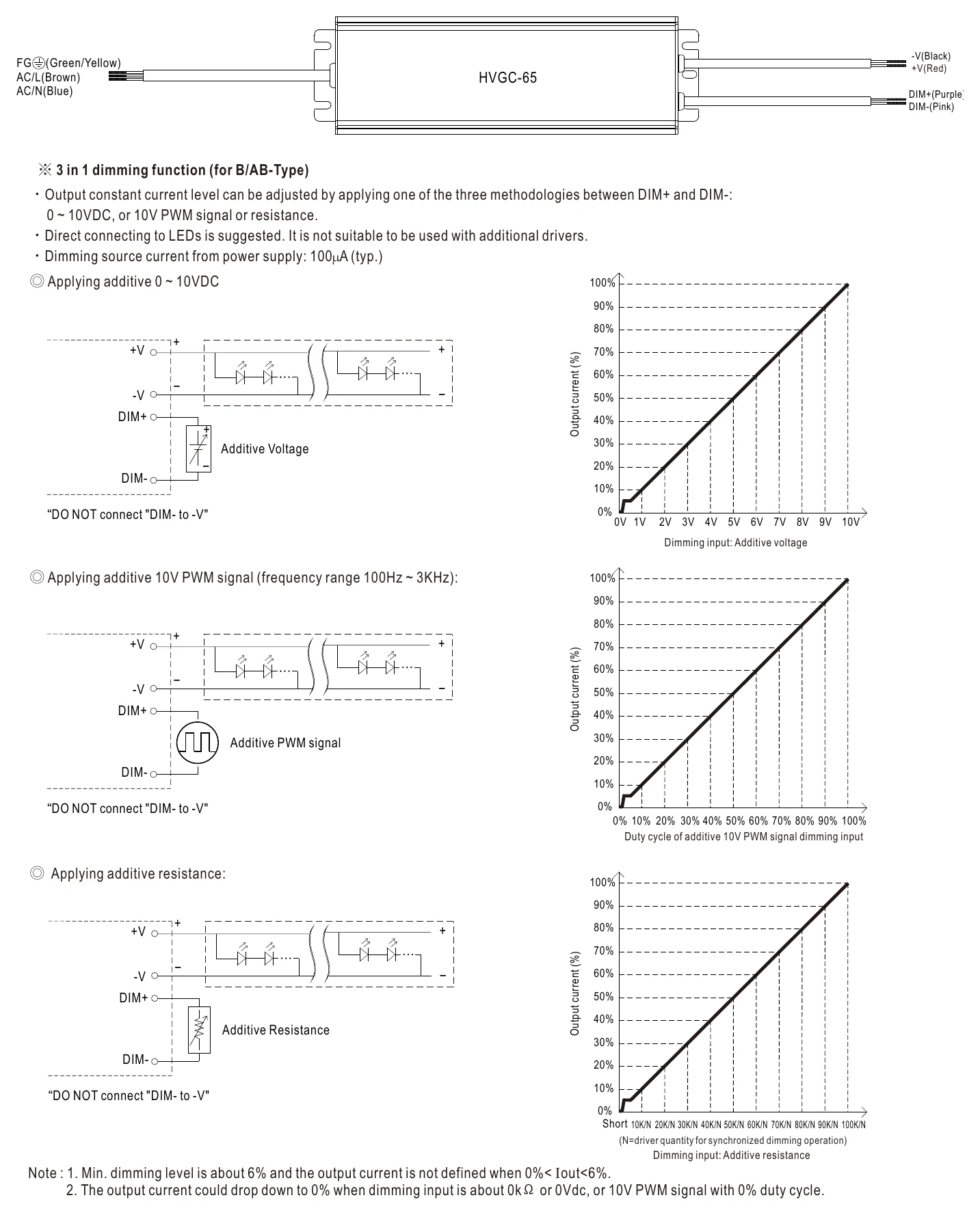

- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 500mA
- RATED POWER
- 65W
- CONSTANT CURRENT REGIONNote.2
- 13 ~ 130V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 300 ~ 500mA
- CURRENT TOLERANCE
- ±5.0%
- CURRENT RIPPLENote.5
- 5.0% max. @rated current
- SET UP TIMENote.4
- 500ms / 230Vac 400ms / 347VAC,480VAC
INPUT
- VOLTAGE RANGENote.3
- 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)

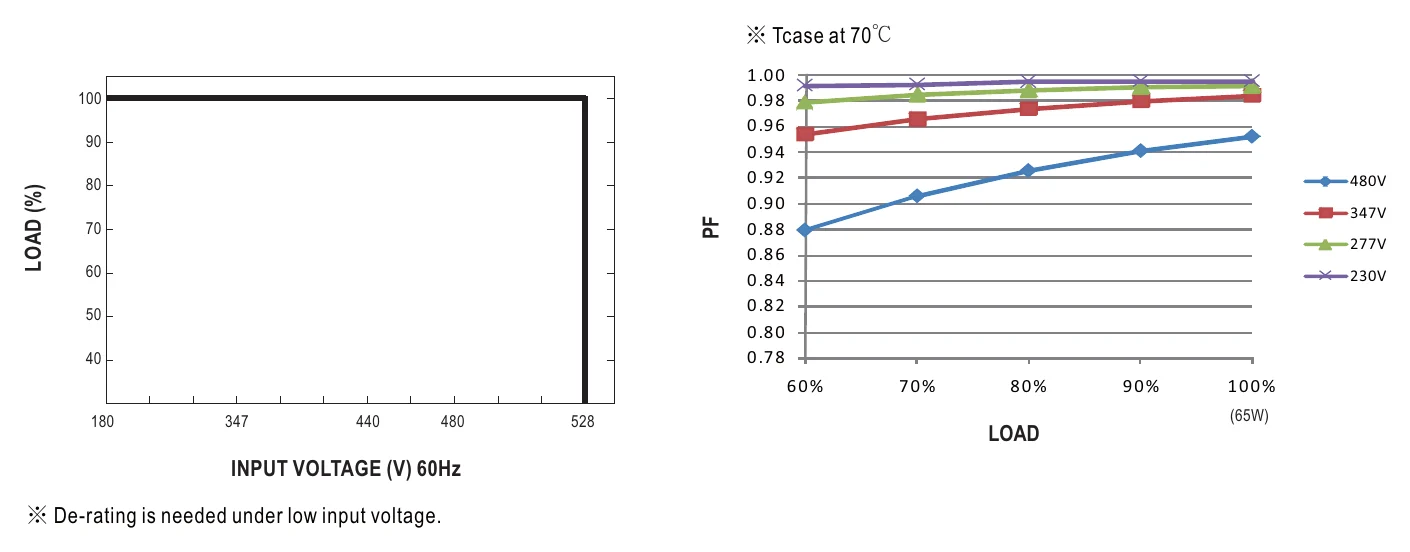

- PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION

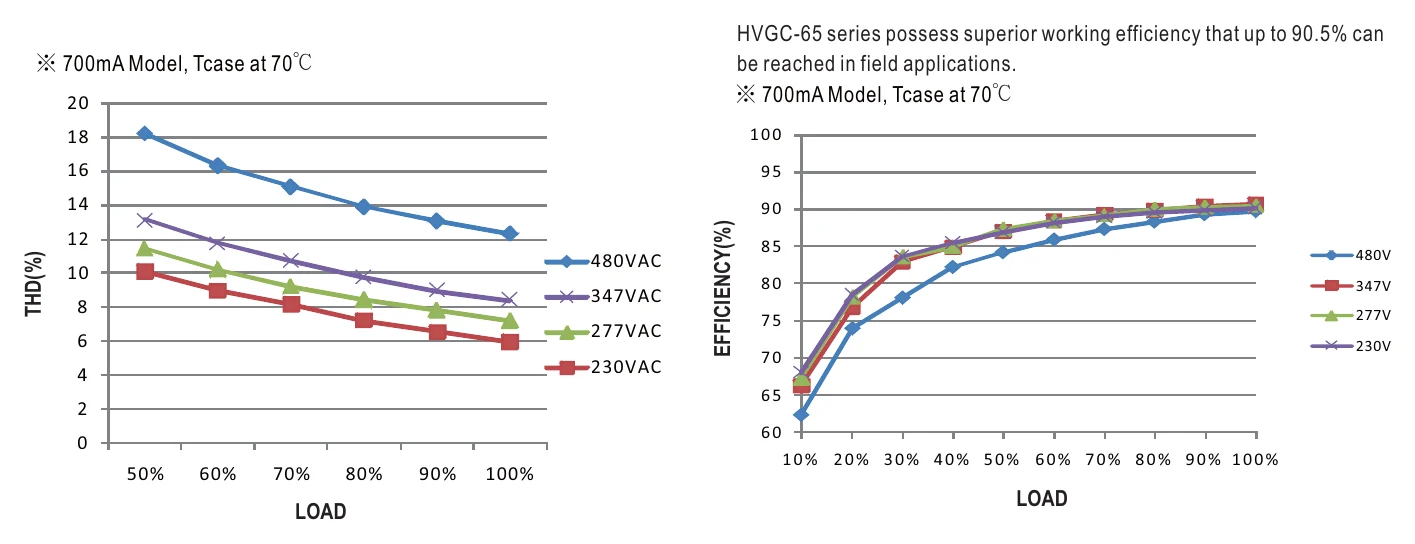

- THD< 20%(@ load≧60%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
- EFFICIENCY (Typ.)
- 90.5%
- AC CURRENT (Typ.)
- 0.22A / 347VAC 0.18A / 480VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A(twidth=420μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC
- LEAKAGE CURRENT
- <0.75mA / 480VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 137 ~ 150V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, independent, EAC TP TC 004, IP65 or IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.6
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 2164.4K hrs min. Telcordia SR-332 (Bellcore) ; 202.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

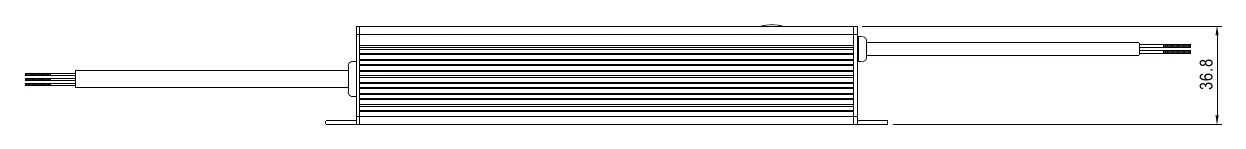

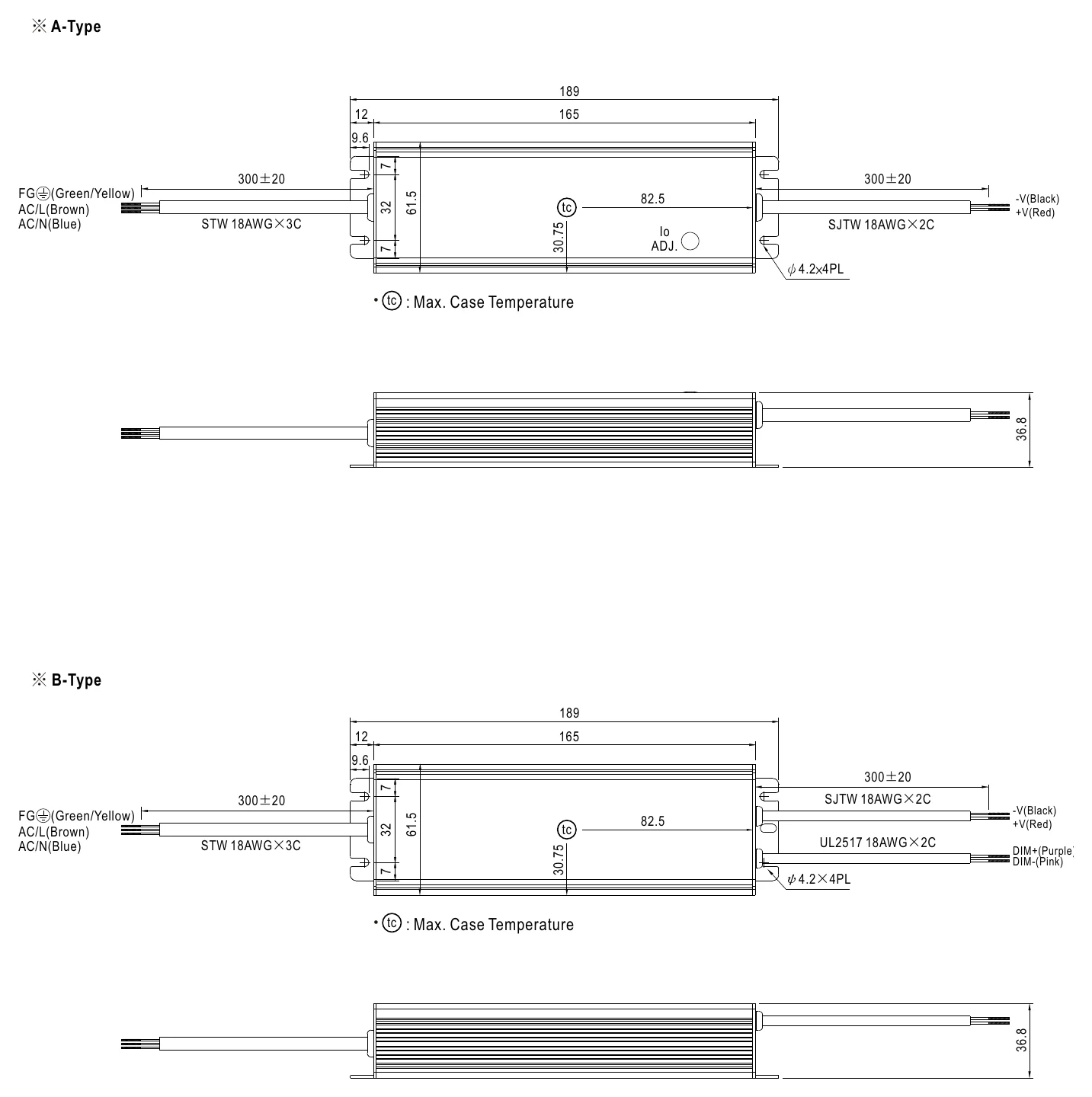

- 189*61.5*36.8mm (L*W*H)
- PACKING
- 0.77Kg; 18pcs/14.9Kg/0.89CUFT
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. It is measured 50%~100% of maximum voltage under rated power delivery.
- 6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

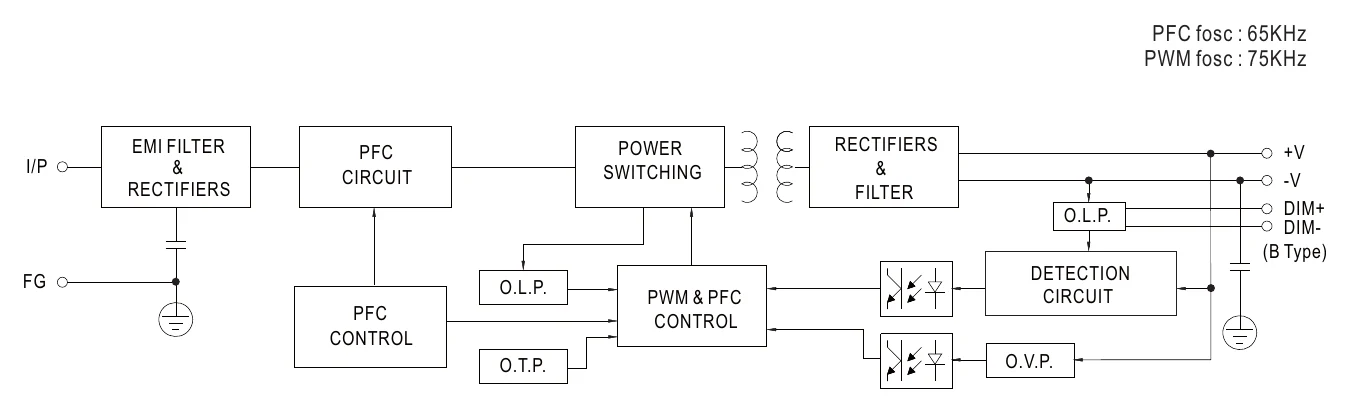

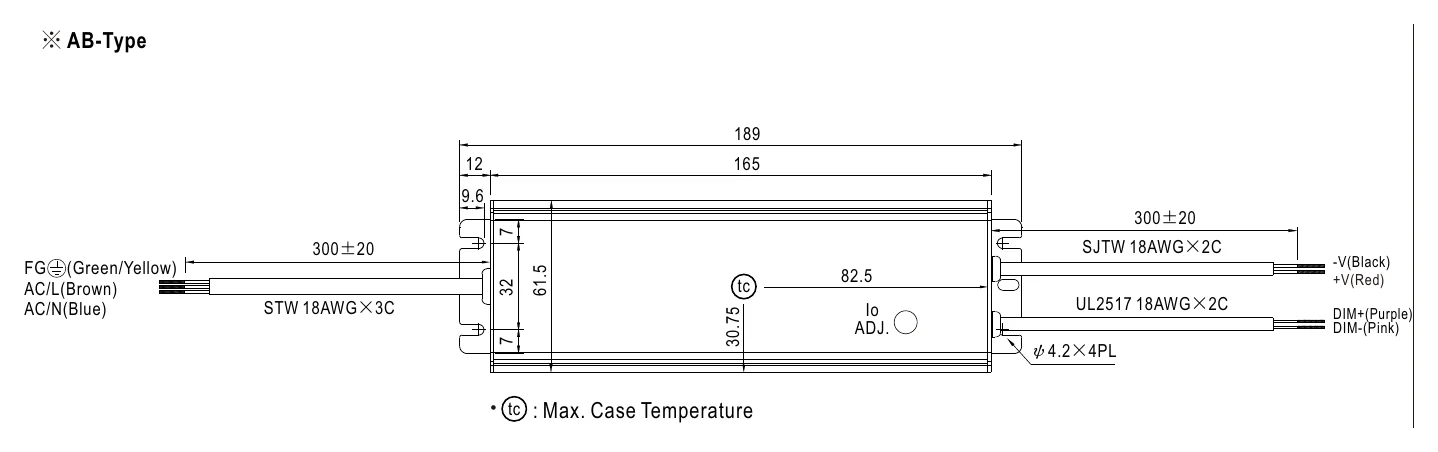

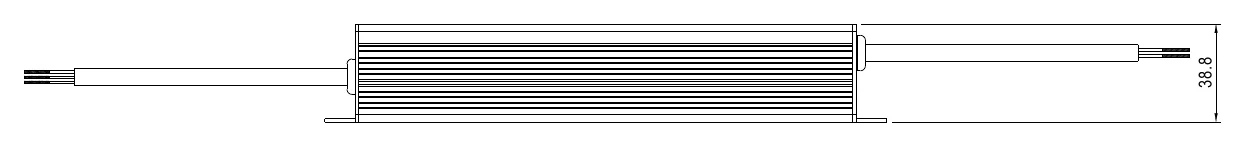

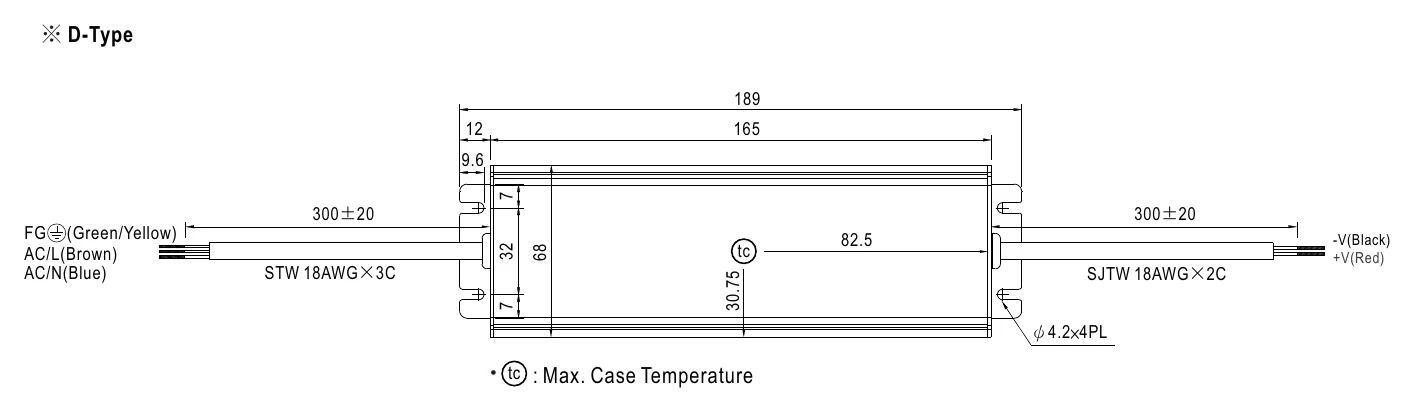

Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can the HVGC-65-500AB power 500mA LED downlights where dimming is needed?
Yes, it is a 500mA constant current driver and is intended for LED loads that need that current level. For a compatible downlight load, the total LED forward voltage must stay within 13-130V and the total load must remain within 65W. It is not meant for constant voltage fixtures.
Is this a good match for dimmable signage modules or compact LED arrays?
It can work for signage modules or compact LED arrays that are built for constant current operation at 500mA. The combined LED forward voltage must remain in the 13-130V constant current range, and the exact LED count depends on each LED's forward voltage. Constant voltage modules should not be paired with this type of driver.
Can I use the HVGC-65-500AB for architectural LED arrays with a wide AC input range?
This model accepts 180-528VAC input, so it supports a wide input range on the supply side. On the output side, it provides 500mA constant current across 13-130V for LED arrays designed for that operating window. The load still needs to stay within the 65W rating.
What kind of LED load size does the HVGC-65-500AB support?
It supports constant current LED loads at 500mA with a total forward voltage between 13V and 130V. The number of LEDs is not fixed because it depends on the forward voltage of each LED in the array or module. This distinction matters because a constant current driver is selected by current and voltage range, not by a fixed LED count.
Can the HVGC-65-500AB be used in exposed industrial or outdoor environments?

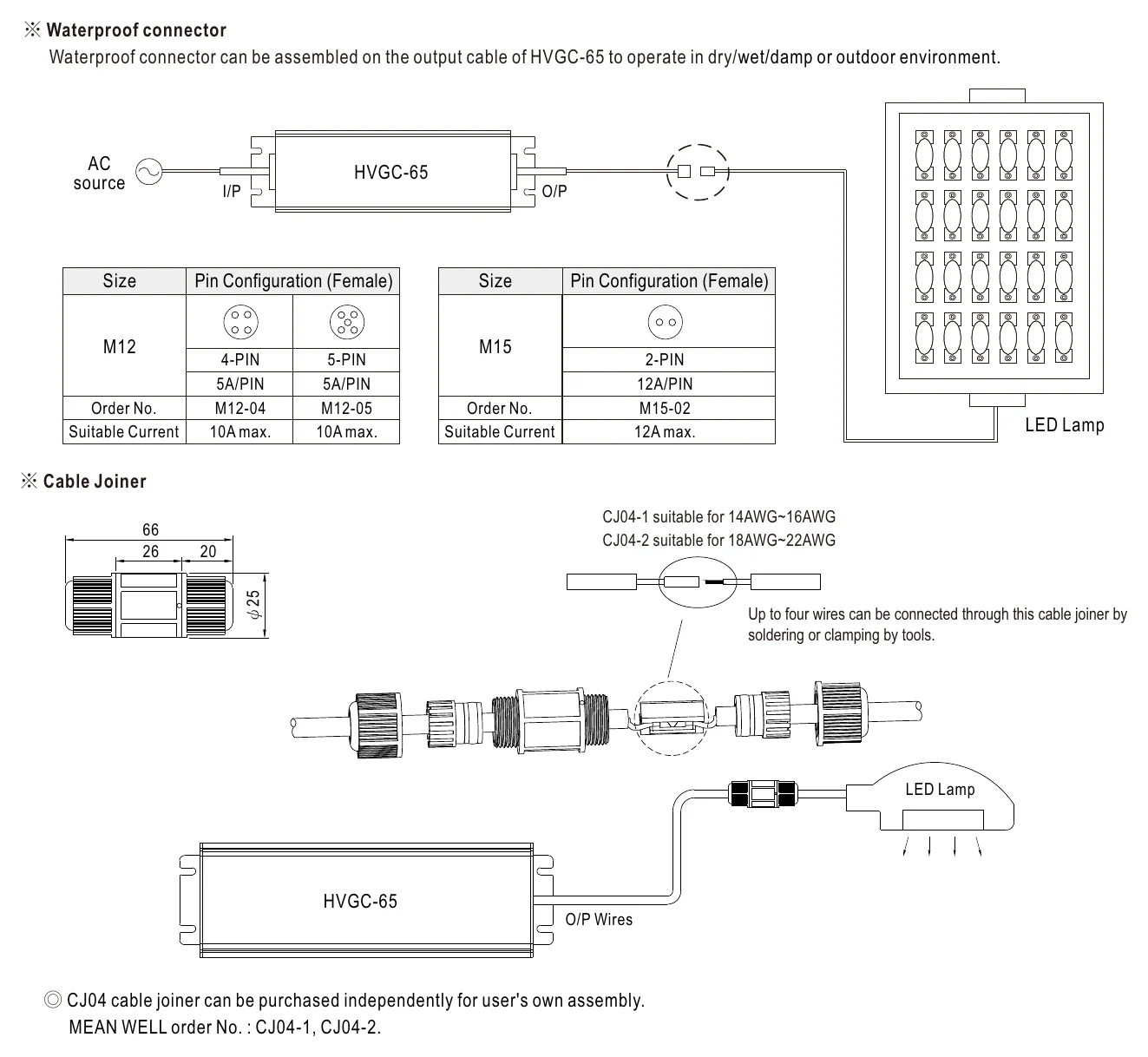

The HVGC-65 series is IP65 or IP67 approved, and a waterproof connector can be fitted to the output cable for wet, damp or outdoor use. It is specified for a case temperature (Tcase) of -40°C to +80°C, with load derating at higher temperatures. The final enclosure requirement should still match the actual site conditions.
How does the HVGC-65-500AB differ from other 65W HVGC current levels?
In the 65W family, the 350mA models are 65.1W with an 18-186V CC range, the 500mA models are 65W with a 13-130V CC range, the 700mA models are 65.1W with a 9-93V CC range, and the 1050mA models are 65.1W with a 6-62V CC range. The higher-current siblings use lower constant current voltage ranges. This model is the 500mA, 13-130V option in that lineup.
