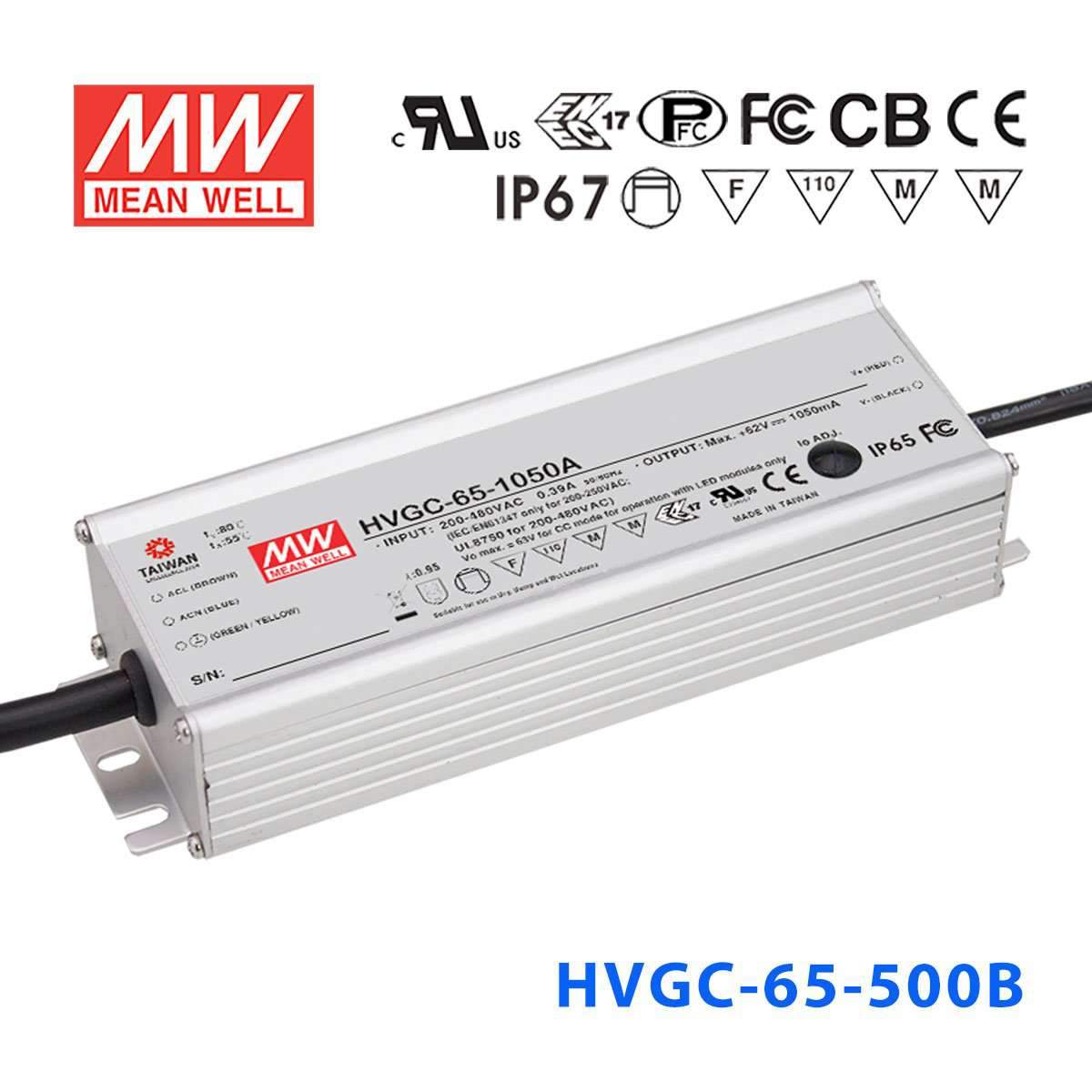

Mean Well HVGC-65-500B Power Supply 65W 500mA - Dimmable
Overview
HVGC-65-500B is the model of this series: rated current 500mA, rated power 65W, typical efficiency 90.5%.
HVGC-65 series is a 65W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-65 operates from 180~528VAC and offers models with different rated current ranging between 350mA and 1050mA. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 500mA
- RATED POWER
- 65W
- CONSTANT CURRENT REGIONNote.2
- 13 ~ 130V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 300 ~ 500mA
- CURRENT TOLERANCE
- ±5.0%
- CURRENT RIPPLENote.5
- 5.0% max. @rated current
- SET UP TIMENote.4
- 500ms / 230Vac 400ms / 347VAC,480VAC
INPUT
- VOLTAGE RANGENote.3
- 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@ load≧60%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
- EFFICIENCY (Typ.)
- 90.5%
- AC CURRENT (Typ.)
- 0.22A / 347VAC 0.18A / 480VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A(twidth=420μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC
- LEAKAGE CURRENT
- <0.75mA / 480VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 137 ~ 150V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, independent, EAC TP TC 004, IP65 or IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.6
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 2164.4K hrs min. Telcordia SR-332 (Bellcore) ; 202.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 189*61.5*36.8mm (L*W*H)
- PACKING
- 0.77Kg; 18pcs/14.9Kg/0.89CUFT
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. It is measured 50%~100% of maximum voltage under rated power delivery.
- 6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.
Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the HVGC-65-500B for outdoor LED downlights that need 500mA constant current?
Yes, if the downlight array is designed for 500mA constant current and its total forward voltage stays within 13-130V. The driver is rated at 65W and uses constant current operation, so it is not a substitute for a constant voltage LED power supply. The HVGC-65 series is IP65 or IP67 approved and can operate outdoors with a waterproof connector on the output cable.
Is the HVGC-65-500B suitable for weather-exposed signage modules?
It can be suitable for signage modules that require 500mA constant current rather than constant voltage. The total LED forward voltage must stay within the 13-130V CC range, and the exact number of LEDs depends on each LED's forward voltage. The series' IP65/IP67 approval suits weather-exposed installations.
Can this driver run small LED arrays in wet or washdown-prone areas?
It is designed for constant current LED arrays at 500mA and supports a 13-130V operating window on the output side. The series is IP65 or IP67 approved and specified for a case temperature (Tcase) of -40°C to +80°C, so it is aimed at tougher environments than basic indoor drivers; check the unit's rating against the water exposure on site. The LED load still needs to fit within the 65W rating.
How do I check compatibility with my LEDs before choosing the HVGC-65-500B?
Your LEDs need to be specified for 500mA constant current, and their total forward voltage must fall within 13-130V. The number of LEDs cannot be stated as a fixed count because it changes with each LED's forward voltage. If the product needs constant voltage output, this is the wrong driver type.
What IP rating does the HVGC-65-500B have compared with the other versions?
The spec sheet lists the HVGC-65 series as IP65 or IP67 approved and does not tie a rating to individual versions, so confirm the rating marked on the unit for your project. A waterproof connector can be fitted to the output cable for wet, damp or outdoor use. All versions share the same -40°C to +80°C case temperature (Tcase) range.
How does the HVGC-65-500B compare with other 65W HVGC outputs?
Across the 65W HVGC group, 350mA models are 65.1W with an 18-186V CC range, 500mA models are 65W with a 13-130V CC range, 700mA models are 65.1W with a 9-93V CC range, and 1050mA models are 65.1W with a 6-62V CC range. This model uses the 500mA output class with a 13-130V constant current range. As a B-type, it offers 3-in-1 dimming rather than potentiometer current adjustment.
