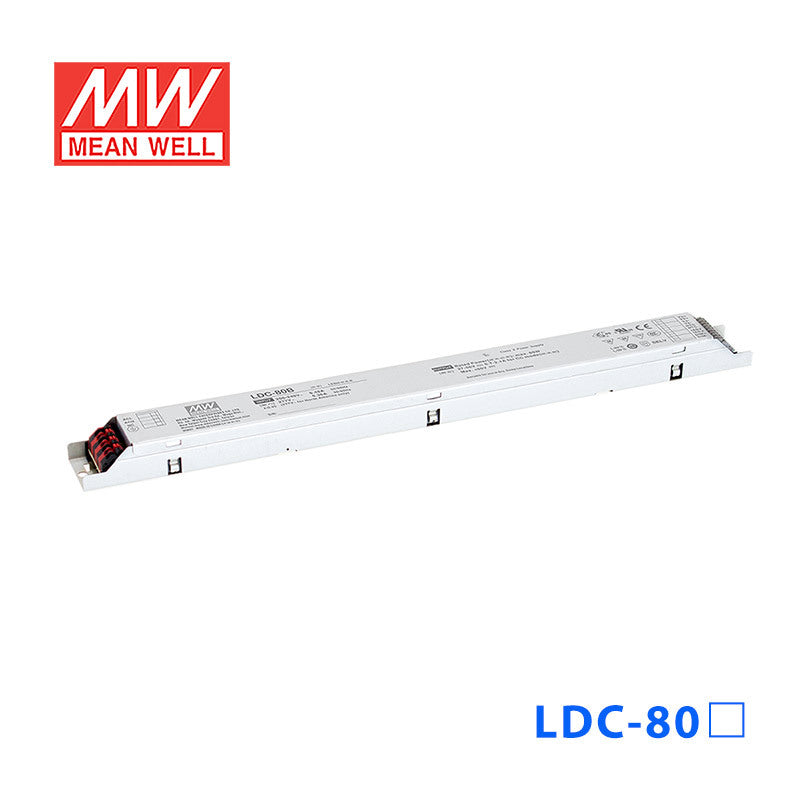

Mean Well LDC-80B Linear LED Driver 80W 700~2100mA Adjustable Output - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDC-80B Linear LED Driver 80W 700~2100mA Adjustable Outpu...
The LDC-80B is a 80W Mean Well AC-DC constant current LED driver (input: 180~295VAC, output: 60V, operating temperature: -25~+85°C).
Key Features
- ✓ Input voltage: 180~295VAC
- ✓ Output voltage (max): 60V
- ✓ Rated output current: 700mA
- ✓ Flicker-free output
- ✓ Operating temperature: -25~+85°C
- ✓ Safety certifications: BIS, CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesLDC Series
-
Power Rating80 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBIS,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-25°C~85°C
-
Warranty5 Year
-
Length14.17 in
-
Width1.18 in
-
Height0.83 in
-
Weight0.65 lb
::specification::
Frequently Asked Questions
Can I use the LDC-80B for dimmable LED downlights that run on constant current?
Yes, when the LED downlight is a constant current load within the 27-56V output range and up to 80W. This version is the dimmable 80W model, so it fits constant current downlight applications where that control style is needed.
Is the LDC-80B suitable for LED arrays in slim architectural fixtures?
It can be a fit for slim fixture builds that use constant current LED arrays operating from 27-56V. The driver body is 360.0 × 30.0 × 21.0 mm, so the narrow 30mm format supports long, low-profile fixture layouts.
Can this driver be used for signage modules with dimming requirements?
It can be used only if the signage module is a constant current LED assembly that operates within 27-56V and up to 80W. It should not be used in place of a constant voltage power supply for 12V or 24V signage systems.
How do I confirm LED compatibility with the LDC-80B?
Check that the LED load requires a constant current source and that its operating voltage falls within the 27-56V CC range at the required current. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver.
Can the LDC-80B operate in demanding ambient temperatures?
The specified operating temperature range is -25°C to +85°C, which covers both cold and high-heat environments within that limit. No IP rating is listed in the provided specs, so exposure conditions should be judged at the fixture or enclosure level.
