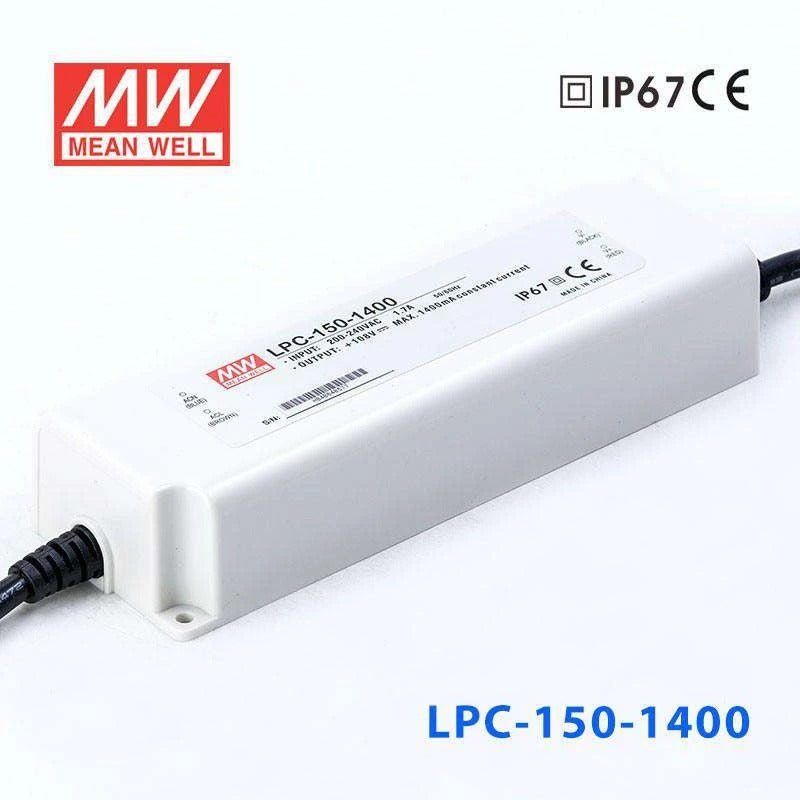

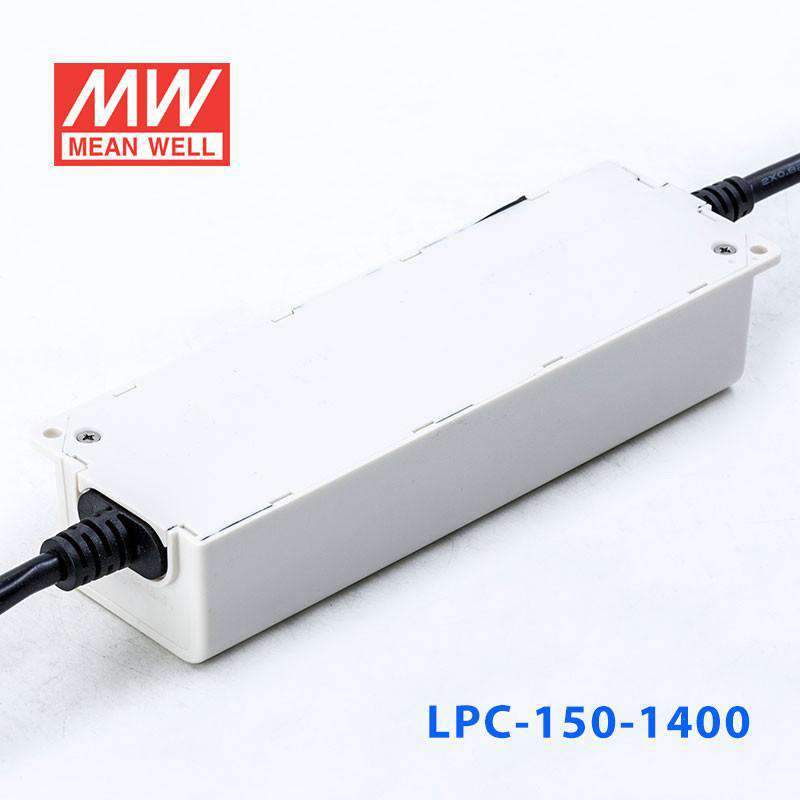

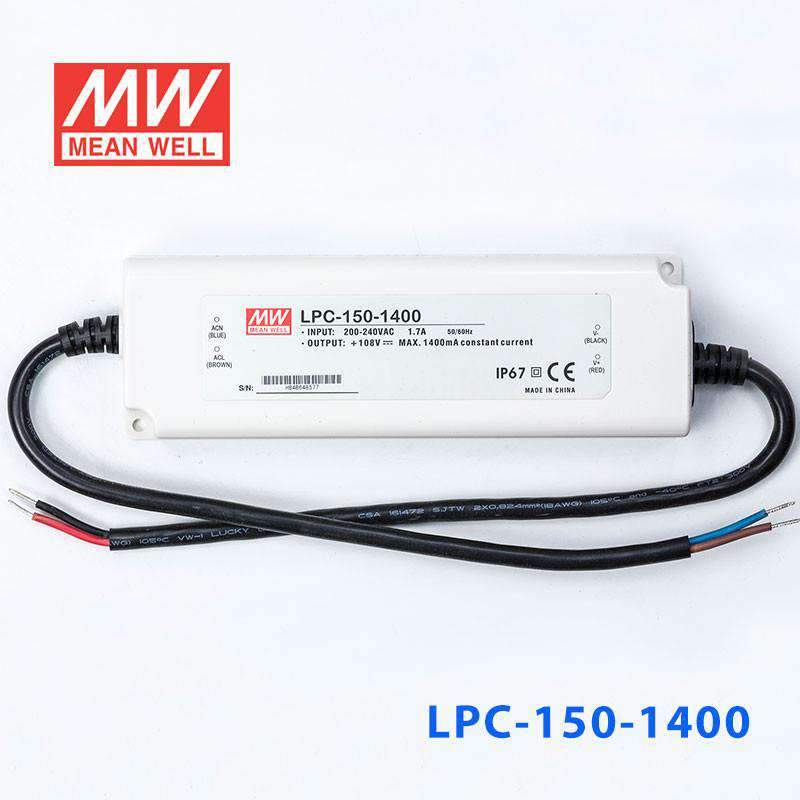

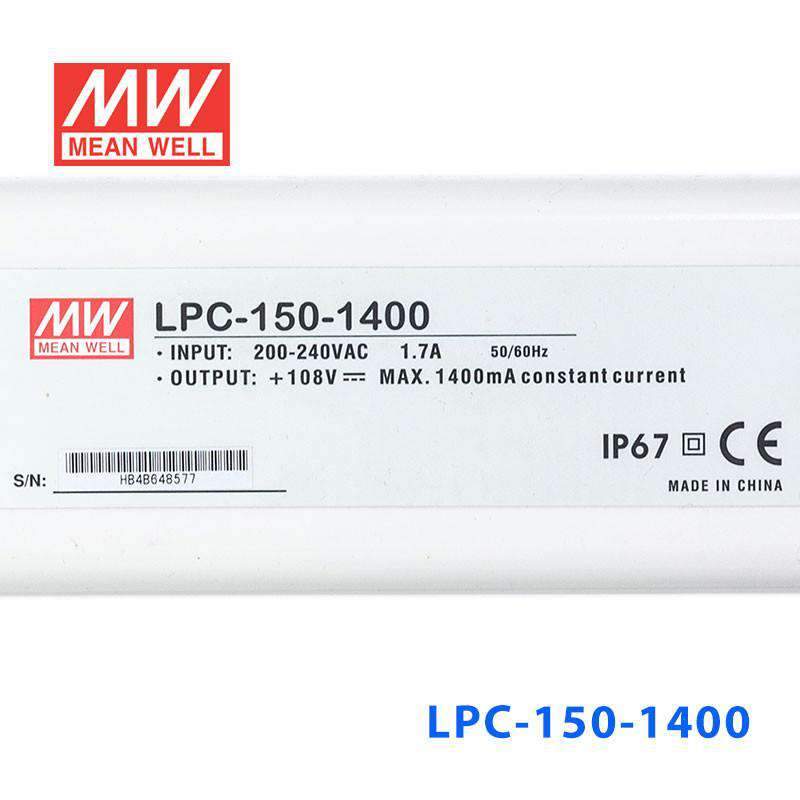

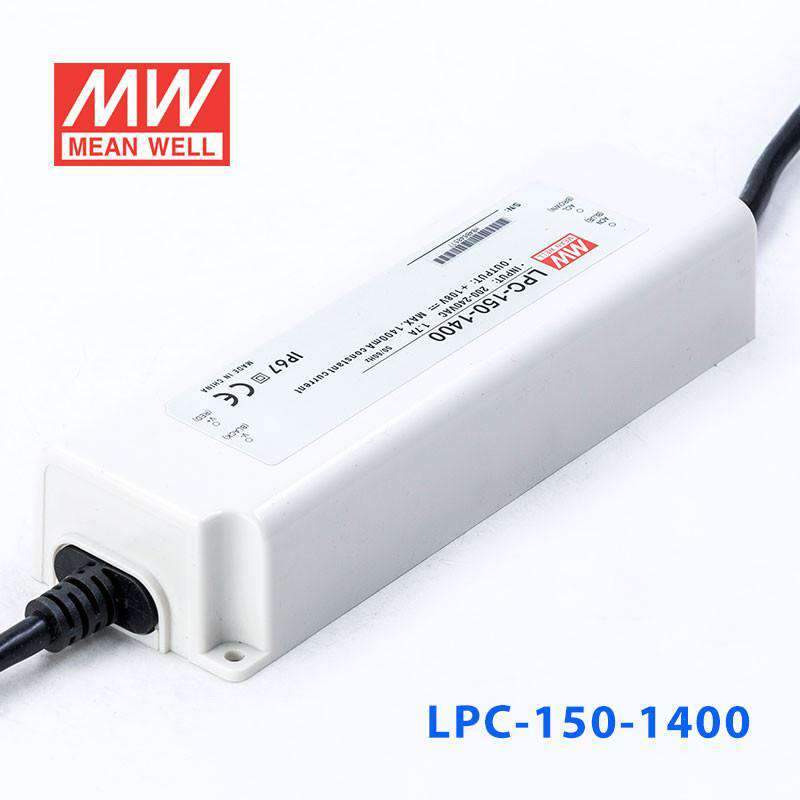

Mean Well LPC-150-1400 Power Supply 150W1400mA
The LPC-150 is a 150W Mean Well power converter (input range: 180~305VAC, operating temperature: -25~+50℃).
Key Features
- ✓ Input voltage range: 180~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; refer to EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating151.2 Watt
-
Output Voltage108 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPC-150-1400 for a constant current LED downlight that needs more drive current?
Yes, this model is intended for 1400mA constant current LED loads. It suits downlights whose total forward voltage falls within 54-108V and whose power demand stays within the 151.2W rating.
Is the LPC-150-1400 suitable for signage modules with a medium voltage LED string?
It can be used for signage modules built for a 1400mA constant current driver. The module string needs a combined forward voltage within the 54-108V CC range, which places it in a medium-voltage band compared with higher-voltage LPC models.
Can this driver power a compact high-current LED array?
Yes, this model is better aligned with higher-current arrays than a 700mA or 1050mA driver. The load still needs to match 1400mA constant current and remain within 54-108V and 151.2W.
What should I check before pairing the LPC-150-1400 with an LED load?
Check that the LED assembly is specified for 1400mA constant current and that its total forward voltage falls within 54-108V. Because this is a constant current driver rather than a constant voltage supply, the usable LED count depends on each LED's forward voltage.
Can the LPC-150-1400 be used in exposed environments?
Yes, it carries an IP67 waterproof rating and is designed for operating temperatures from -25°C to +50°C. That makes it appropriate for indoor or outdoor LED systems where moisture and dust protection are required.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPC-150 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPC-150-700 Power Supply 150W 700mA | 150.5W | 215V | 0.7A | IP67 | $36.79 | View |
| Mean Well LPC-150-500 Power Supply 150W 500mA | 150W | 300V | 0.5A | IP67 | $36.79 | View |
| Mean Well LPC-150-350 Power Supply150W 350mA | 150.5W | 430V | 0.35A | IP67 | $34.24 | View |
| Mean Well LPC-150-3150 Power Supply 150W 3150mA | 151.2W | 48V | 3.15A | IP67 | $36.79 | View |
| Mean Well LPC-150-2800 Power Supply 150W 2800mA | 151.2W | 54V | 2.8A | IP67 | $36.79 | View |
| Mean Well LPC-150-2450 Power Supply 150W 2450mA | 151.9W | 62V | 2.45A | IP67 | $34.24 | View |
| Mean Well LPC-150-2100 Power Supply 150W 2100mA | 151.2W | 72V | 2.1A | IP67 | $34.16 | View |
| Mean Well LPC-150-1750 Power Supply 150W 1750mA | 150.5W | 86V | 1.75A | IP67 | $34.24 | View |
| Mean Well LPC-150-1050 Power Supply 150W 1050mA | 151.2W | 144V | 1.05A | IP67 | $36.79 | View |
