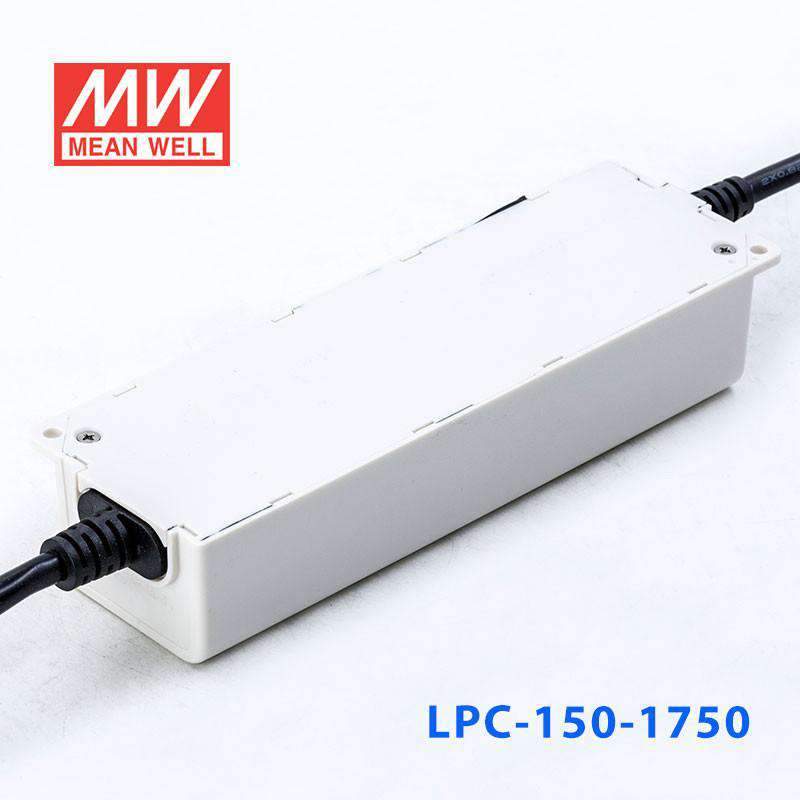

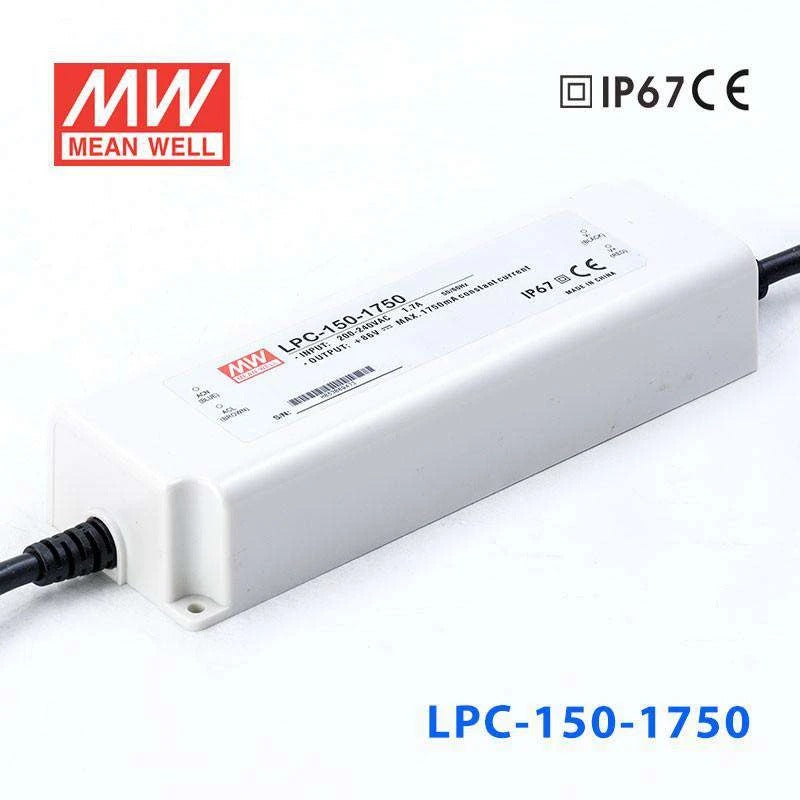

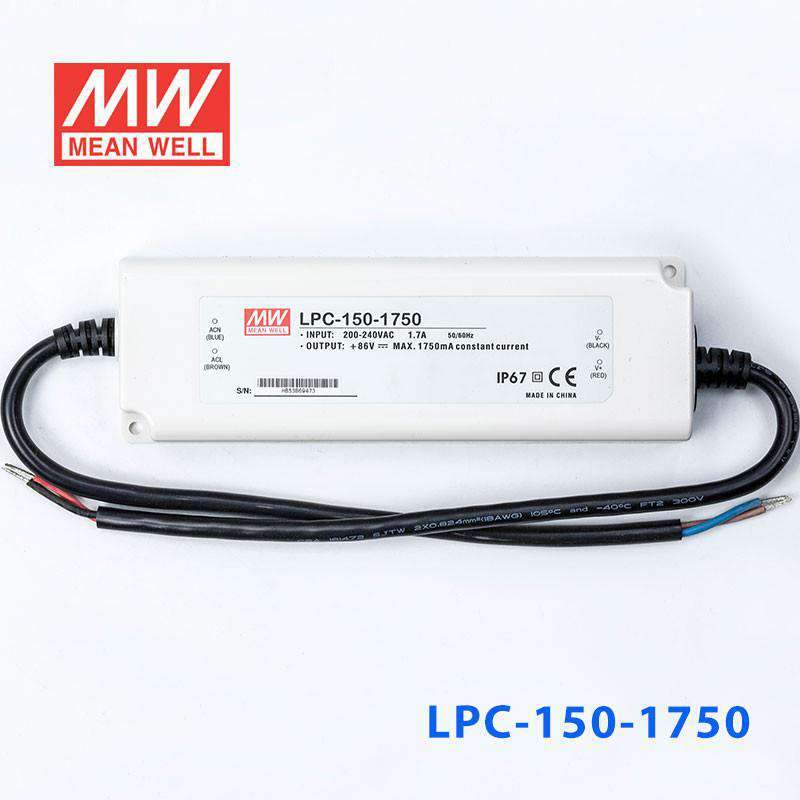

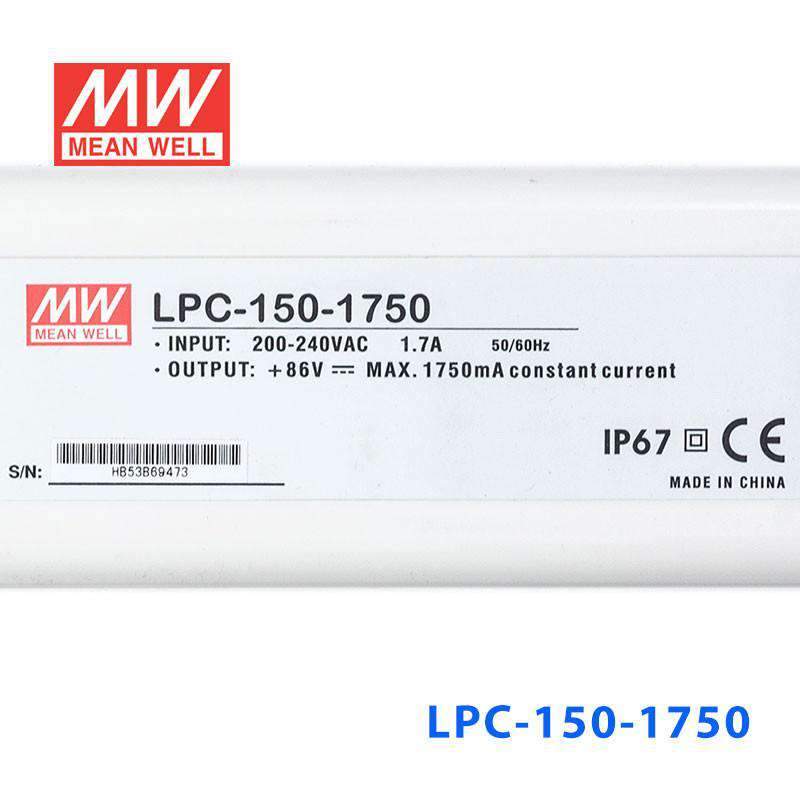

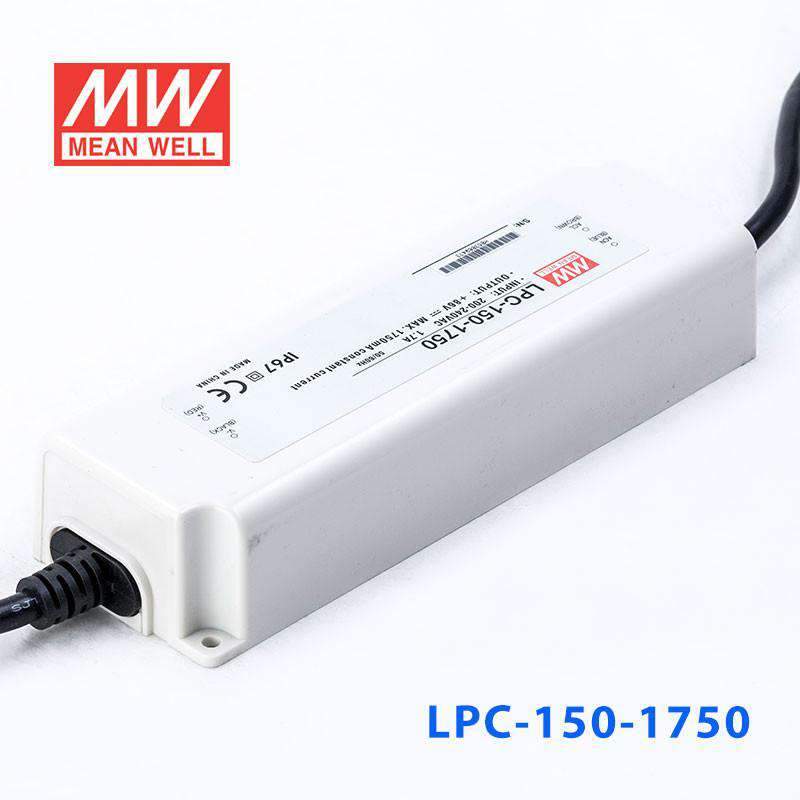

Mean Well LPC-150-1750 Power Supply 150W 1750mA
The LPC-150 is a 150W Mean Well power converter (input range: 180~305VAC, operating temperature: -25~+50℃).
Key Features
- ✓ Input voltage range: 180~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; refer to EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating150.5 Watt
-
Output Voltage86 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPC-150-1750 for a high-current LED downlight?
Yes, if the downlight is designed for 1750mA constant current operation. The total LED forward voltage must stay within 43-86V, and the load must remain within the 150.5W output rating.
Is the LPC-150-1750 a fit for signage modules that need more current and lower voltage than 1050mA models?
Yes, this model is intended for 1750mA constant current LED loads and operates across 43-86V. That makes it better suited to lower-voltage, higher-current module strings than models with 72-144V or 107-215V ranges.
Can this driver run a small LED array based on high-current LEDs?
It can, provided the array is built for 1750mA constant current input. The full array forward voltage needs to fall within 43-86V, which is more appropriate for higher-current arrays than long high-voltage strings.
How should I judge compatibility for the LPC-150-1750?
Match the LED load to 1750mA constant current and make sure the total forward voltage is within 43-86V. This is not a constant voltage power supply, and the number of LEDs depends on the forward voltage of each LED in the array.
Is the LPC-150-1750 suitable for outdoor lighting conditions?
The driver has an IP67 waterproof rating and an operating temperature range of -25°C to +50°C. That supports use in indoor or outdoor locations where the driver may be exposed to rain, dust, or normal seasonal temperature changes within that range.
