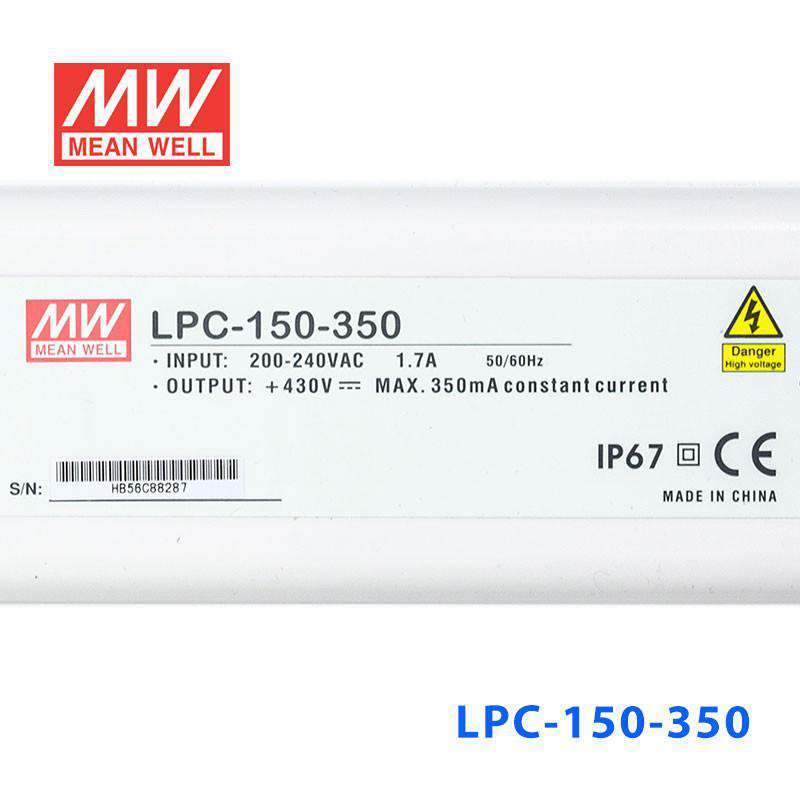

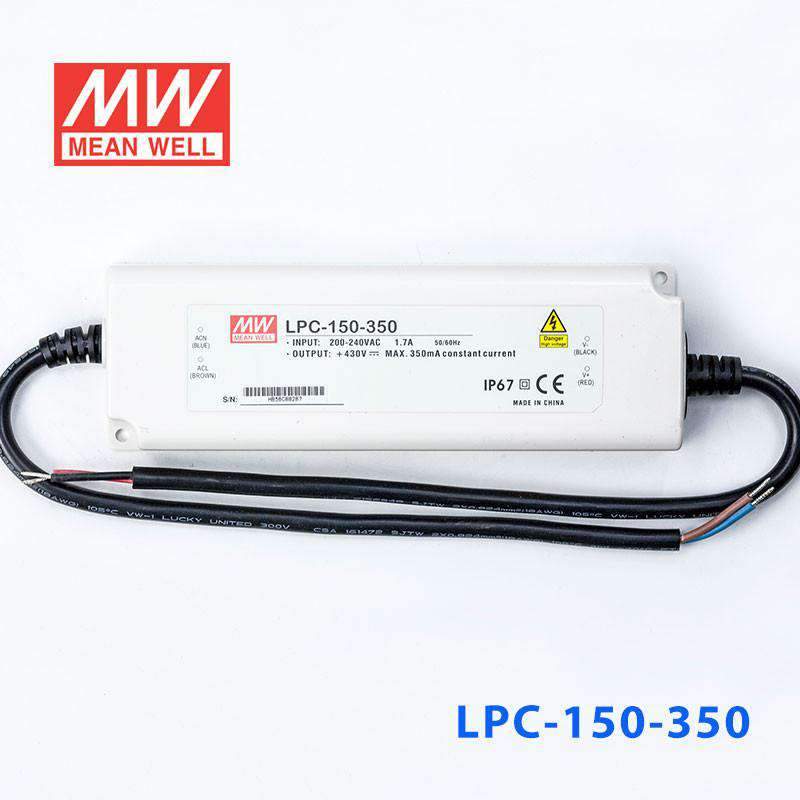

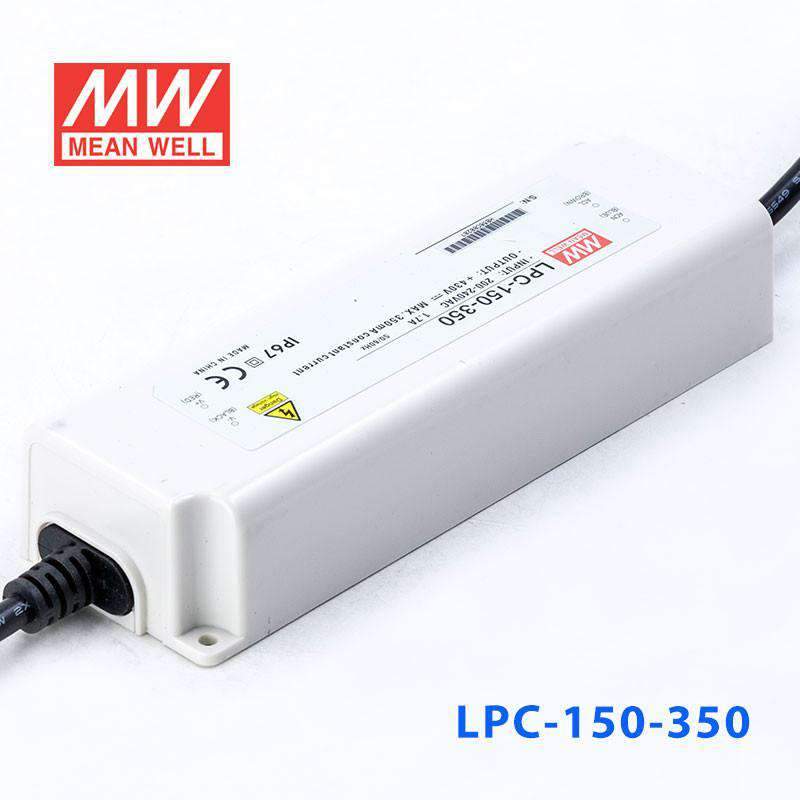

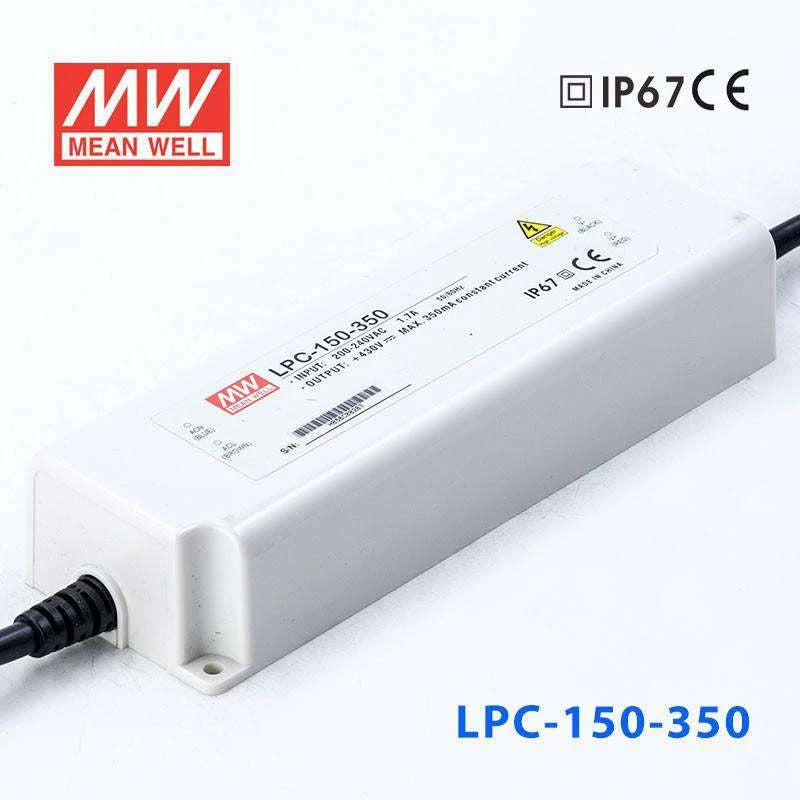

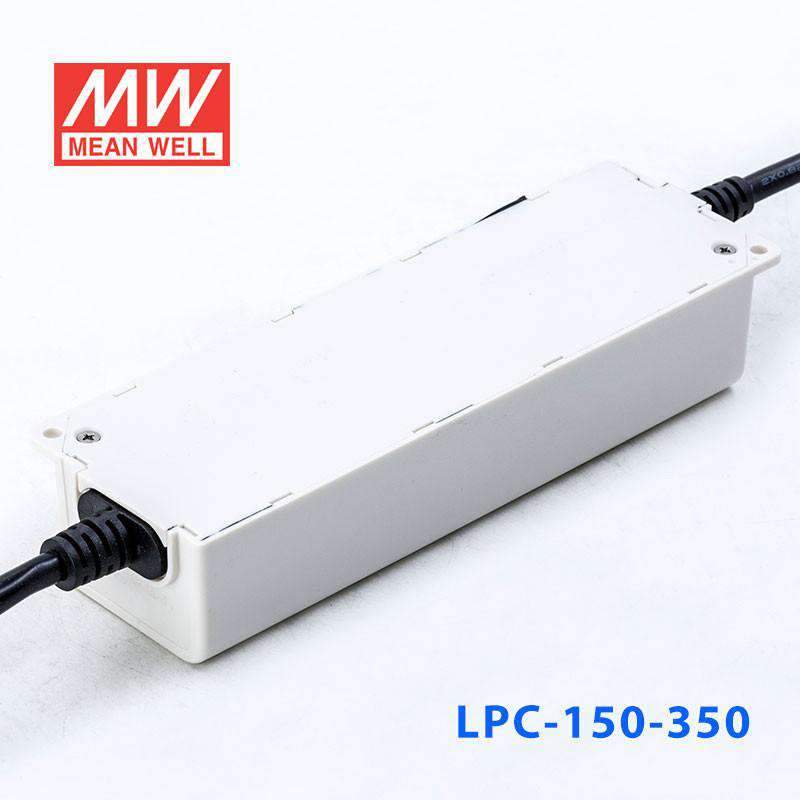

Mean Well LPC-150-350 Power Supply150W 350mA
The LPC-150 is a 150W Mean Well power converter (input range: 180~305VAC, operating temperature: -25~+50℃).
Key Features
- ✓ Input voltage range: 180~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; refer to EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating150.5 Watt
-
Output Voltage430 Volt
-
Rated Current0.35 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPC-150-350 for long-series LED downlight arrays?
Yes, if the downlight assembly is designed for 350mA constant current and its total forward voltage falls within the 215-430V CC range. This model is intended for high-voltage series LED loads, not constant voltage lighting products.
Is the LPC-150-350 suitable for signage modules arranged in long series strings?
It can be suitable when the signage module string is built for 350mA constant current and the total forward voltage stays between 215V and 430V. Because this is a constant current driver, it is not appropriate for fixed-voltage signage modules.
Can this driver power a large small-LED array with many LEDs in series?
Yes, this model is aimed at 350mA constant current arrays that require a high total forward voltage within the 215-430V range. Its 150.5W rating supports larger series arrays than the lower-voltage, higher-current LPC-150 versions.
What LEDs are compatible with the LPC-150-350?
Compatible loads must require 350mA constant current and present a total forward voltage in the 215-430V CC range. The number of LEDs depends on each LED forward voltage, so there is no single LED count that fits every design.
Can the LPC-150-350 be used where moisture and dust are present?
Yes, the driver is rated IP67 for waterproof and dust-tight performance. It is also specified to operate from -25°C to +50°C, so those ambient conditions should be respected.
How does the LPC-150-350 compare with the LPC-150-500 and LPC-150-700?
The LPC-150-350 is 350mA with a 215-430V CC range and 150.5W, the LPC-150-500 is 500mA with a 150-300V range and 150W, and the LPC-150-700 is 700mA with a 107-215V range and 150.5W. These three models stay near 150W but trade higher current for lower constant current voltage range.
