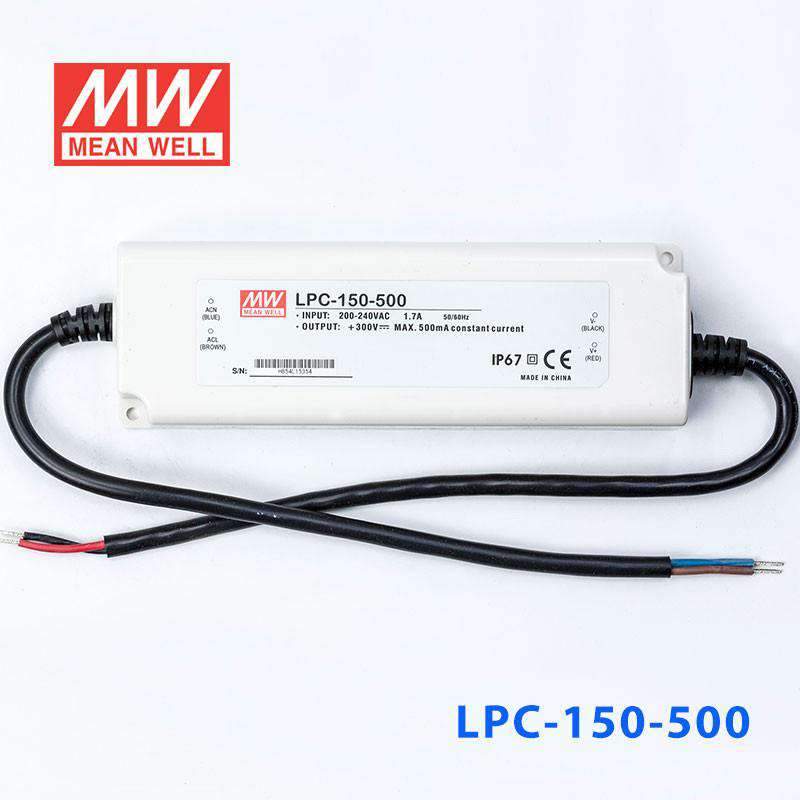

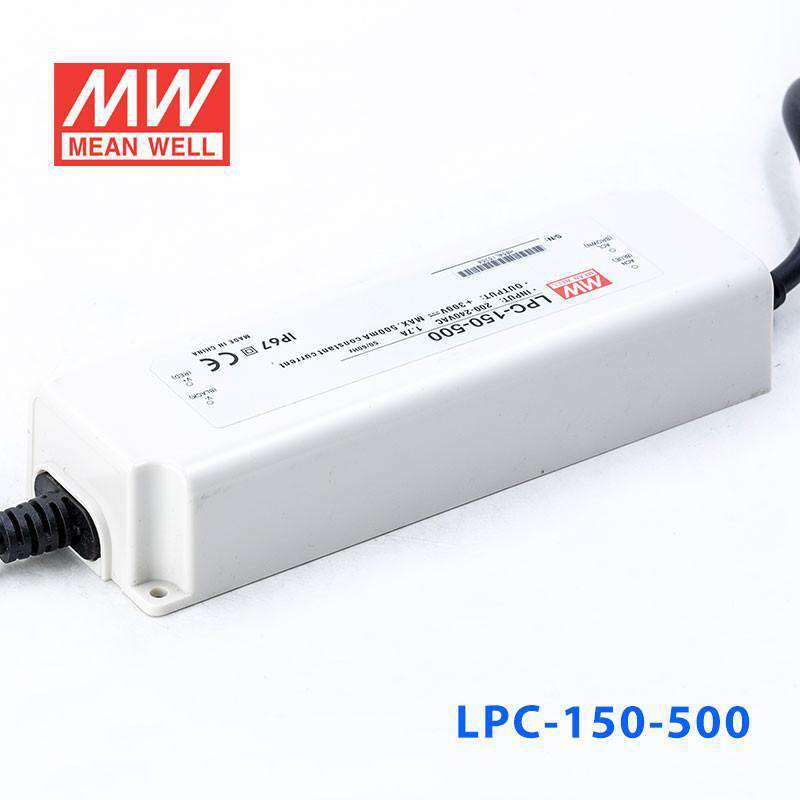

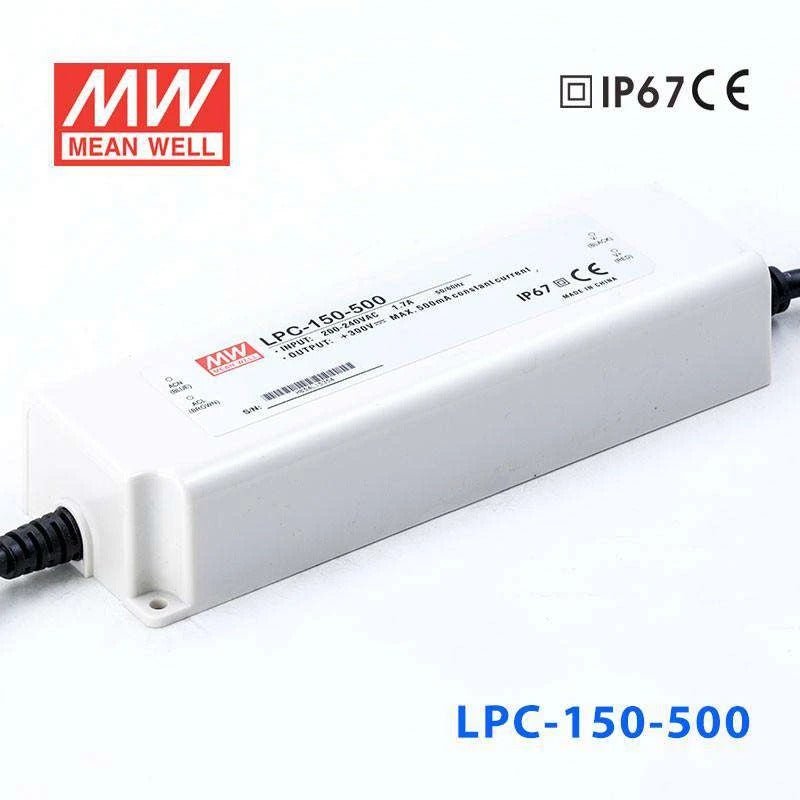

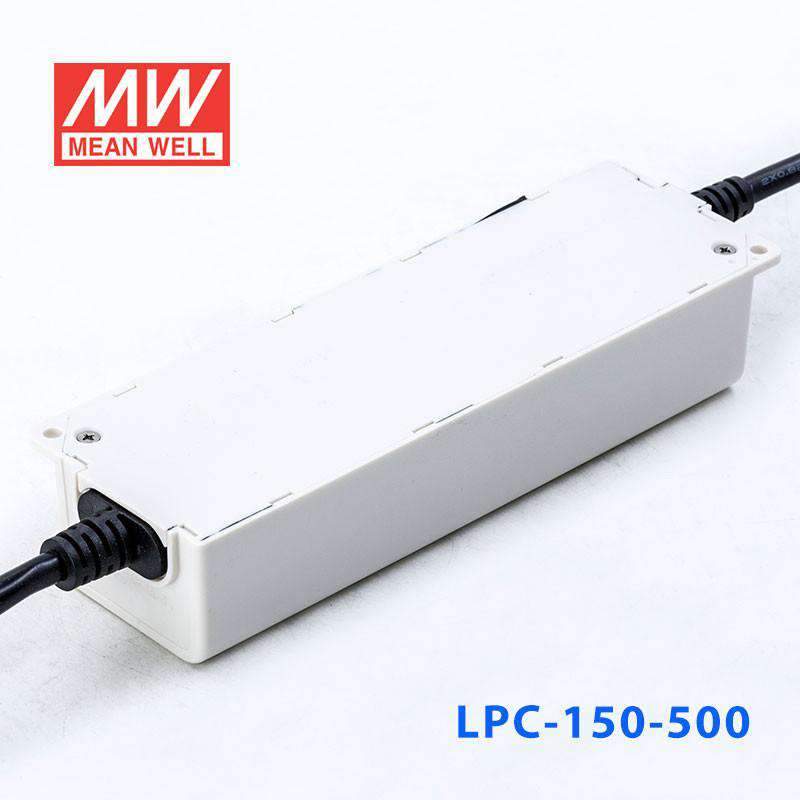

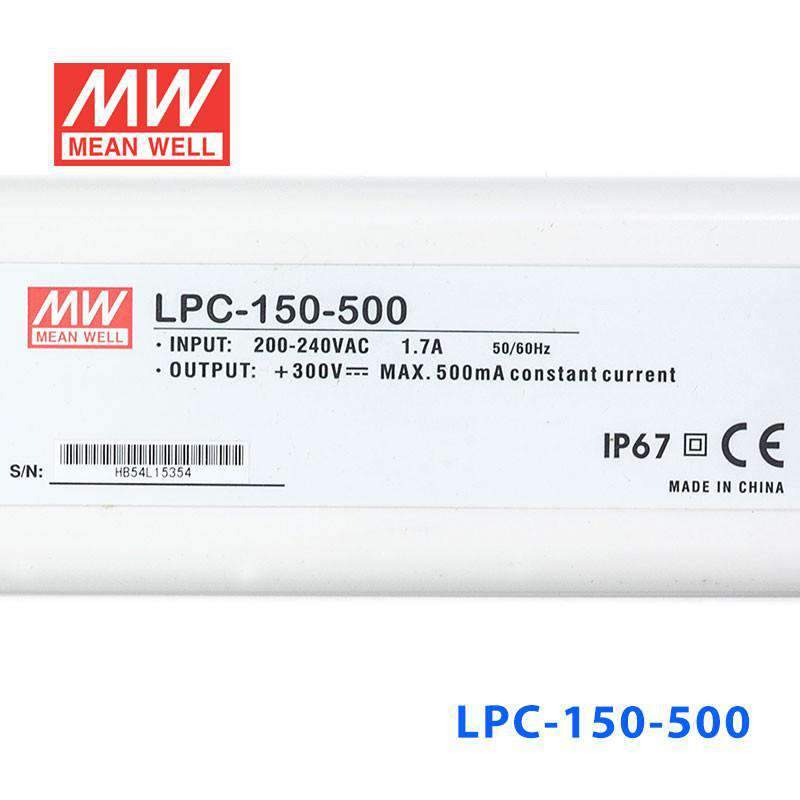

Mean Well LPC-150-500 Power Supply 150W 500mA
The LPC-150 is a 150W Mean Well power converter (input range: 180~305VAC, operating temperature: -25~+50℃).
Key Features
- ✓ Input voltage range: 180~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; refer to EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating150 Watt
-
Output Voltage300 Volt
-
Rated Current0.5 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPC-150-500 for constant current LED downlights with long series strings?
Yes, if the downlight requires 500mA constant current and the total LED forward voltage is within the 150-300V CC range. It is meant for constant current loads and is not the correct choice for constant voltage LED systems.
Is the LPC-150-500 suitable for LED signage modules in higher-voltage series arrangements?
It can be suitable for signage module assemblies that are designed for 500mA constant current and whose total forward voltage stays between 150V and 300V. It should not be used for standard fixed-voltage modules.
Can this driver power a small LED array that needs 500mA?
Yes, for a small LED array specified for 500mA constant current with a combined forward voltage inside the 150-300V operating window. With 150W output power, it is intended for substantial constant current LED loads rather than low-power boards.
How do I check whether my LEDs match the LPC-150-500?
Your LED assembly must require 500mA constant current, and the total forward voltage must remain in the 150-300V CC range. The number of LEDs depends on the forward voltage of each LED, so the correct series length varies by LED type.
Is the LPC-150-500 appropriate for outdoor environments?
Yes, the IP67 rating means the enclosure is built for wet and dusty conditions. The specified operating temperature range is -25°C to +50°C, so the application should remain within those ambient limits.
How does the LPC-150-500 differ from other high-voltage LPC-150 models?
The LPC-150-350 provides 350mA over 215-430V at 150.5W, the LPC-150-500 provides 500mA over 150-300V at 150W, and the LPC-150-700 provides 700mA over 107-215V at 150.5W. All three are around 150W, but the current and constant current voltage range shift depending on the LED load requirement.
