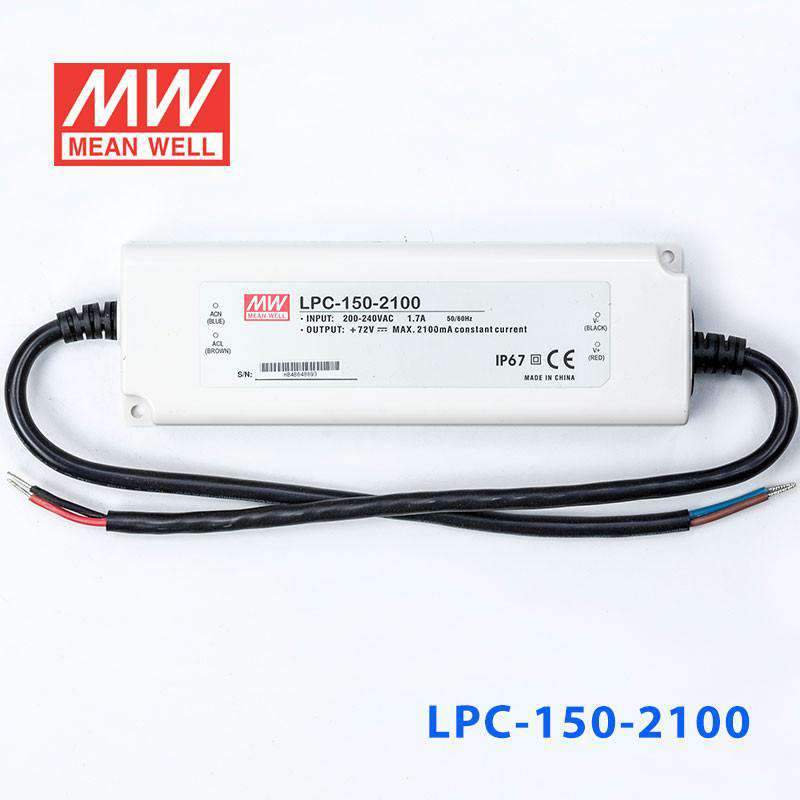

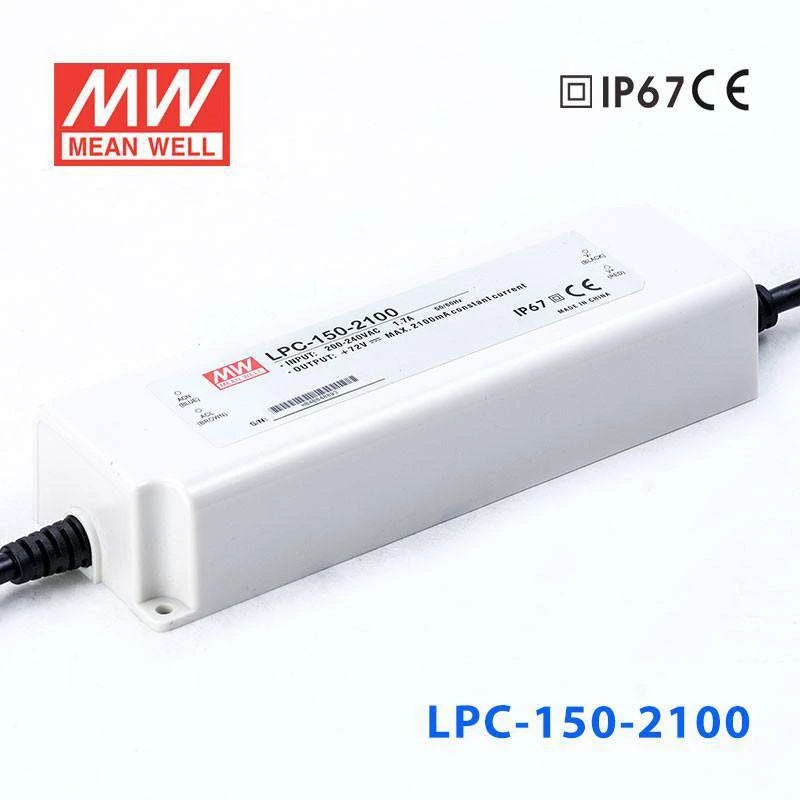

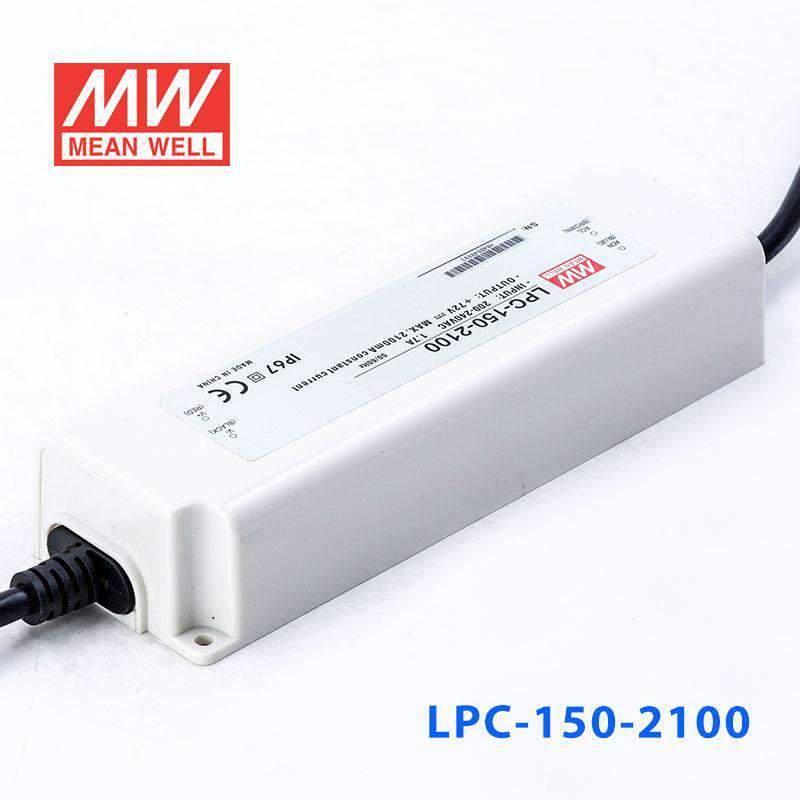

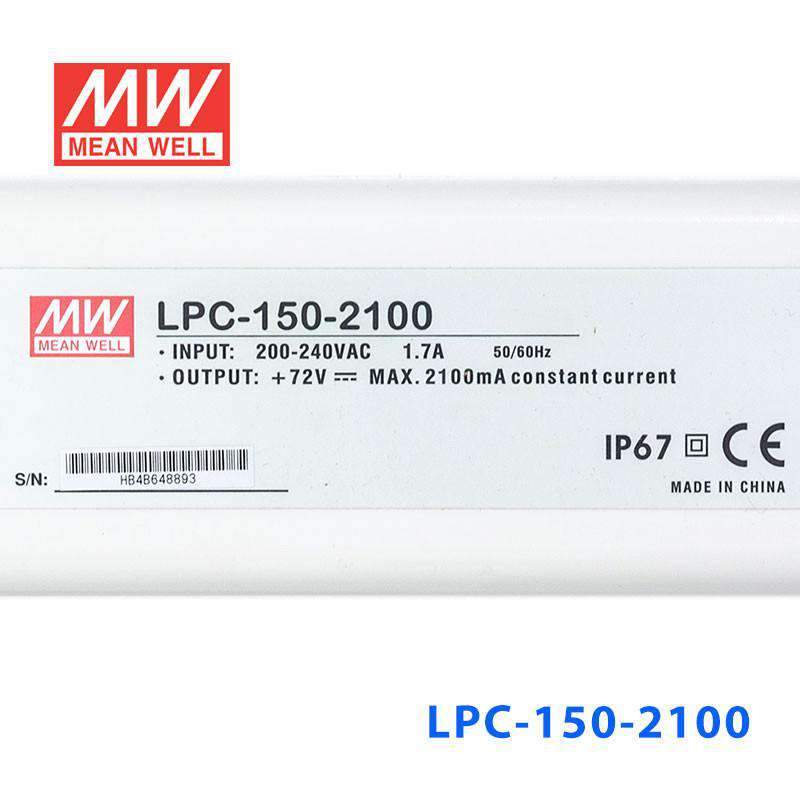

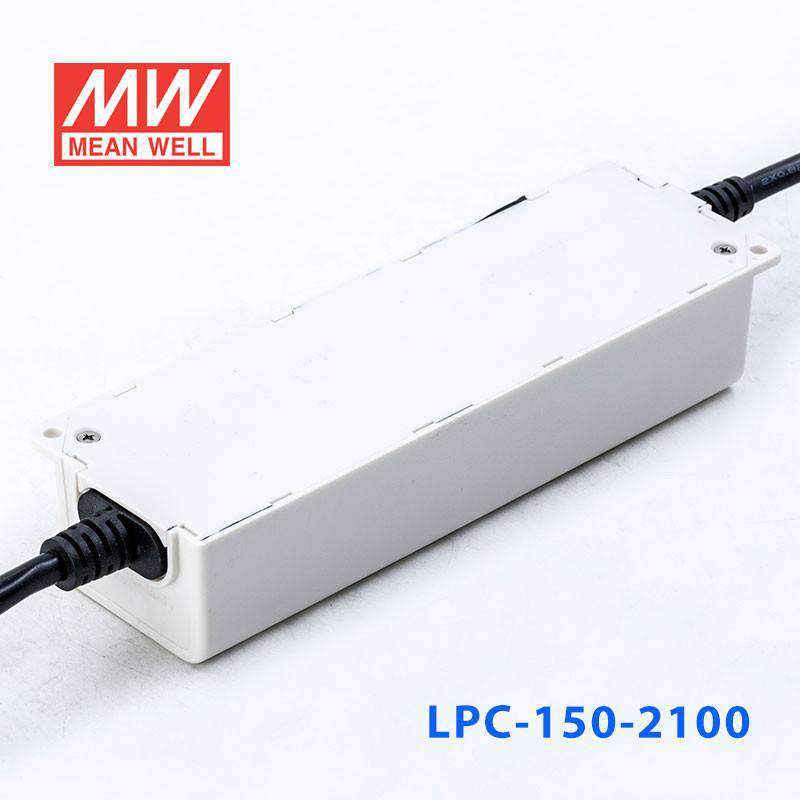

Mean Well LPC-150-2100 Power Supply 150W 2100mA
The LPC-150 is a 150W Mean Well power converter (input range: 180~305VAC, operating temperature: -25~+50℃).
Key Features
- ✓ Input voltage range: 180~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; refer to EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating151.2 Watt
-
Output Voltage72 Volt
-
Rated Current2.1 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPC-150-2100 for a high-current LED downlight or COB fixture?
Yes, this driver is intended for 2100mA constant current LED loads. It is a match for fixtures whose total LED forward voltage falls within 36-72V and whose power requirement stays within 151.2W.
Is the LPC-150-2100 suitable for signage modules with a lower-voltage, high-current LED string?
It can be suitable for signage modules designed around a 2100mA constant current input. Its 36-72V constant current range fits lower-voltage strings than the 700mA, 1050mA, or 1400mA high-voltage models in the series.
Can this model power a compact small LED array with heavier current demand?
Yes, the LPC-150-2100 is better aligned with compact high-current arrays than drivers built for lower current output. The array still needs to match 2100mA constant current and stay within the 36-72V and 151.2W limits.
What does LED compatibility depend on for the LPC-150-2100?
Compatibility depends on whether the LED load requires 2100mA constant current and whether its total forward voltage is within 36-72V. This is a constant current driver, not a constant voltage supply, so the number of LEDs depends on each LED's forward voltage rather than a fixed count.
Can the LPC-150-2100 be used outdoors or in wet areas?
Yes, the driver is rated IP67 waterproof and is specified for operation from -25°C to +50°C. That makes it suitable for indoor and outdoor LED applications where enclosure protection against water and dust matters.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPC-150 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPC-150-700 Power Supply 150W 700mA | 150.5W | 215V | 0.7A | IP67 | $36.79 | View |
| Mean Well LPC-150-500 Power Supply 150W 500mA | 150W | 300V | 0.5A | IP67 | $36.79 | View |
| Mean Well LPC-150-350 Power Supply150W 350mA | 150.5W | 430V | 0.35A | IP67 | $34.24 | View |
| Mean Well LPC-150-3150 Power Supply 150W 3150mA | 151.2W | 48V | 3.15A | IP67 | $36.79 | View |
| Mean Well LPC-150-2800 Power Supply 150W 2800mA | 151.2W | 54V | 2.8A | IP67 | $36.79 | View |
| Mean Well LPC-150-2450 Power Supply 150W 2450mA | 151.9W | 62V | 2.45A | IP67 | $34.24 | View |
| Mean Well LPC-150-1750 Power Supply 150W 1750mA | 150.5W | 86V | 1.75A | IP67 | $34.24 | View |
| Mean Well LPC-150-1400 Power Supply 150W1400mA | 151.2W | 108V | 1.4A | IP67 | $34.24 | View |
| Mean Well LPC-150-1050 Power Supply 150W 1050mA | 151.2W | 144V | 1.05A | IP67 | $36.79 | View |
