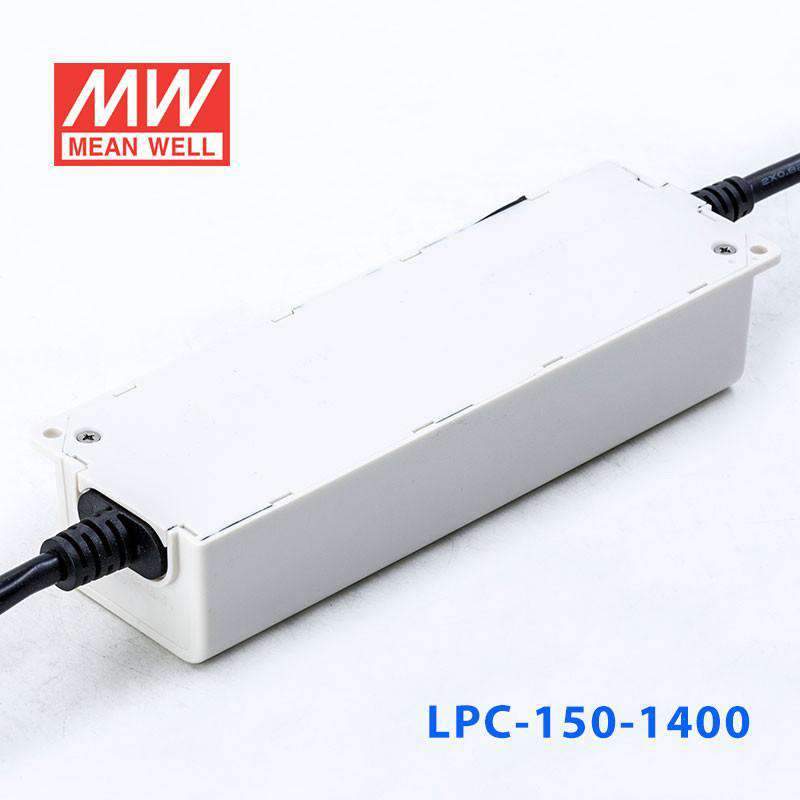

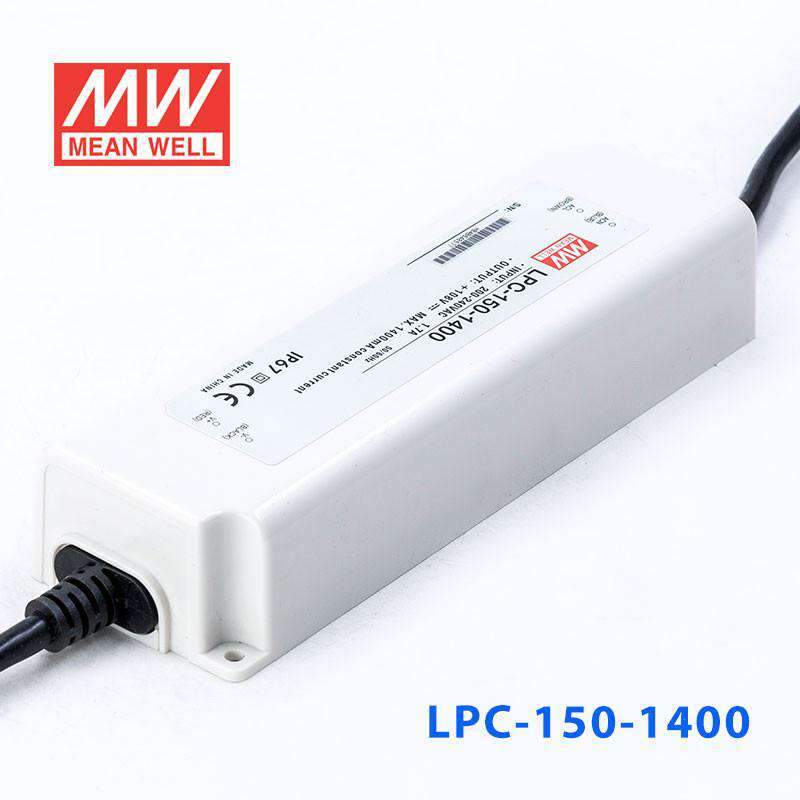

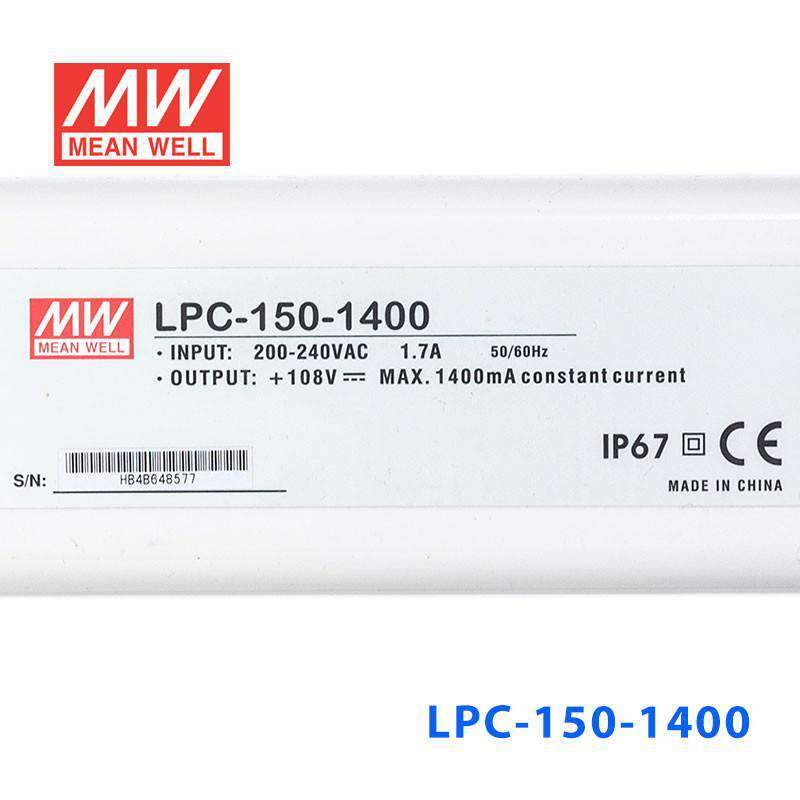

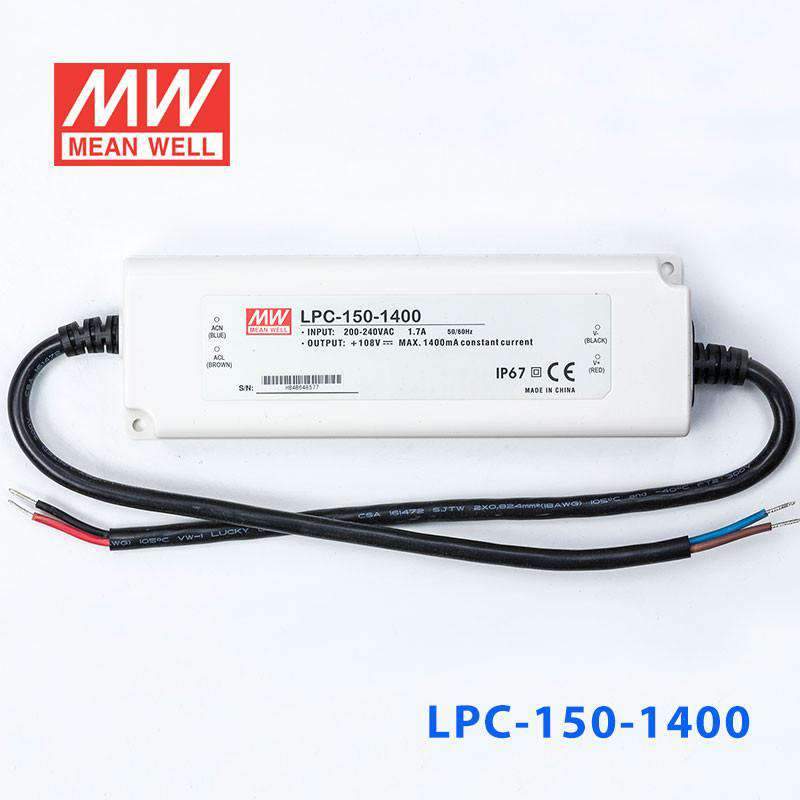

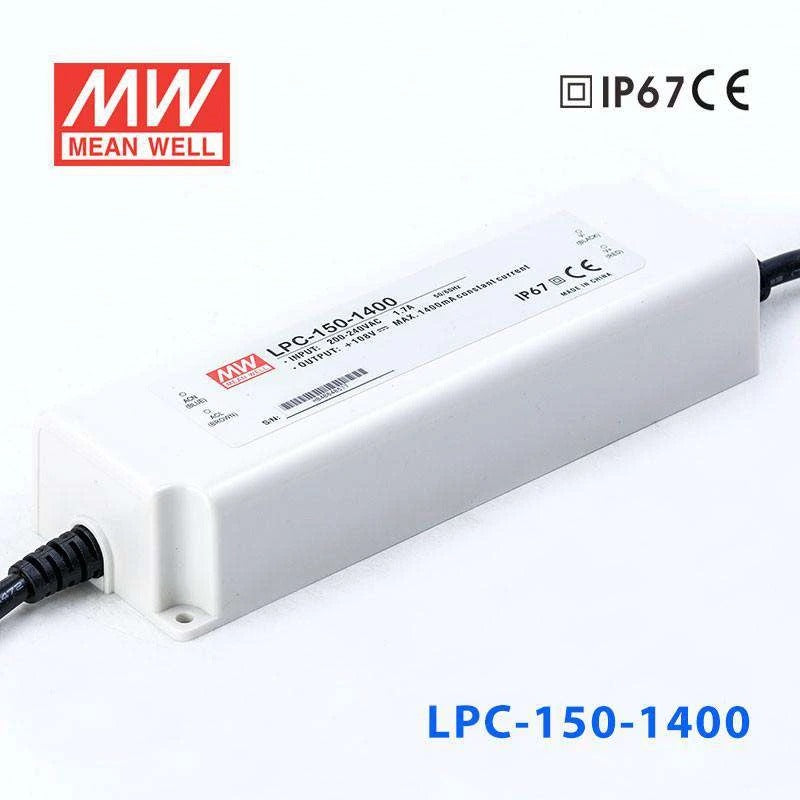

Mean Well LPC-150-1400 Power Supply 150W1400mA
$34.24 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input/full rauge |
| Fully encapsulated with IP67 level |
| Protections: Short circuit / Over voltage |
| Constant current design |
| Withstand 300VAC surge input for 5 seconds |
| High efficiency up to 90% |
| Class II power unit, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 180~305VAC |
| AC inrush current | Cold start, 40A at 230VAC |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -25~+50°C |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | IP67 approved;Design refer to TUV EN60950-1 |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SJTW 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 191x 63x 37.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating151.2 Watt
-
Output Voltage108 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
