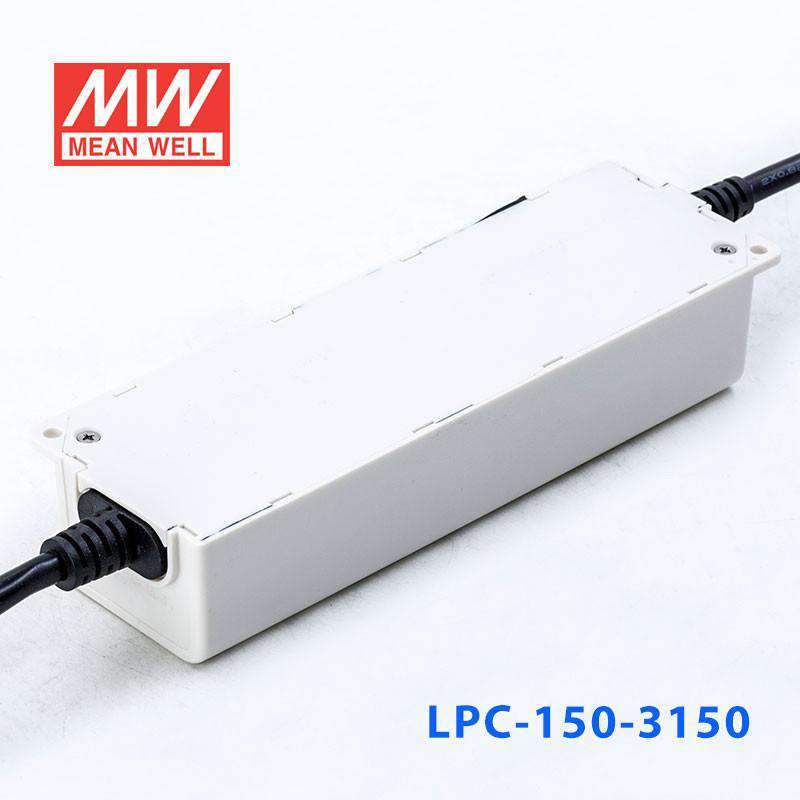

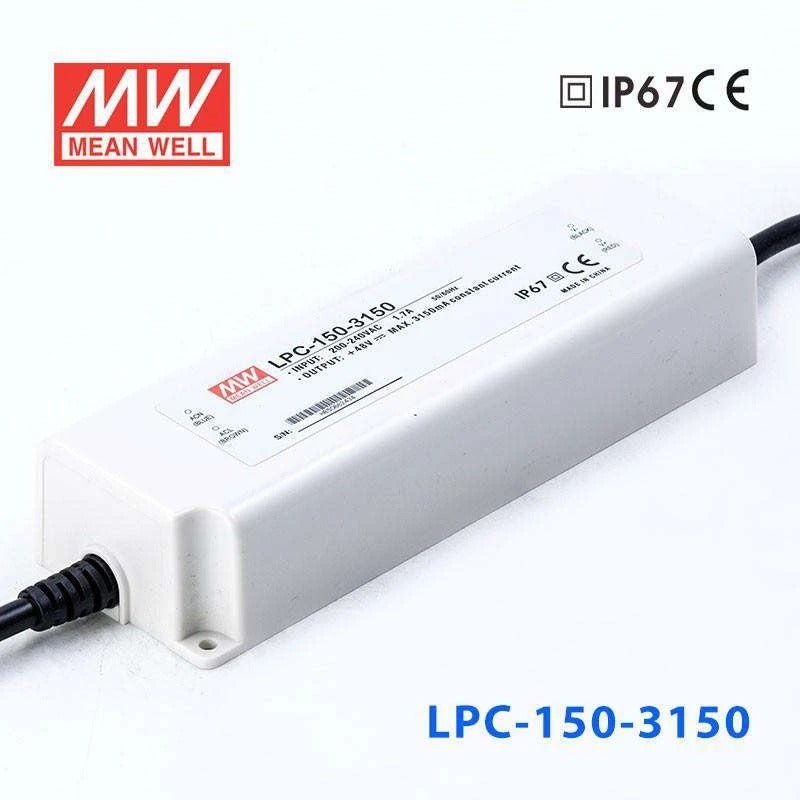

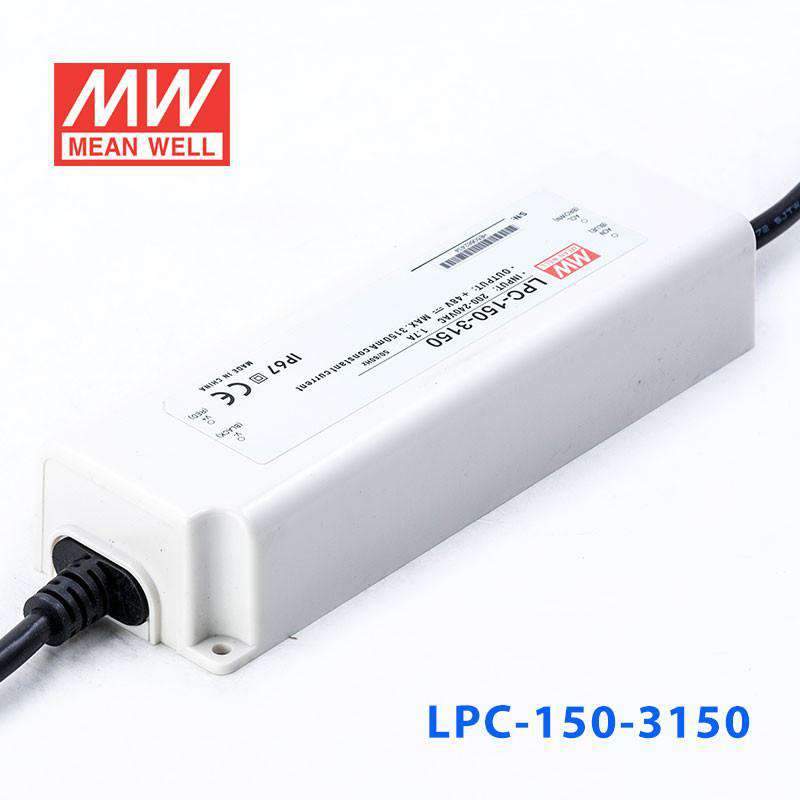

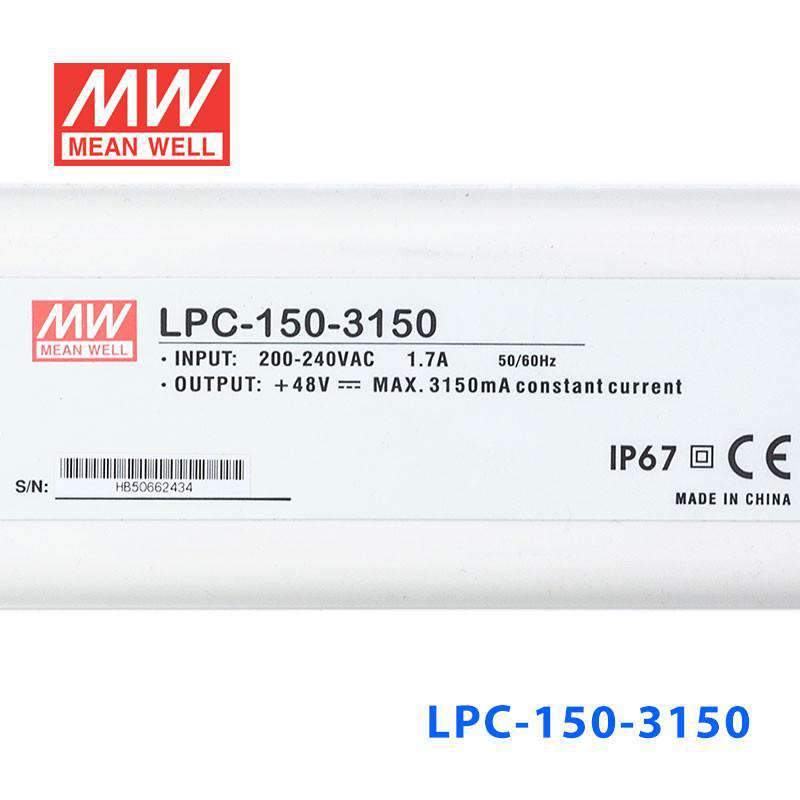

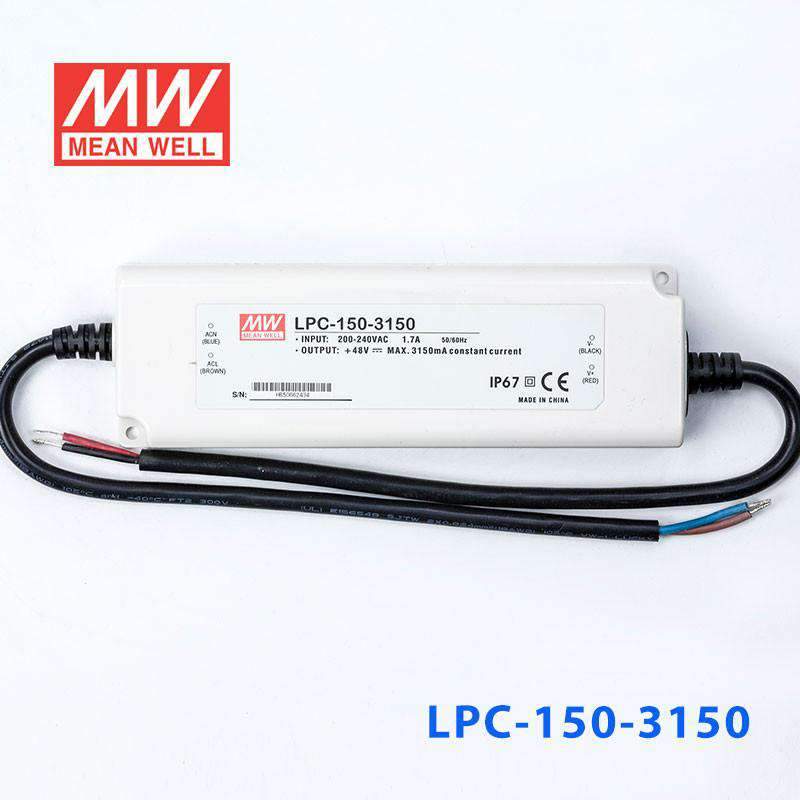

Mean Well LPC-150-3150 Power Supply 150W 3150mA
The LPC-150 is a 150W Mean Well power converter (input range: 180~305VAC, operating temperature: -25~+50℃).
Key Features
- ✓ Input voltage range: 180~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; refer to EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating151.2 Watt
-
Output Voltage48 Volt
-
Rated Current3.15 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPC-150-3150 for very high-current LED downlights?
Yes, if the downlight is specified for 3150mA constant current and the full LED string operates within the 24-48V CC range. This is a constant current driver, so it is not a substitute for a constant voltage supply.
Is the LPC-150-3150 suitable for dense LED arrays?
It is suitable for small LED arrays that need a high 3150mA drive current and fit within the 24-48V constant current window. With 151.2W output, it is intended for higher-power LED assemblies rather than low-current boards.
Can this driver be used for LED signage modules that need strong current output?
Yes, but only for signage module assemblies built for 3150mA constant current and a total forward voltage between 24V and 48V. It should not be used for standard constant voltage modules that expect a fixed DC rail.
How do I determine compatibility with the LPC-150-3150?
Your LEDs must be rated for 3150mA constant current, and the combined forward voltage has to stay inside the 24-48V constant current range. The number of LEDs depends on the forward voltage of each LED, so the correct string size varies by LED type.
Can the LPC-150-3150 handle outdoor conditions?
It carries an IP67 waterproof rating, so it is built for wet and dusty environments where a sealed driver is required. The specified operating temperature range is -25°C to +50°C.
What is the difference between the LPC-150-3150 and other LPC-150 current ratings?
The LPC-150-3150 provides 3150mA with a 24-48V CC range and 151.2W. Other nearby LPC-150 versions are 2100mA at 36-72V, 2450mA at 31-62V, and 2800mA at 27-54V, while the lower-current 1050mA, 1400mA, and 1750mA versions operate at progressively higher CC voltage ranges.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPC-150 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPC-150-700 Power Supply 150W 700mA | 150.5W | 215V | 0.7A | IP67 | $36.79 | View |
| Mean Well LPC-150-500 Power Supply 150W 500mA | 150W | 300V | 0.5A | IP67 | $36.79 | View |
| Mean Well LPC-150-350 Power Supply150W 350mA | 150.5W | 430V | 0.35A | IP67 | $34.24 | View |
| Mean Well LPC-150-2800 Power Supply 150W 2800mA | 151.2W | 54V | 2.8A | IP67 | $36.79 | View |
| Mean Well LPC-150-2450 Power Supply 150W 2450mA | 151.9W | 62V | 2.45A | IP67 | $34.24 | View |
| Mean Well LPC-150-2100 Power Supply 150W 2100mA | 151.2W | 72V | 2.1A | IP67 | $34.16 | View |
| Mean Well LPC-150-1750 Power Supply 150W 1750mA | 150.5W | 86V | 1.75A | IP67 | $34.24 | View |
| Mean Well LPC-150-1400 Power Supply 150W1400mA | 151.2W | 108V | 1.4A | IP67 | $34.24 | View |
| Mean Well LPC-150-1050 Power Supply 150W 1050mA | 151.2W | 144V | 1.05A | IP67 | $36.79 | View |
