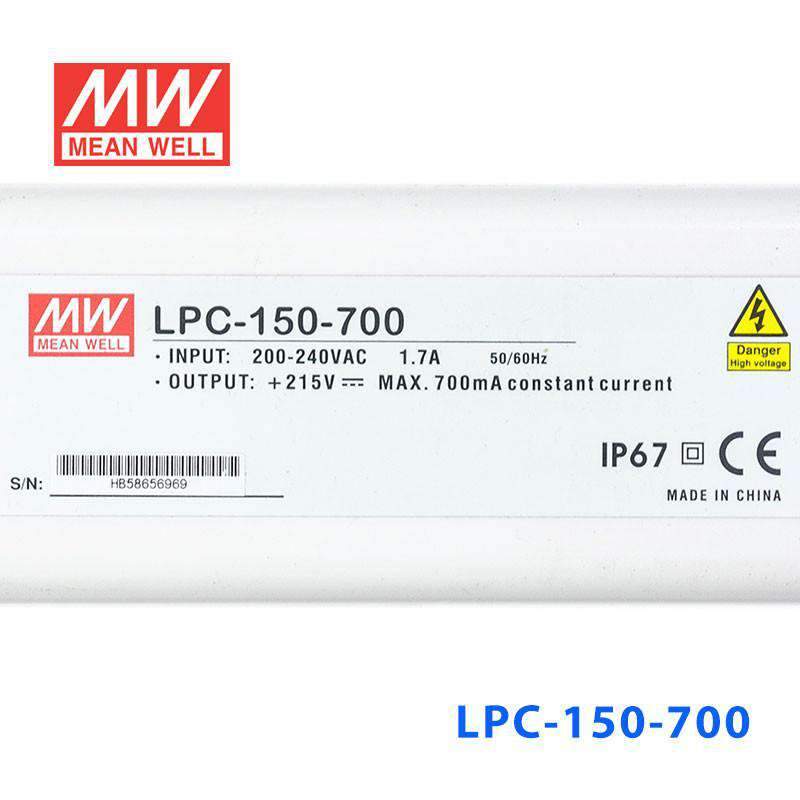

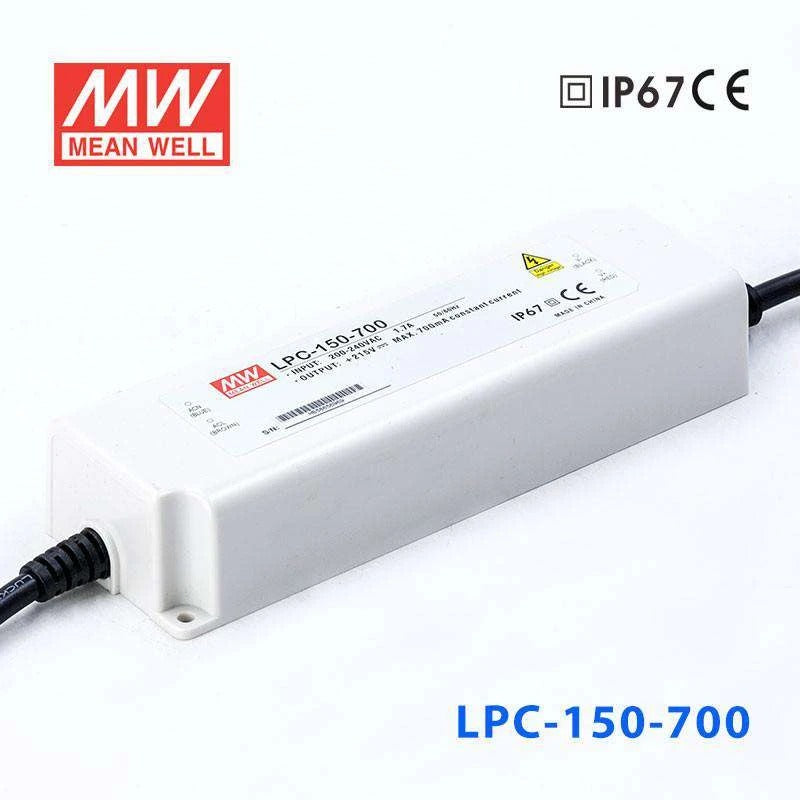

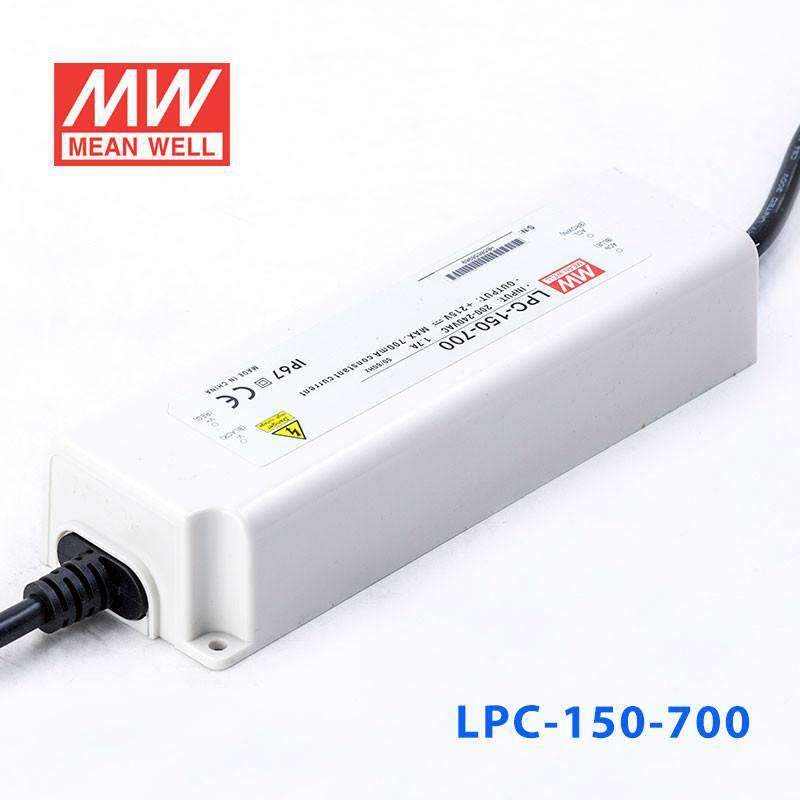

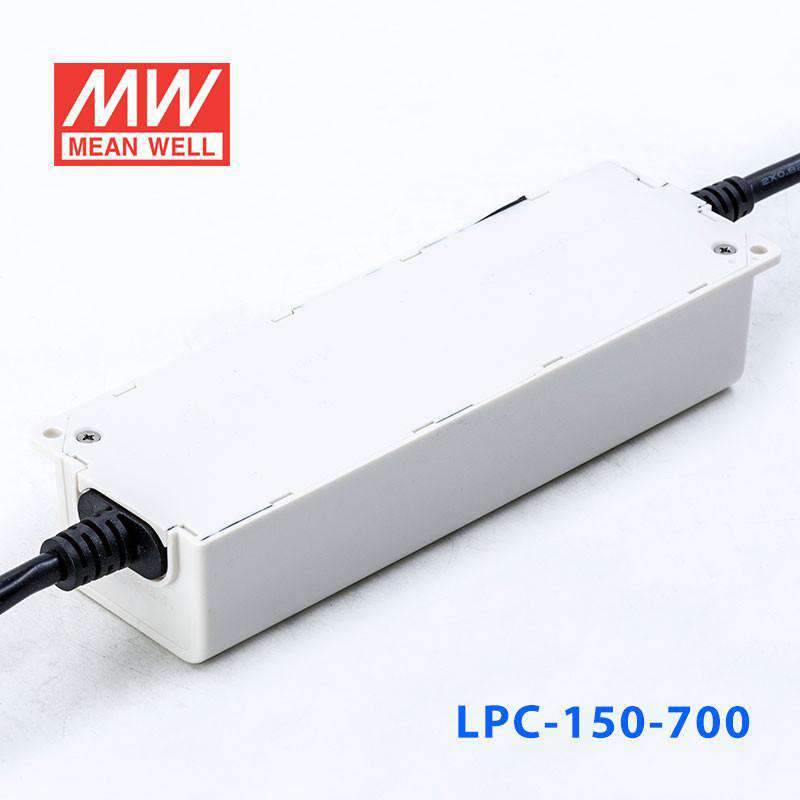

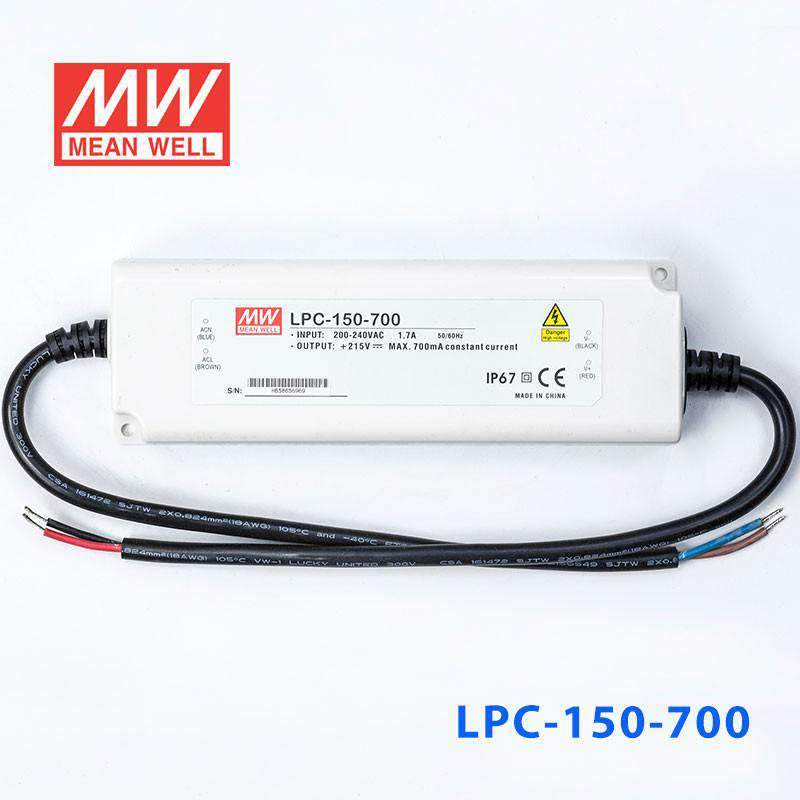

Mean Well LPC-150-700 Power Supply 150W 700mA
The LPC-150 is a 150W Mean Well power converter (input range: 180~305VAC, operating temperature: -25~+50℃).
Key Features
- ✓ Input voltage range: 180~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; refer to EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating150.5 Watt
-
Output Voltage215 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPC-150-700 for high-voltage LED downlights?
This driver can fit LED downlights that are designed for a constant current source at 700mA and operate within the 107-215V constant current range. It is a constant current model, so it is intended for LED loads that require current regulation rather than constant voltage. The 150.5W rating also suits larger downlight assemblies that stay within that voltage window.
Is the LPC-150-700 suitable for signage modules or long series LED boards?
It can be suitable for signage modules or long series LED boards when the full LED load is specified for 700mA constant current and falls inside the 107-215V CC range. Because this is not a constant voltage driver, it should be matched to constant current LED assemblies only. Its 150.5W output is aimed at higher-power arrays rather than small low-voltage module sets.
Can this driver run a small LED array for architectural or display lighting?
It can run a small LED array only if that array is built as a high-voltage constant current load at 700mA within 107-215V. Many smaller arrays operate at much lower forward voltage, so this model is generally a better fit for larger series-connected LED assemblies. The driver regulates current, not a fixed constant voltage output.
How do I know if my LED load is compatible with the LPC-150-700?
The LED load needs to be a constant current load rated for 700mA, and its total forward voltage must fall within the 107-215V constant current output range. The number of LEDs depends on the forward voltage of each LED, so compatibility is based on the total load voltage rather than a fixed LED count. This model should not be selected for constant voltage LED products.
What is the difference between the LPC-150 current options in the same series?
Within the LPC-150 family, the listed options are 350mA at 215-430V and 150.5W, 500mA at 150-300V and 150W, 700mA at 107-215V and 150.5W, 1050mA at 72-144V and 151.2W, 1400mA at 54-108V and 151.2W, 1750mA at 43-86V and 150.5W, 2100mA at 36-72V and 151.2W, 2450mA at 31-62V and 151.9W, 2800mA at 27-54V and 151.2W, and 3150mA at 24-48V and 151.2W. The main difference is the tradeoff between output current and constant current voltage range across the series.
Is the LPC-150-700 suitable for wet or outdoor locations?
It has an IP67 waterproof rating, so it is built for environments where dust protection and water exposure matter. The operating temperature range is -25°C to +50°C, which defines the conditions it is rated for. That makes it more suitable for demanding indoor or outdoor environments than a non-sealed driver.
