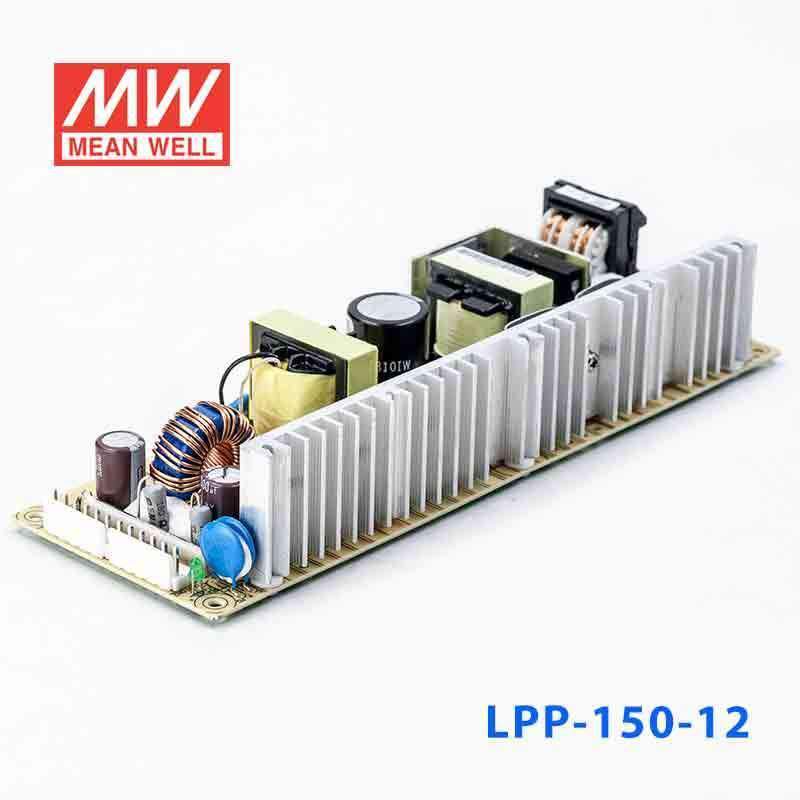

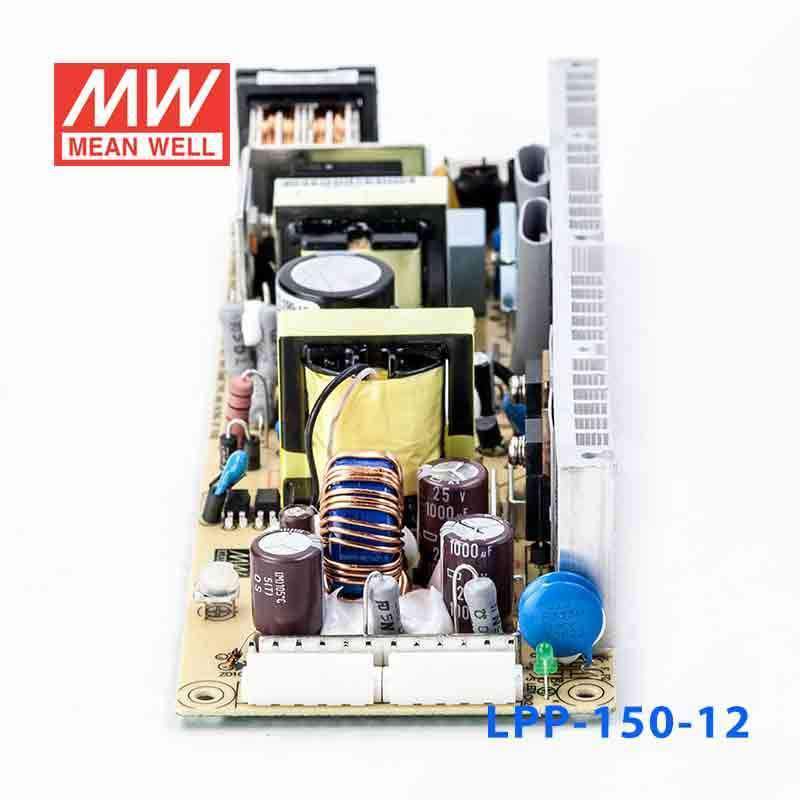

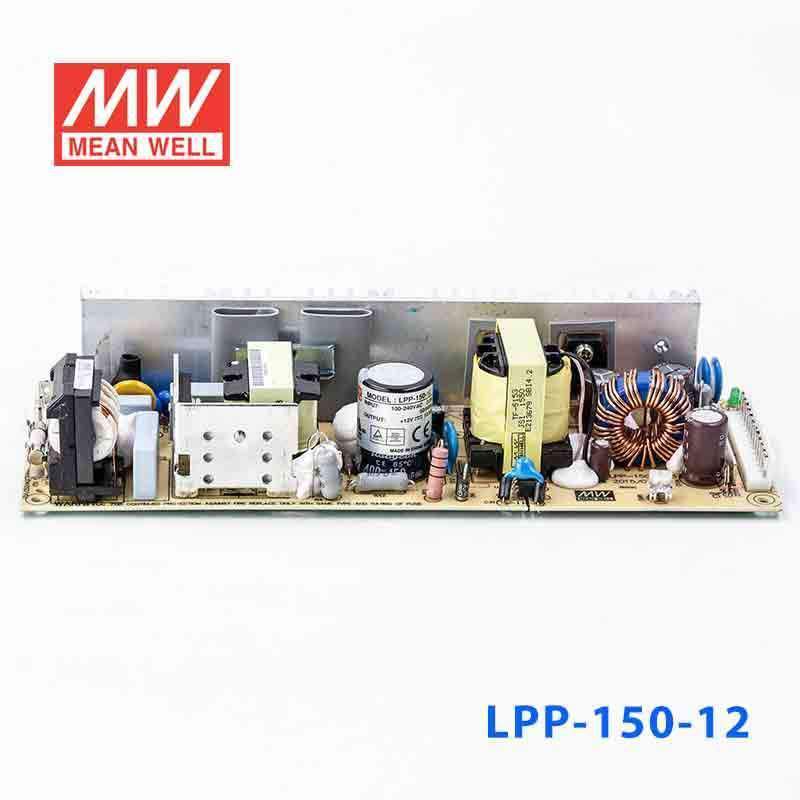

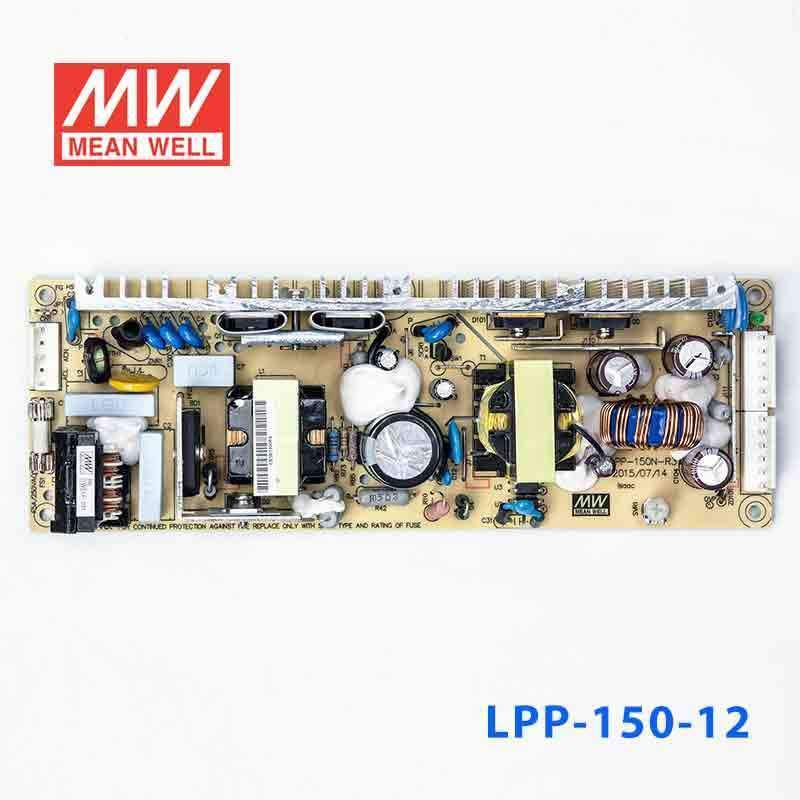

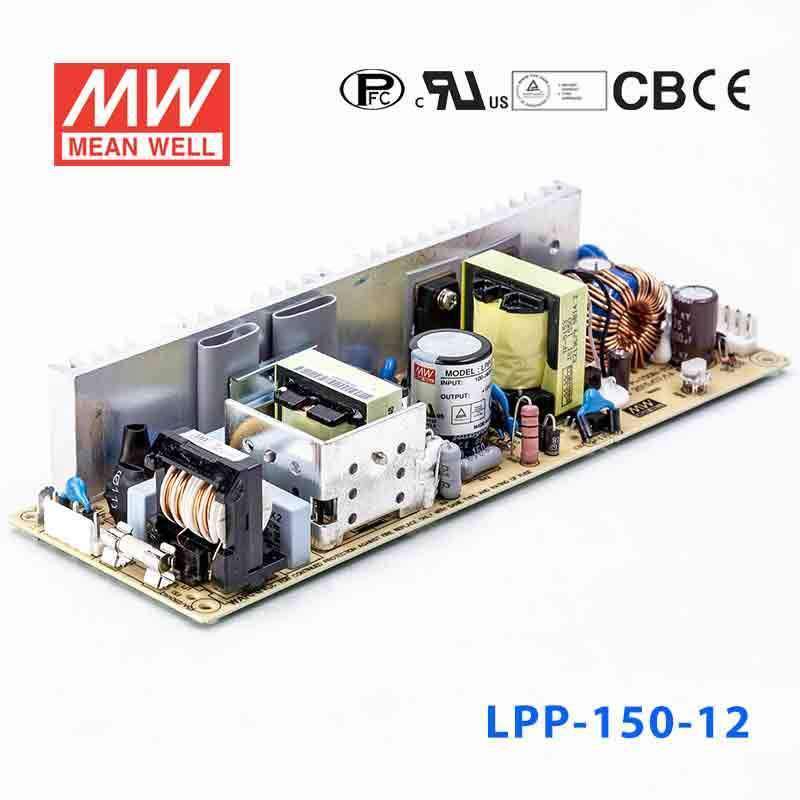

Mean Well LPP-150-12 Power Supply 150W 12V
The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.95 in
-
Height1.61 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
Can I use the LPP-150-12 for 12V industrial control equipment?
Yes, if the equipment requires 12V constant voltage DC. This model provides 12V output at up to 12.5A with a 150W power rating, which makes it suitable for 12V control loads within those limits.
Is the LPP-150-12 a fit for 12V embedded systems or edge devices?
It is a fit for embedded or edge devices that are designed for 12V constant voltage input. The available output is 12V and 12.5A, with total power up to 150W.
Can this model power 12V security, monitoring, or low-voltage IT hardware?
It can, provided the hardware is specified for 12V DC and does not exceed 12.5A or 150W. Because it is a constant voltage unit, voltage matching is the first requirement.
How does the LPP-150-12 compare with nearby LPP models?
The LPP-150-12 is rated at 150W, 12V, and 12.5A. Related listed models include LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; LPP-100-7.5 at 101.25W, 7.5V, 13.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A.
Is the LPP-150-12 suitable for outdoor or damp industrial locations?
This unit is specified as IP67, so it is intended for applications where that enclosure rating is needed. The operating temperature range is -10°C to +60°C, so the installation environment needs to remain inside that range.
