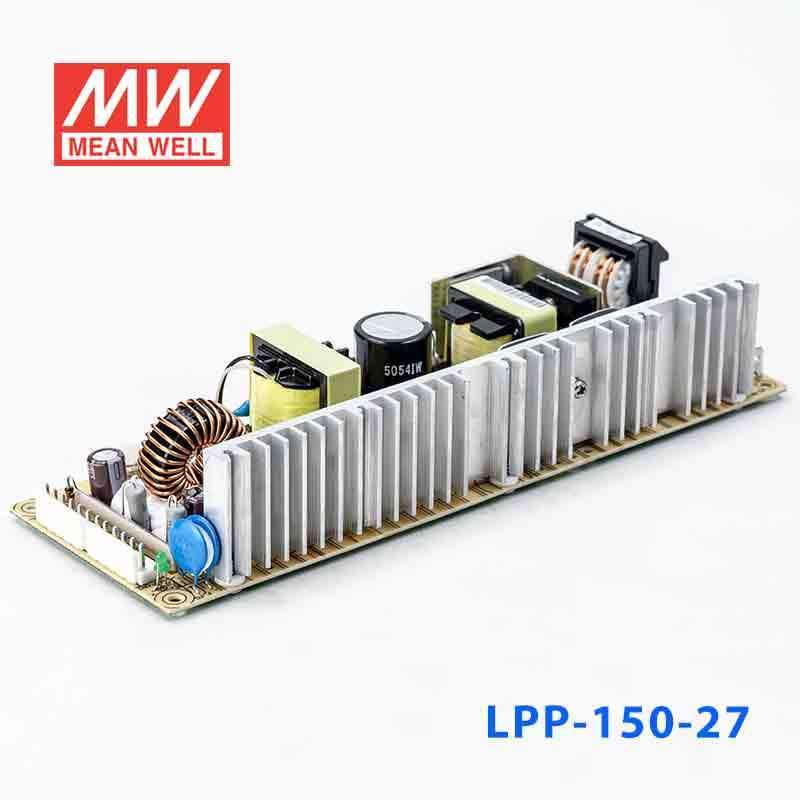

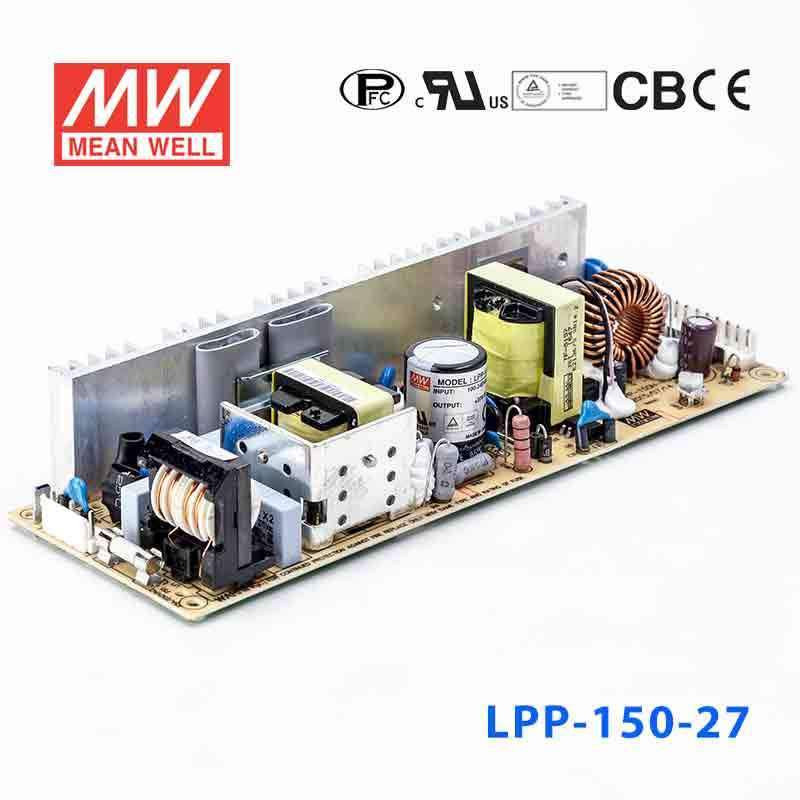

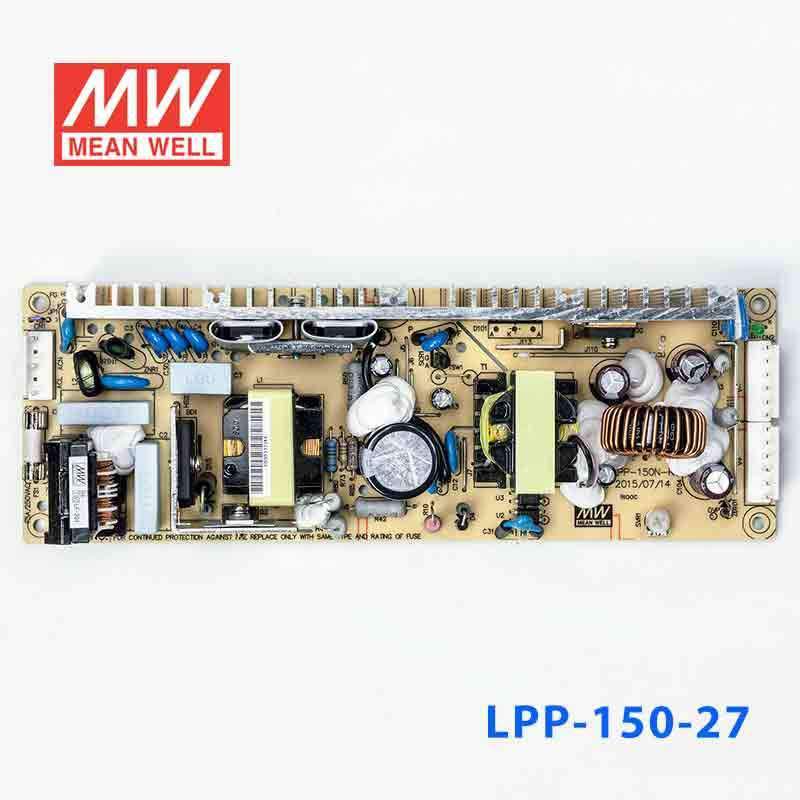

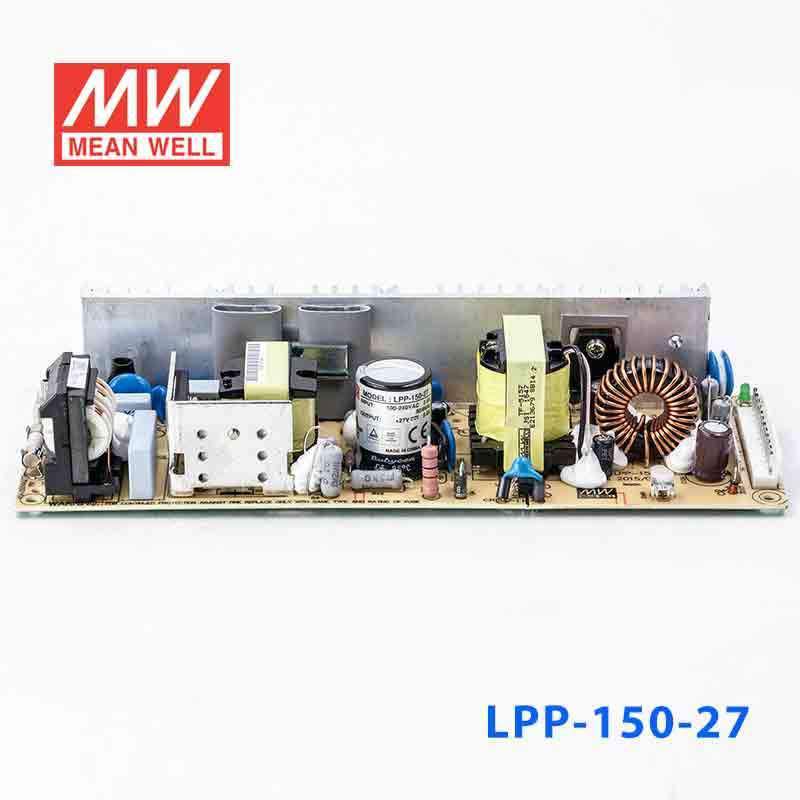

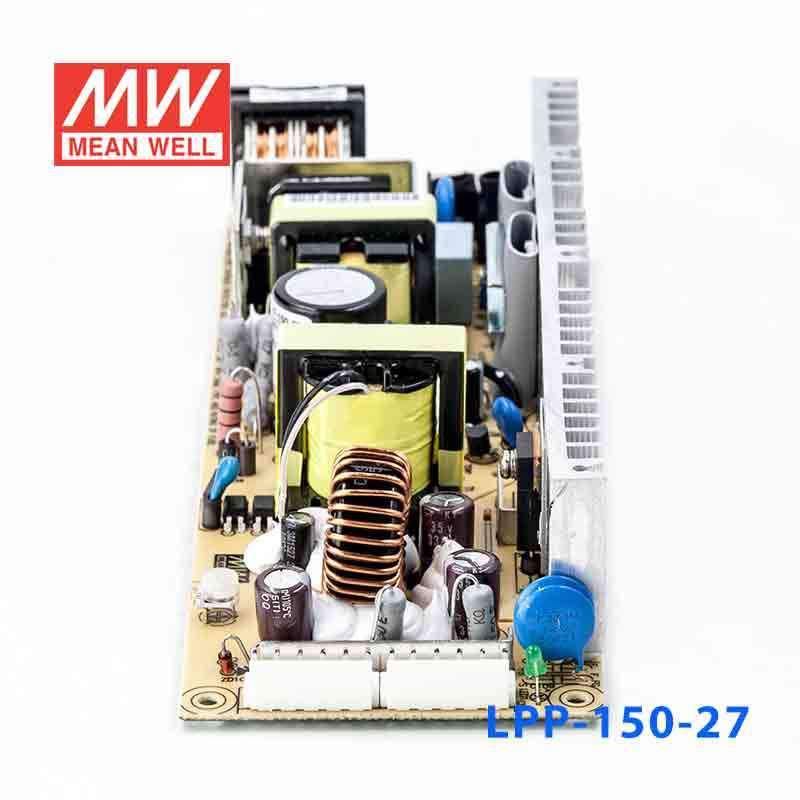

Mean Well LPP-150-27 Power Supply 151W 27V 5.6A
Overview
LPP-150-27 is the 27V output model of this series: rated current 5.6A, rated power 151.2W, typical efficiency 85%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.96
- Protections: Short circuit / Overload / Over voltage
- Protections:Over temperature(option)
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 27V
- RATED CURRENT
- 5.6A
- CURRENT RANGE
- 0 ~ 5.6A
- RATED POWER
- 151.2W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 25.7 ~ 29.7V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 600ms, 30ms at full load
- HOLD UP TIME (Typ.)
- 30ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.96/230VAC PF≧0.97/115VAC at full load
- EFFICIENCY(Typ.)
- 85%
- AC CURRENT (Typ.)
- 2.5A/115VAC 1.2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 55A/230VAC
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 29.7 ~ 36.5V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ with cooling FAN (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2635.3K hrs min. Telcordia SR-332 (Bellcore) ; 292.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*75*41mm (L*W*H)
- PACKING
- 0.62Kg; 24pcs/16.6Kg/1.63CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the LPP-150-27 in a 27V industrial control or automation cabinet?
Yes, it is a constant voltage power supply with a 27V output and 5.6A maximum output current. That makes it a fit for 27V industrial control, embedded, or automation equipment that needs up to 151.2W from an 85-264VAC input.
Is the LPP-150-27 suitable for a 27V embedded system or test fixture that needs more than 100W?
It can suit higher-load 27V embedded or bench-style equipment because it is rated for 151.2W. It provides 5.6A at 27V, so it covers constant-voltage 27V loads above 100W within that rating.
Can this 27V power supply be used for industrial electronics that run from universal AC input?
Yes, the input range is 85-264VAC, so it is designed for broad AC input conditions. For industrial electronics or automation assemblies that require a regulated 27V constant-voltage source, the published limit is 151.2W and 5.6A.
What is the difference between the LPP-150-27 and other LPP series models?
Within the LPP-150 series, the other models are LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; and LPP-150-48 at 153.6W, 48V, 3.2A. All share the 85-264VAC universal input, active PFC and 222*75*41mm size. The LPP-150-27 itself is the 151.2W, 27V, 5.6A option in that lineup.
Is the LPP-150-27 appropriate for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -10°C to +60°C with a cooling fan, subject to the derating curve (the sheet gives curves with an 18CFM fan and with no fan, where the load must be derated), but they do not list any IP rating. Based on that, it is reasonable to treat it as a power supply for controlled environments unless the final enclosure provides the needed environmental protection.
