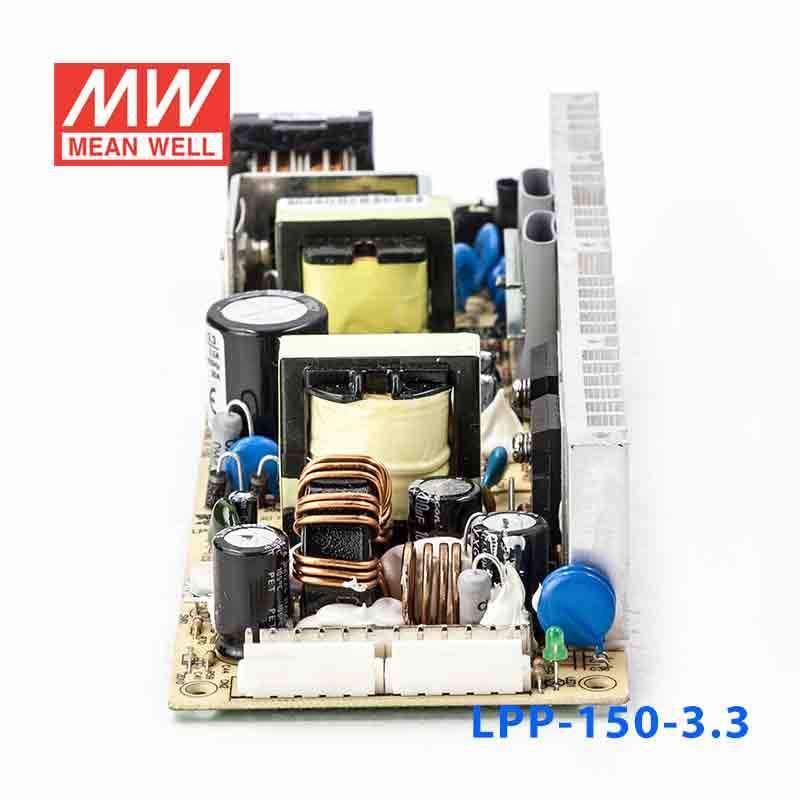

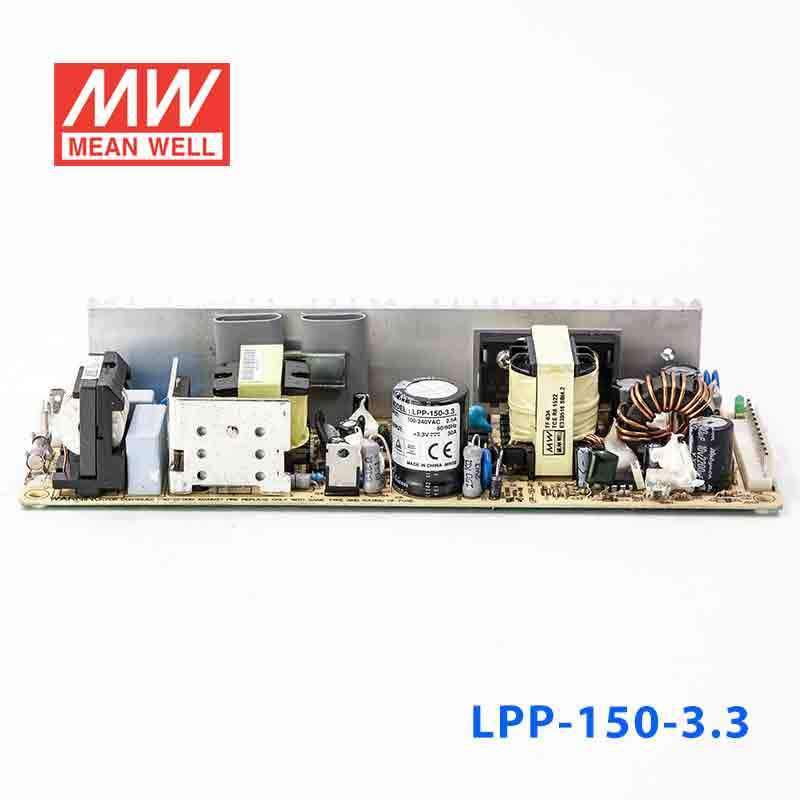

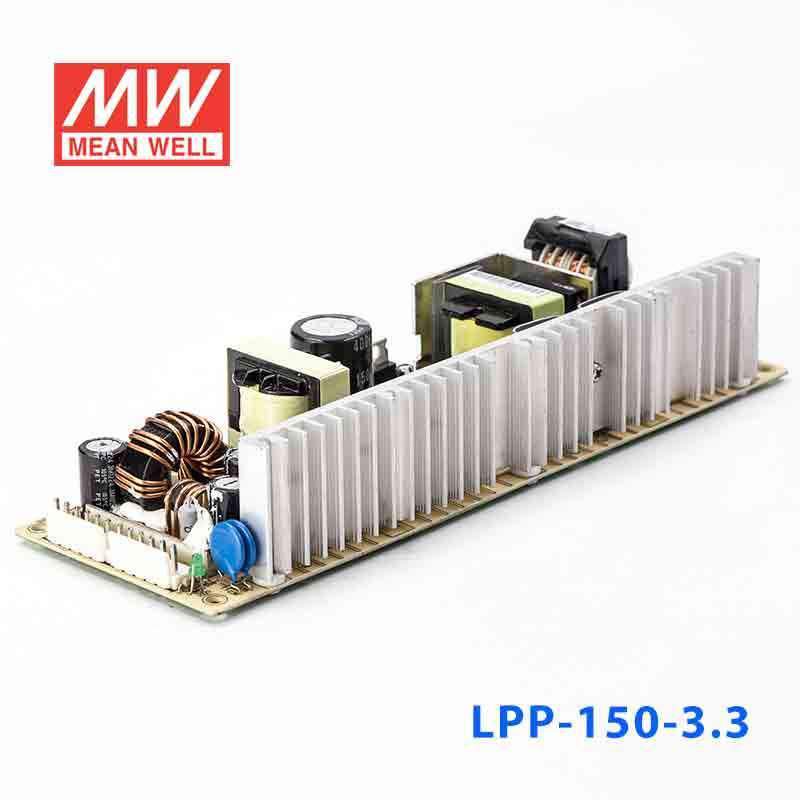

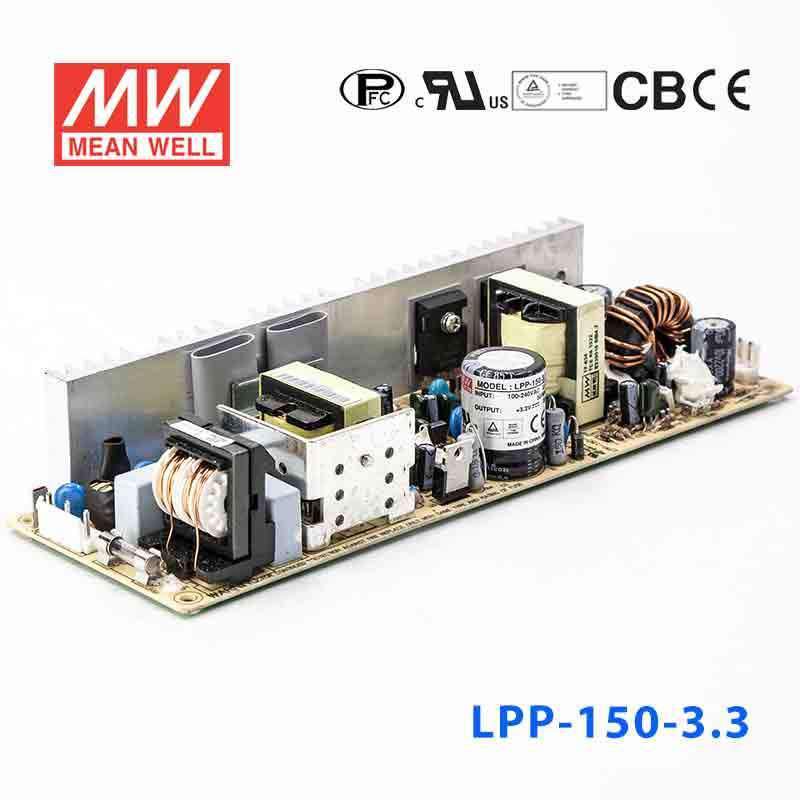

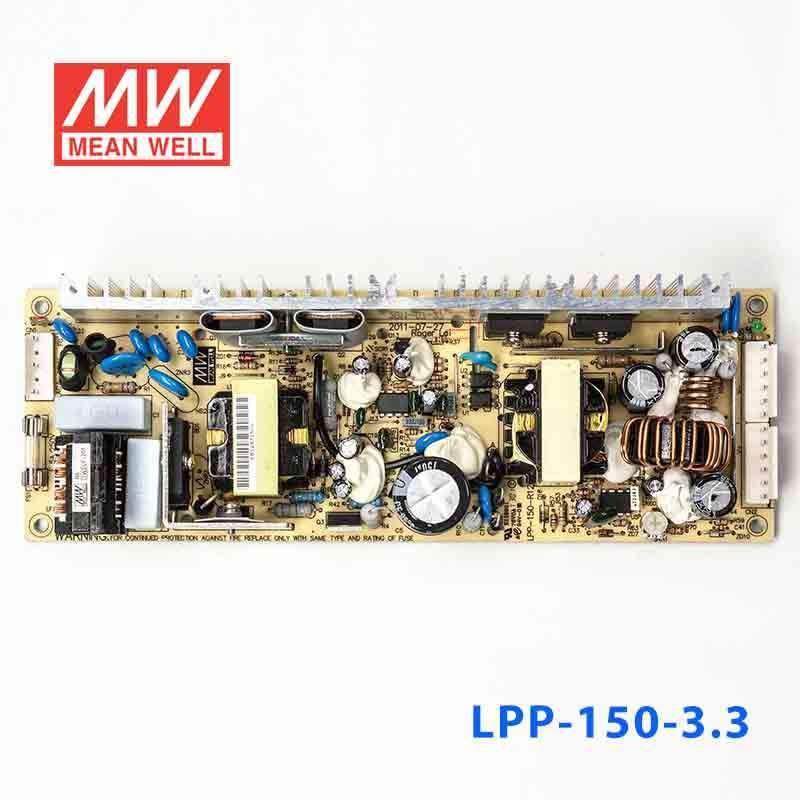

Mean Well LPP-150-3.3 Power Supply 99W 3.3V 30A
Overview
LPP-150-3.3 is the 3.3V output model of this series: rated current 30A, rated power 99W, typical efficiency 70%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.96
- Protections: Short circuit / Overload / Over voltage
- Protections:Over temperature(option)
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 3.3V
- RATED CURRENT
- 30A
- CURRENT RANGE
- 0 ~ 30A
- RATED POWER
- 99W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 3.14 ~ 3.63V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 600ms, 30ms at full load
- HOLD UP TIME (Typ.)
- 30ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.96/230VAC PF≧0.97/115VAC at full load
- EFFICIENCY(Typ.)
- 70%
- AC CURRENT (Typ.)
- 2.5A/115VAC 1.2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 55A/230VAC
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 3.63 ~ 4.45V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ with cooling FAN (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2635.3K hrs min. Telcordia SR-332 (Bellcore) ; 292.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*75*41mm (L*W*H)
- PACKING
- 0.62Kg; 24pcs/16.6Kg/1.63CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the LPP-150-3.3 to power 3.3V embedded controllers or digital electronics?
Yes, this model provides a constant 3.3V output and up to 30A. It is suited to 3.3V embedded, logic, or controller loads that need a high-current DC source within its 99W rating.
Is the LPP-150-3.3 a good fit for a 3.3V industrial test bench or burn-in setup?
It can fit 3.3V industrial electronics testing because it delivers up to 30A at 3.3V from an 85-264VAC input. The key limit is the 99W output rating, so the combined 3.3V load must stay within that published capacity.
Can this power supply support high-current 3.3V control boards in an automation system?
Yes, the main strength of this model is high current at low voltage: 30A at 3.3V. That makes it relevant for automation or embedded assemblies built around 3.3V rails rather than higher-voltage DC buses.
How does the LPP-150-3.3 compare with other LPP series versions?
Within the LPP-150 series, the other models are LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; and LPP-150-48 at 153.6W, 48V, 3.2A. All share the 85-264VAC universal input, active PFC and 222*75*41mm size. The LPP-150-3.3 is the 99W, 3.3V, 30A version in that range.
Can the LPP-150-3.3 be used where ambient temperatures vary?
The published operating temperature range is -10°C to +60°C with a cooling fan, subject to the derating curve (the sheet gives curves with an 18CFM fan and with no fan, where the load must be derated; 3.3V-7.5V models derate further under 100VAC with no fan). The provided specs do not include an IP rating, so outdoor or washdown suitability is not established here.
