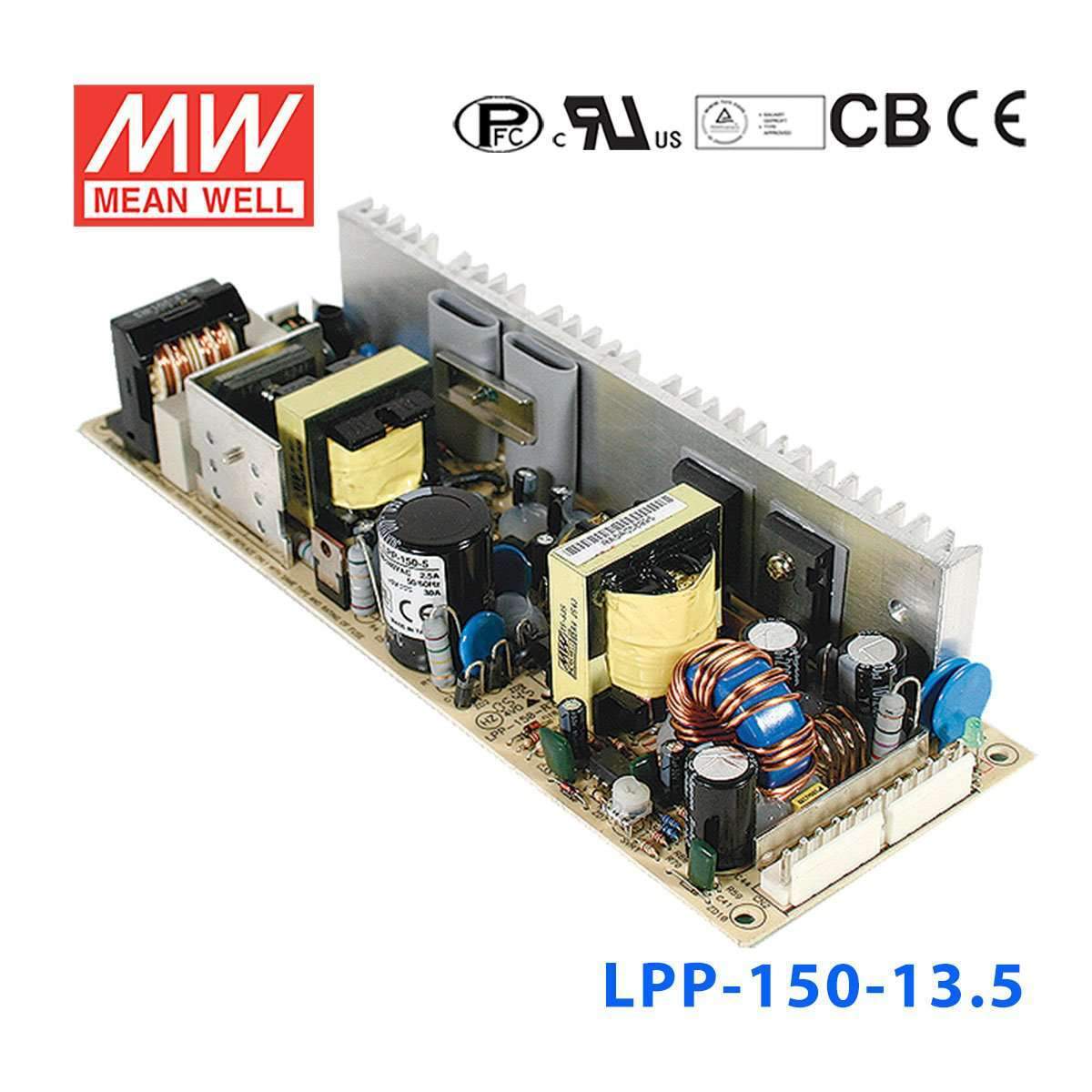

Mean Well LPP-150-13.5 Power Supply 151W 13.5V

small and compact, built-in active PFC function

SKU:

LPP-150-13.5

$39.55 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

100% full load burn-in test

Built-in active PFC function

Optional over temperature protection

3 years warranty for LPP series

General Specification

AC input voltage range	85~264VAC
AC inrush current(230VAC)	55A
DC adjustment range	-5%~+10% rated output voltage
Overload protection Range	105%~150% rated output power
Overload protection Type	Constant current limiting, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Shut off, AC recycle to re-start
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-10~+60°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	JST B5P / B6Px2-VH
Dimension (LxWxH)	222x75x41
Packing	24pcs / 16.6kg

Specifications

Brand

Mean Well
Series

LPP Series
Power Rating

151.2 Watt
Output Voltage

13.5 Volt
Rated Current

11.2 Ampere
Input Voltage

85V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

8.74 in
Width

2.95 in
Height

1.61 in
Weight

1.37 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPP-150-13.5 for 13.5V communications or control equipment?

Yes, if the equipment is designed for 13.5V constant voltage DC input. This model provides 13.5V output at up to 11.2A, with a total power rating of 151.2W.

Is the LPP-150-13.5 appropriate for 13.5V embedded systems that need more current than the 100W version?

It is suited to 13.5V embedded loads that need up to 11.2A and up to 151.2W. That gives it higher output capacity than the listed LPP-100-13.5 sibling, which is rated at 101.25W and 7.5A.

Can this power supply support 13.5V industrial electronics in a universal AC-input environment?

It can support 13.5V industrial electronics when the load requires constant voltage DC and the available AC input is within 85-264VAC. On the output side, the load must stay within 13.5V, 11.2A, and 151.2W.

How does the LPP-150-13.5 compare with other LPP siblings?

The LPP-150-13.5 is rated at 151.2W, 13.5V, and 11.2A. Other listed siblings are LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; LPP-100-7.5 at 101.25W, 7.5V, 13.5A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A.

Can the LPP-150-13.5 be used outdoors?

The provided specs give an operating temperature range of -10°C to +60°C, but they do not list an IP rating for this model entry. That means temperature suitability is defined, while wet or outdoor exposure should not be assumed from the provided specs alone.
