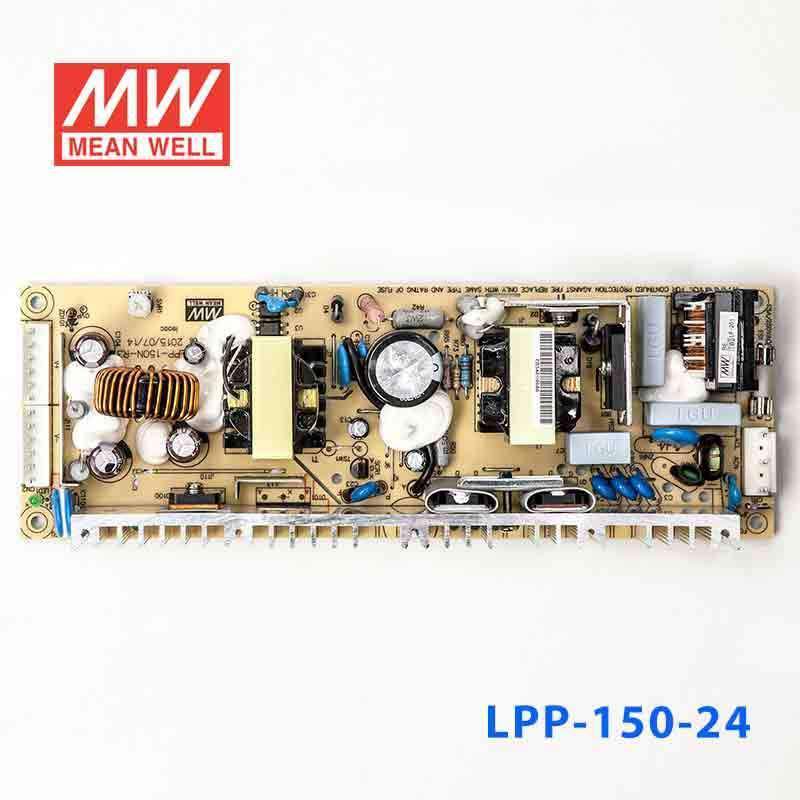

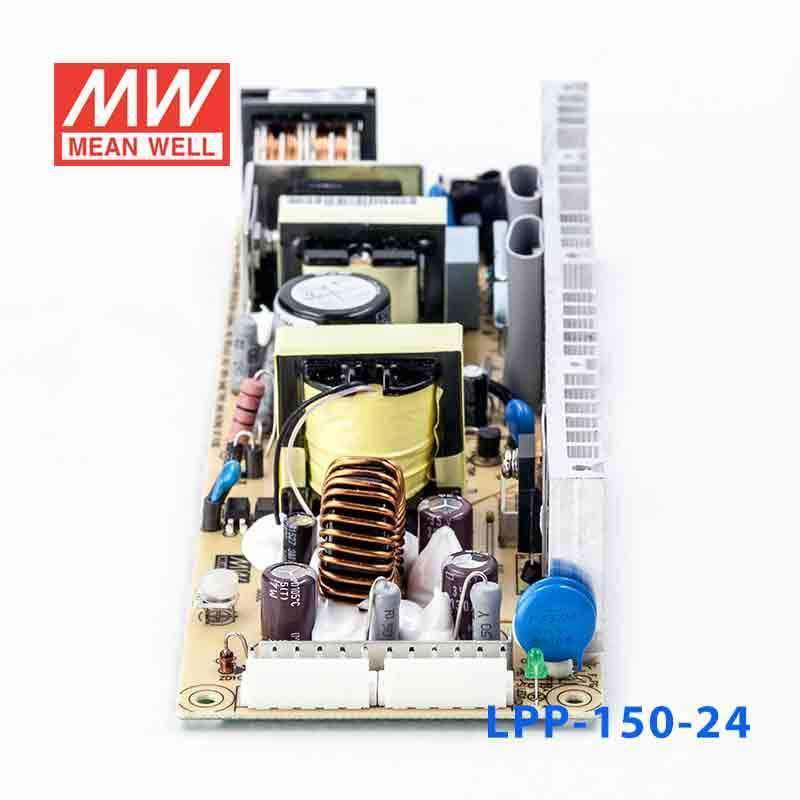

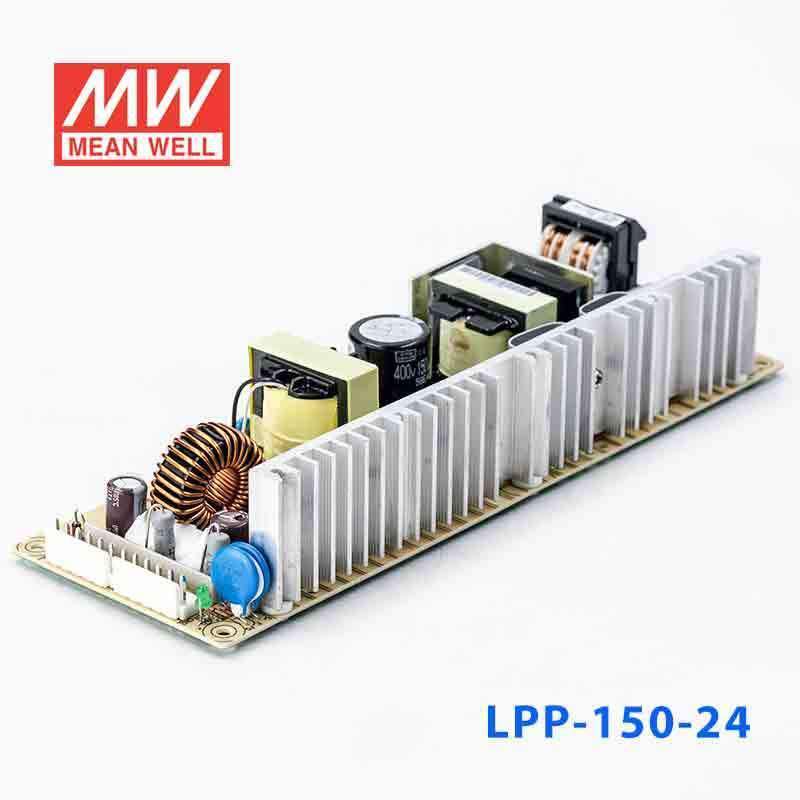

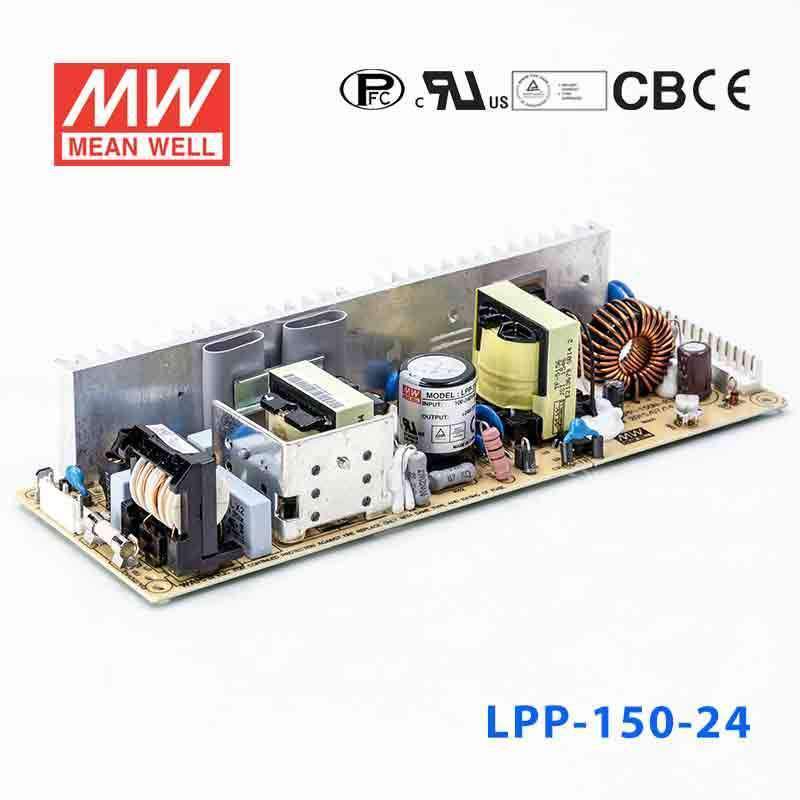

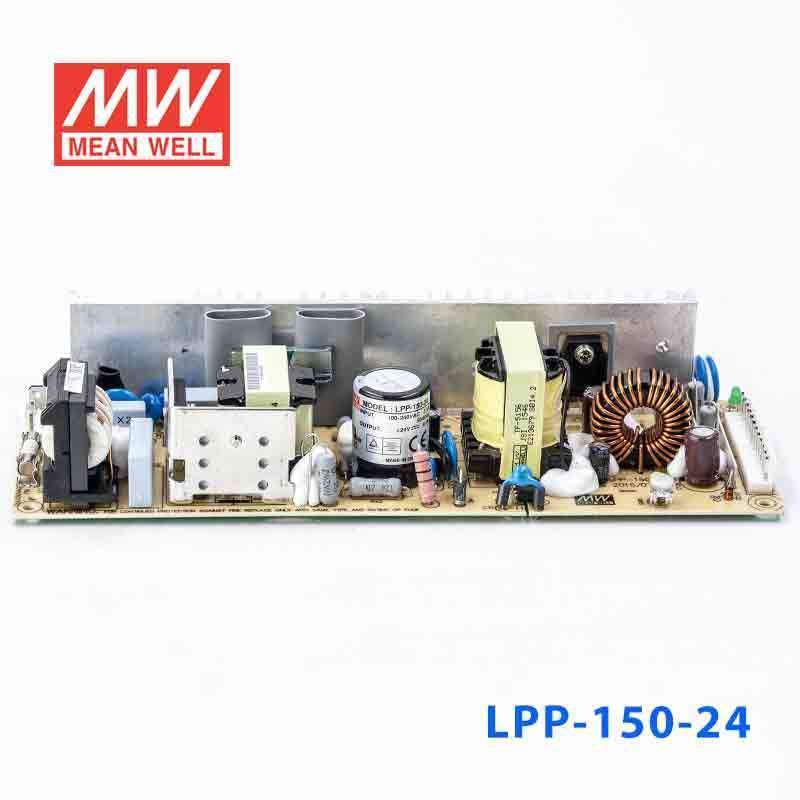

Mean Well LPP-150-24 Power Supply 151W 24V 6.3A
Overview
LPP-150-24 is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 85%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.96
- Protections: Short circuit / Overload / Over voltage
- Protections:Over temperature(option)
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 6.3A
- CURRENT RANGE
- 0 ~ 6.3A
- RATED POWER
- 151.2W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 22.8 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 600ms, 30ms at full load
- HOLD UP TIME (Typ.)
- 30ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.96/230VAC PF≧0.97/115VAC at full load
- EFFICIENCY(Typ.)
- 85%
- AC CURRENT (Typ.)
- 2.5A/115VAC 1.2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 55A/230VAC
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 26.4 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ with cooling FAN (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2635.3K hrs min. Telcordia SR-332 (Bellcore) ; 292.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*75*41mm (L*W*H)
- PACKING
- 0.62Kg; 24pcs/16.6Kg/1.63CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

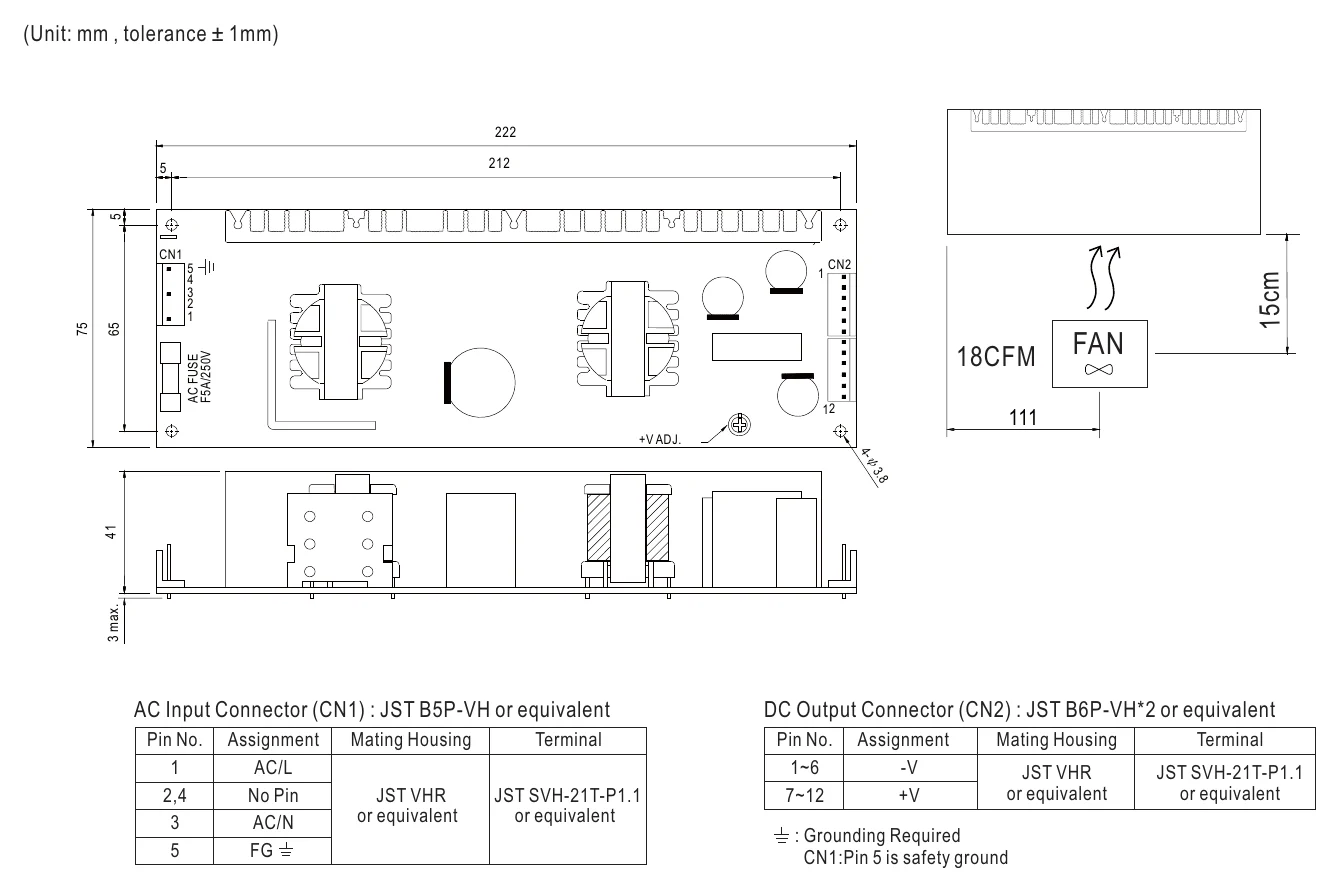

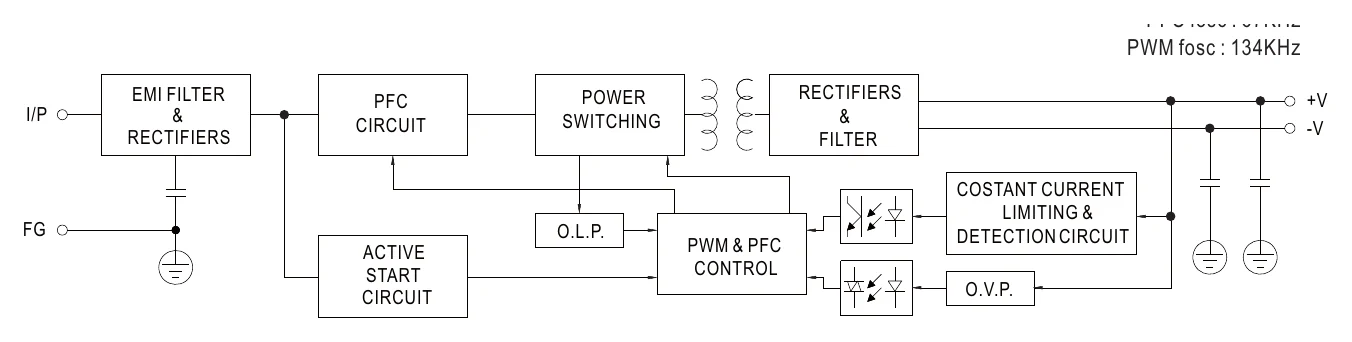

Technical drawings
Downloads
FAQ
Can I use the LPP-150-24 for 24V PLCs, sensors, or automation controls?
Yes, this model is a constant voltage 24V power supply rated for up to 6.3A output current. It is suited to 24V automation loads that stay within the unit's 151.2W power rating.
Is the LPP-150-24 a fit for 24V industrial PCs, HMI panels, or control cabinets?
It can be a fit where the equipment requires 24V DC constant voltage input. The available output is 24V at up to 6.3A, with 151.2W total output power.
Can this power supply support 24V embedded or machine-control electronics from standard AC mains?
It can support 24V embedded or control electronics when the input supply is within 85-264VAC and the load needs constant voltage DC. On the output side, the load must remain within 24V, 6.3A, and 151.2W.
How does the LPP-150-24 compare with the other LPP models listed here?
The LPP-150-24 is rated at 151.2W, 24V, and 6.3A. The other LPP-150 models are LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-27 at 151.2W, 27V, 5.6A; and LPP-150-48 at 153.6W, 48V, 3.2A. All share the 85-264VAC universal input, active PFC and 222*75*41mm size.
Can the LPP-150-24 be used in outdoor conditions?

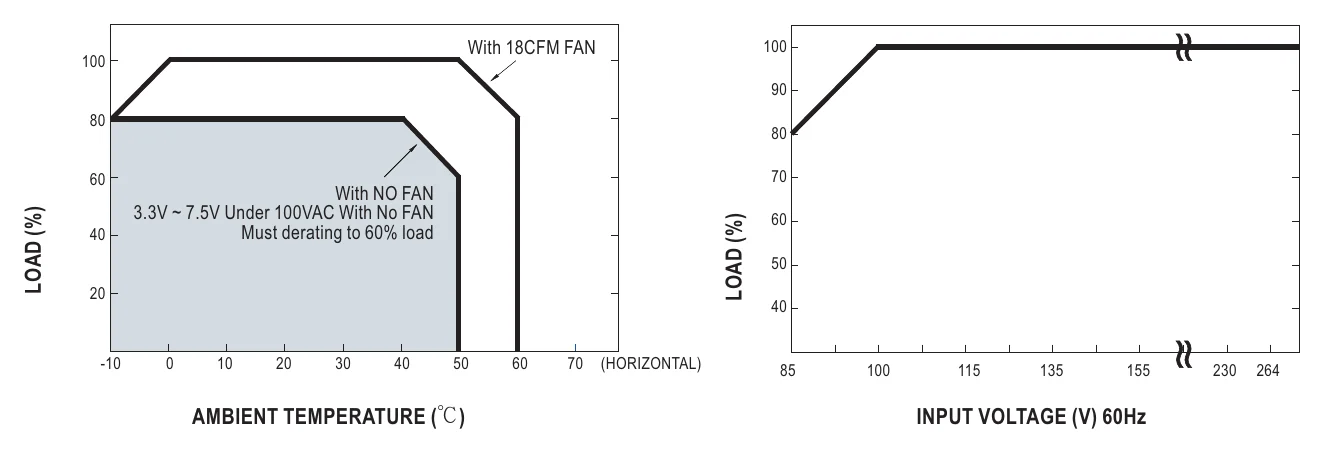

The provided specs list an operating temperature range of -10°C to +60°C with a cooling fan, subject to the derating curve (the sheet gives curves with an 18CFM fan and with no fan, where the load must be derated), but they do not list an IP rating for this model. That means weather or water exposure suitability is not established from the provided specs alone.
