Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

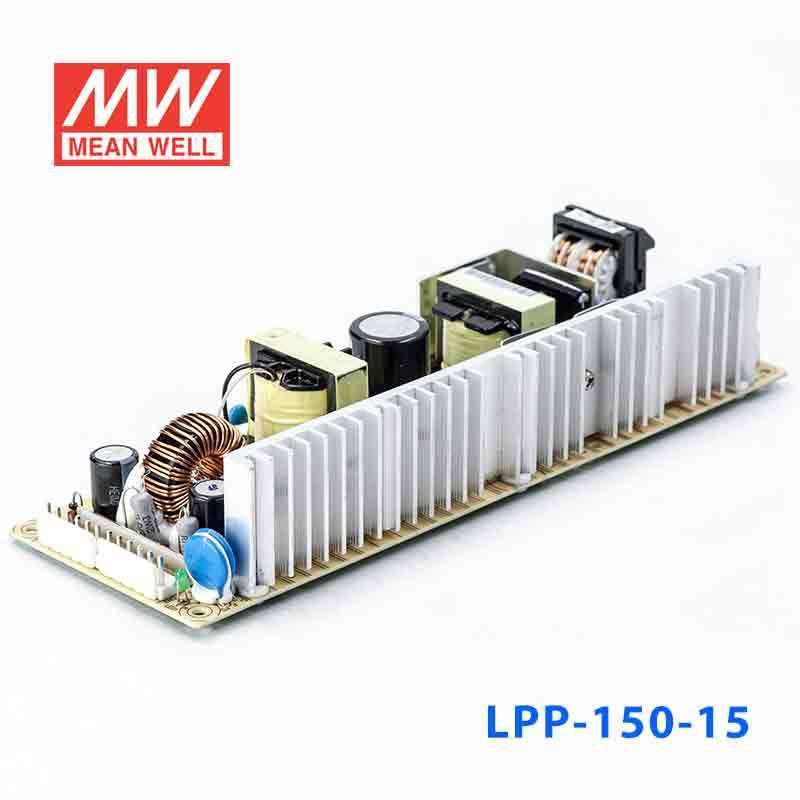

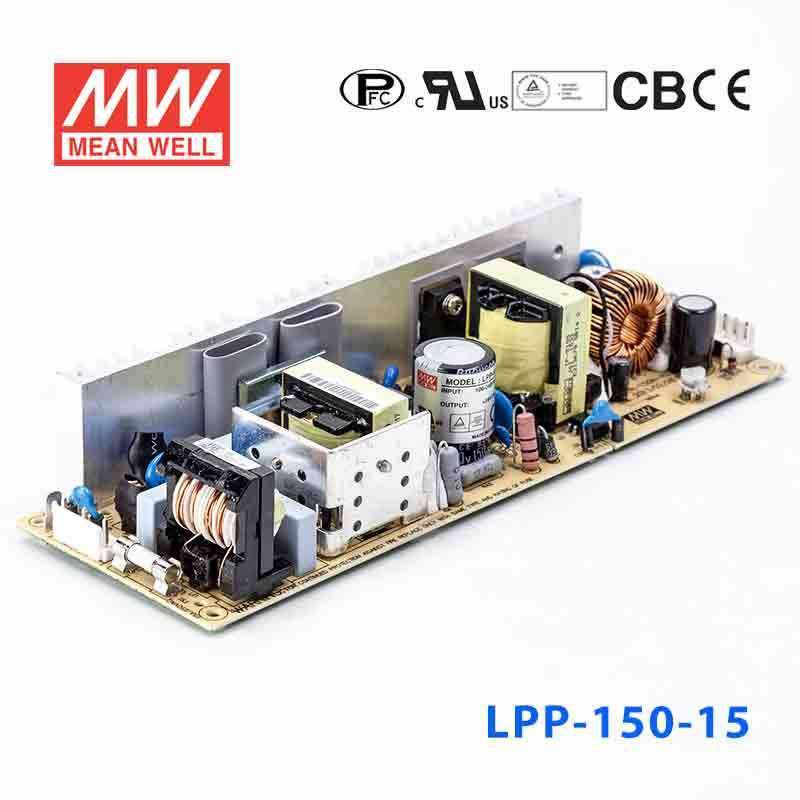

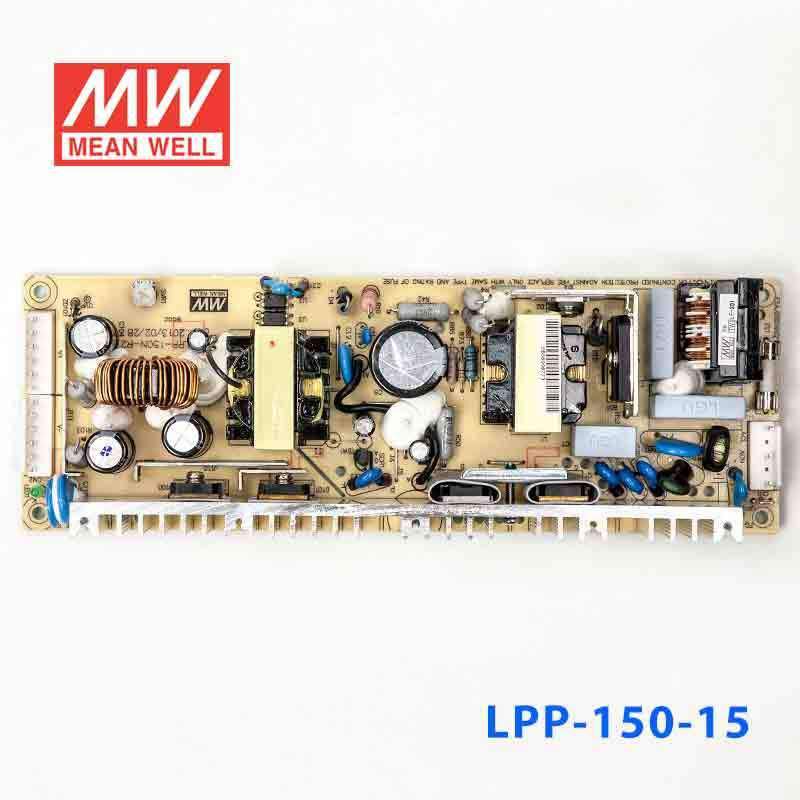

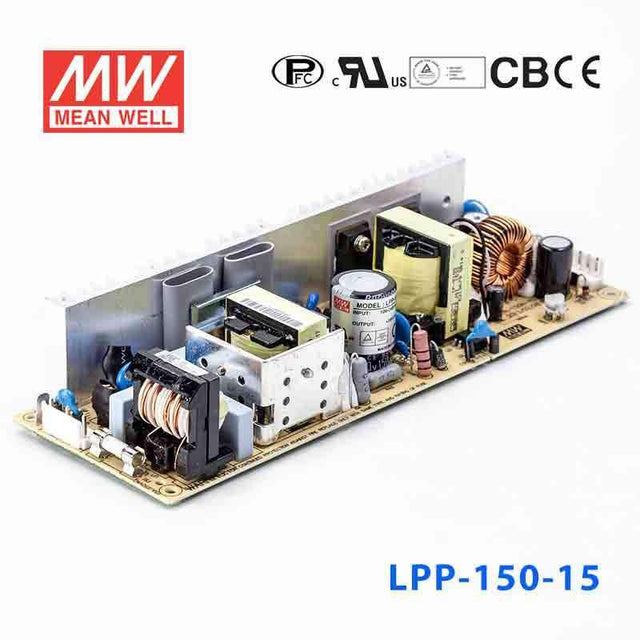

Mean Well LPP-150-15 Power Supply 150W 15V

slim plastic case, economical, IP67

SKU:

LPP-150-15

$38.29 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

100% full load burn-in test

Built-in active PFC function

Optional over temperature protection

3 years warranty for LPP series

General Specification

AC input voltage range	85~264VAC
AC inrush current(230VAC)	55A
DC adjustment range	-5%~+10% rated output voltage
Overload protection Range	105%~150% rated output power
Overload protection Type	Constant current limiting, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Shut off, AC recycle to re-start
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-10~+60°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	JST B5P / B6Px2-VH
Dimension (LxWxH)	222x75x41
Packing	24pcs / 16.6kg

Specifications

Brand

Mean Well
Series

LPP Series
Power Rating

150 Watt
Output Voltage

15 Volt
Rated Current

10 Ampere
Input Voltage

85V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

8.74 in
Width

2.95 in
Height

1.61 in
Weight

1.37 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPP-150-15 for 15V industrial instrumentation or control electronics?

Yes, if the equipment requires 15V constant voltage DC. This power supply delivers 15V output at up to 10A with a total power rating of 150W.

Is the LPP-150-15 suitable for 15V embedded systems with higher power demand?

It is suitable for embedded systems that are designed for 15V input and stay within 10A and 150W. That makes it a practical option where a regulated 15V constant voltage source is required.

Can this model power 15V industrial displays, test equipment, or control assemblies?

It can power those types of loads if they are specified for 15V DC and do not exceed 10A output current or 150W total load. Matching the 15V constant voltage output is the main requirement.

What are the key differences between the LPP-150-15 and related LPP models?

The LPP-150-15 is rated at 150W, 15V, and 10A. Other listed siblings are LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; LPP-100-7.5 at 101.25W, 7.5V, 13.5A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A.

Is the LPP-150-15 appropriate for outdoor or wet environments?

This model is listed as IP67, so it is intended for applications that need that enclosure rating. Its operating temperature range is -10°C to +60°C, so the environment also needs to stay within those temperature limits.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well LPP-150-7.5 Power Supply 150W 7.5V	150W	7.5V	20A	Indoor	$39.55	View
Mean Well LPP-150-5 Power Supply 150W 5V	150W	5V	30A	Indoor	$39.55	View
Mean Well LPP-150-48 Power Supply 153W 48V	153.6W	48V	3.2A	Indoor	$39.55	View
Mean Well LPP-150-3.3 Power Supply 99W 3.3V	99W	3.3V	30A	Indoor	$39.55	View
Mean Well LPP-150-27 Power Supply 151W 27V	151.2W	27V	5.6A	Indoor	$38.29	View
Mean Well LPP-150-24 Power Supply 151W 24V	151.2W	24V	6.3A	Indoor	$38.29	View
Mean Well LPP-150-13.5 Power Supply 151W 13.5V	151.2W	13.5V	11.2A	Indoor	$39.55	View
Mean Well LPP-150-12 Power Supply 150W 12V	150W	12V	12.5A	Indoor	$38.29	View
