Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

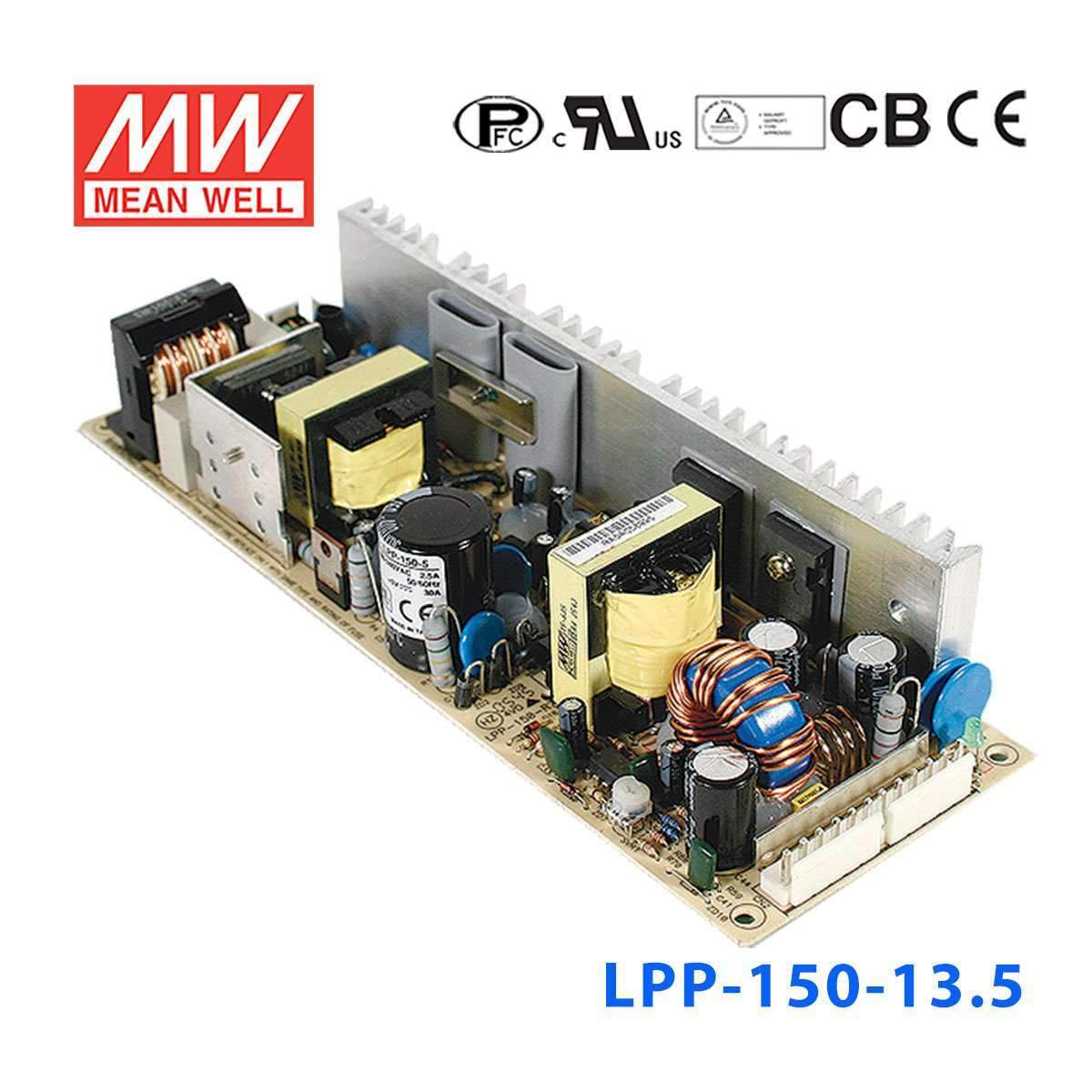

Mean Well LPP-150-13.5 Power Supply 151W 13.5V
The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating151.2 Watt
-
Output Voltage13.5 Volt
-
Rated Current11.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.95 in
-
Height1.61 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
Can I use the LPP-150-13.5 for 13.5V communications or control equipment?
Yes, if the equipment is designed for 13.5V constant voltage DC input. This model provides 13.5V output at up to 11.2A, with a total power rating of 151.2W.
Is the LPP-150-13.5 appropriate for 13.5V embedded systems that need more current than the 100W version?
It is suited to 13.5V embedded loads that need up to 11.2A and up to 151.2W. That gives it higher output capacity than the listed LPP-100-13.5 sibling, which is rated at 101.25W and 7.5A.
Can this power supply support 13.5V industrial electronics in a universal AC-input environment?
It can support 13.5V industrial electronics when the load requires constant voltage DC and the available AC input is within 85-264VAC. On the output side, the load must stay within 13.5V, 11.2A, and 151.2W.
How does the LPP-150-13.5 compare with other LPP siblings?
The LPP-150-13.5 is rated at 151.2W, 13.5V, and 11.2A. Other listed siblings are LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; LPP-100-7.5 at 101.25W, 7.5V, 13.5A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A.
Can the LPP-150-13.5 be used outdoors?
The provided specs give an operating temperature range of -10°C to +60°C, but they do not list an IP rating for this model entry. That means temperature suitability is defined, while wet or outdoor exposure should not be assumed from the provided specs alone.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-150 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-150-7.5 Power Supply 150W 7.5V | 150W | 7.5V | 20A | Indoor | $39.55 | View |
| Mean Well LPP-150-5 Power Supply 150W 5V | 150W | 5V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-48 Power Supply 153W 48V | 153.6W | 48V | 3.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-3.3 Power Supply 99W 3.3V | 99W | 3.3V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-27 Power Supply 151W 27V | 151.2W | 27V | 5.6A | Indoor | $38.29 | View |
| Mean Well LPP-150-24 Power Supply 151W 24V | 151.2W | 24V | 6.3A | Indoor | $38.29 | View |
| Mean Well LPP-150-15 Power Supply 150W 15V | 150W | 15V | 10A | Indoor | $38.29 | View |
| Mean Well LPP-150-12 Power Supply 150W 12V | 150W | 12V | 12.5A | Indoor | $38.29 | View |
