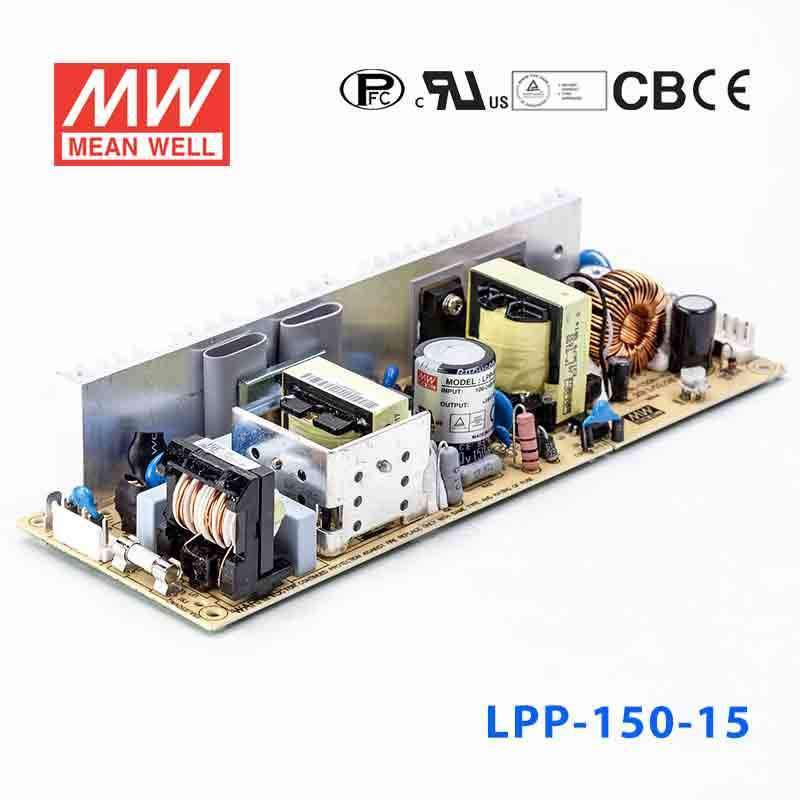

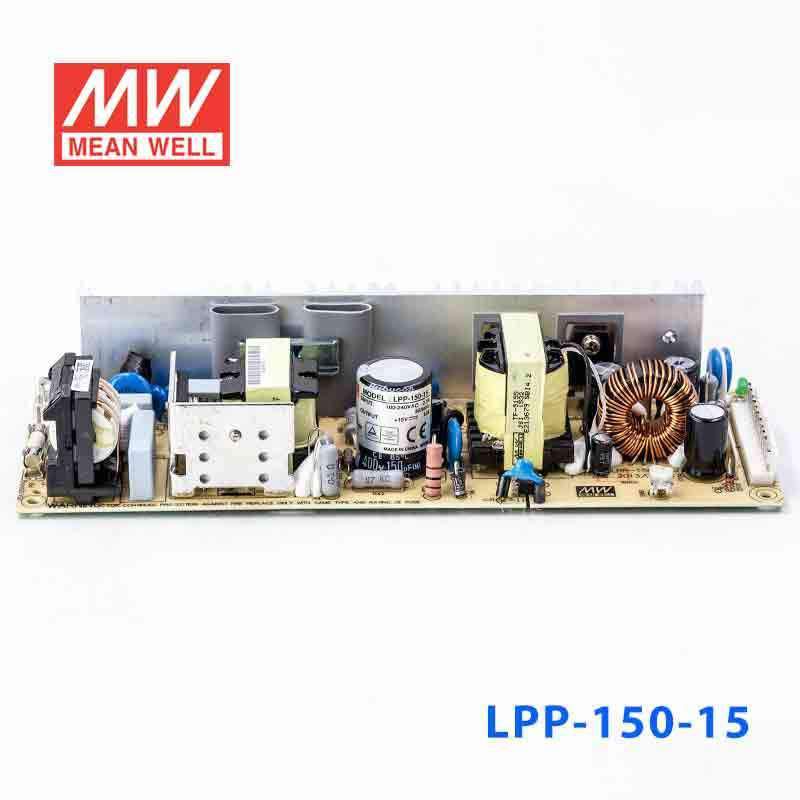

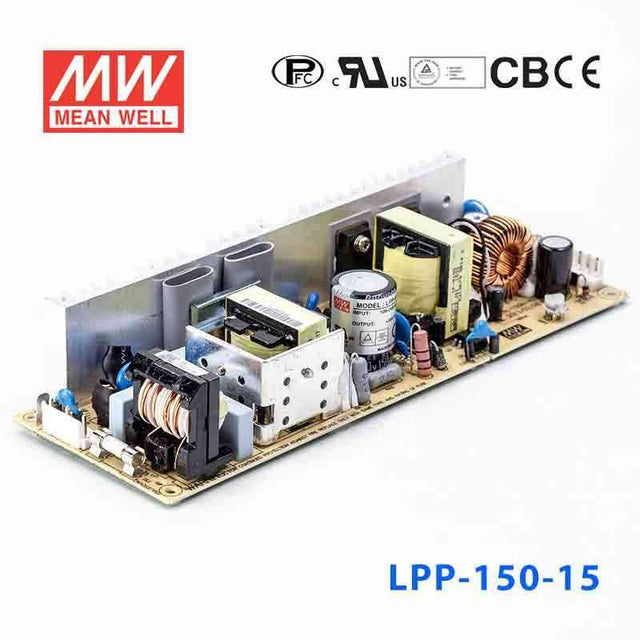

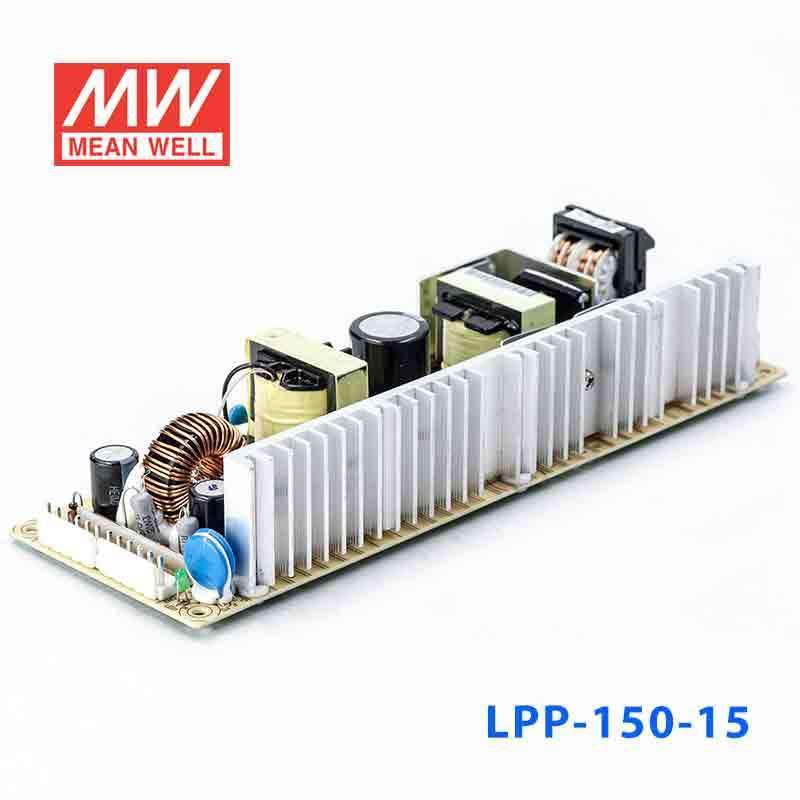

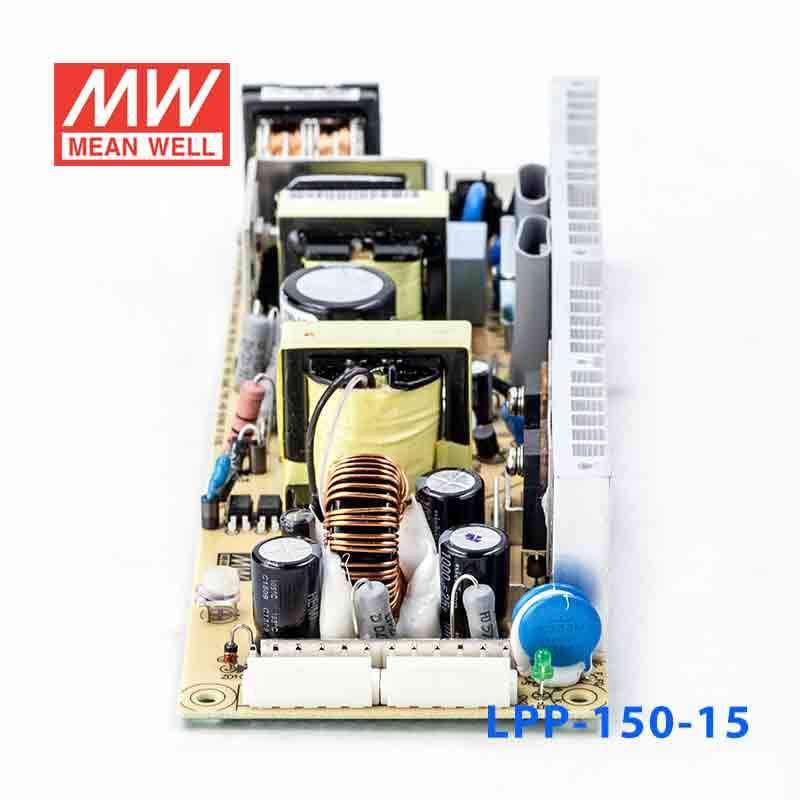

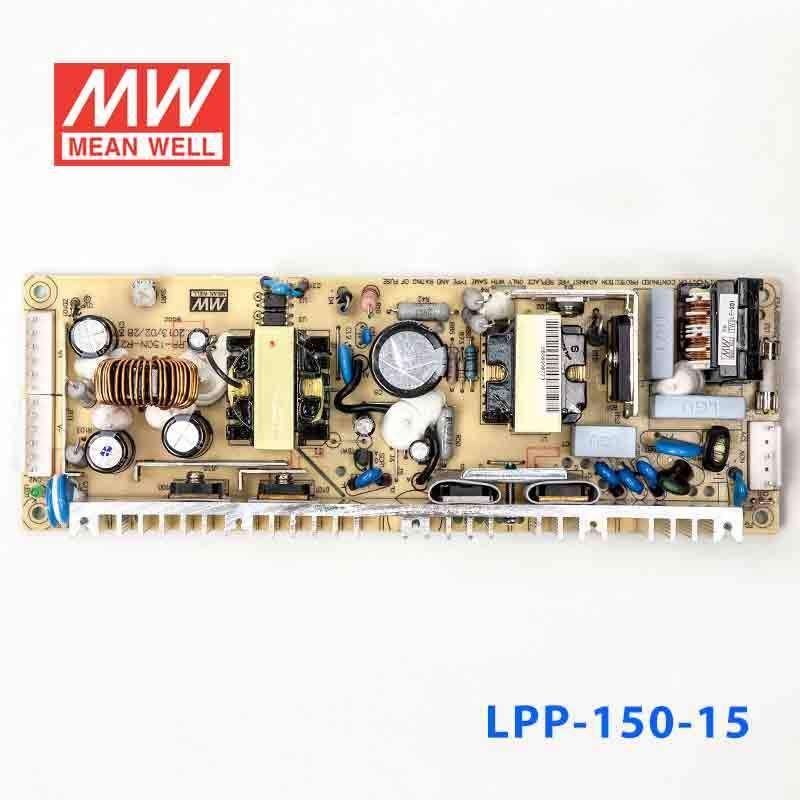

Mean Well LPP-150-15 Power Supply 150W 15V
The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.95 in
-
Height1.61 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
Can I use the LPP-150-15 for 15V industrial instrumentation or control electronics?
Yes, if the equipment requires 15V constant voltage DC. This power supply delivers 15V output at up to 10A with a total power rating of 150W.
Is the LPP-150-15 suitable for 15V embedded systems with higher power demand?
It is suitable for embedded systems that are designed for 15V input and stay within 10A and 150W. That makes it a practical option where a regulated 15V constant voltage source is required.
Can this model power 15V industrial displays, test equipment, or control assemblies?
It can power those types of loads if they are specified for 15V DC and do not exceed 10A output current or 150W total load. Matching the 15V constant voltage output is the main requirement.
What are the key differences between the LPP-150-15 and related LPP models?
The LPP-150-15 is rated at 150W, 15V, and 10A. Other listed siblings are LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; LPP-100-7.5 at 101.25W, 7.5V, 13.5A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A.
Is the LPP-150-15 appropriate for outdoor or wet environments?
This model is listed as IP67, so it is intended for applications that need that enclosure rating. Its operating temperature range is -10°C to +60°C, so the environment also needs to stay within those temperature limits.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-150 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-150-7.5 Power Supply 150W 7.5V | 150W | 7.5V | 20A | Indoor | $39.55 | View |
| Mean Well LPP-150-5 Power Supply 150W 5V | 150W | 5V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-48 Power Supply 153W 48V | 153.6W | 48V | 3.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-3.3 Power Supply 99W 3.3V | 99W | 3.3V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-27 Power Supply 151W 27V | 151.2W | 27V | 5.6A | Indoor | $38.29 | View |
| Mean Well LPP-150-24 Power Supply 151W 24V | 151.2W | 24V | 6.3A | Indoor | $38.29 | View |
| Mean Well LPP-150-13.5 Power Supply 151W 13.5V | 151.2W | 13.5V | 11.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-12 Power Supply 150W 12V | 150W | 12V | 12.5A | Indoor | $38.29 | View |
