Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

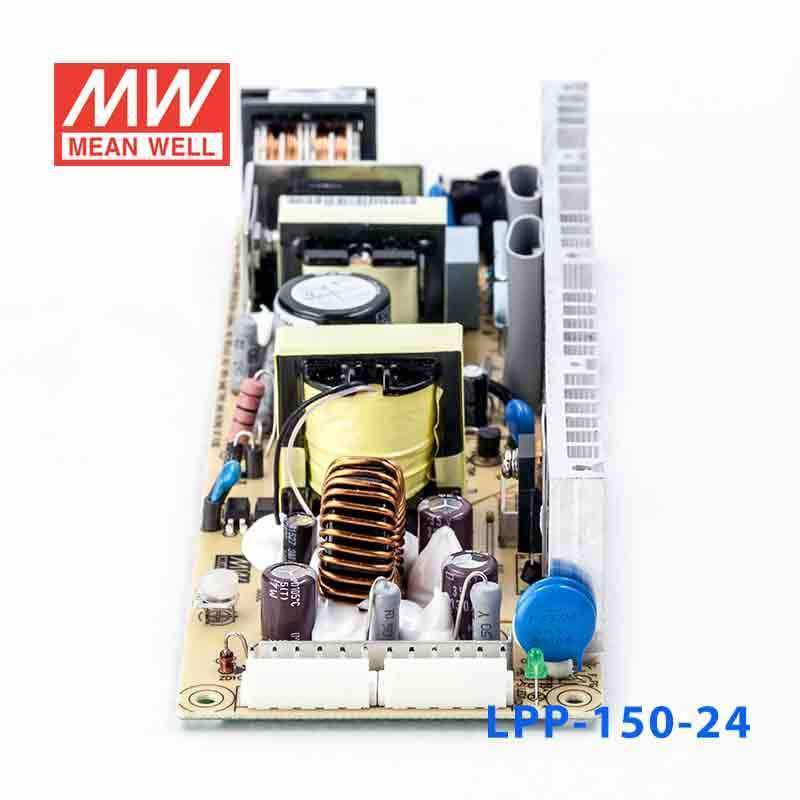

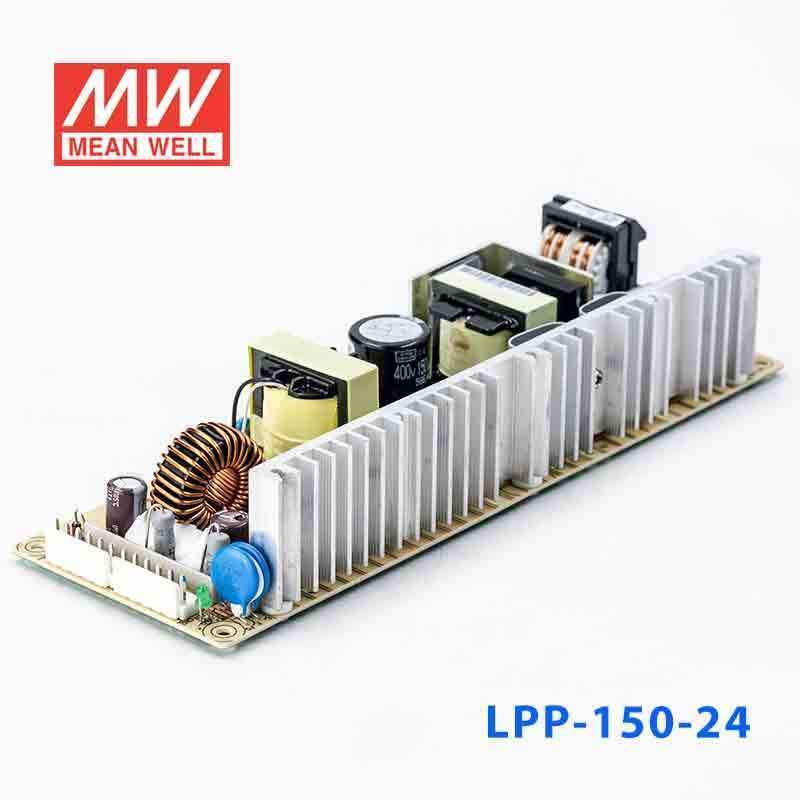

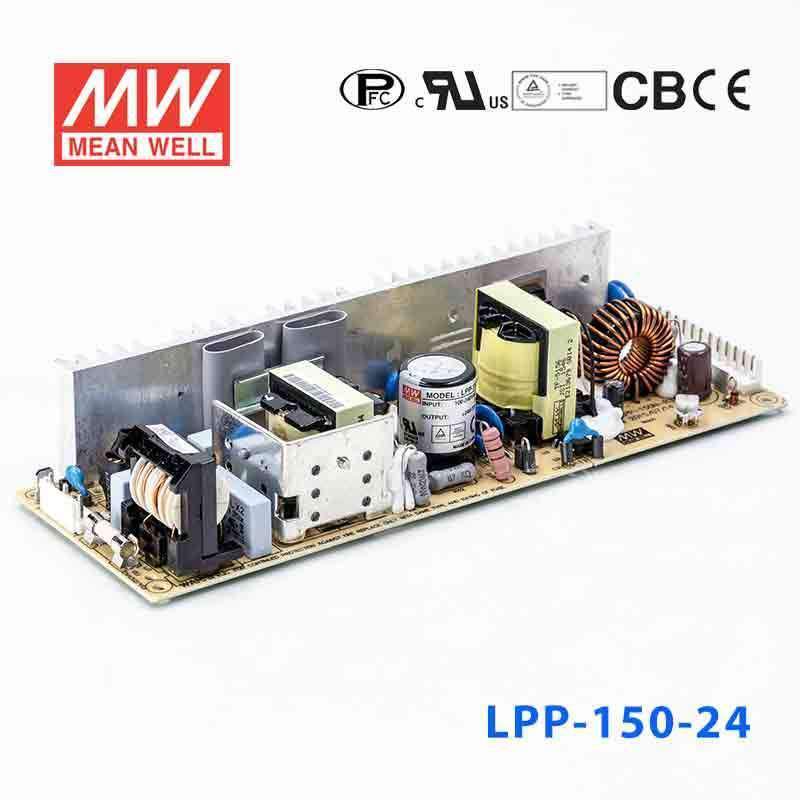

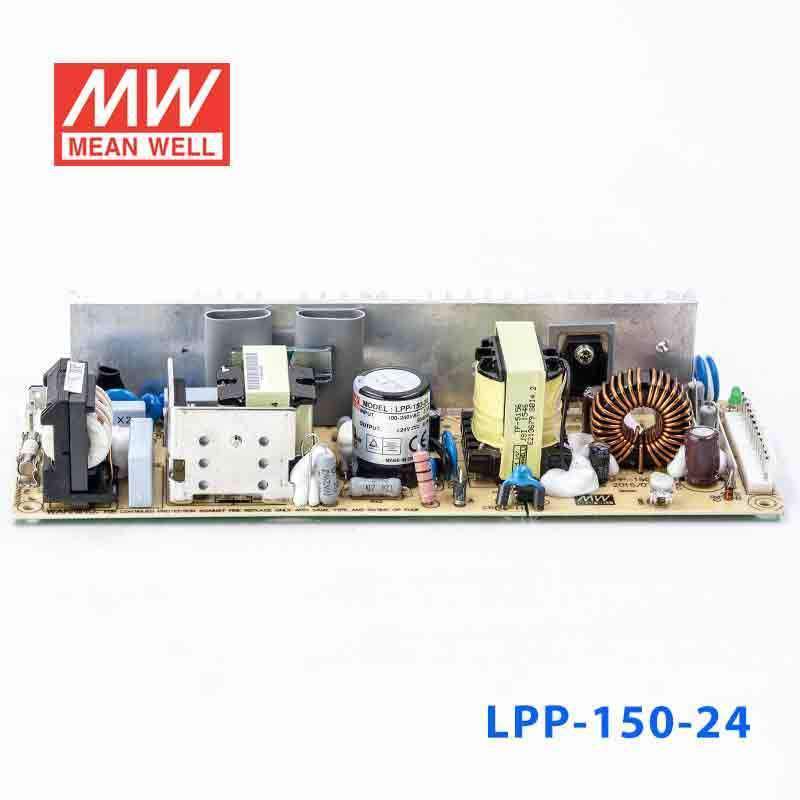

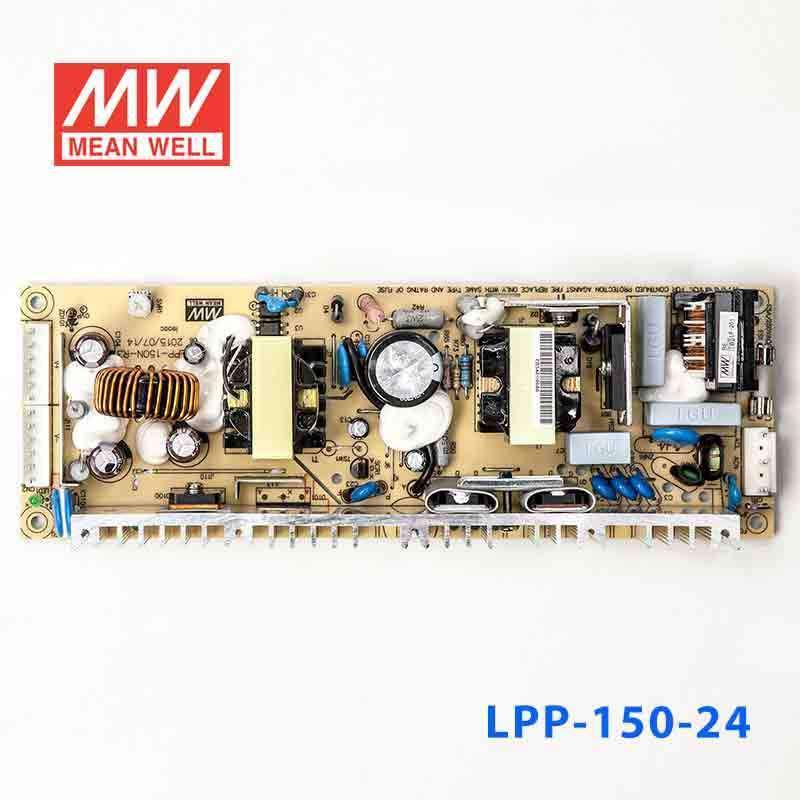

Mean Well LPP-150-24 Power Supply 151W 24V
The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.95 in
-
Height1.61 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
Can I use the LPP-150-24 for 24V PLCs, sensors, or automation controls?
Yes, this model is a constant voltage 24V power supply rated for up to 6.3A output current. It is suited to 24V automation loads that stay within the unit's 151.2W power rating.
Is the LPP-150-24 a fit for 24V industrial PCs, HMI panels, or control cabinets?
It can be a fit where the equipment requires 24V DC constant voltage input. The available output is 24V at up to 6.3A, with 151.2W total output power.
Can this power supply support 24V embedded or machine-control electronics from standard AC mains?
It can support 24V embedded or control electronics when the input supply is within 85-264VAC and the load needs constant voltage DC. On the output side, the load must remain within 24V, 6.3A, and 151.2W.
How does the LPP-150-24 compare with the other LPP models listed here?
The LPP-150-24 is rated at 151.2W, 24V, and 6.3A. Other listed siblings are LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; LPP-100-7.5 at 101.25W, 7.5V, 13.5A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A.
Can the LPP-150-24 be used in outdoor conditions?
The provided specs list an operating temperature range of -10°C to +60°C, but they do not list an IP rating for this model entry. That means the temperature window is defined, while weather or water exposure suitability is not established from the provided specs alone.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-150 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-150-7.5 Power Supply 150W 7.5V | 150W | 7.5V | 20A | Indoor | $39.55 | View |
| Mean Well LPP-150-5 Power Supply 150W 5V | 150W | 5V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-48 Power Supply 153W 48V | 153.6W | 48V | 3.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-3.3 Power Supply 99W 3.3V | 99W | 3.3V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-27 Power Supply 151W 27V | 151.2W | 27V | 5.6A | Indoor | $38.29 | View |
| Mean Well LPP-150-15 Power Supply 150W 15V | 150W | 15V | 10A | Indoor | $38.29 | View |
| Mean Well LPP-150-13.5 Power Supply 151W 13.5V | 151.2W | 13.5V | 11.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-12 Power Supply 150W 12V | 150W | 12V | 12.5A | Indoor | $38.29 | View |
