Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

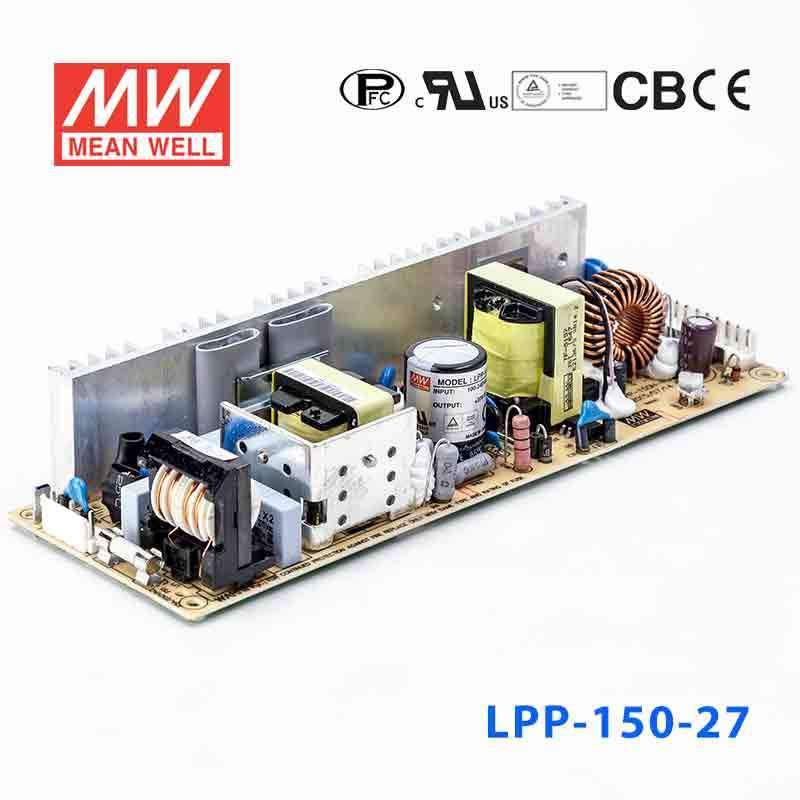

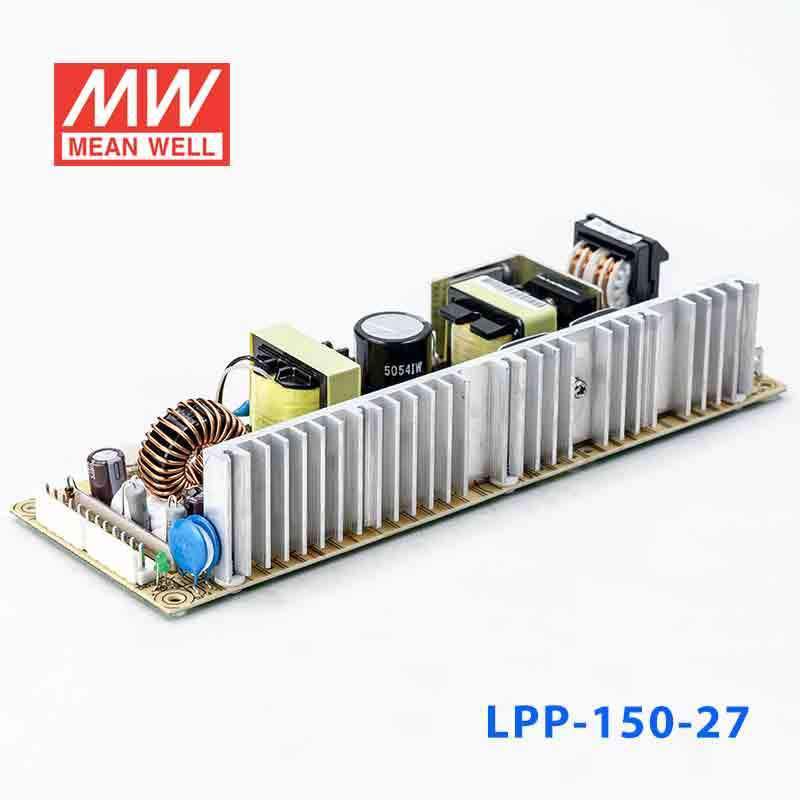

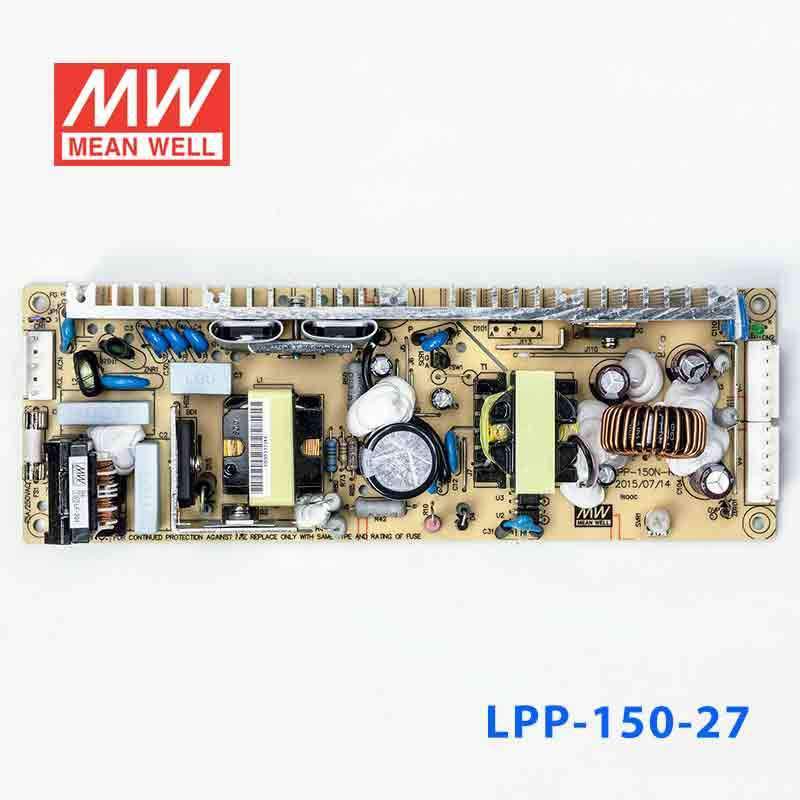

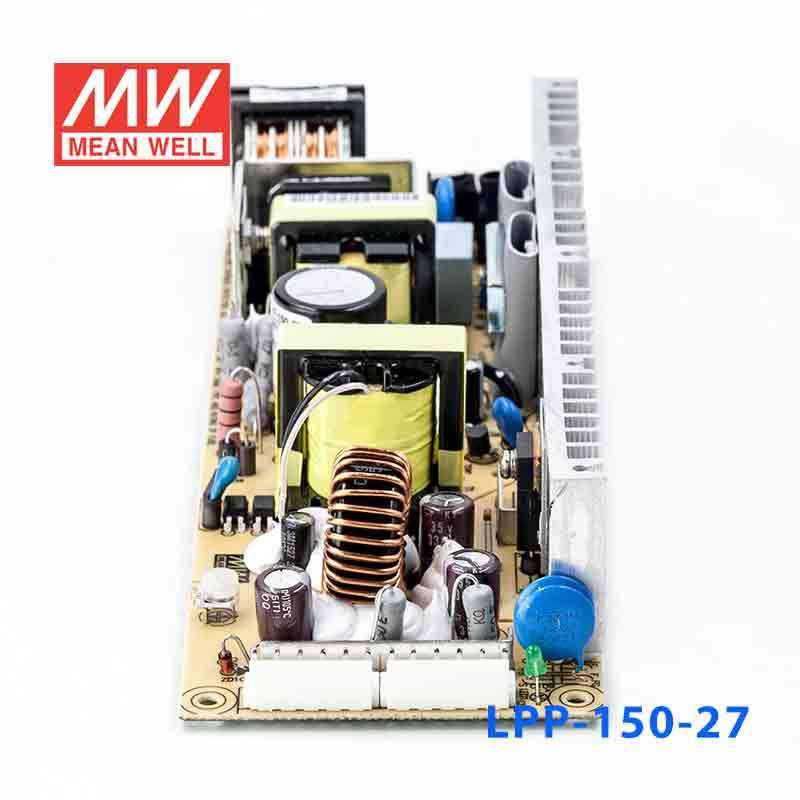

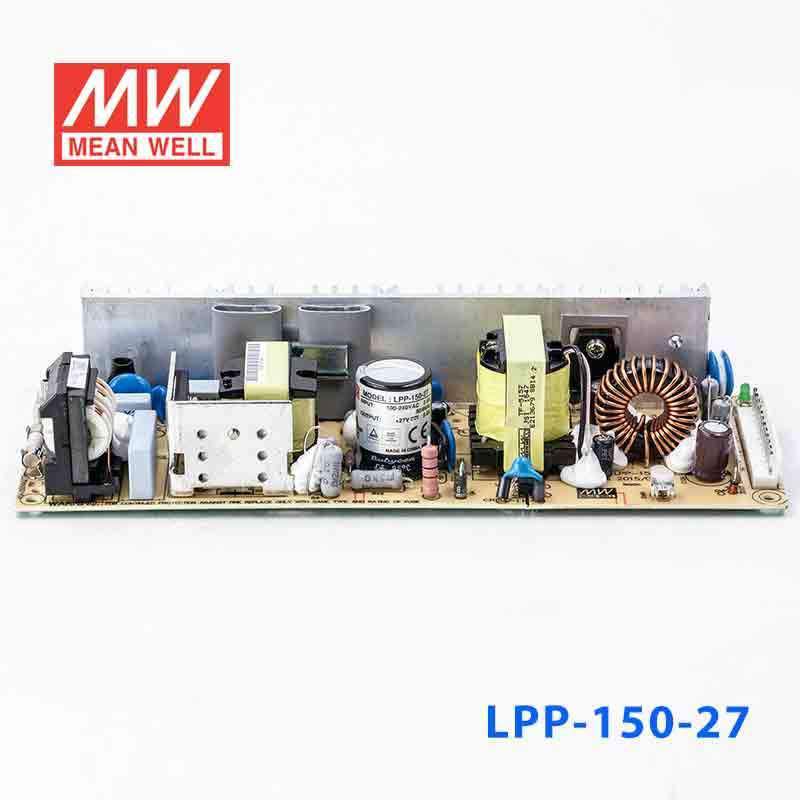

Mean Well LPP-150-27 Power Supply 151W 27V
The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating151.2 Watt
-
Output Voltage27 Volt
-
Rated Current5.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.95 in
-
Height1.61 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
Can I use the LPP-150-27 in a 27V industrial control or automation cabinet?
Yes, it is a constant voltage power supply with a 27V output and 5.6A maximum output current. That makes it a fit for 27V industrial control, embedded, or automation equipment that needs up to 151.2W from an 85-264VAC input.
Is the LPP-150-27 suitable for a 27V embedded system or test fixture that needs more than 100W?
It can suit higher-load 27V embedded or bench-style equipment because it is rated for 151.2W. Compared with lower-power 27V units, this model provides 5.6A at 27V, so it covers heavier constant-voltage 27V loads within that rating.
Can this 27V power supply be used for industrial electronics that run from universal AC input?
Yes, the input range is 85-264VAC, so it is designed for broad AC input conditions. For industrial electronics or automation assemblies that require a regulated 27V constant-voltage source, the published limit is 151.2W and 5.6A.
What is the difference between the LPP-150-27 and other LPP series models?
Within the provided siblings, the series includes LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; and LPP-100-7.5 at 101.25W, 7.5V, 13.5A. The higher-power group includes LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-24-OB with no specs listed in the provided data; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A. The LPP-150-27 itself is the 151.2W, 27V, 5.6A option in that lineup.
Is the LPP-150-27 appropriate for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -10°C to +60°C, but they do not list any IP rating. Based on that, it is reasonable to treat it as a power supply for controlled environments unless the final enclosure provides the needed environmental protection.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-150 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-150-7.5 Power Supply 150W 7.5V | 150W | 7.5V | 20A | Indoor | $39.55 | View |
| Mean Well LPP-150-5 Power Supply 150W 5V | 150W | 5V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-48 Power Supply 153W 48V | 153.6W | 48V | 3.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-3.3 Power Supply 99W 3.3V | 99W | 3.3V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-24 Power Supply 151W 24V | 151.2W | 24V | 6.3A | Indoor | $38.29 | View |
| Mean Well LPP-150-15 Power Supply 150W 15V | 150W | 15V | 10A | Indoor | $38.29 | View |
| Mean Well LPP-150-13.5 Power Supply 151W 13.5V | 151.2W | 13.5V | 11.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-12 Power Supply 150W 12V | 150W | 12V | 12.5A | Indoor | $38.29 | View |
