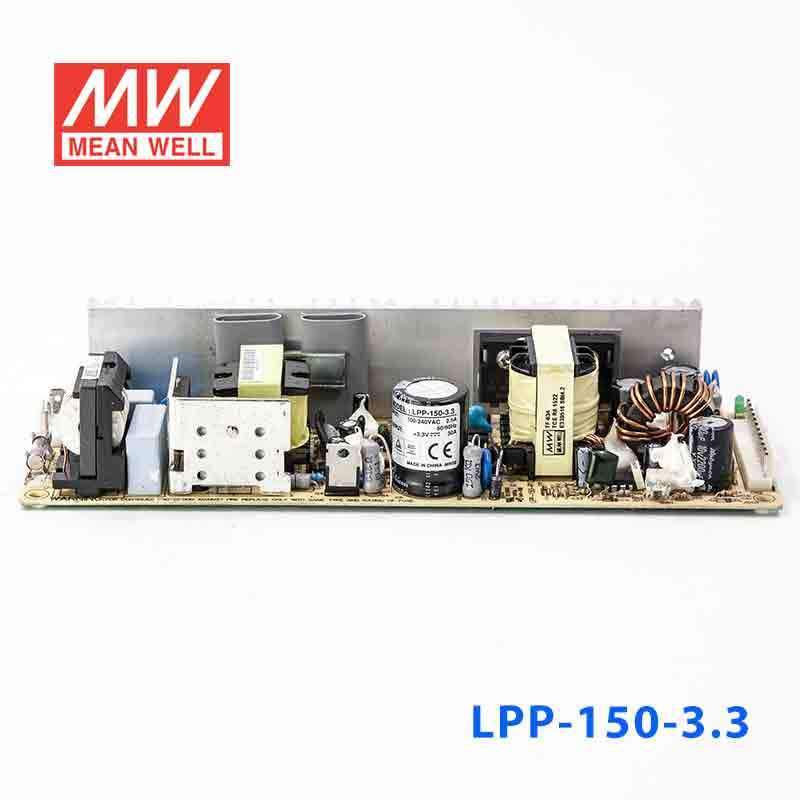

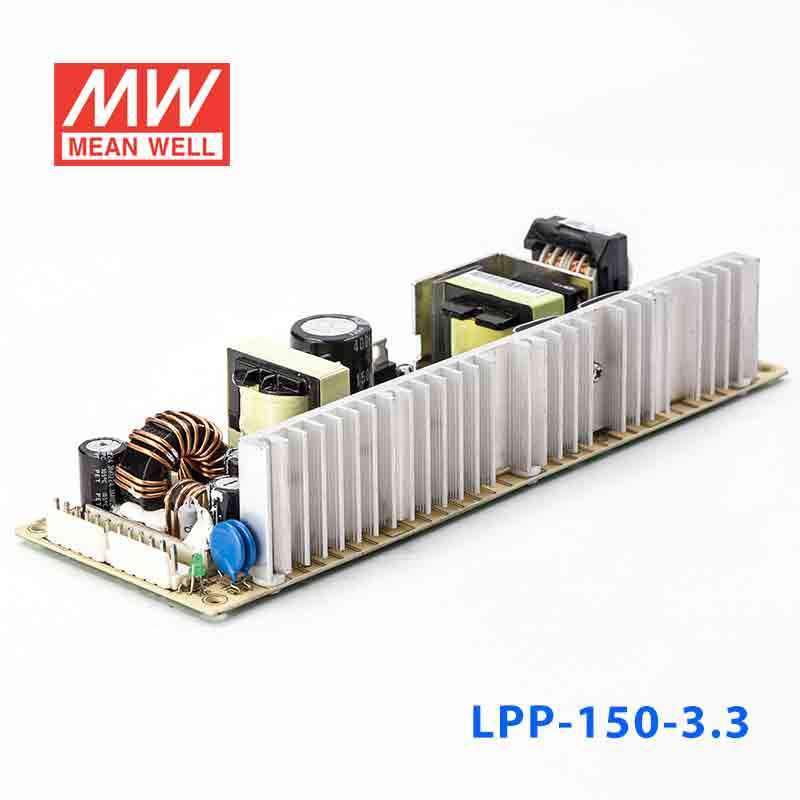

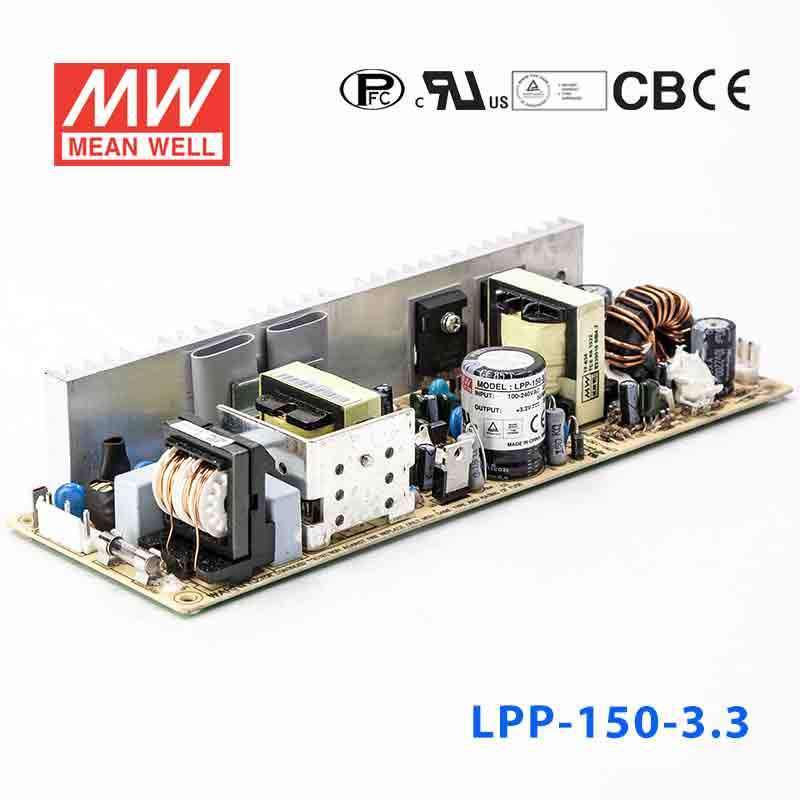

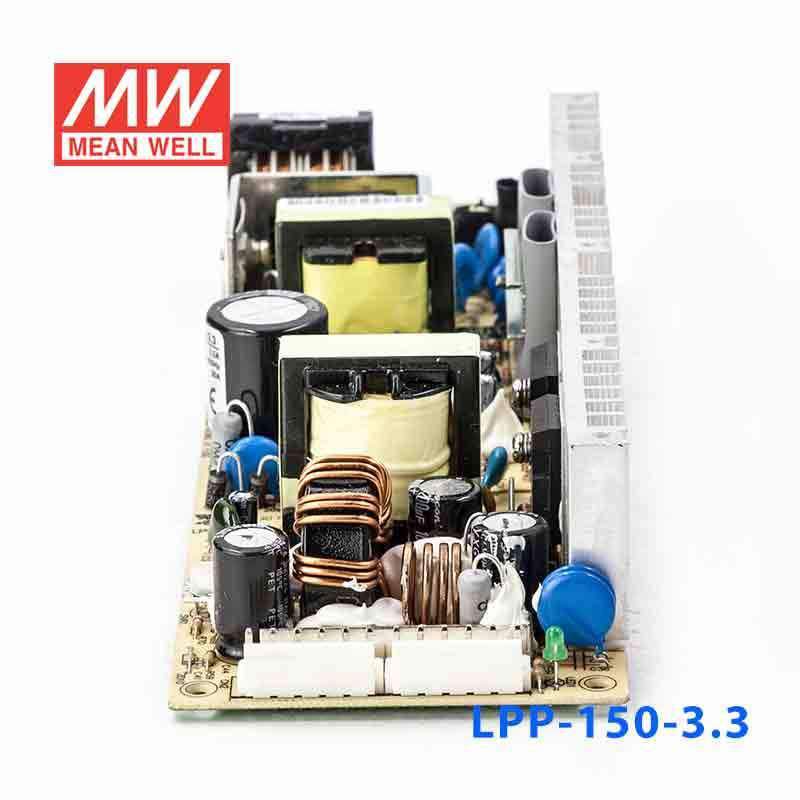

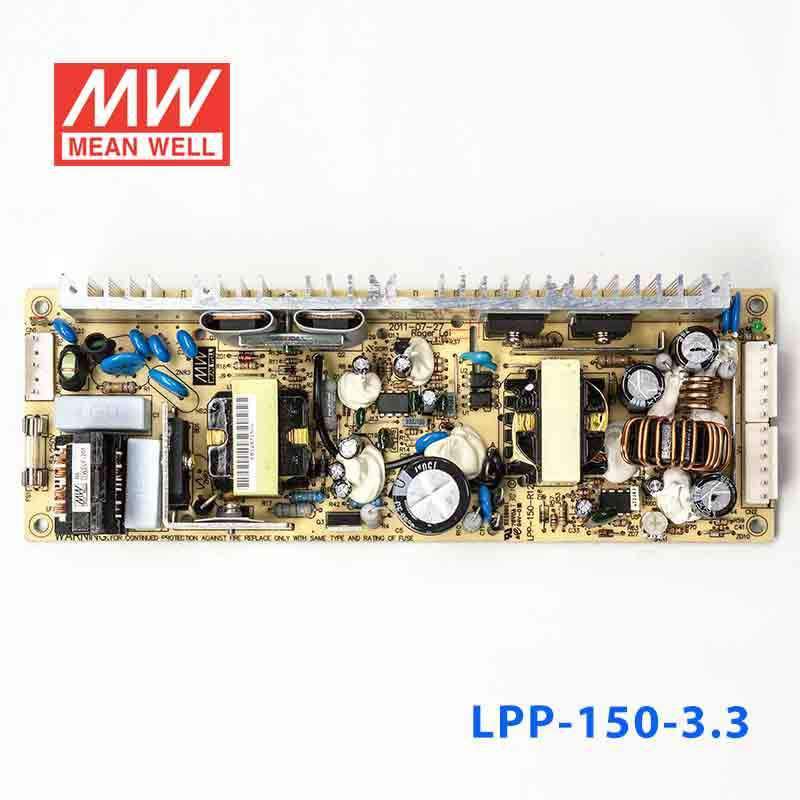

Mean Well LPP-150-3.3 Power Supply 99W 3.3V
The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating99 Watt
-
Output Voltage3.3 Volt
-
Rated Current30 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.95 in
-
Height1.61 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
Can I use the LPP-150-3.3 to power 3.3V embedded controllers or digital electronics?
Yes, this model provides a constant 3.3V output and up to 30A. It is suited to 3.3V embedded, logic, or controller loads that need a high-current DC source within its 99W rating.
Is the LPP-150-3.3 a good fit for a 3.3V industrial test bench or burn-in setup?
It can fit 3.3V industrial electronics testing because it delivers up to 30A at 3.3V from an 85-264VAC input. The key limit is the 99W output rating, so the combined 3.3V load must stay within that published capacity.
Can this power supply support high-current 3.3V control boards in an automation system?
Yes, the main strength of this model is high current at low voltage: 30A at 3.3V. That makes it relevant for automation or embedded assemblies built around 3.3V rails rather than higher-voltage DC buses.
How does the LPP-150-3.3 compare with other LPP series versions?
The provided sibling list includes LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; and LPP-100-7.5 at 101.25W, 7.5V, 13.5A. The 150 series siblings listed are LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A. The LPP-150-3.3 is the 99W, 3.3V, 30A version in that range.
Can the LPP-150-3.3 be used where ambient temperatures vary?
The published operating temperature range is -10°C to +60°C. The provided specs do not include an IP rating, so temperature capability is specified, but outdoor or washdown suitability is not established here.
