Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

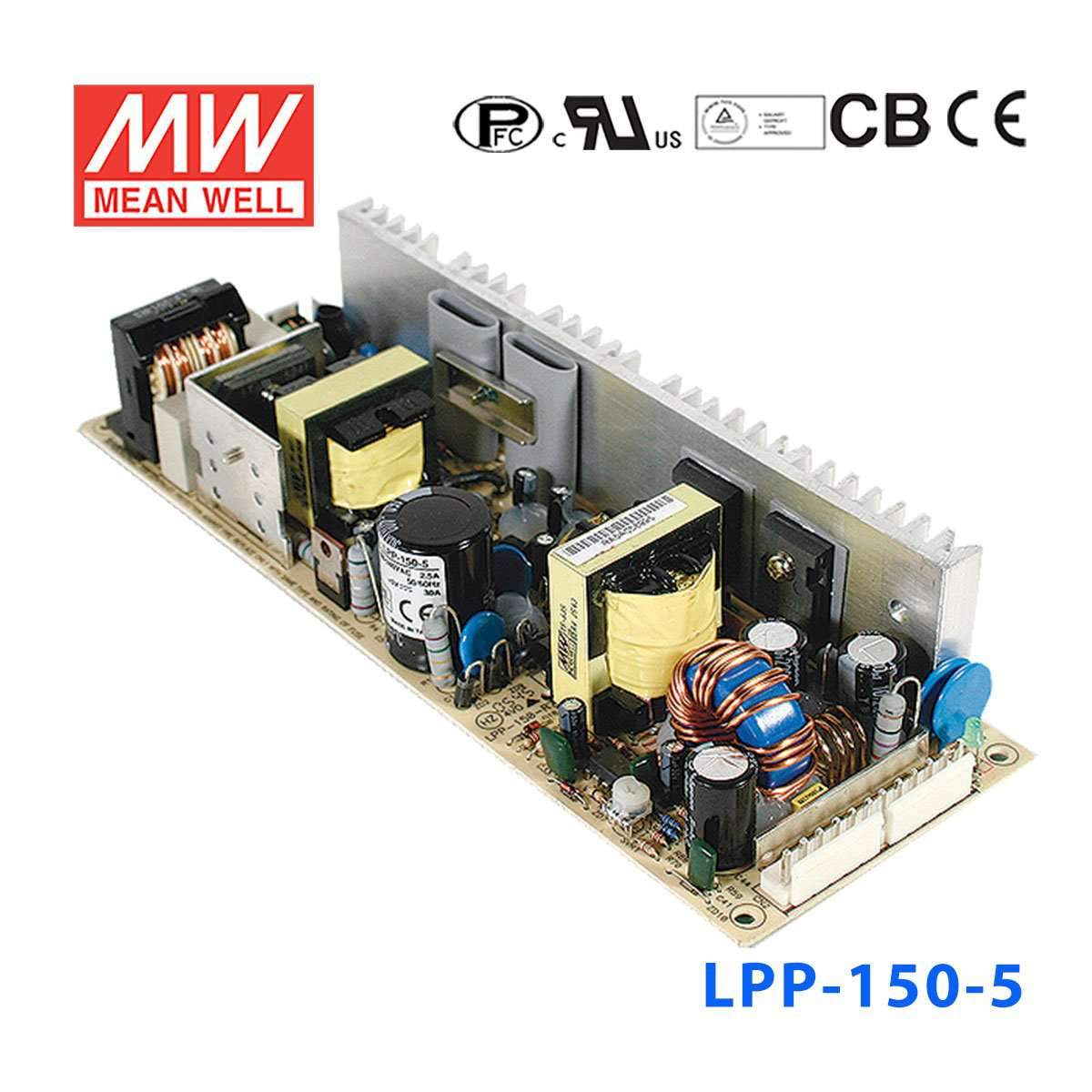

Mean Well LPP-150-5 Power Supply 150W 5V
The LPP-150 is a 150W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating150 Watt
-
Output Voltage5 Volt
-
Rated Current30 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.95 in
-
Height1.61 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
Can I use the LPP-150-5 for 5V industrial control electronics or SBC-based systems?
Yes, it is a constant voltage 5V power supply rated for up to 30A. That makes it suitable for 5V industrial control, embedded computing, or automation electronics that need a high-current 5V rail within 150W.
Is the LPP-150-5 appropriate for powering 5V LED pixels or other 5V DC loads?
It can be used with 5V constant-voltage loads because the output is 5V and the maximum output current is 30A. The practical limit is the 150W rating, so the total connected 5V load has to stay inside that output capacity.
Can this 5V model support high-current electronics in a production or test environment?
Yes, the 30A output current makes it relevant for high-current 5V electronics in bench, production, or embedded environments. It also accepts 85-264VAC input, which is useful where mains input conditions vary.
How does the LPP-150-5 differ from other LPP power supplies in the same family?
The provided siblings include LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; and LPP-100-7.5 at 101.25W, 7.5V, 13.5A. The 150 series options listed are LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A. The LPP-150-5 is the 150W, 5V, 30A version.
Is the LPP-150-5 intended for outdoor use?
The provided specs show an operating temperature range of -10°C to +60°C, but no IP rating is listed. That means the temperature range is defined, while exposure resistance to rain, dust, or washdown is not specified in the data provided here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPP-150 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPP-150-7.5 Power Supply 150W 7.5V | 150W | 7.5V | 20A | Indoor | $39.55 | View |
| Mean Well LPP-150-48 Power Supply 153W 48V | 153.6W | 48V | 3.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-3.3 Power Supply 99W 3.3V | 99W | 3.3V | 30A | Indoor | $39.55 | View |
| Mean Well LPP-150-27 Power Supply 151W 27V | 151.2W | 27V | 5.6A | Indoor | $38.29 | View |
| Mean Well LPP-150-24 Power Supply 151W 24V | 151.2W | 24V | 6.3A | Indoor | $38.29 | View |
| Mean Well LPP-150-15 Power Supply 150W 15V | 150W | 15V | 10A | Indoor | $38.29 | View |
| Mean Well LPP-150-13.5 Power Supply 151W 13.5V | 151.2W | 13.5V | 11.2A | Indoor | $39.55 | View |
| Mean Well LPP-150-12 Power Supply 150W 12V | 150W | 12V | 12.5A | Indoor | $38.29 | View |
