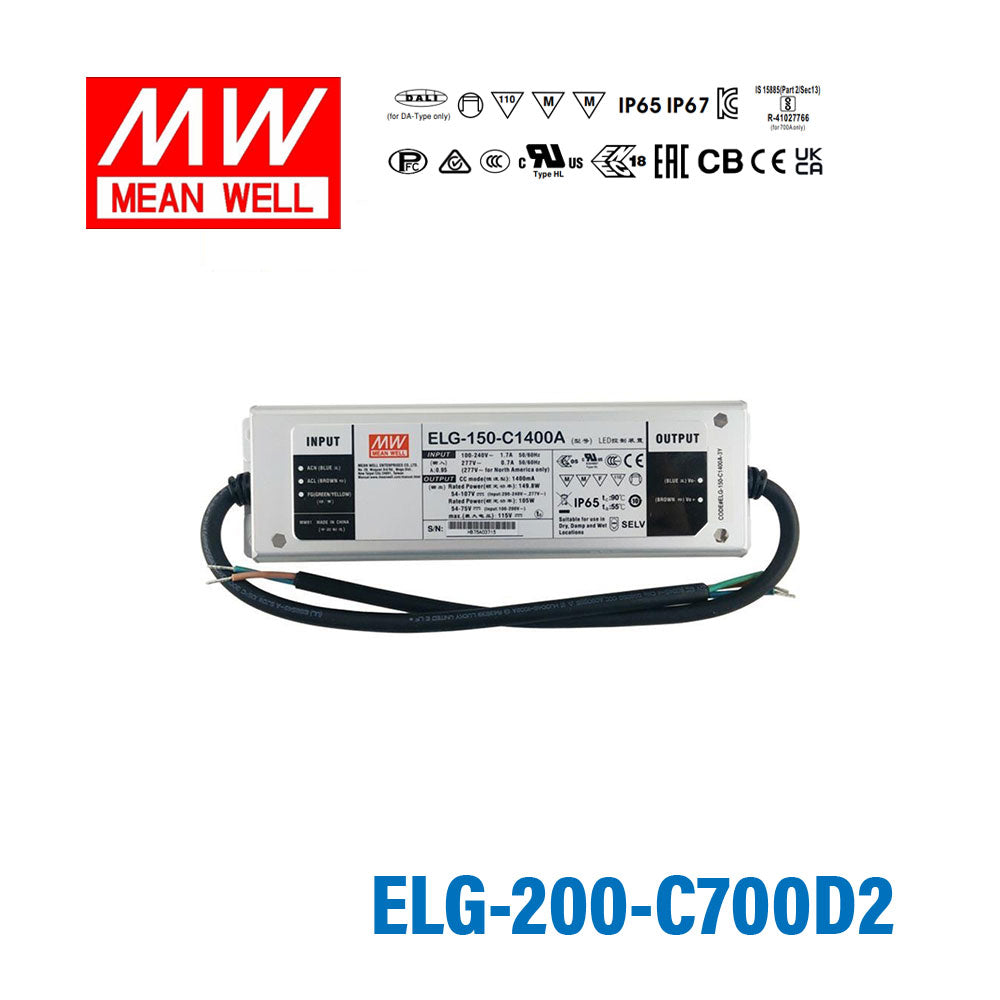

Mean Well ELG-200-C700D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-C700D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage286 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control1-10V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C700D2 be used for fixed-output LED downlight installations without dimming?
Yes. The ELG-200-C700D2 is a constant current driver with a fixed 286V maximum output and no dimming or adjustment function. It is a straightforward choice for LED downlight arrays or linear LED modules in permanent, non-dimmed installations that need a reliable 200W constant current supply.
Is the ELG-200-C700D2 suitable for LED signage in outdoor or semi-outdoor locations?
The ELG-200-C700D2 is rated IP67 waterproof, making it appropriate for outdoor sign cabinets and semi-exposed installations where the driver may encounter rain or water splash. Its wide input range of 100–305VAC and -40°C to +85°C operating temperature support diverse outdoor deployment scenarios.
What LED strings are compatible with the ELG-200-C700D2 given its CC voltage range?
The ELG-200-C700D2 operates in constant current mode with a CC output voltage range of 142–286V. LED loads connected in series must present a combined forward voltage within that window. The number of LEDs in the string depends on the forward voltage of each LED at the operating current.
How does the ELG-200-C700D2 differ from other ELG-200-C700 variants?
The ELG-200-C700D2 has a fixed output (no trimming, no dimming signal) and is rated IP67 with a 286V maximum output voltage. The ELG-200-C700A and ELG-200-C700AB offer output adjustment and are IP65; the ELG-200-C700B adds analog dimming with IP67; the ELG-200-C700DA supports DALI dimming with IP67. All deliver a nominal 200W at 700mA constant current.
Can the ELG-200-C700D2 be mounted in an outdoor enclosure exposed to rain?
Yes. The IP67 rating means the driver is protected against temporary water immersion up to 1 meter, so rain exposure and wet outdoor enclosures are within its design envelope. The operating temperature of -40°C to +85°C further supports year-round outdoor deployment.
Is the ELG-200-C700D2 appropriate for industrial LED array applications requiring wide-range AC input?
Yes. The driver accepts 100–305VAC, covering both 120V North American and 230–277V European or industrial supply voltages without reconfiguration. This makes it suitable for industrial LED arrays, warehouse lighting, and multi-country product designs requiring a single SKU.
