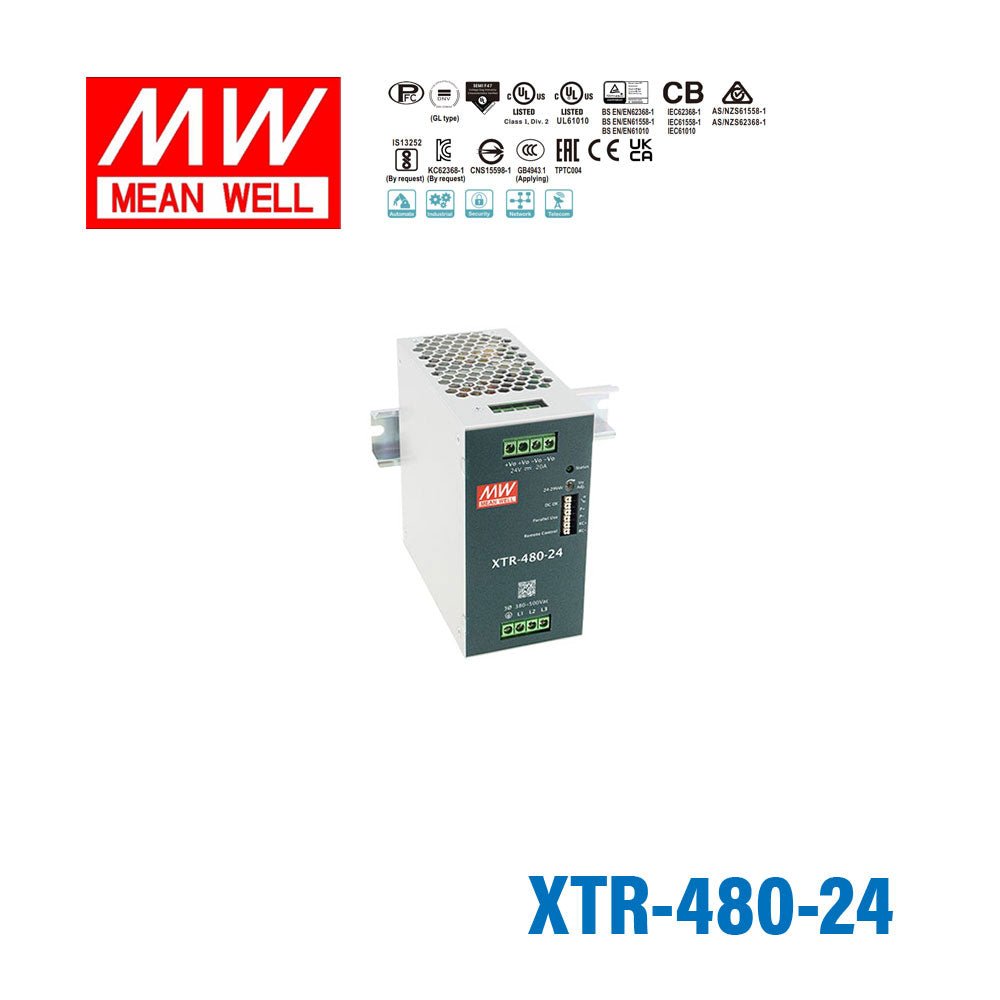

Mean Well XTR-480-24 Three Phase Din Rail Power Supply 480W 24V - Screw Terminal 20A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-480-24 Three Phase Din Rail Power Supply 480W 24V - S...
The XTR-480 is a 480W Mean Well DIN rail power supply (input: 320~600VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 320~600VAC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 20A
- ✓ DIN rail TS-35 mountable
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, EN, KC
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length4.92 in
-
Width2.48 in
-
Height4.93 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XTR-480-24?
The XTR-480-24 is rated for 480W output power. It provides 24V DC output with a rated current of 20A.
What type of applications is the XTR-480-24 suited for?
This model is suited for industrial power applications that need a compact DIN rail AC-DC power supply. Its 480W output, 24V rating, and wide input range make it appropriate for demanding control panels and industrial equipment power systems.
Does the XTR-480-24 support three-phase input?
Yes. The XTR-480-24 is specified with a three-phase 320 to 600Vac wide range input, and the product description also notes that dual phase operation is possible.
What operating temperature range does the XTR-480-24 support?
The XTR-480-24 is specified for operation from -40°C to 85°C. This wide temperature range supports use in demanding industrial environments where temperature conditions can vary significantly.
How compact is the XTR-480-24 for a 480W DIN rail power supply?
The XTR-480 series is described as having an ultra-slim design. For buyers comparing DIN rail power supplies, this makes the XTR-480-24 relevant where 480W of 24V DC power is needed in a space-conscious industrial enclosure.
What warranty period applies to the XTR-480-24?
The XTR-480-24 has a listed warranty period of 5 years. That warranty length is useful for B2B buyers planning maintenance cycles or standardizing industrial power supply components.
