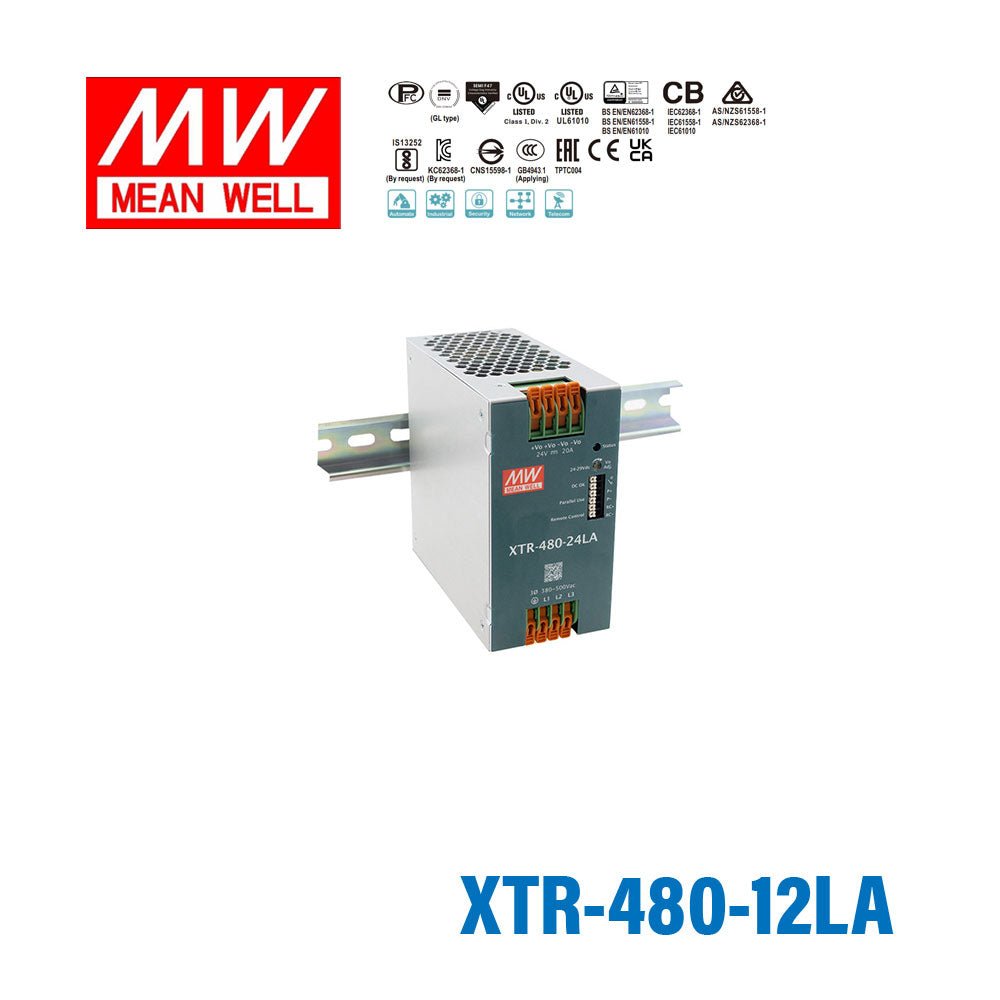

Mean Well XTR-480-12LA Three Phase Din Rail Power Supply 360W 12V - Lever-Actuated 30A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-480-12LA Three Phase Din Rail Power Supply 360W 12V -...
The XTR-480-12LA is a 480W Mean Well DIN rail power supply (input: 320~600VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 320~600VAC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 30A
- ✓ DIN rail TS-35 mountable
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, EN, KC
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current30 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length4.92 in
-
Width2.48 in
-
Height4.93 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What output does the Mean Well XTR-480-12LA provide?
The XTR-480-12LA provides a 12V DC output with a rated current of 30A. The product data lists a 480W power rating, while the model name indicates 360W at 12V.
What applications is the XTR-480-12LA suited for?
This DIN rail power supply is suited for industrial and automation applications that need reliable 12V DC power. Its three-phase wide input range and compact DIN rail format make it a practical option for control cabinets and industrial power systems.
Does the XTR-480-12LA support three-phase input?
Yes. The product description specifies a three-phase 320 to 600Vac wide range input, with dual phase operation also possible.
What operating temperature range does the XTR-480-12LA support?
The listed operating temperature range is -40°C to 85°C. This wide range supports use in demanding industrial environments where temperature conditions can vary significantly.
What does lever-actuated mean for this model?
This version is identified as the lever-actuated model in the product name. That distinction helps buyers select the correct variant within the XTR-480-12 series when matching purchasing requirements or existing panel standards.
What is the warranty period for the XTR-480-12LA?
The XTR-480-12LA has a listed warranty period of 5 years. That makes it suitable for B2B buyers who need a power supply with longer-term manufacturer coverage.
