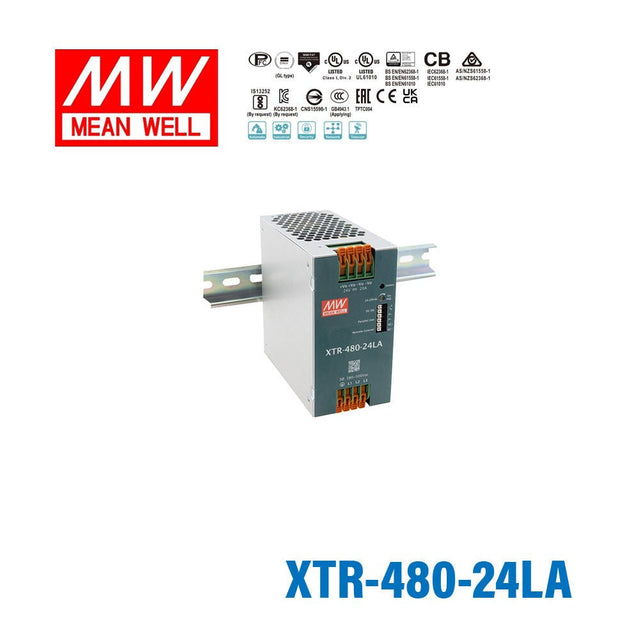

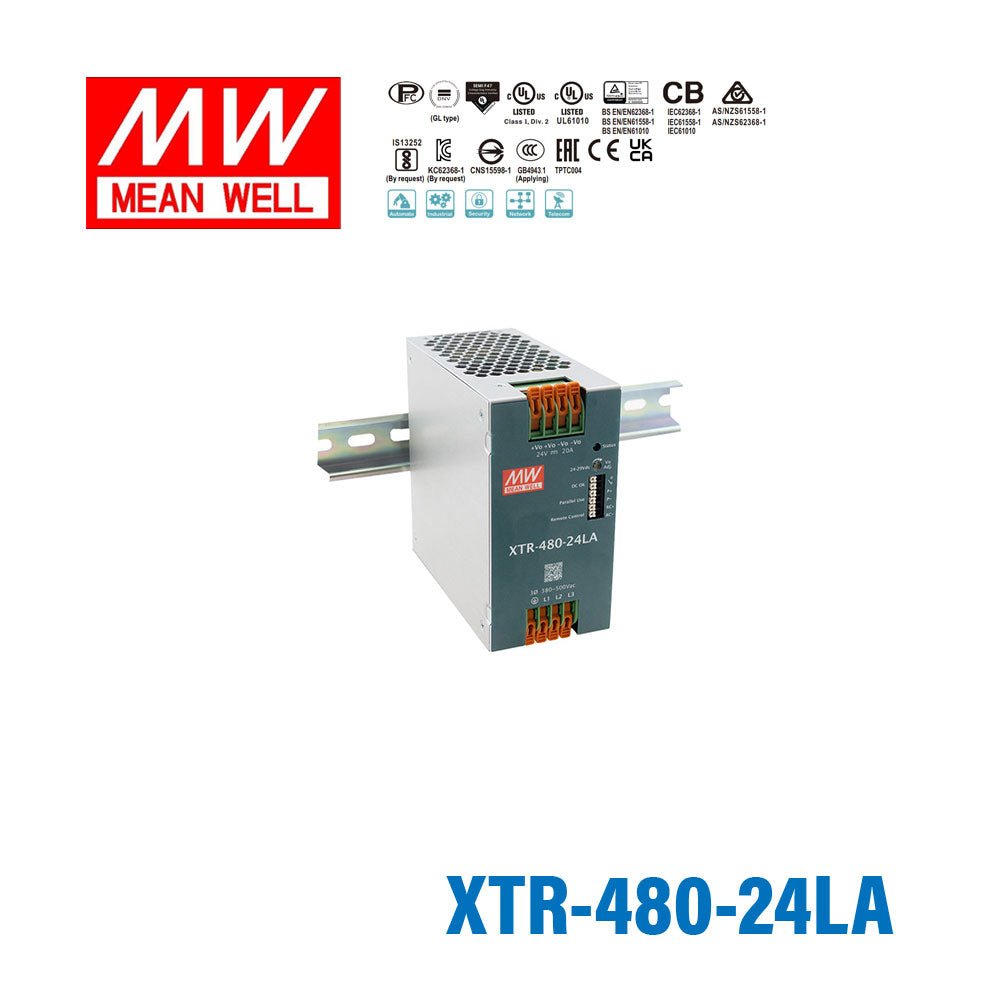

Mean Well XTR-480-24LA Three Phase Din Rail Power Supply 480W 24V - Lever-Actuated
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-480-24LA Three Phase Din Rail Power Supply 480W 24V -...
Description
Description
TheXTR-480series offers 480W of power in an ultra-slim design, making it suitable for a range of industrial applications. It features advanced protection mechanisms and remote control capabilities, which enhance its reliability and operational flexibility. This model is perfect for demanding environments requiring efficient power delivery and robust performance.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length4.92 in
-
Width2.48 in
-
Height4.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XTR-480-24LA?
The XTR-480-24LA is a 480W DIN rail AC-DC power supply with a 24V output. It is rated for 20A output current, making it suitable for higher-power industrial control and automation loads.
What types of applications is the XTR-480-24LA suited for?
This model is suited for industrial applications that need efficient 24V DC power from a compact DIN rail power supply. Its 480W rating and wide input range make it a good fit for demanding control panels, automation equipment, and industrial power distribution systems.
Does the XTR-480-24LA support three-phase input?
Yes. The XTR-480-24LA supports a three-phase 320 to 600Vac wide input range. The product description also notes that dual phase operation is possible.
Can the XTR-480-24LA operate in harsh temperature environments?
Yes. This model has an operating temperature range from -40°C to 85°C. That wide range makes it appropriate for industrial environments where temperature conditions can vary significantly.
Why choose the XTR-480-24LA instead of a lower-power DIN rail power supply?
The XTR-480-24LA provides 480W of output power at 24V and 20A. It is a better fit when the load requires more available power than smaller DIN rail models can provide.
What warranty period does the XTR-480-24LA include?
The XTR-480-24LA includes a 5 year warranty period. This is useful for buyers evaluating long-term reliability and lifecycle support for industrial power supply installations.
How much does the XTR-480-24LA weigh?
The XTR-480-24LA weighs 1.3 kg. Its weight is relevant for panel planning and equipment documentation when specifying a DIN rail power supply.
