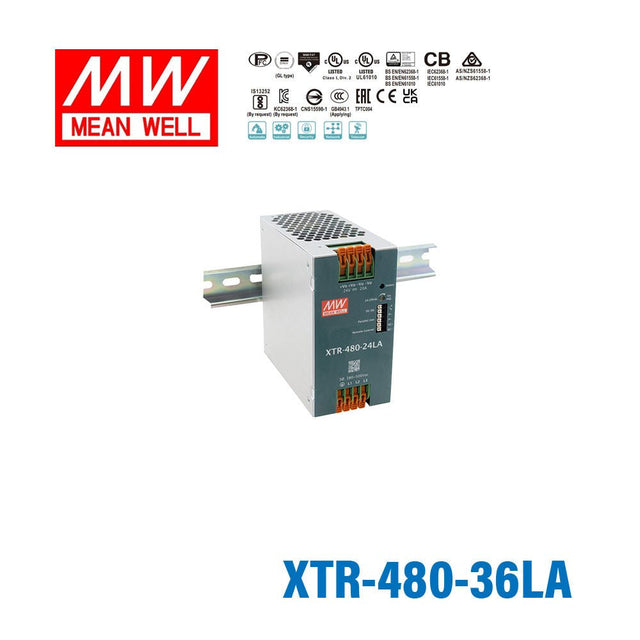

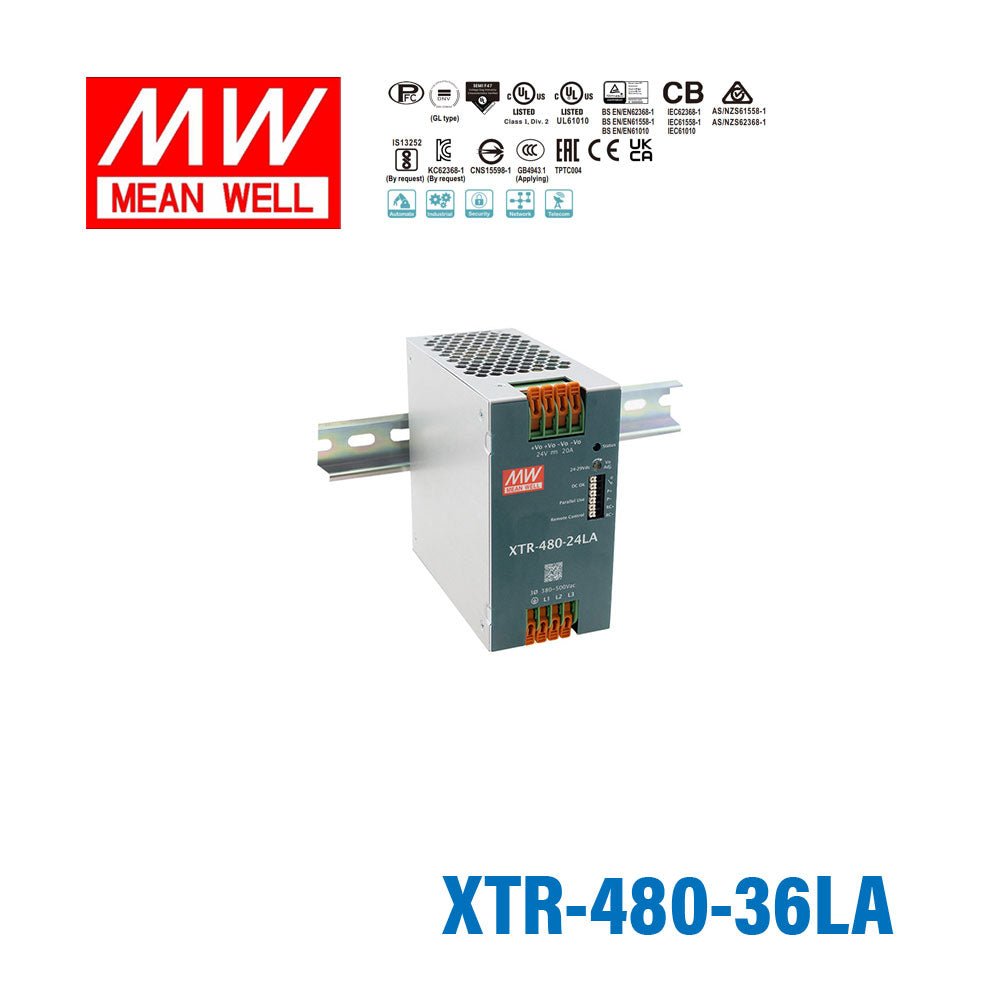

Mean Well XTR-480-36LA Three Phase Din Rail Power Supply 480W 36V - Lever-Actuated
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-480-36LA Three Phase Din Rail Power Supply 480W 36V -...
Description
Description
TheXTR-480series offers 480W of power in an ultra-slim design, making it suitable for a range of industrial applications. It features advanced protection mechanisms and remote control capabilities, which enhance its reliability and operational flexibility. This model is perfect for demanding environments requiring efficient power delivery and robust performance.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating480 Watt
-
Output Voltage36 Volt
-
Rated Current13.3 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length4.92 in
-
Width2.48 in
-
Height4.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XTR-480-36LA?
The Mean Well XTR-480-36LA is a 480W DIN rail AC-DC power supply with a 36V output. It is rated for 13.3A output current, making it suitable for industrial loads that require a 36V DC supply.
What applications is the XTR-480-36LA typically used for?
This model is designed for industrial power systems that need a compact DIN rail power supply with 480W output capacity. Its 36V output and wide input range make it a fit for control cabinets, automation equipment, and other industrial power distribution uses where those ratings match the system requirements.
Is the XTR-480-36LA suitable for three-phase input systems?
Yes. The XTR-480-36LA supports three-phase 320 to 600Vac wide range input. The product description also notes that dual phase operation is possible.
What operating temperature range does the XTR-480-36LA support?
The XTR-480-36LA is rated for operation from -40°C to 85°C. This wide temperature range supports use in demanding industrial environments where ambient conditions may vary significantly.
Why choose the XTR-480-36LA instead of a lower-power DIN rail supply?
The XTR-480-36LA provides 480W of output power at 36V, with a rated current of 13.3A. It is a better match than a lower-power model when the application requires this output capacity, while still using an ultra-slim DIN rail form factor.
How much does the XTR-480-36LA weigh?
The XTR-480-36LA has a listed weight of 1.3 kg. This can be useful when planning cabinet layouts or comparing DIN rail power supplies for space- and weight-sensitive industrial equipment.
What warranty period is listed for the Mean Well XTR-480-36LA?
The XTR-480-36LA is listed with a 5-year warranty period. This warranty length supports buyers looking for a long-service industrial power supply from the Mean Well XTR-480 series.
