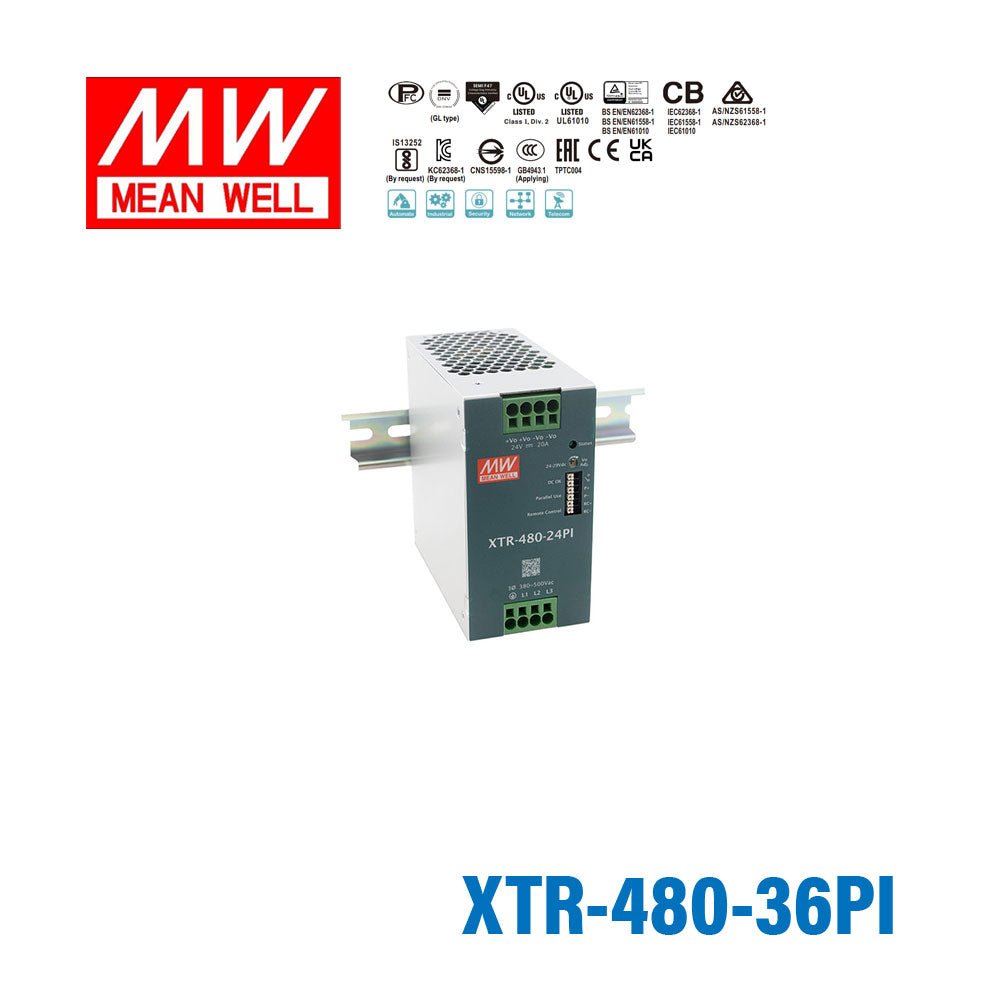

Mean Well XTR-480-36PI Three Phase Din Rail Power Supply 480W 36V - Push In 13.3A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-480-36PI Three Phase Din Rail Power Supply 480W 36V -...
Overview
XTR-480-36PI is the 36V output model of this series: rated current 13.3A, rated power 478.8W, typical efficiency 94.5%. Type PI: Push In.
The XTR-480 series is a 480W AC/DC 3Ø 320~600Vac input ultra slim industrial high-reliability DIN rail power. Key features of this series include a narrow 63 mm casing, optimizing system installation space, it boasts a maximum efficiency of 95.5% and a low standby power consumption <3.0W by remote control for energy savings and carbon reduction. It provides constant current with up to 200% peak power; fanless design, ultra-wide operating temperature range of -40 to +85℃ (up to +60℃ at full load); OVC III compliance; parallel function capability up to 1920W; ultra-low inrush current of <10A; built-in Remote Control, DC OK and ORing FET; internal PCB coating offers basic moisture and dust protection. With comprehensive protection functions, complete safety certifications, and a 5-years warranty, the XTR-480 series is a compact, high-performance, and highly reliable DIN rail power supply.
Features
- Three-Phase 320 ~ 600Vac wide range input (Dual phase operation possible)
- Global certificates in multi-fields(IEC 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI F47, C1D2 HazLoc approved
- 63mm Ultra slim width
- High efficiency up to 95.5% and no load power dissipation<3.0W by R.C.
- 200% Peak Power capability
- Built-in constant current limiting circuit
- Current sharing up to 1920W(3+1) for parallel use
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design, cooling by free air convection
- Over voltage category III (OVC III)
- -40~+85℃ wide range operation temperature (>+60℃ derating)
- Operating altitude up to 5000 meters
- Built-in Remote ON/OFF Control and DC OK relay contact
- Ultra low inrush current < 10A
- Built-in ORing FET
- Conformal coating
- Can be installed on DIN Rail TS-35/7.5 or 15
- 5 years warranty
Model encoding
| Type | Function |
|---|---|
| Blank | Screw Terminal |
| LA | Lever-Actuated |
| PI (this model) | Push In |
Specifications
OUTPUT
- DC VOLTAGE
- 36V
- RATED CURRENT
- 13.3A
- CURRENT RANGE
- 0 ~ 13.3A
- RATED POWER
- 478.8W
- PEAK CURRENT(5 sec.)
- 26.7A
- PEAK POWER(5 sec.)
- 961W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 36 ~ 42V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 800ms, 60ms/400Vac 600ms, 60ms/500Vac at full load
- HOLD UP TIME (Typ.)
- 20ms / 400Vac 20ms / 500Vac at full load
INPUT
- VOLTAGE RANGENote.4
- Three-Phase 320 ~ 600Vac (Dual phase operation possible) 450 ~ 800Vdc
- NO LOAD POWER CONSUMPTION (Typ.) Remote Power OFF
- 3.0W/400Vac
- NO LOAD POWER CONSUMPTION (Typ.) Remote Power ON
- 5.0W/400Vac
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.9/400Vac PF≧0.88/500Vac at full load
- EFFICIENCY (Typ.)
- 94.5%
- AC CURRENT (Typ.)
- 0.85A/400Vac 0.7A/500Vac
- INRUSH CURRENT (Typ.)
- COLD START 10A/500Vac
- LEAKAGE CURRENT
- <3.5mA / 530Vac
PROTECTION
- OVERLOAD
- 105%~200% rated output power for more than 5 sec then constant current limiting without shutdown at rate current when Vo=30%~100%
- OVER VOLTAGE
- 43 ~ 50V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage or hiccup mode, recovers automatically after temperature goes down
FUNCTION
- PARALLEL
- Up to 1920W (3+1) , please refer to Function Manual for more details
- DC OK RELAY CONTACT
- Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load
- REMOTE CONTROL
- Power ON : RC + ~ RC- open or keep 2~5Vdc Power OFF: RC + ~ RC- short or keep<0.5Vdc
ENVIRONMENT
- WORKING TEMP.Note.5
- -40 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC
- SAFETY STANDARDSNote.7&8&9
- CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 ; TUV BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 ; UL UL121201/CSA C22.2 NO.213.17 Class I, Div. 2 Group A, B, C, D Hazardous Locations T4; UL/CUL 61010-1/-2-201 ; CCC GB4943.1 ; BSMI CNS15598-1 ; EAC TPTC004 ; SEMI F47 approved ; KC/BIS KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock,contact sales by request
- OVER VOLTAGE CATEGORYNote.6
- IEC/EN 61558-1/-2-16 (OVC Ⅲ, altitude up to 2000m ) ; IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000m ) ; IEC/EN 62368-1 (OVC Ⅱ, altitude up to 5000m )
- SAFETY EXTRA-LOW VOLTAGE(SELV)
- IEC/EN 61558-2-16 (SELV ) ; IEC/EN 62368-1 (SELV/ ES1 )
- WITHSTAND VOLTAGE
- I/P-O/P:4.87KVac I/P-FG:2.5KVac O/P-FG:0.5KVac O/P-DC OK:0.5KVac
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032(CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B Radiated BS EN/EN55032(CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B Harmonic Current BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035 , BS EN/EN61204-3 , BS EN/EN61000-6-2:2005 , BS EN/EN IEC61000-6-2:2019, KS C 9835,SEMI F47 tested at 200Vac
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact Radiated Field BS EN/EN61000-4-3 Level 3, 10V/m; criteria A EFT / Burst BS EN/EN61000-4-4 Level 4, 4KV; criteria A Surge BS EN/EN61000-4-5 Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth Conducted BS EN/EN61000-4-6 Level 3, 10V/m; criteria A Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A Voltage Dips and Interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods＞ 95% interruptions 250 periods
OTHERS
- MTBF
- 1267.7K hrs min. Telcordia SR-332(Bellcore) ; 167.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 63*125.2*125mm (W*H*D)
- PACKING
- 1.18Kg ; 8pcs/11.2Kg/1.28CUFT
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 400Vac input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Dual phase operation is allowed under certain derating to output load. Please refer to derating curves for details.
- 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 7. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 8. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
- 9. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- Industrial control system
- Semiconductor fabrication equipment
- Factory automation
- Electro-mechanical apparatus
Downloads
Datasheet1
FAQ
What is the Mean Well XTR-480-36PI used for?
The XTR-480-36PI is a 480W DIN rail AC-DC power supply designed for industrial power applications. Its 36V output and 13.3A rated current make it suitable for equipment that requires a regulated 36V DC supply in demanding environments.
What output does the XTR-480-36PI provide?
This model provides a 36V DC output with a rated current of 13.3A. Its total power rating is 478.8W, which makes it part of Mean Well's higher-power DIN rail power supply range.
Does the XTR-480-36PI support wide input voltage?
Yes. The product description specifies a three-phase 320 to 600Vac wide input range, with dual phase operation possible. This makes it suitable for industrial systems where wide AC input compatibility is required.
Can the XTR-480-36PI be used in harsh temperature environments?
The XTR-480-36PI is rated for operation from -40°C to 85°C. That wide temperature range supports use in demanding industrial environments where ambient conditions can vary significantly.
How does the XTR-480-36PI differ from lower-power DIN rail power supplies?
The main difference is its 480W power rating and 36V, 13.3A output. It is intended for applications that need more available DC power than smaller DIN rail models can provide.
What warranty is included with the XTR-480-36PI?
The XTR-480-36PI has a 5-year warranty period. This supports its positioning as an industrial power supply intended for reliable long-term operation.
