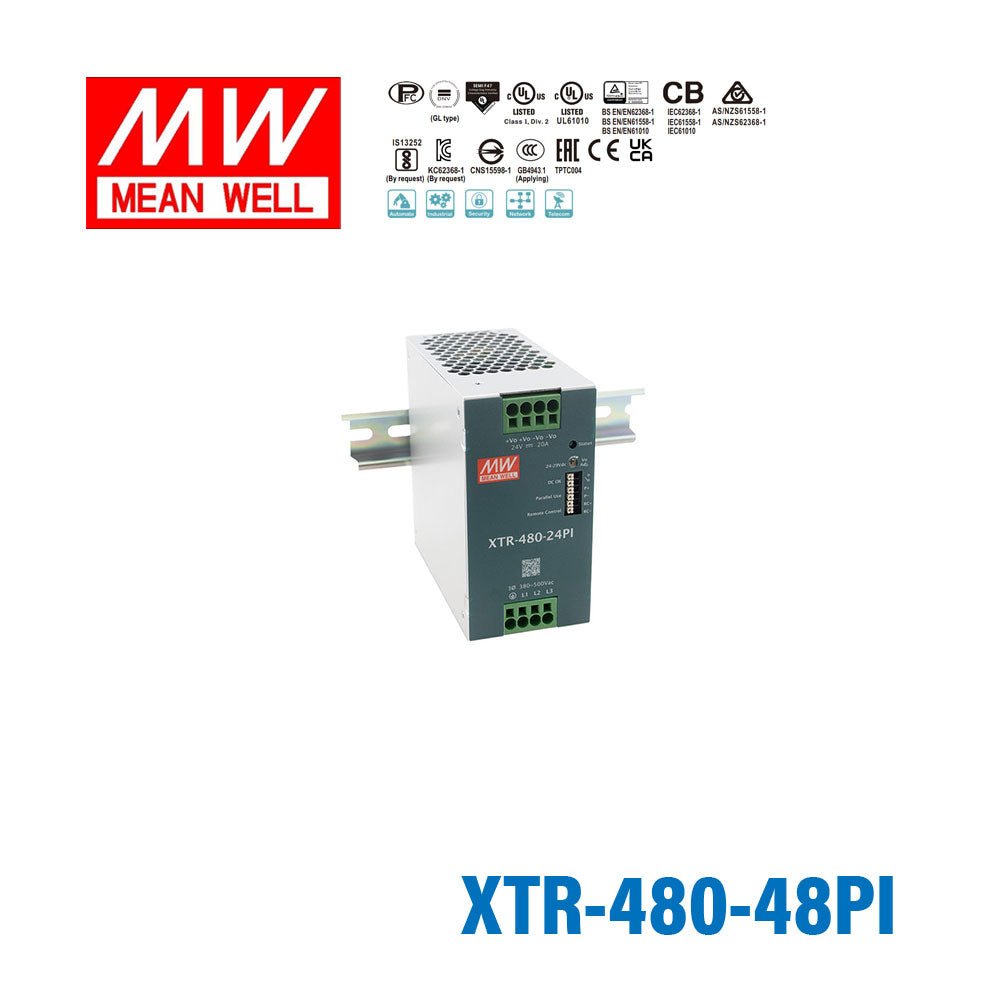

Mean Well XTR-480-48PI Three Phase Din Rail Power Supply 480W 48V - Push In
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-480-48PI Three Phase Din Rail Power Supply 480W 48V -...
Description
Description
TheXTR-480series offers 480W of power in an ultra-slim design, making it suitable for a range of industrial applications. It features advanced protection mechanisms and remote control capabilities, which enhance its reliability and operational flexibility. This model is perfect for demanding environments requiring efficient power delivery and robust performance.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating480 Watt
-
Output Voltage48 Volt
-
Rated Current10 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length4.92 in
-
Width2.48 in
-
Height4.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output power of the Mean Well XTR-480-48PI?
The XTR-480-48PI is rated for 480W of output power. It provides 48V DC output at 10A, making it suitable for industrial systems that need a higher-power DIN rail power supply.
Is the XTR-480-48PI suitable for three-phase AC input?
Yes, this model is designed for three-phase AC input. Its specified input range is 320 to 600Vac, and the product description also notes that dual phase operation is possible.
What applications is the XTR-480-48PI commonly used for?
The XTR-480-48PI is intended for industrial applications that require efficient and reliable 48V DC power. Its 480W rating, DIN rail form factor, and wide AC input range make it a good fit for demanding control and automation environments.
What operating temperature range does the XTR-480-48PI support?
This model is rated for operation from -40°C to 85°C. That wide temperature range supports use in demanding industrial environments where ambient conditions can vary significantly.
How much current can the XTR-480-48PI provide at 48V?
The XTR-480-48PI provides a rated output current of 10A at 48V DC. This corresponds to its 480W power rating.
How does the XTR-480-48PI differ from lower-power DIN rail power supplies?
The main distinction is its 480W output rating, which supports higher-power 48V DC loads than smaller DIN rail supplies. It also has a wide three-phase 320 to 600Vac input range and is described as an ultra-slim industrial design.
What warranty period applies to the XTR-480-48PI?
The XTR-480-48PI has a 5-year warranty period. This is useful for buyers planning long-term industrial power supply deployments.
