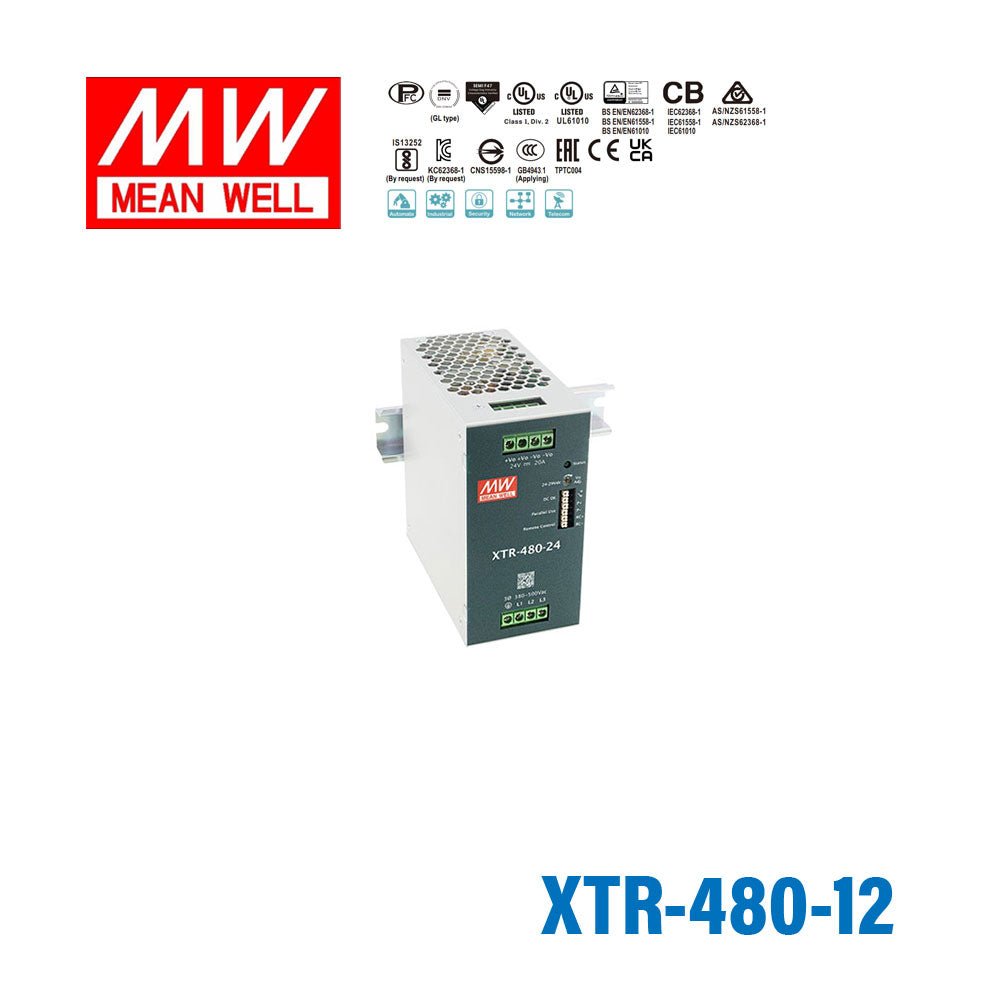

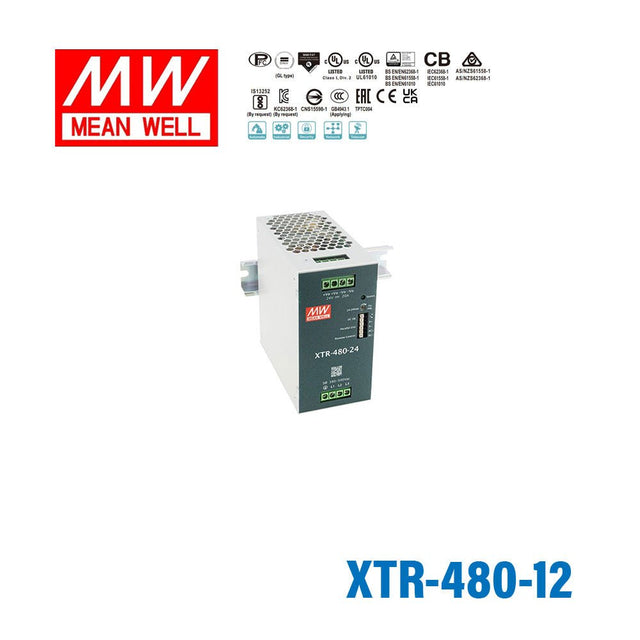

Mean Well XTR-480-12 Three Phase Din Rail Power Supply 360W 12V - Screw Terminal
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-480-12 Three Phase Din Rail Power Supply 360W 12V - S...
Description
Description
TheXTR-480series offers 480W of power in an ultra-slim design, making it suitable for a range of industrial applications. It features advanced protection mechanisms and remote control capabilities, which enhance its reliability and operational flexibility. This model is perfect for demanding environments requiring efficient power delivery and robust performance.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current30 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length4.92 in
-
Width2.48 in
-
Height4.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XTR-480-12 used for?
The XTR-480-12 is intended for industrial power applications that need a 12V DC output from an AC input source. Its DIN rail format, high power rating, and wide input range make it suitable for control cabinets, automation equipment, and other industrial systems.
What are the output specifications of the XTR-480-12?
This model provides a 12V DC output with a rated current of 30A. Its listed power rating is 480W, while the product name also references 360W, so buyers should confirm the required operating rating against their application requirements.
Does the XTR-480-12 support three-phase input?
Yes. The XTR-480-12 is described as supporting a three-phase 320 to 600Vac wide input range. The product description also notes that dual-phase operation is possible.
Is the XTR-480-12 suitable for harsh environments?
The XTR-480-12 is rated for an operating temperature range from -40°C to 85°C. That wide temperature range makes it appropriate for demanding industrial environments where equipment may be exposed to significant heat or cold.
How does the XTR-480-12 differ from simpler DIN rail power supplies?
This model is positioned for higher-demand industrial applications, with a wide three-phase AC input range and a 12V, 30A DC output. The description also highlights advanced protection mechanisms and remote control capabilities, which may be useful where reliability and operational flexibility are important.
What warranty period does the XTR-480-12 include?
The XTR-480-12 has a listed warranty period of 5 years. That longer warranty period can be an important purchasing factor for industrial buyers planning equipment with a long service life.
How much does the XTR-480-12 weigh?
The XTR-480-12 has a listed weight of 1.3 kg. This can help buyers account for enclosure layout, shipping weight, and equipment documentation requirements.
