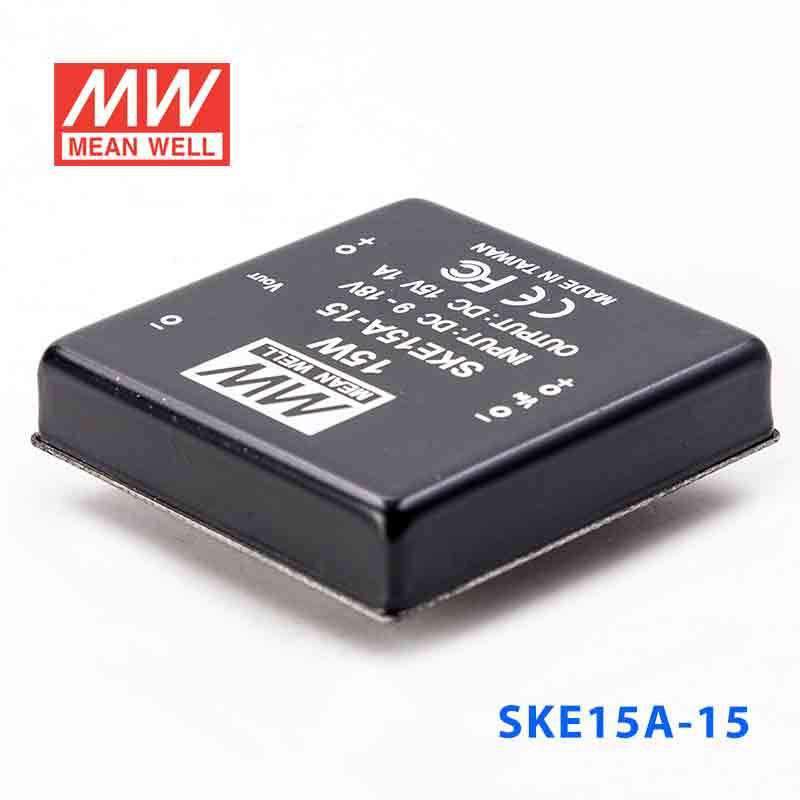

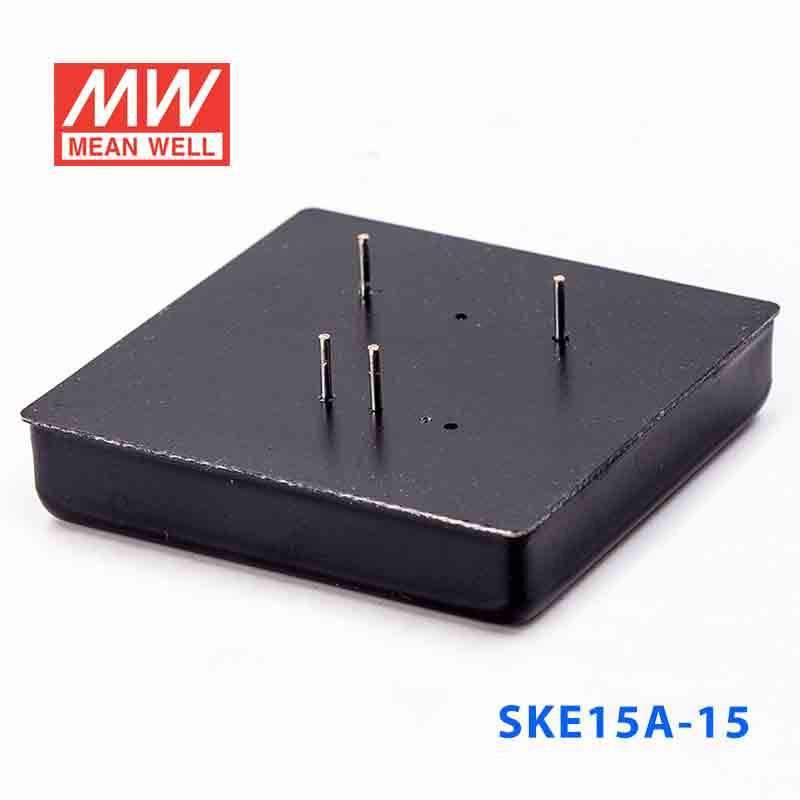

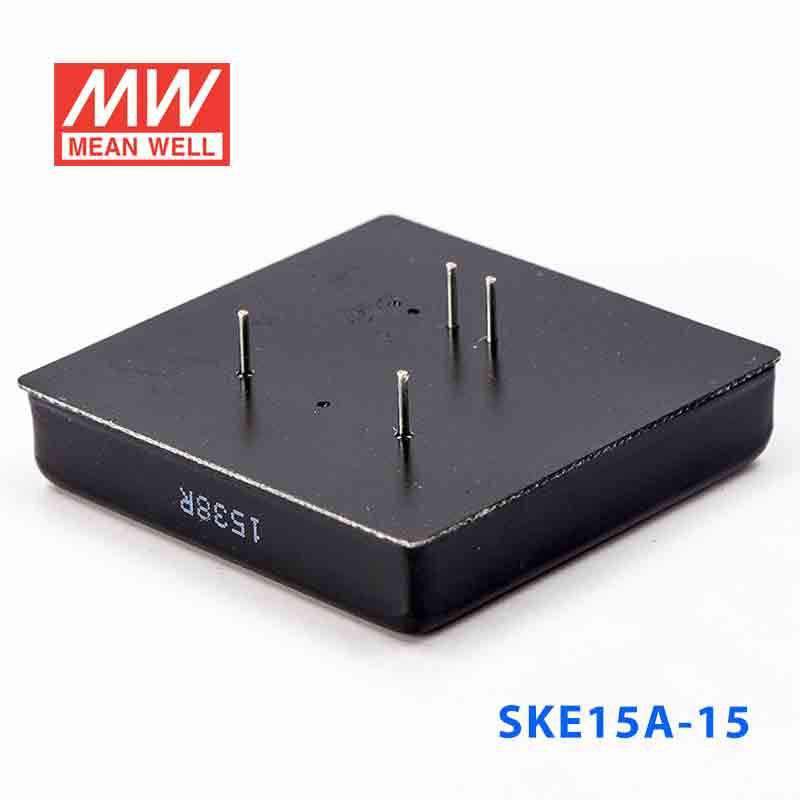

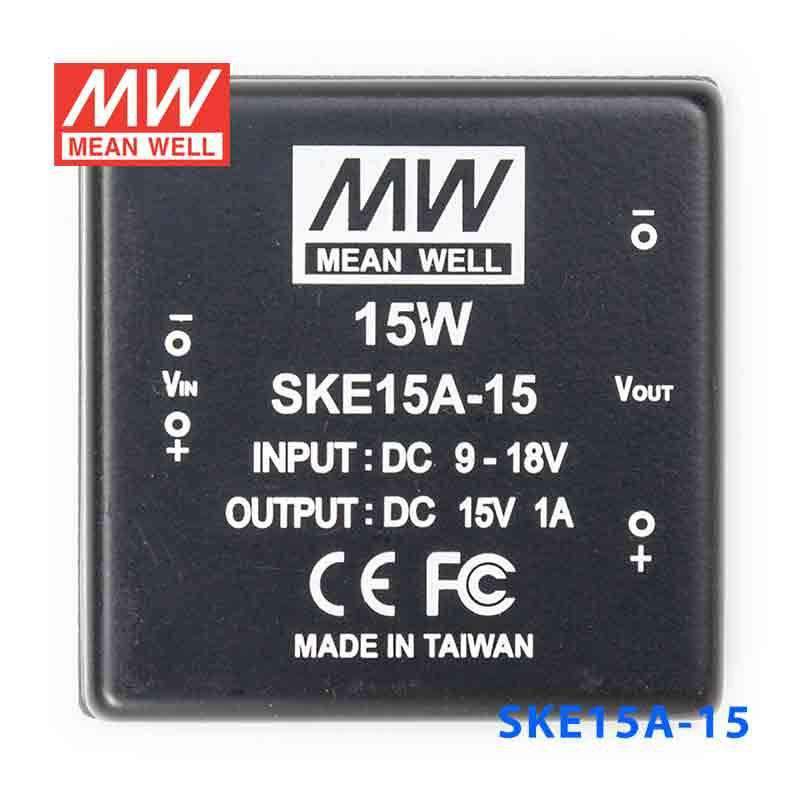

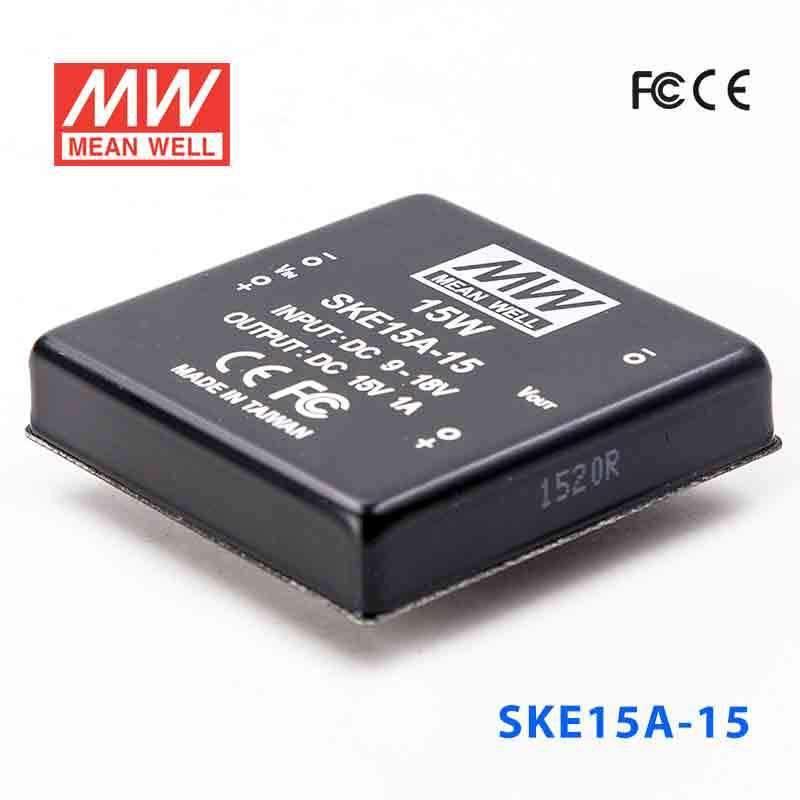

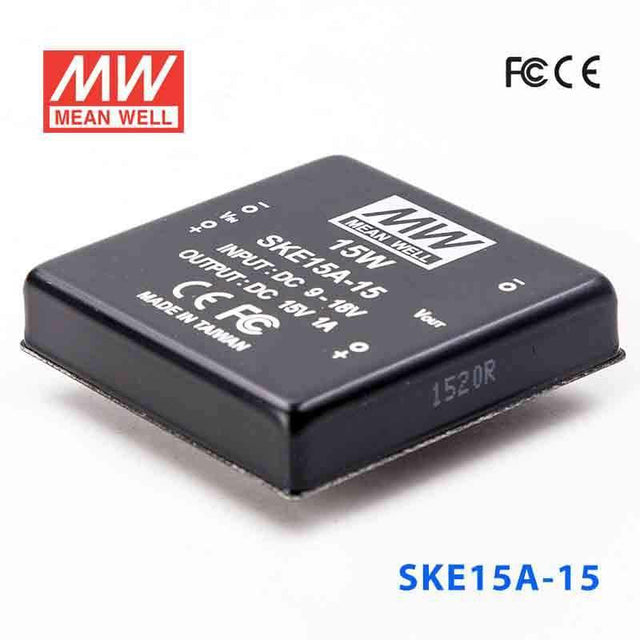

Mean Well SKE15A-15 DC-DC Converter - 15W - 9~18V in 15V out
The SKE15A is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the SKE15A-15 for 15V analog or control circuits in industrial equipment?
Yes, it is intended for equipment with a 9~18V input that needs a regulated 15V constant-voltage output. Its 15W rating and 1A output current make it better suited to modest 15V control and analog loads than to larger 15V power demands.
Is the SKE15A-15 a fit for embedded boards that require a dedicated 15V auxiliary rail?
It can be used in embedded or automation designs where the available source is 9~18V and the board requires 15V output. The converter stays within a 15W envelope, so it is most appropriate for low-power auxiliary functions.
Can this converter be used in instrumentation or signal-conditioning hardware that operates at 15V?
It is suitable when the application needs constant 15V output from a 9~18V input source. The 50.8 × 50.8 × 11.0 mm form factor also helps in compact control cabinets and embedded assemblies.
What separates the SKE15A-15 from the other models in the same series?
The series shares a 15W rating and a 9~18V input range, while the output choices vary by model. SKE15A-05 is 5V at 3A, SKE15A-12 is 12V at 1.25A, SKE15A-15 is 15V at 1A, and SKE15A-24 is 24V at 625A.
Can the SKE15A-15 be used in outdoor cabinets or exposed industrial locations?
Its operating temperature range is specified as -25°C to +71°C, which supports use across a wide thermal range. Since no IP rating is provided in the specifications, it should be installed in a protected enclosure rather than in direct outdoor exposure.
