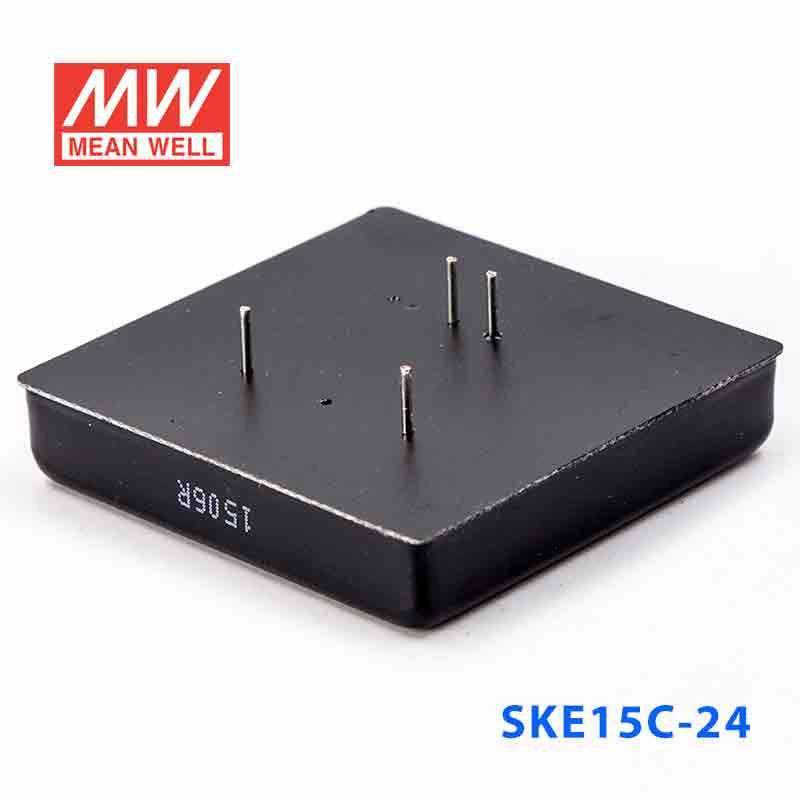

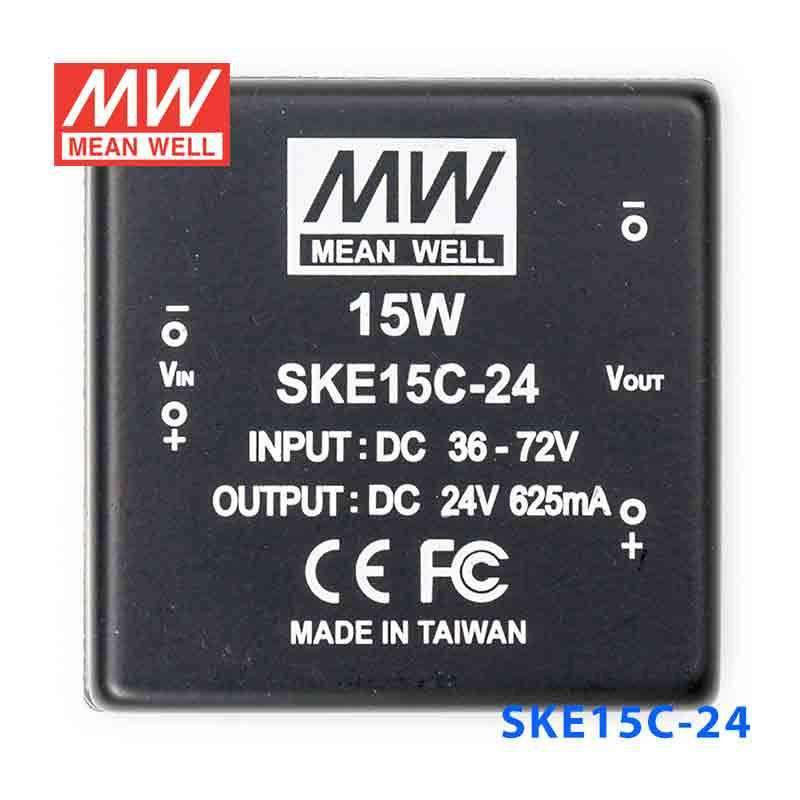

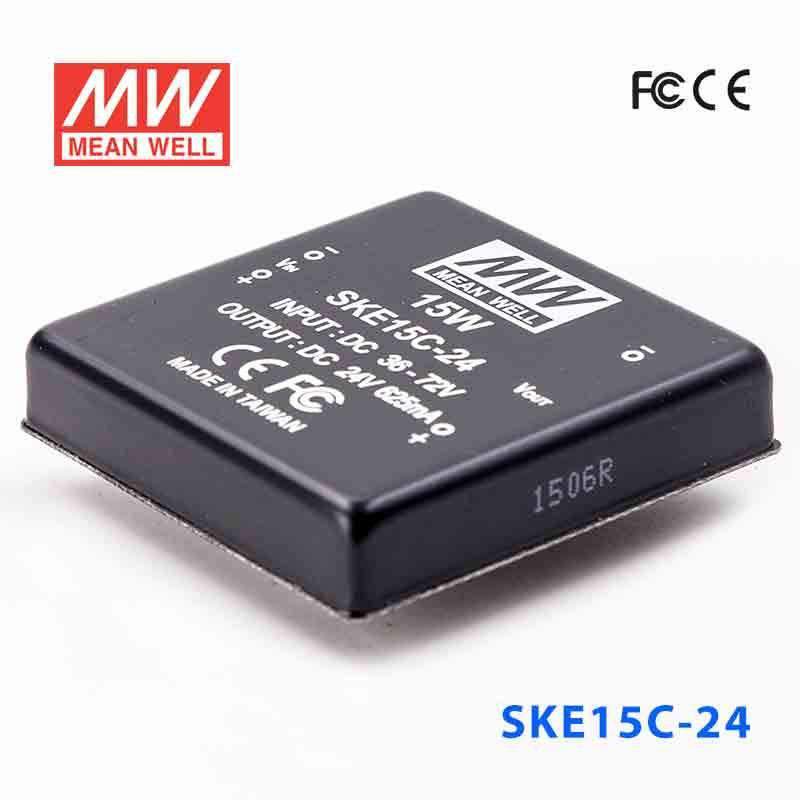

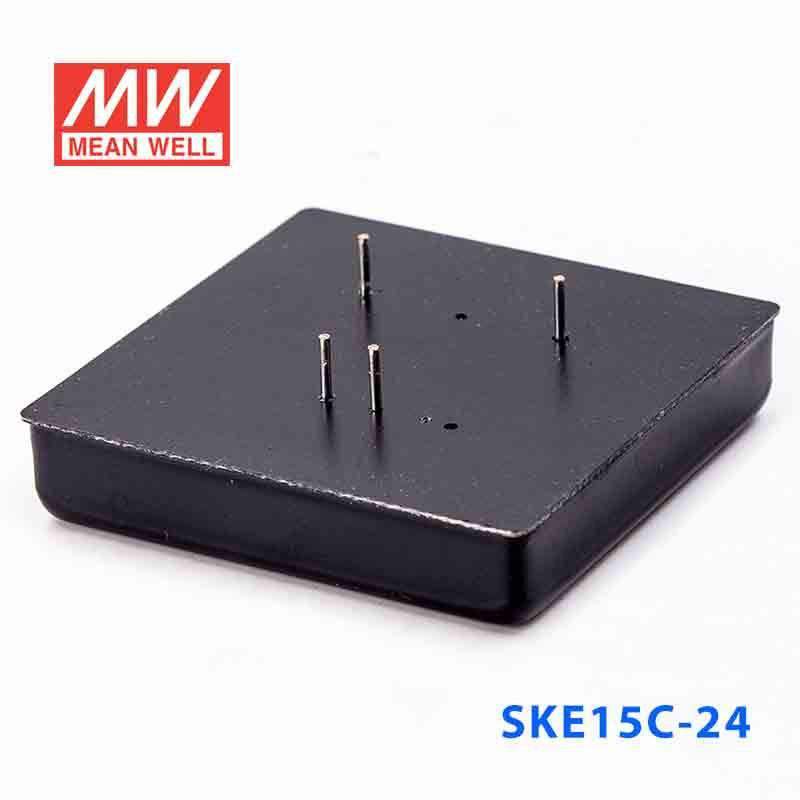

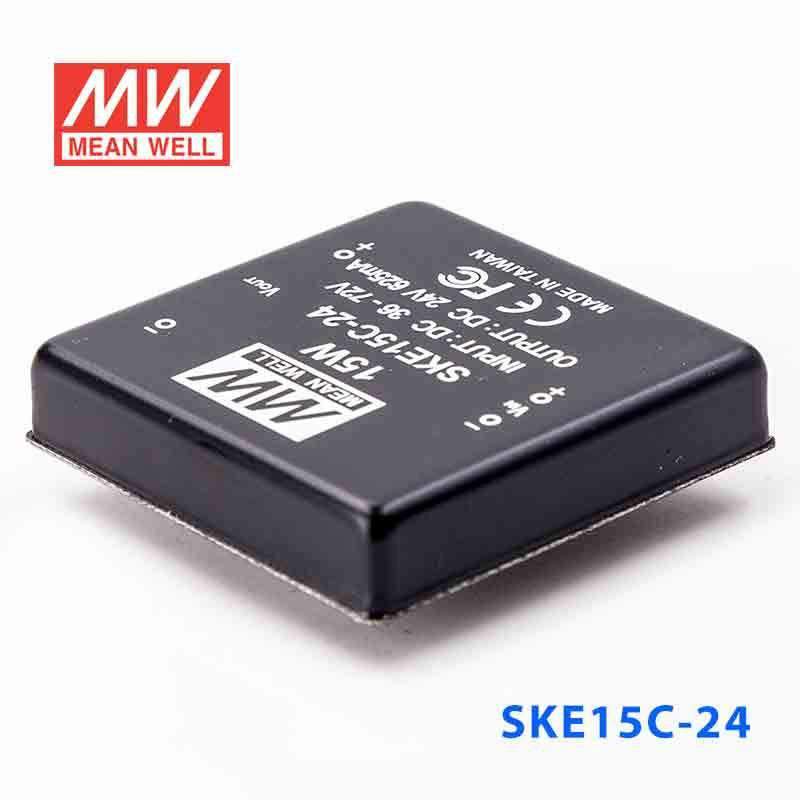

Mean Well SKE15C-24 DC-DC Converter - 15W - 36~72V in 24V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.3% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 2 "x 2" x 0.43 " |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE15C-24 for 24V control devices in industrial equipment?
This model is designed for constant-voltage 24V output with a 15W rating. It fits applications where the equipment accepts the listed 36-72VAC input range and the 24V load matches the stated output specification of 625A.
Is the SKE15C-24 suitable for embedded or automation systems that need a regulated 24V rail?
Yes, it is intended for systems that require 24V constant voltage rather than variable output. The converter is rated at 15W and comes in a 50.8 × 50.8 × 11.0 mm form factor for enclosed equipment designs.
Can this converter be used for low-power 24V monitoring or interface hardware?
It can be considered for 24V hardware when the required output stays within the listed 15W rating and the specified 625A output value. Because it is a constant-voltage converter, it is better matched to regulated 24V loads than to applications needing a different output mode.
Is the SKE15C-24 appropriate for outdoor installations or exposed environments?
The temperature specification is -25°C to +71°C, so the operating range is defined for demanding equipment conditions. No IP rating is shown in the provided specs, so the product data does not establish outdoor or water-exposed suitability.
How does the SKE15C-24 differ from the other SKE15C converters?
All listed SKE15C models share 15W power, 36-72VAC input, constant-voltage operation, 50.8 × 50.8 × 11.0 mm dimensions, 0.065 kg weight, and -25°C to +71°C operating temperature. The output variants are 5V at 3A, 12V at 1.25A, 15V at 1A, and 24V at 625A for this SKE15C-24 version.
