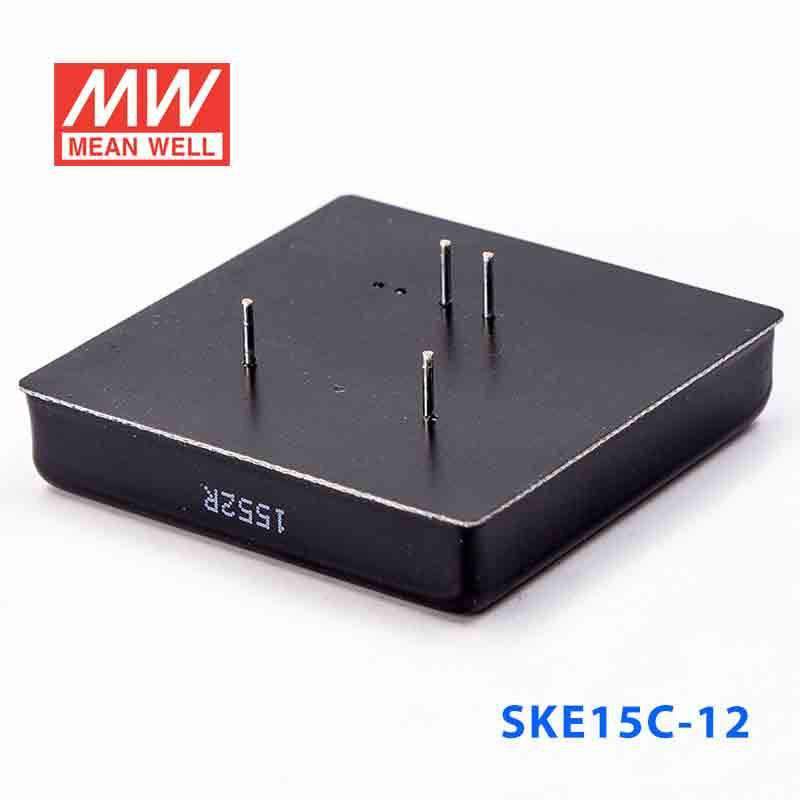

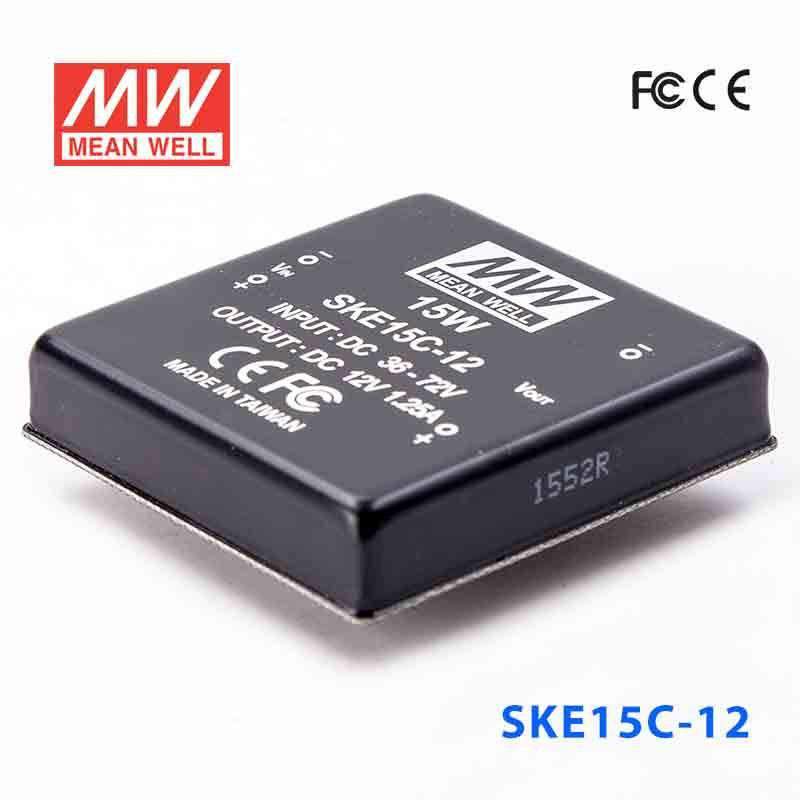

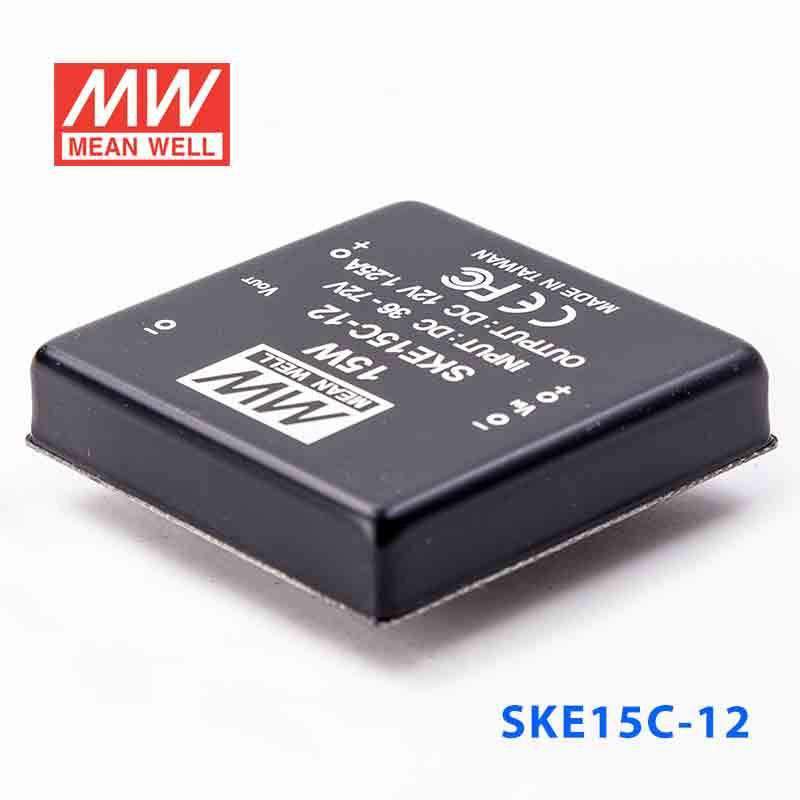

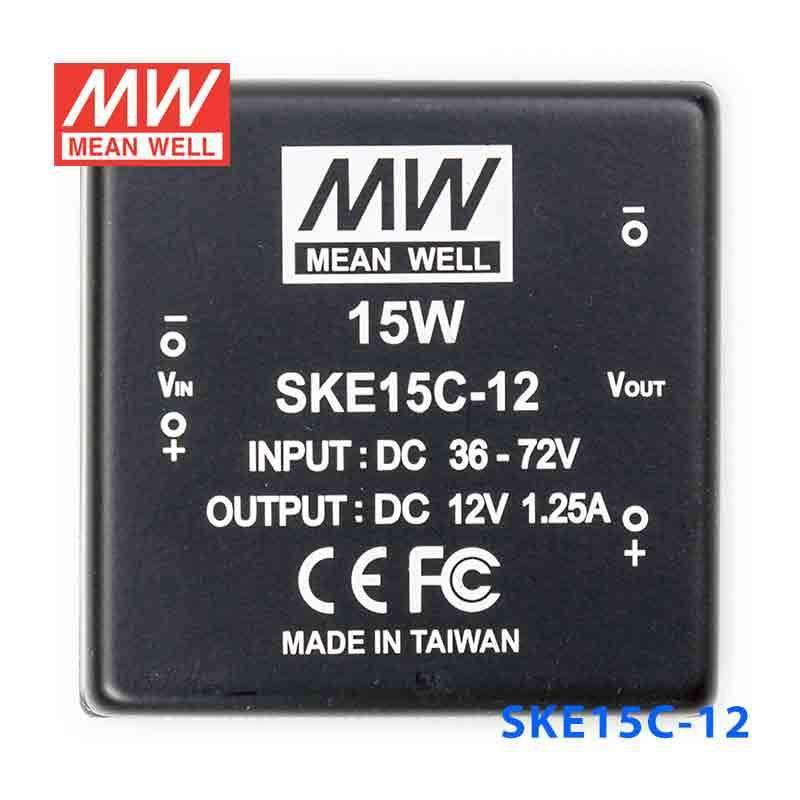

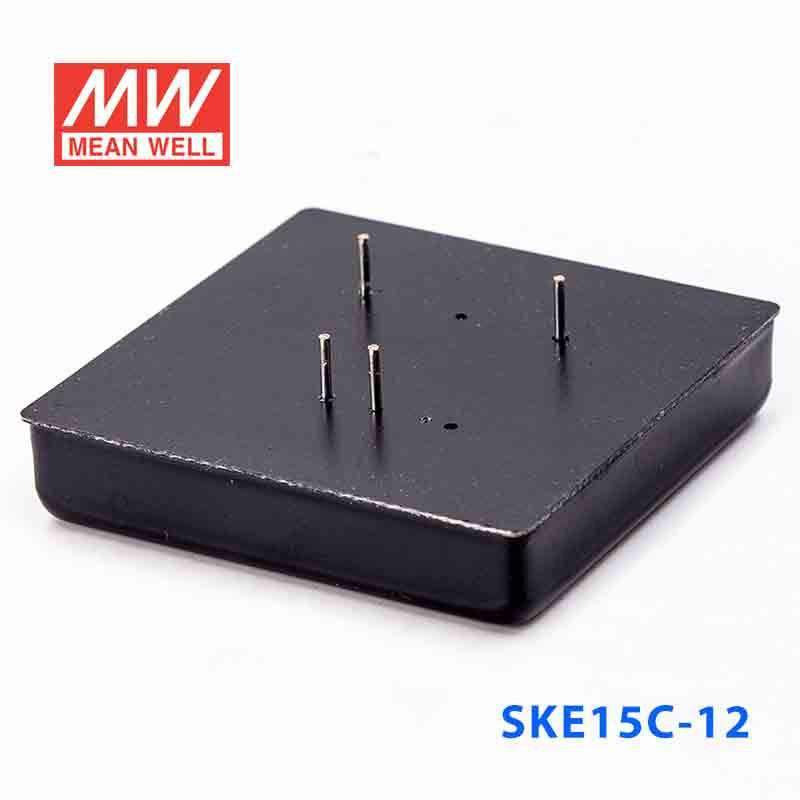

Mean Well SKE15C-12 DC-DC Converter - 15W - 36~72V in 12V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.3% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 2 "x 2" x 0.43 " |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE15C-12 to power 12V industrial control electronics from a higher-voltage source?
Yes, this model is a constant-voltage DC-DC converter with a 12V output rated for 1.25A and 15W. It is intended for equipment that can accept the listed 36-72VAC input range and needs a regulated 12V supply.
Is the SKE15C-12 suitable for embedded 12V devices inside automation equipment?
It can fit embedded and automation use where the load requires 12V constant voltage and stays within 1.25A or 15W. The compact 50.8 × 50.8 × 11.0 mm size also helps when space is limited inside equipment housings.
Can this converter be used for 12V relays, sensors, or small control accessories?
It is appropriate for 12V accessories that need constant voltage and do not exceed the 1.25A output current or 15W power rating. That makes it a better fit for lower-power control loads than for larger 12V equipment.
Is the SKE15C-12 okay for outdoor or harsh-environment use?
The operating temperature is listed as -25°C to +71°C, so temperature tolerance is defined for a fairly broad industrial range. No IP rating is provided in the listed specs, so outdoor exposure or washdown suitability is not established by this product data.
How does the SKE15C-12 compare with the other SKE15C models?
All SKE15C versions listed here are 15W constant-voltage converters with 36-72VAC input, 50.8 × 50.8 × 11.0 mm dimensions, 0.065 kg weight, and -25°C to +71°C operating temperature. The output options are SKE15C-05 at 5V and 3A, SKE15C-12 at 12V and 1.25A, SKE15C-15 at 15V and 1A, and SKE15C-24 at 24V and 625A.
