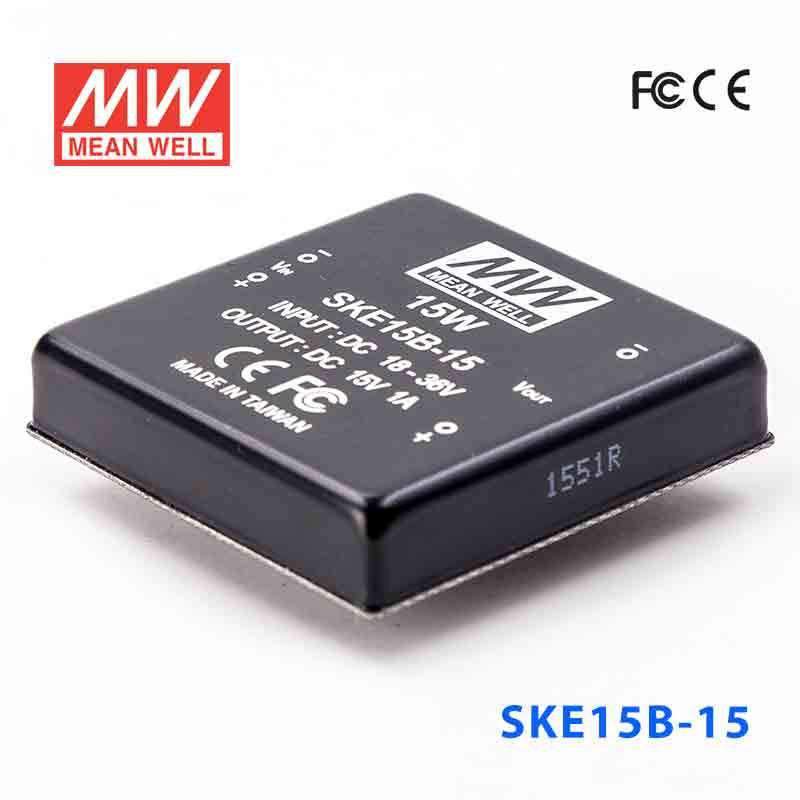

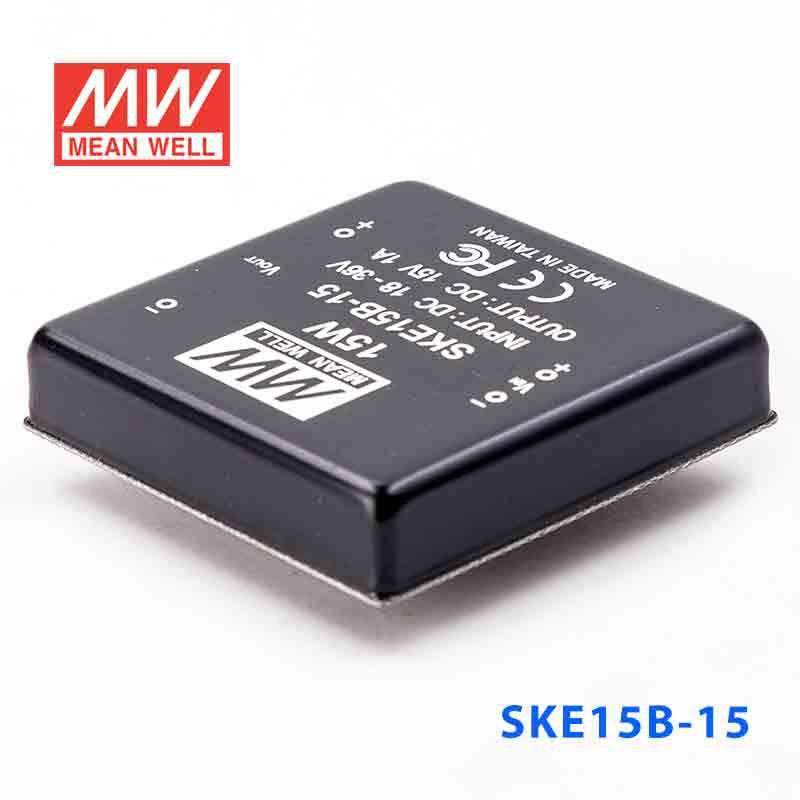

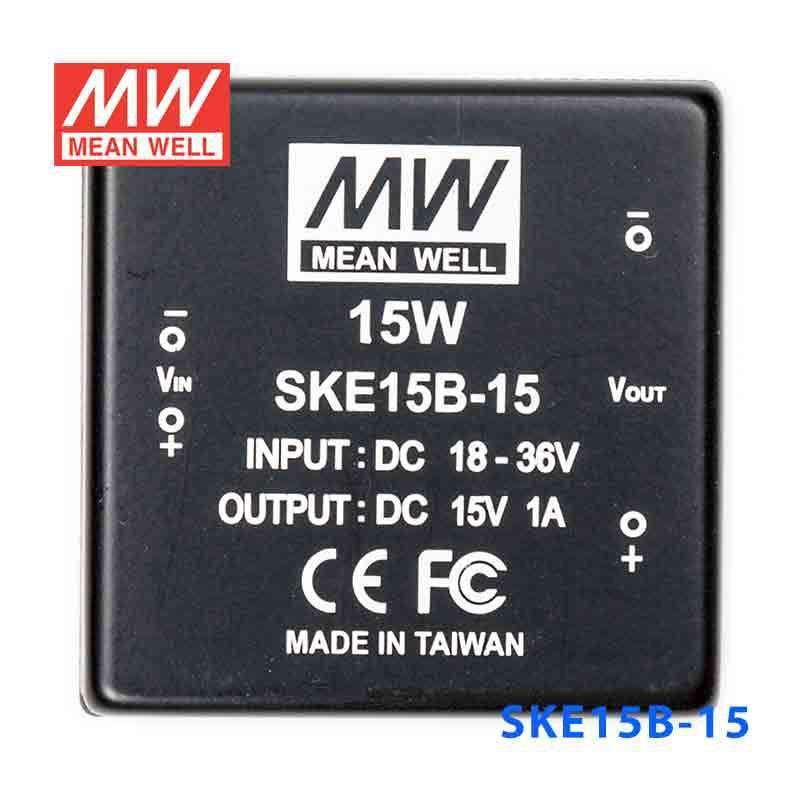

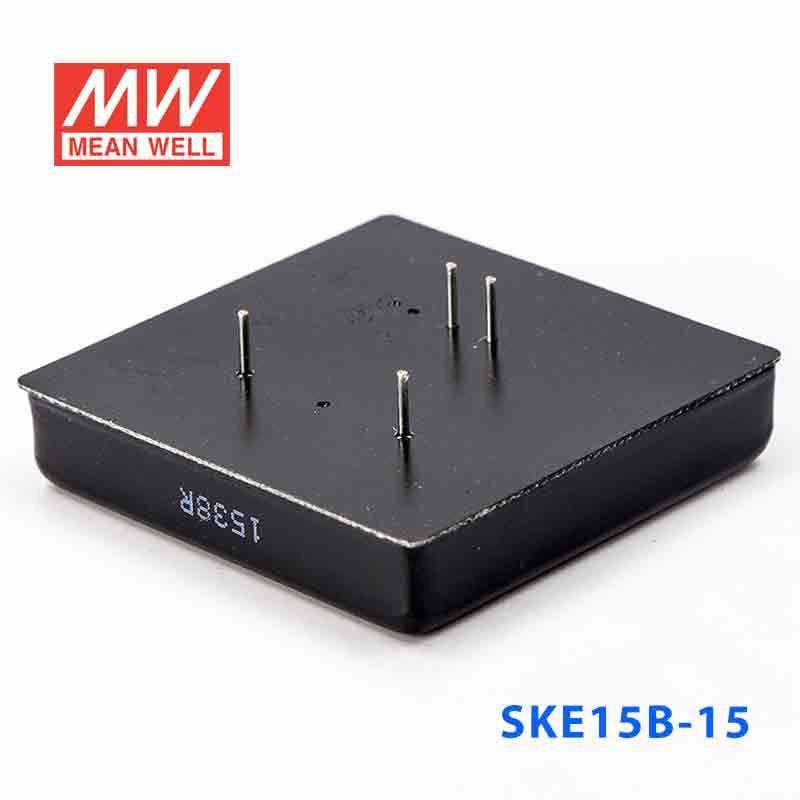

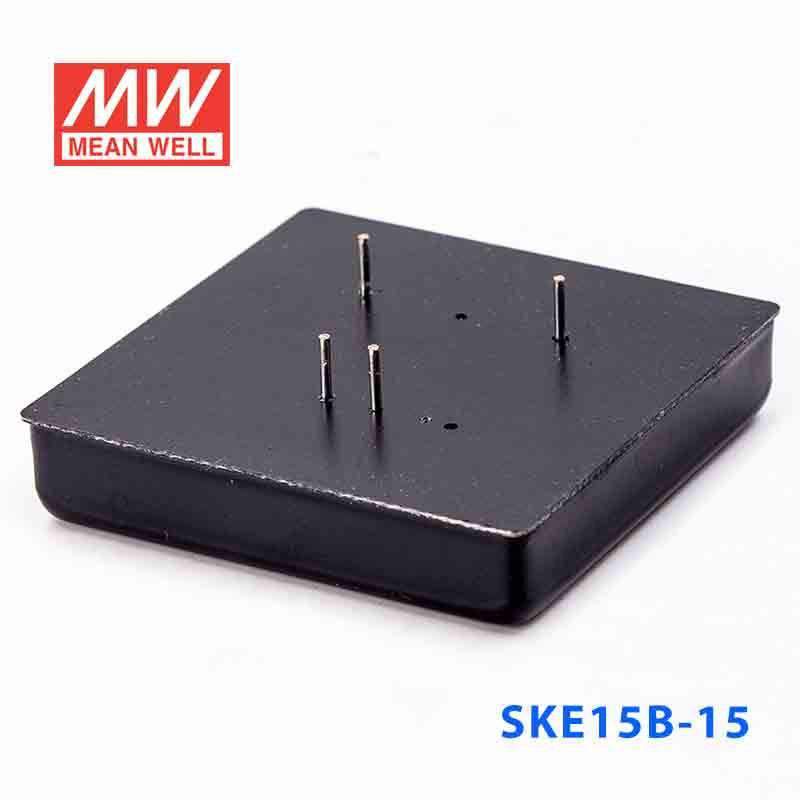

Mean Well SKE15B-15 DC-DC Converter - 15W - 18~36V in 15V out
The SKE15B is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the SKE15B-15 for 15V analog or instrumentation circuits in industrial equipment?
Yes. This model provides a constant 15V output at up to 1A with 15W total power, and it accepts 18-36VAC input. That makes it suitable for 15V instrumentation, signal-conditioning, or analog support circuits that need regulated voltage within those limits.
Is the SKE15B-15 suitable for 15V control boards or embedded electronics in OEM systems?
It can be a fit for 15V control boards and embedded electronics when the load stays within 1A and 15W. The constant-voltage output is intended for electronics designed around a regulated 15V rail.
Can this converter be used for industrial test or measurement modules that require 15V DC?
Yes, if the module is designed for 15V constant-voltage input and does not exceed 1A or 15W. Its 18-36VAC input range can also align with equipment that already distributes that AC range internally.
Does the SKE15B-15 make sense for space-constrained control enclosures?
It is a compact option at 50.8 × 50.8 × 11.0 mm and 0.065 kg. That size can be useful in dense industrial assemblies where a regulated 15V supply is needed without taking much board or enclosure space.
What are the output differences across the SKE15B series?
All of these versions are 15W units with 18-36VAC input, the same physical size, and the same -25°C to +71°C operating range. The outputs differ by model: 5V at 3A, 12V at 1.25A, 15V at 1A, and 24V at 625A.
Can the SKE15B-15 operate in demanding indoor temperature conditions?
It is rated for operation from -25°C to +71°C. That supports use in a wide range of indoor industrial environments as long as the installation stays within that published temperature window.
