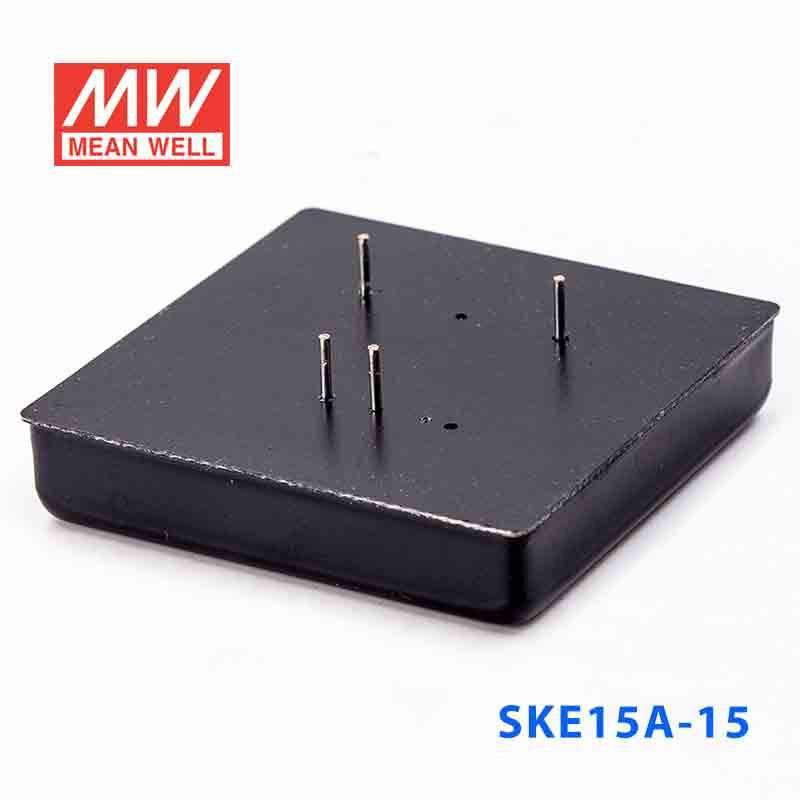

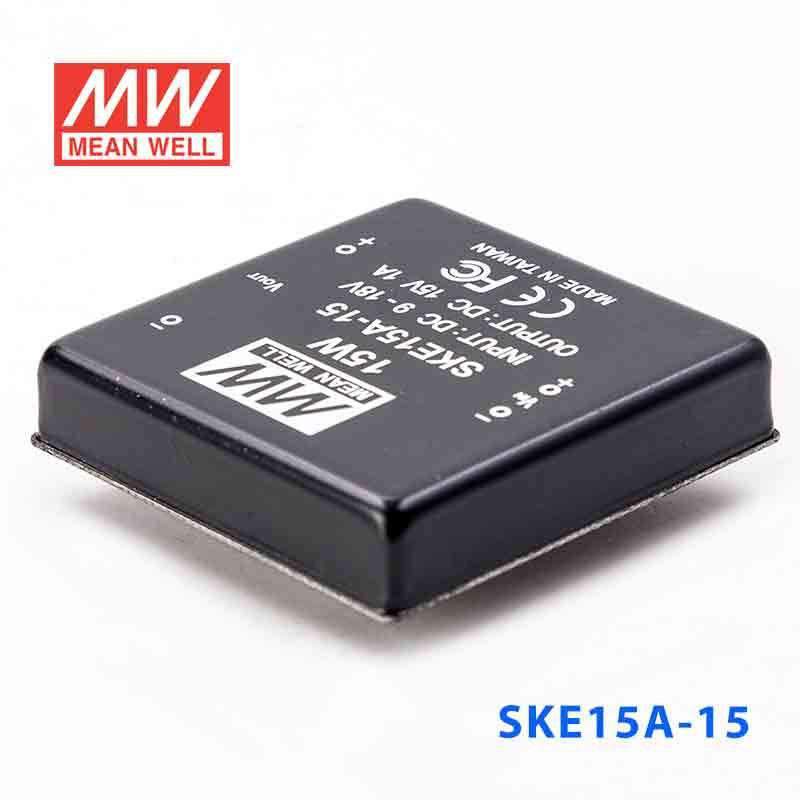

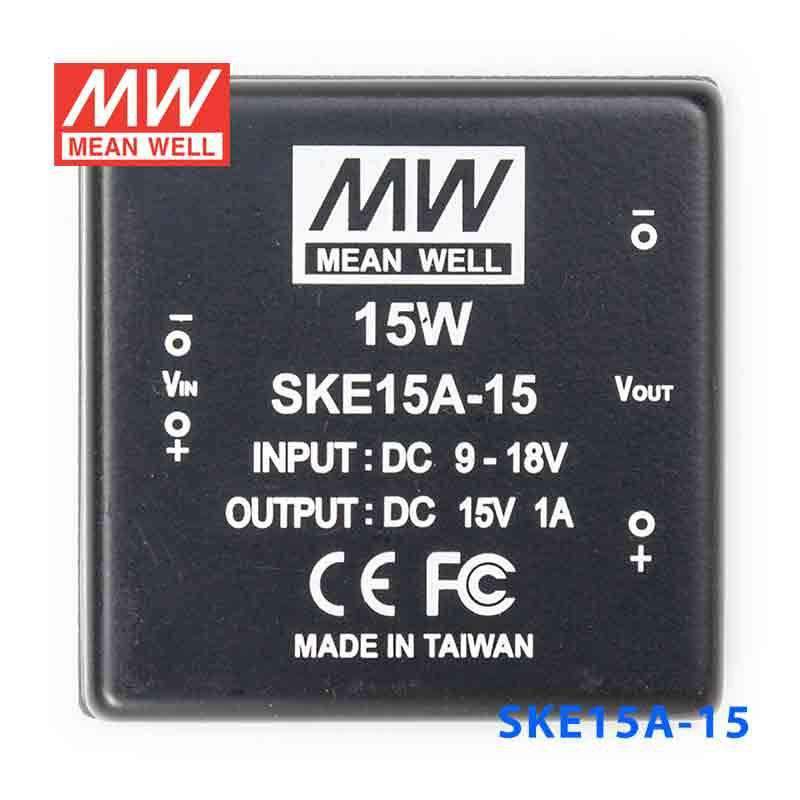

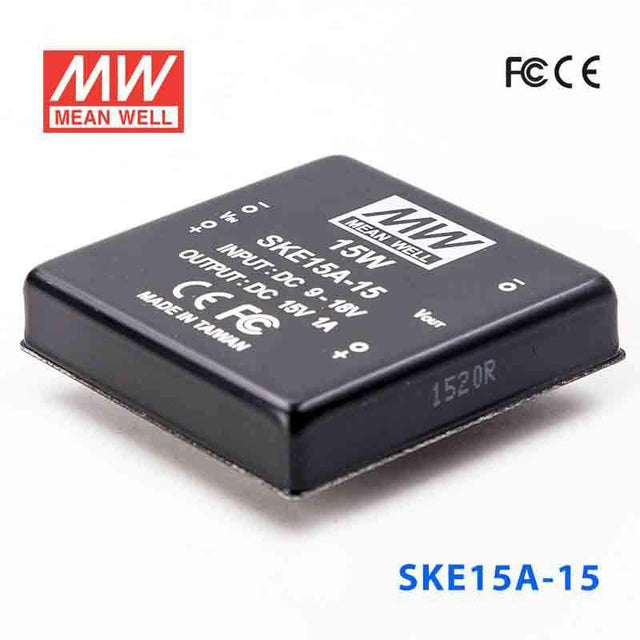

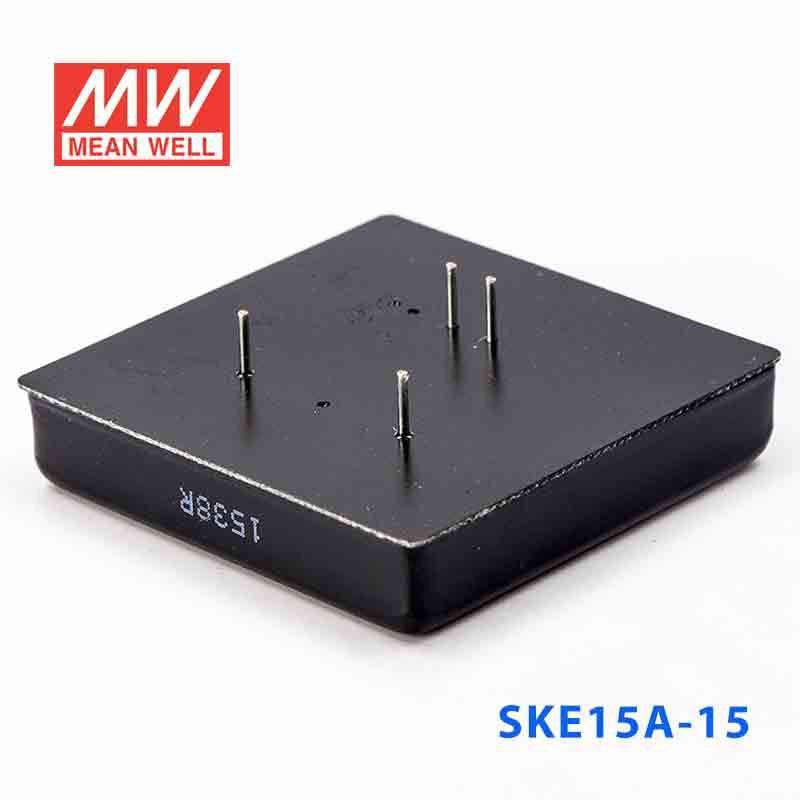

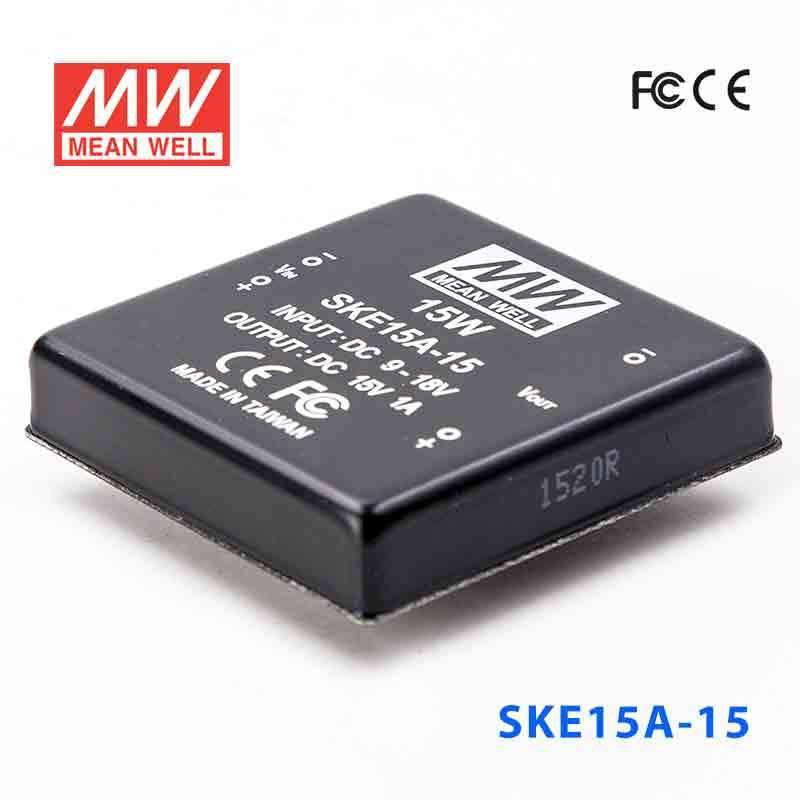

Mean Well SKE15A-15 DC-DC Converter - 15W - 9~18V in 15V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.3% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / °C (max.) |
| Dimension (LxWxH) (mm) | 2"x 2" x 0.43" |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE15A-15 for 15V analog or control circuits in industrial equipment?
Yes, it is intended for equipment with a 9~18V input that needs a regulated 15V constant-voltage output. Its 15W rating and 1A output current make it better suited to modest 15V control and analog loads than to larger 15V power demands.
Is the SKE15A-15 a fit for embedded boards that require a dedicated 15V auxiliary rail?
It can be used in embedded or automation designs where the available source is 9~18V and the board requires 15V output. The converter stays within a 15W envelope, so it is most appropriate for low-power auxiliary functions.
Can this converter be used in instrumentation or signal-conditioning hardware that operates at 15V?
It is suitable when the application needs constant 15V output from a 9~18V input source. The 50.8 × 50.8 × 11.0 mm form factor also helps in compact control cabinets and embedded assemblies.
What separates the SKE15A-15 from the other models in the same series?
The series shares a 15W rating and a 9~18V input range, while the output choices vary by model. SKE15A-05 is 5V at 3A, SKE15A-12 is 12V at 1.25A, SKE15A-15 is 15V at 1A, and SKE15A-24 is 24V at 625A.
Can the SKE15A-15 be used in outdoor cabinets or exposed industrial locations?
Its operating temperature range is specified as -25°C to +71°C, which supports use across a wide thermal range. Since no IP rating is provided in the specifications, it should be installed in a protected enclosure rather than in direct outdoor exposure.
